Transovarial Transmission of a Plant Virus Is Mediated by Vitellogenin of Its Insect Vector
Numerous parasites including viruses, bacteria, and microsporidia can be maternally transmitted, with the parasite passing from mother to offspring, usually through eggs. However, the process of the parasites spreading into eggs from primarily infected tissues and the factors that mediate this process in live hosts or vectors are unknown due to the lack of useful tools. Here, we used several techniques to investigate the molecular mechanisms of transovarial transmission of Rice stripe virus (RSV), a plant virus belonging to the genus Tenuivirus, by its insect vector (Laodelphax striatellus). We found that the nucleocapsid protein of RSV bound to insect's vitellogenin (Vg) in vitro and in vivo. We also found that RSV invaded the egg tubes of the ovariole until Vg is highly expressed, then colocalized with Vg in the germarium. When Vg expression was knocked down due to RNA interference, the invasion of ovarioles by RSV decreased largely. Our study provides new insights into the transovarial transmission of an important viral pathogen that uses existing transovarial transportation systems in insect vectors to invade eggs.
Published in the journal:
. PLoS Pathog 10(3): e32767. doi:10.1371/journal.ppat.1003949
Category:
Research Article
doi:
https://doi.org/10.1371/journal.ppat.1003949
Summary
Numerous parasites including viruses, bacteria, and microsporidia can be maternally transmitted, with the parasite passing from mother to offspring, usually through eggs. However, the process of the parasites spreading into eggs from primarily infected tissues and the factors that mediate this process in live hosts or vectors are unknown due to the lack of useful tools. Here, we used several techniques to investigate the molecular mechanisms of transovarial transmission of Rice stripe virus (RSV), a plant virus belonging to the genus Tenuivirus, by its insect vector (Laodelphax striatellus). We found that the nucleocapsid protein of RSV bound to insect's vitellogenin (Vg) in vitro and in vivo. We also found that RSV invaded the egg tubes of the ovariole until Vg is highly expressed, then colocalized with Vg in the germarium. When Vg expression was knocked down due to RNA interference, the invasion of ovarioles by RSV decreased largely. Our study provides new insights into the transovarial transmission of an important viral pathogen that uses existing transovarial transportation systems in insect vectors to invade eggs.
Introduction
Many viruses, especially plant viruses, are transmitted by insects. Viruses can be transmitted horizontally from individual to individual and vertically from parents to offspring [1]. More than 200 plant viruses are transmitted by specific arthropod vectors; some are retained for a few hours or days after acquisition and others for up to the life of the insect, i.e., in a persistent circulative or persistent-propagative manner [2]. Plant viruses such as tospoviruses, rhabdoviruses, marafiviruses, tenuiviruses, and reoviruses are transmitted by their respective insect vectors in a persistent-propagative manner [1]. The persistent-propagative viruses can replicate in different organs of insect vectors, and some of these viruses can be transmitted vertically from female parent to offspring in a transovarial manner. The transmission process is a critical step for every virus because it controls dispersal in space and time, thus directly influencing virus ecology and disease epidemiology.
During the general transmission process of persistent-propagative viruses, virions first accumulate in the midgut lumen of the insect and then pass through the midgut wall to disperse into the hemolymph or nervous tissues, then into the salivary gland from where the viruses can be introduced back into the host plant during insect feeding [2]–[5]. Furthermore, some viruses, including plant rhabdoviruses, tenuiviruses, and plant reoviruses, can spread into the ovary from where the virions can be transmitted to the offspring for many generations [6]–[8]. For example, Rice stripe virus (RSV), a Tenuivirus, can be transmitted transovarially to the progeny of planthopper vectors for 40 generations. Rice dwarf virus (RDV), a Phytoreovirus, has been demonstrated to be transmitted transovarially in Nephotettix cincticeps and maintained through generations of progeny for 6 years [9].
In addition to viruses, other microbes including bacteria, microsporidia and fungi can be maternally transmitted by arthropods [10]. These microbes have evolved many strategies to spread through host populations. Maternal transmission of endoparasitic microbes in an insect host is possibly related to vitellogenin (Vg), a female-specific protein synthesized mainly by the fat body and secreted into hemolymph, from where it is absorbed by the growing oocytes via receptor-mediated endocytosis [11], [12]. Transovarially transmitted yeast-like symbionts (YLSs) in brown planthoppers are wrapped in Vg outside the ovary [13]. Moreover, the ZAM virus in Drosophila melanogaster and the Babesia parasite in Haemaphysaalis longicornis are dependent on the Vg receptor when transmitted into the oocyte [14]–[16]. However, the mechanism by which plant viruses spread into the insect ovary has rarely been reported, and vector proteins that are involved in overcoming the barriers to transovarial transmission of viruses within their insect vectors have not been directly characterized or even precisely located. This question is of major importance because identification of putative components could lead to new strategies to combat vertical viral spread.
Here, we used the RSV–planthopper system as a model to investigate the mechanism of transovarial transmission of a plant virus in an insect vector. RSV is transmitted by the L. striatellus in a persistent-propagative manner and has caused serious yield losses in rice production in East Asia [17]. Laodelphax striatellus is an important agricultural pest, not only infesting cereal plants, but also as a vector of several viruses. It transmits RSV and Rice black-streaked dwarf virus in a persistent-propagative manner, but only RSV is transmitted in a transovarial manner [18]. RSV can effectively spread into the ovarioles of L. striatellus. Insect ovarioles, a functional unit of the ovary, are divided into three types according to the mode of nutritional intake of the oocyte, i.e., panoistic ovarioles, polytrophic meroistic ovarioles, and telotrophic meroistic ovarioles [19]. The ovarioles of L. striatellus are the telotrophic meroistic type, which consists of a polarized tube with a germarium, comprising a cluster of nurse cells, at its anterior end [17] (Figure 1a). All nurse cells are radially arranged around and connected to the central trophic core; oocytes are arranged on the base of the germarium previtellogenesis; and nutrients are transported from the nurse cells to the developing oocytes through nutritive cords that connect nurse cells and oocytes [20]–[23] (Figure 1b, c).
RSV has filamentous ribonucleoprotein particles (RNPs), which contain four single-stranded RNAs, and the major nucleocapsid protein (pc3) encoded by the ORF at the 5′ half of the viral complementary RNA3 [7]. Thus, pc3 is considered the key viral component for specifically interacting with the vector components and may play an important role in RSV transovarial transmission. Here, we used various technologies, yeast two-hybrid system, chemiluminescent coimmunoprecipitation, glutathione-S transferase pull-down assay, immunofluorescence laser scanning confocal microscopy (iCLSM), immunoelectron microscopy and RNA interference experiments to identify the essential role of Vg in the transovarial transmission of RSV. Our results provided evidence that the interaction of RSV pc3 and Vg of L. striatellus might be a critical step in the transovarial transmission of RSV.
Results
Isolation and characterization of the L. striatellus proteins that interact with RSV pc3
RSV pc3 was used as bait to screen the L. striatellus cDNA library by a yeast two-hybrid system, and a 375-bp DNA fragment encoding the open reading frame of Vg was isolated. Cotransformation assays confirmed that RSV pc3 interacts with Vg protein fragments in yeast (Figure S1a, b). In three independent chemiluminescent coimmunoprecipitation assays, we then confirmed the in vitro interaction between pc3 and Vg (fragment obtained from yeast two-hybrid screens) by coexpression in HEK 293FT cells (Figure S1c, d).
Based on previously published sequences of Vg mRNA fragments of L. striatellus [24], we used PCR, 5′ RACE and 3′ RACE methods to amplify and clone the full-length Vg cDNAs. Two full lengths of Vg cDNA were obtained with 6415 and 6265 bp (GenBank accessions KC469580 and KC469581, respectively). The 6415-bp cDNA has a 6135-bp open reading frame (ORF) coding for a deduced 2045-amino-acid (aa) protein; the 6265-bp cDNA revealed a 6174-bp ORF coding for a deduced 2058-aa protein. The identity between the deduced amino acid sequences of these two proteins is 98.5%, and both proteins contained Vg-specific domains: the vitellogenin N (VitN) domain, an unknown function domain (DUF), and a von Willebrand domain (vWD) [25] (Figure S2).
To pinpoint which of these Vg domains function in binding with RSV pc3, three protein fragments, VitN, DUF and vWD of Vg (GenBank accession KC469580), were tested in vitro for any interaction with RSV pc3 using a pull-down assay. The results showed that the vWD and DUF domains bound to GST-fused pc3, but none bound to GST (the negative bait control). The fragment containing the vWD domain interacted more strongly with RSV pc3 than did DUF (Figure 2).
Vg is correlated with RSV entry and spread in the insect ovariole
In an examination of the distribution of RSV RNPs in the insect ovariole using monoclonal antibodies and iCLSM, we did not observe any RSV RNPs in the ovarioles of nymphs or adults at the previtellogenic stage (Adult I) when Vg was not expressed (Figure 3a, b). RSV RNPs were first detected in the ovariole germarium of adults at the early stage of vitellogenesis (Adult II) when Vg began to be expressed, then observed not only in the germarium but also in the ooecium of adults at the vitellogenic stage (Adult III and IV), when high quantities of Vg were expressed (Figure 3a, b). After RSV RNPs have successfully invaded the germarium, they would move to the nutritive cords at Adult IV stage, which connect the germarium to oocytes (Figure 3c). We also noted that RSV invaded the ovariole from its anterior side rather than the pedicel side, suggesting that a barrier between the pedicel and ooecium prevents RSV entry directly from the pedicel into the ooecium (Figure S3a).
RSV RNPs colocalized with Vg in the germarium
To determine the functional role for Vg in the transovarial transmission of RSV by L. striatellus, we tested for colocalization of Vg and RSV RNPs again using iCLSM. Neither RSV RNP antigens nor Vg antigens were observed in the germarium ovarioles of nymph and insects at previtellogenic stage (Figures 3a and 4a). RSV antigens were only observed in the terminal filaments and pedicels of the ovarioles, as previously detected. At the early stage of vitellogenesis, RSV RNPs and Vg colocalized with each other, forming some small colocalization spots in the germarium of the ovariole (Figure 4b). With time, more colocalization spots of RSV RNPs and Vg gradually accumulated and enlarged (Figure 4c) and were finally distributed throughout the germarium of insects at vitellogenic stage (Figure 4d). However, these two proteins did not colocalize in the ooecium (Figure S3b). The location of RSV RNPs and Vg in the germarium was also detected by immunoelectron microscopy (Figure 5). In transections of the germarium of the ovariole at the vitellogenic stage, many yolk globules were observed in the nurse cells, radially arranged around a cell-free trophic core (Figure 5a). RSV RNPs and Vg accumulated in the yolk globules, with a few scattered in the cytoplasm (Figure 5b, c).
Reducing Vg expression by RNA interference affected the invasion of germarium by RSV
Our results implied that Vg might play a role in RSV invasion of the germarium. To further test this hypothesis, we knocked down the expression of Vg using RNA interference by injecting dsRNA for Vg or gfp (dsvg or dsgfp) into the body of L. striatellus. Compared with those injected with dsgfp-injected insects, the Vg mRNA level in the dsvg-injected insects decreased by about 90% (Figure 6a). We used pc3-specific primers in the qRT-PCR to measure total pc3 RNA, which contained both pc3 mRNA and the pc3 gene, revealing that the pc3 RNA level decreased by about 79% in the ovariole of the dsvg-injected insect compared with that of the control (Figure 6b). Further, the relative level of pc3 RNA in other parts of the insect body did not obviously differ among the treatments (Figure 6c), suggesting that the knockdown of vg expression by RNA interference specifically affected the accumulation of RSV RNPs in the ovariole of the insect.

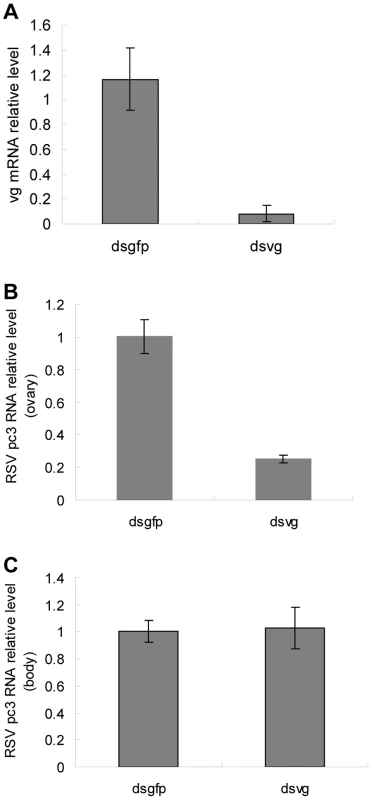

To further demonstrate the critical role of Vg in transovarial transmission of RSV, we injected newly emerged adults with dsgfp or dsvg, respectively, and then examined the location of RSV RNPs and Vg in the ovarioles using immunofluoresence. We did not observe differences in the degree of development among the ovarioles dissected from the treated insects, and they had developed more than two ooecia (Figure 7). However, as the expression of Vg was reduced after injected with dsvg, Vg accumulation was also influnced, resulting in no or a small amount of yolk globules present in the oocytes (Figure 7a–c). In most dsgfp treated insects, Vg was highly expressed at 2 days postemergence, the oocytes at the bottom of the egg tube accumulate largely Vg to form yolk globules for their mature (Figure 7d). Besides, because of Vg accumulation, the column of the ooecia was larger, and the ooecia in each ovariole were more distinct than that in the dsvg treated ones. Moreover, the dsvg treated female individuals failed to produce offspring.

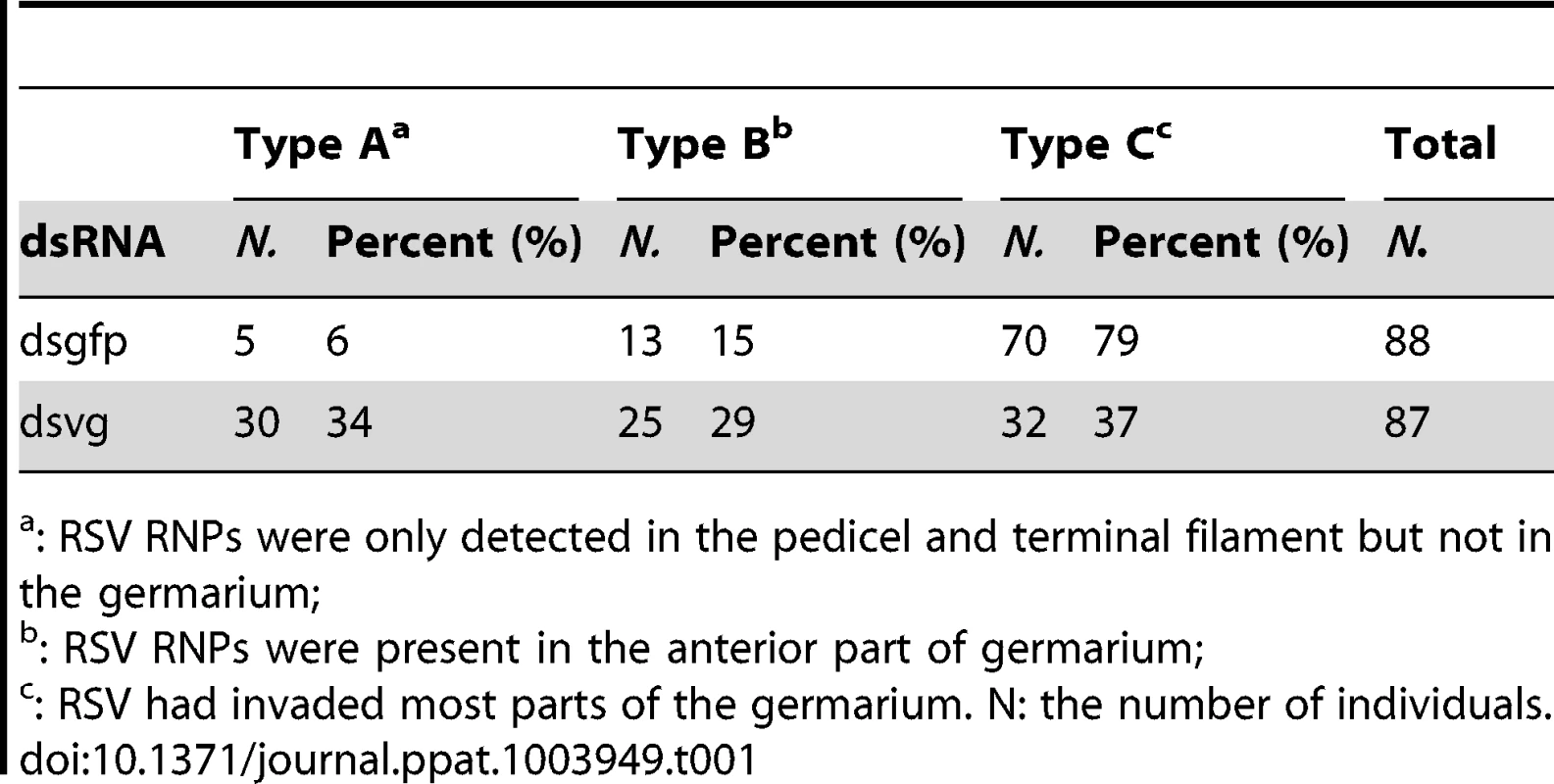

The distribution of RSV RNPs in the treated ovarioles could be classified into three types. In the first type (type A), Vg was not transported or just began to be transported into the germarium to form some small spots, while RSV RNPs were only detected in the pedicel and terminal filament but not in the germarium (Figure 7a). In the second type (type B), more Vg accumulated and some formed bigger spots in the anterior part of the germarium, where RSV RNPs existed (Figure 7b). In the third type (type C), a large amount of Vg had accumulated in the germarium, and RSV had invaded most parts of the germarium (Figure 7c, d). Among the insects injected with dsgfp, RSV had generally invaded most part of the ovary and 79% of the ovaries belonged to type C, with only 6% belonged to type A and 15% belonged to type B. In contrast, injection with dsvg obviously affected the entry and subsequent spread of RSV in the insect ovary. As many as 34% and 29% ovaries of insects injected with dsvg belonged to type A and type B respectively, only 37% ovaries belonged to type C (Table 1). All these results indicated that the reduction in Vg expression by RNA interference significantly prevented infection of the insects' ovarioles by RSV.
Discussion
Vg, present in the female individuals of most oviparous species and invertebrates, is a member of the large lipid transfer protein superfamily [26], [27]. As the egg yolk precursor protein, Vg is usually synthesized extra-ovarially under hormonal control [28]–[32]. After its synthesis primarily by the fat body of insects, Vg is secreted into the hemolymph, then transported by the circulatory system to the ovary, from where it is absorbed into the growing oocytes via receptor-mediated endocytosis. Once in the growing oocytes, Vg is proteolytically cleaved to generate yolk proteins, lipovitellin and phosvitin, finally serving as nutrients for developing embryos [33]–[36]. Clearly, there is a transovarial transportation system for absorbing nutrients in the oviparous species, including insects.
In this study, we found a high affinity between Vg and RSV pc3, the main component of RSV RNPs (Figure 2). RSV RNPs and Vg might bind together in the hemolymph and then be transported into the ovary of the insect vector via the existing transportation systems for Vg in the female insects. In the immunofluorescence assay, RSV RNPs were only observed in the terminal filaments and pedicels of the ovary before the expression of Vg (Figures 3 and 4). Accompanied by the expression of Vg, RSV RNPs first appeared in the anterior part of germarium at Adult II stage, then spread into most parts of the germarium and the ooecium at Adult III and IV stages (Figure 3). It was obvious that the transovarial transmission of RSV was correlated with the movement of Vg, suggesting that Vg is an important component for RSV to overcome the transovarial transmission barrier.

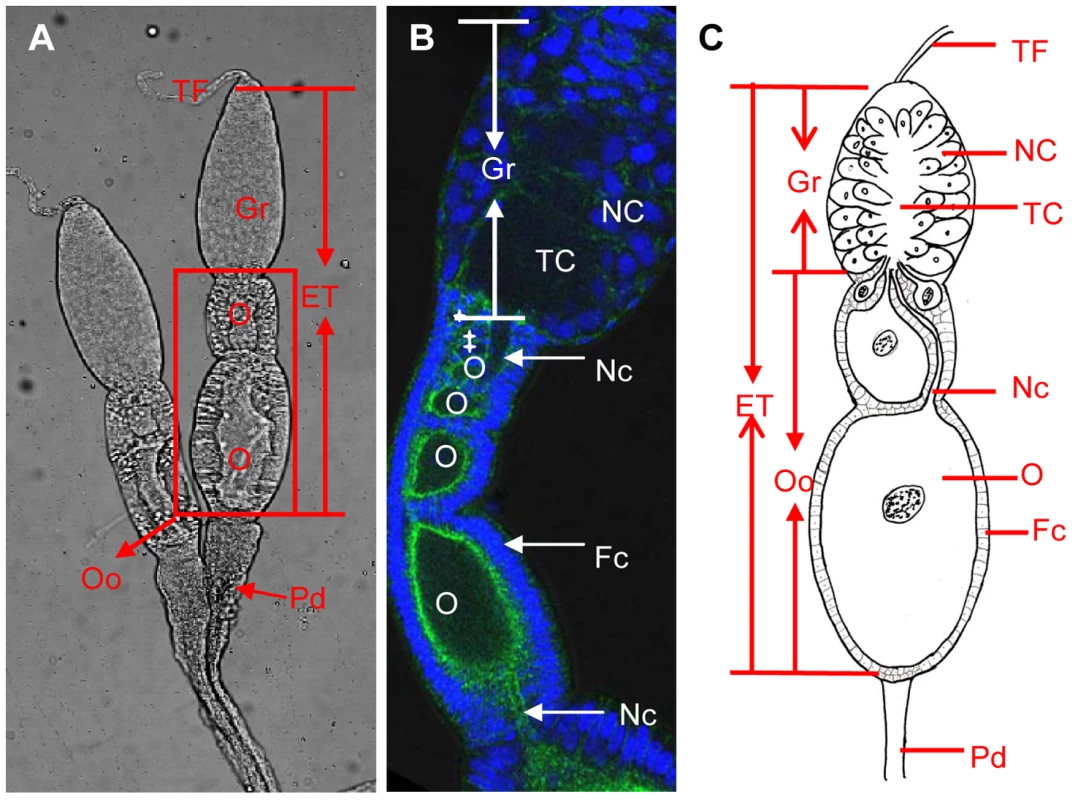

The development of the insect ovary can be divided into different stages according to ovariole development and morphological characteristics or vitellogenesis, i.e, previtellogenesis, vitellogenesis and postvitellogenesis [37]. Obviously, early development of the ovary is not pertinent to Vg, which is primarily produced and endocytosed into the ovary during vitellogenesis stage [37]. Based on our observations, the RSV RNPs entered the germarium of the insect during an early phase of vitellogenesis (Figure 3a,Adult II).Then it usually invaded all around the germarium, with a few RNPs detected in the oocytes as well (Figure 3a, Adult IV). But the distribution of RSV RNPs in the ovariole of dsvg-injected insects was different. Compared with the control (dsgfp injection), the dsvg injection had obviously affected the accumulation of RSV RNPs in insect ovarioles (Figure 7 and Table 1), although the morphology of the ovarioles was similar, the amount of RSV total pc3 RNA in the ovary was greatly reduced (Figure 6). These results further indicated that Vg was specifically involved in the invasion of RSV in the insect ovary. As we noted earlier, a large amount of Vg is expressed outside the ovary during vitellogenesis, then enters the ovarioles by endocytosis [38], [39]. RSV RNPs that are bound with Vg via pc3 might be endocytosed in the same way. It is interesting that, even though dsvg injection influenced Vg accumulation and RSV distribution in the ovary, it did not significantly change the development of the ovarioles, which also differentiated several ooecia. Differentiation of the ooecia usually occurs at the previtellogeniesis stage when Vg is not highly expressed. Accumulation of Vg enlarges the column of the ooecia and triggers the maturation of the egg. Thus, lack of Vg may delay the development of the oocytes and can even lead to aplasia [40], [41]; eventually, the dsvg injection caused sterility in the females in our experiment.
Endosymbiotic organisms use different pathways for transovarial transmission. YLSs could pass through the ovariole pedicel and enter the ovary through a deep depression at the posterior pole [13], [42]. Bacteriocytes in insects with telotrophic ovarioles, such as Nysius ericae, Nithecus jacobaeaein, Marchalina hellenica, and Scaphoideus titanus, first occur in the germarium and then infect oocytes through the nutritive cord [21], [43], [44]. However, bacteriocytes in Palaeococcus fuscipennis move through the intercellular spaces between neighboring follicles, infect the ovary via endocytosis, and then remain on the surface of the oocyte until embryonic development [45], [46]. Cytoplasmic dynein was thought to be an important factor for transovarial transmission of Wolbachia in D. melanogaster [47]. Obviously, RSV invaded the oocyte neither from the pedicel nor from the filament directly. It is likely that some barriers may exist between the pedicel and the ooecium or between the filament and the germarium, which may prevent the invasion of RSV into the ooecium or germarium (Figures 3a and S3a, c). We first found RSV in the anterior part of the germarium, then in most areas of the germarium and ooecium (Figures 3 and 4). The germarium portion of the ovariole usually contains stem cells, which will further differentiate into oocytes and nurse cells [19], [48]. Some endosymbiotic bacteria, such as Wolbachia in D. melanogaster, reach oocytes through the stem cells in the germarium [49]. However, for the telotrophic ovarioles of some insects, stem cells will differentiate into both nurse cells on the anterior side of germarium and ooctyes at the base of the germarium [50]–[52]. These oocytes are mainly differentiated from stem cells in the nymph stage, when Vg is not highly expressed. Therefore, despite RSV first invading the germarium at vitellogenesis stage, it does not seem possible that RSV spreads to the oocytes from the stem cells as Wolbachia does in D. melanogaster. RSV might invade the new nurse cells at the tip of the germarium and then spread throughout the germarium as more nurse cells develop.
Nurse cells of the telotrophic meroistic ovarioles uaually provide nutrients to the oocytes through the nutritive cords [23], [53], [54]. Our study is also the first to find Vg in the nurse cells of telotrophic meroistic ovarioles. After entry into the nurse cells in the germarium, Vg gathered in the yolk globules, which was also seen with electron microscopy (Figure 5a). Immunoelectron microscopy showed that most RSV RNPs accumulated in yolk globules after invading the nurse cells (Figures 5b, c). Then Vg might be further processed into egg yolk at the suspected R/KXXR motif in the vWD domain, the most important site for binding to RSV pc3. Later, RSV might be released from Vg in the nurse cells due to an alteration in the vWD domain, then spread into the oocytes through the nutritive cords (Figure 3c). This scenario could explain why RSV RNPs and Vg did not colocalize together in the ooecium (Figure S3b).

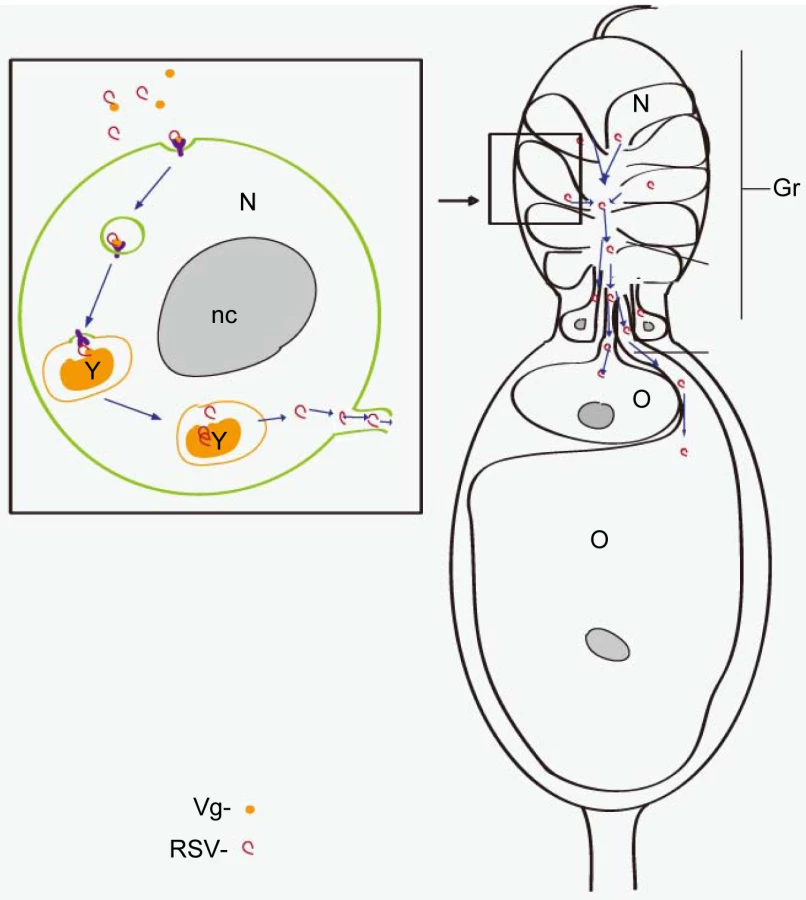

Based on all the data obtained, we propose a model for the RSV transovarial transmission in L. striatellus (Figure 8). RSV binds to Vg outside the ovariole to form a complex; the complex is then transported into the nurse cells in the germarium via endocytosis. In the nurse cells, Vg is processed into yolk protein to form yolk granules [54]. Most RSV RNPs remain in the yolk granules while some are released into the cytoplasm. Finally, RSV RNPs in the nurse cells spread into the growing oocytes with or without binding with Vg through the nutritive cords. Taken together, RSV can use existing transovarial transport systems in female insects for its own purposes. The model that we propose might also apply to other persistent-propagative animal and plant viruses transmitted by arthropods and perhaps to some bacteriocytes in other insects. Given the implications of the transovarial mechanism for viral evolution and epidemiology, our results urgently call for a broader investigation of this important trait in a wide panel of natural virus–host associations.
Materials and Methods
Insect rearing
Individuals of L. striatellus used in this experiment were originally captured in Jiangsu Province, China and maintained in the laboratory for nearly 8 years. Both viruliferous and healthy L. striatellus were reared separately on rice seedlings grown in glass beakers with soil 1 cm deep. Plants were grown at 25°C with 16 h light/8 h dark in a growth incubator. The insects were transferred to fresh seedlings every 15 days to assure sufficient nutrition. For ensuring that the insects were viruliferous, an individual female insect was fed separately, and the offspring were collected and checked by RT-PCR. The most highly viruliferous colony was kept.
Yeast two-hybrid assay
Yeast two-hybrid screening was performed using a DUALhunter starter kit (Dualsystems Biotech) according to the manufacturer's protocol. The cDNA library of L. striatellus was constructed in prey plasmid pPR3-N using an EasyClone cDNA library construction kit (Dualsystems Biotech), and the bait plasmid was constructed by cloning full-length RSV pc3 in pDHB1. After library screening, positive clones were selected on SD quadruple-dropout (QDO) medium (SD/-Ade/-His/-Leu/-Trp), and prey plasmids were isolated from these clones for sequencing. To distinguish positive from false-positive interactions and further confirm the interaction of bait and prey proteins, we cotransformed the two plasmids into yeast strain NMY51, and β- galactosidase activity was detected with an HTX Kit (Dualsystems Biotech).
Chemiluminescent coimmunoprecipitation assay
The chemiluminescent CO-IP assay was carried out according to the manufacturer's instructions (Clontech). Cells of 293FT were cotransformed with pAcGFP1-pc3 and pProLabel-Vg plasmids for 48 h, lysed and incubated with anti-GFP polyclonal antibody (Clontech) for 2 h. Then the lysate was added to protein A/G agarose beads, and the mixture was incubated overnight at 4°C. Beads were collected and washed nine times by centrifugation. Each sample was transferred to a well in a 96-well assay plate. To each well, substrate mix was added, and ProLabel activity was measured at 10-min intervals using a GloMaxTM 96 Microplate Luminometer (Promega).
Cloning and expression study of Vg
Adult insects were ground with a mortar and pestle in liquid nitrogen, and total RNA was isolated following the standard TRIzol reagent (Invitrogen) protocol. The concentration and quality of total RNA were determined using a NanoDrop spectrophotometer (Thermo Scientific), and the cDNA was produced using the Superscript III First Strand Synthesis System (Invitrogen). Based on the Vg mRNA sequence published previously [23], Vg cDNA was obtained using PCR, 3′ RACE and 5′ RACE (Invitrogen).
To measure Vg expression patterns during the life cycle of L. striatellus, we isolated total RNA at different insect life-stages and produced cDNA. Relative Vg mRNA levels were measured by real-time PCR with Vg- and ef2-insect-specific primers following the Light Cycler Taqman Kit (Toyobo) protocol.
Antibody preparation
RSV RNPs were purified from RSV-infected rice plants and injected into mice to obtain anti-RSV serum. The anti-RSV monoclonal antibody was kindly provided by Xueping Zhou (Zhejiang University). An anti-Vg monoclonal antibody against the Vg peptide CMQQKTKSRSRRS was prepared by Abmart (Shanghai). Vg polypeptides RMQPLNKEEKQNVF, EQKQPNATFKKNIPQR, and RNQQKTKSRSRRS were conjugated to mcKLH and injected into rabbits to make anti-Vg serum.
GST pull-down assay
RSV pc3 cDNA fragments were amplified and cloned into PGEX-3X for fusion with glutathione S-transferase (GST). The VitN, DUF or vWD and MBP cDNA fragments were cloned into pET30a for fusion with his-tag. All recombinant proteins were expressed in Escherichia coli strain BL21 and purified. The GST-tag fused protein, RSV pc3-GST, was bound to glutathione-Sepharose beads (GE) for 3 h at 4°C; the mixtures were centrifuged for 5 min at 100×g and the supernatants discarded. The His-tag fusion proteins were added to the beads and incubated for 2 h at 4°C. After being centrifuged and washed five times with wash buffer (300 mM NaCl, 10 mM Na2HPO3, 2.7 mM KCl, and 1.7 M KH2PO4), the bead-bound proteins were separated by SDS-PAGE gel electrophoresis and detected by western blotting with His-tag antibodies.
Immunofluorescence microscopy
The anti-RSV monoclonal antibody was labeled with Alexa Fluor 488, and the anti-Vg monoclonal antibody was labeled with Alexa Fluor 594 according to the Alexa Fluor 488 Monoclonal Antibody Labeling Kit and Alexa Fluor 594 Protein Labeling Kit (Invitrogen) instructions, respectively. The ovaries were dissected from L. striatellus nymphs and female adults at four stages: 12 h postemergence (Adult I), 24 h postemergence (Adult II), 36 h postemergence (Adult III), and 48 h postemergence (Adult IV) in cold distilled water in a glass plate, and fixed in 4% paraformaldehyde in phosphate-buffered saline (PBS) for 2 h at room temperature. The fixed ovaries were incubated in osmotic buffer (2% triton v/v in PBS) for 4 h at room temperature, and then incubated with labeled anti-RSV and anti-Vg antibody for 2 h at room temperature. The samples were viewed with a laser scanning confocal microscope (Leica TCS SP5) and the images saved by Leica LAS AF Lite.
Immunoelectron microscopy
Dissected ovaries were fixed for 3 h at 4°C in 4% (v/v) paraformaldehyde and 2.5% (w/v) osmium tetroxide in PBS, and after sequential dehydration in 30%, 50%, 70%, 90%, 95% and 100% alcohol, ovaries were embedded in LR Gold Resin (Fluka Biochemika, Steinheim, Switzerland). Sections of the embedded ovaries were cut at 80 nm, then blocked for 30 min in blocking buffer (goat serum, 1∶100). The blocked sections were incubated at room temperature with the antibodies in order of anti-RSV mouse serum (1∶100) for 2 h, 10-nm gold-conjugated goat-anti-mouse IgG (1∶50, Promega) for 2 h, anti-Vg rabbit serum (1∶100) for 2 h and 15-nm gold-conjugated goat-anti-rabbit IgG (1∶50, Promega) for 2 h with a wash in distilled water after each antibody incubation. They were then stained in 2% neutral uranyl acetate (w/v in distilled water) for 20 min. The sections were viewed with a transmission electron microscope (TEM) at 80 kV accelerating voltage.
DsRNA injection
Specific Vg primers were designed with a 23-nt T7 RNA polymerase promoter DNA fragment on the 5′ end, and the 530-bp Vg DNA fragment with the T7 promoter sequence on both sides was amplified by PCR. The PCR products were used to synthesize dsRNA with MEGAscript T7 kit (Ambion). Following the method reported for the brown planthopper [41], we injected fifth instar viruliferous nymphs of L. striatellus with 36.8 nl dsvg (2 µg/µl) with dsgfp as the negative control. The newly emerged adults of injected insects were transferred to new culture beakers and allowed to feed on fresh rice seedlings for 48 h, when the ovary should have reached the vitellogenic stage and RSV should be present in large amounts.
Real-time qRT-PCR
To measure Vg expression levels in L. striatellus, we isolated total RNAs from insects at different life-stages and produced cDNAs using the Superscript III First Strand Synthesis System (Invitrogen). Relative Vg mRNA levels were measured by real-time PCR with Vg-specific primers and ef2-insect-specific primers with the Light Cycler Taqman Master kit (Toyobo) according to the manufacturer's instructions. Total RNA was previously isolated from ovaries and the other parts of the insect body that had been injected with dsRNA. After reverse transcription, the RNA level (containing mRNA and genomic RNA) of RSV pc3, were measured with specific primers by real-time PCR. The PCR product was detected and analyzed with the Bio-Rad CFX manager.
Supporting Information
Zdroje
1. HogenhoutSA, AmmarE, WhitfieldAE, RedinbaughMG (2008) Insect vector interactions with persistently transmitted viruses. Annu Rev Phytopathol 46: 327–359.
2. GraySM, BanerjeeN (1999) Mechanisms of arthropod transmission of plant and animal virus. Microbiol Mol Biol Rev 63: 128–148.
3. AmmarED (1994) Propagative transmission of plant and animal viruses by insects: Factors affecting vector specificity and competence. Adv Dis Vector Res 10: 289–332.
4. Hardy J (1988) Susceptibility and resistance of vector mosquitoes. In: Nionath TP ed. In The Arboviruses: Epidemiology and Ecology. Boca Raton, CRC Press. pp 87–126.
5. AmmarED, HogenhoutSA (2008) A neurotropic route for Maize mosaic virus (Rhabdoviridae) in its planthopper vector Peregrinus maidis. Virus Res 131: 77–85.
6. AmmarED, TsaiCW, WhitfieldAE, RedinbaughMG, HogenhoutSA (2009) Cellular and molecular aspects of rhabdovirus interactions with insect and plant hosts. Annu Rev Entomol 54: 447–468.
7. FalkBW, TsaiJH (1998) Biology and molecular biology of viruses in the genus Tenuiviurs. Annu Rev Phytopathol 36: 139–163.
8. NaultLR (1989) Leafhopper and planthopper transmission of plant viruses. Ann Rev Entomol 34: 503–529.
9. HondaK, WeiT, HagiwaraK, HigashiT, KimuraI, et al. (2007) Retention of Rice dwarf virus by Descendants of Pairs of Viruliferous Vector Insects After Rearing for 6 Years. Phytopathology 97: 712–716.
10. DouglasAE (1989) Mycetocyte symbiosis in insects. Biol Rev Camb Philos Soc 64: 409–434.
11. TufailM, TakedaM (2008) Molecular characteristics of insect vitellogenins. J Insect Physiol 54: 1447–1458.
12. TufailM, TakedaM (2009) Insect vitellogenin/lipophorin receptors: molecular structures, role in oogenesis, and regulatory mechanisms. J Insect Physiol 55: 87–103.
13. ChengDJ, HouRF (2005) Determination and distribution of a female-specific protein in the brown planthopper, Nilaparvata lugens Stal (Homoptera: Delphacidae). Tissue & cell 37: 37–45.
14. LeblancP, DessetS, GiorgiF, TaddelAR, FaustoAM, et al. (2000) Life Cycle of an Endogenous Retrovirus, ZAM, in Drosophila melanogaster. JVirol 74: 10658–10669.
15. BrassetE, TaddeiAR, ArnaudF, FayeB, FaustoAM, et al. (2006) Viral particles of the endogenous retrovirus ZAM from Drosophila melanogaster use a pre-existing endosome/exosome pathway for transfer to the oocyte. Retrovirology 3: 25.
16. BoldbaatarD, BattsetsegB, MatsuoT, HattaT, Umemiy-ShirafujiR, et al. (2008) Tick vitellogenin receptor reveals critical role in oocyte development and transovarial transmission of Babesia parasite. Biochem Cell Biol 86: 331–344.
17. NodaH (1977) Histological and Histochemical Obervation of Tntracellular Yeastlike Symbiotes in the Fat Boday of the Smaller Brown Planthopper, Laodelophax stratellus (Homotera : Delphacidae). Japanese Society of Applied Entomology and Zoology 12: 134–141.
18. HibinoH (1996) Biology and epidemiology of rice viruses. Annu Rev Phytopathol 34: 249–274.
19. BÜNINGJ (2006) Ovariole Structure Supports Sistergroup Relationship of Neuropterida and Coleoptera. Arthropod Systematics & Phylogeny 64: 115–126.
20. Ramírez-CruzA, Llanderal-CázaresC, RacottaR (2008) Ovariole structure of the cochineal scale insect, Dactylopius coccus. J Insect Sci 8: 20.
21. SzklarzewiczT, Kalandyk-KolodziejczykM, KotM, MichalikA (2013) Ovary structure and transovarial transmission of endosymbiotic microorganisms in Marchalina hellenica (Insecta, Hemiptera, Coccomorpha: Marchalinidae). Acta Zoologica 94: 182–194.
22. OgorzalekA, TrochimczukA (2009) Ovary structure in a presocial insect, Elasmucha grisea (Heteroptera, Acanthosomatidae). Arthropod Struct Dev 38: 509–519.
23. SzklarzewiczT, JankowskaW, WieczorekK, WęgierekP (2009) Structure of the ovaries of the primitive aphidsPhylloxera coccineaandPhylloxera glabra(Hemiptera, Aphidinea: Phylloxeridae). Acta Zoologica 90: 123–131.
24. ZhangF, GuoH, ZhengH, ZhouT, ZhouY, WangS, et al. (2010) Massively parallel pyrosequencing-based transcriptome analyses of small brown planthopper (Laodelphax striatellus), a vector insect transmitting rice stripe virus (RSV). BMC genomics 11: 303.
25. DalvinS, FrostP, LoeffenP, Skern-MauritzenR, BabanJ, et al. (2011) Characterisation of two vitellogenins in the salmon louse Lepeophtheirus salmonis: molecular, functional and evolutional analysis. Dis Aquat Organ 94: 211–224.
26. AvarreJC, LubzensE, BabinPJ (2007) Apolipocrustacein, formerly vitellogenin, is the major egg yolk precursor protein in decapod crustaceans and is homologous to insect apolipophorin II/I and vertebrate apolipoprotein B. BMC Evol Biol 7: 3.
27. BabinPJ, GibbonsGF (2009) The evolution of plasma cholesterol: direct utility or a “spandrel” of hepatic lipid metabolism? Prog Lipid Res 48: 73–91.
28. BownesM (1989) The roles of juvenile hormone, ecdysone and the ovary in the control of Drosophila vitellogenesis. J Insect Physiol 35: 409–413.
29. CampbellCM, IdlerDR (1976) Hormonal control of vitellogenesis in hypophysectomized winter flounder (Pseudopleuronectes americanus Walbaum). Gen Comp Endocr 28: 143–150.
30. WallaceRA, BerginkEW (1974) Amphibian Vitellogenin: Properties, Hormonal Regulation of Hepatic Synthesis and Ovarian Uptake, and Conversion to Yolk Proteins. Soc Integ Comp Biol 14: 1159–1175.
31. HoSM, KleisS, McphersonR, HeisermannGJ, CallardIP (1982) Regulation of vitellogenesis in reptiles. Hrepetologica 38: 40–50.
32. SchwablH (1993) Yolk is a source of maternal testosterone for developing birds. Proc Natl Acad Sci 90: 11446–11450.
33. RaikhelAS, DhadiallalTS (1992) Accumulation of yolk proteins in insect oovytes. Annu Rev Entomol 37: 217–251.
34. SappingtonTW, RaikhelAS (1998) Molecular characteristics of insect vitellogenins and vitellogenin receptors. Insect Biochem Molec 28: 277–300.
35. Snigirevskaya ES, Raikhel AS (2005) Receptor-mediated endocytosis of yolk proteins in insect oocytes. In:Raikhel AS, Sappington TW, editors. Progress in vitellogenesis. Reproductive biology of invertebrates. USA: Science Publishers. pp. 199–228.
36. ChoKH, CheonHM, KokozaV, RaikhelAS (2006) Regulatory region of the vitellogenin receptor gene sufficient for high-level, germ line cell-specific ovarian expression in transgenic Aedes aegypti mosquitoes. Insect Biochem Molec 36: 273–281.
37. ZelazowskaM (2005) Structure of the Ovary and the Differentiation of Follicular Epithelium in the Pig Louse, Haematopinus suis (Insecta: Phthiraptera). Folia Biol 53: 51–60.
38. Belles X (2005) Vitellogenesis directed by juvenile hormone. In: Raikhel AS, Sappington TW eds. Reproductive Biology of Invertebrates, Science Publishers Press. pp 157–197.
39. Giorgi F, Snigirevskaya E S, Raikhel AS (2005) The cell biology of yolk protein precursor synthesis and secretion. In: Raikhel AS, Sappington TW eds. Reproductive Biology of Invertebrates, Science Publishers Press. pp 33–68.
40. ShuYH, WangJ, LuWK, ZhouJL, ZhouQ, et al. (2011) The first vitellogenin receptor from a Lepidopteran insect: molecular characterization, expression patterns and RNA interference analysis. Insect Mol Biol 20: 61–73.
41. LiuS, DingZ, ZhangC, YangB, LiuZ (2010) Gene knockdown by intro-thoracic injection of double-stranded RNA in the brown planthopper, Nilaparvata lugens. Insect Biochem Molec 40: 666–671.
42. MichalikA, JankowskaW, SzklarzewiczT (2008) Ultrastructure and Transovarial Transmission of EndosymbioticMicroorganisms in Conomelus anceps and Metcalfa pruinosa (Insecta, Hemiptera, Fulgoromorpha). Folia Biol 57: 131–137.
43. SacchiL, GenchiM, ClementiE, BigliardiE, AvanzatiAM, et al. (2008) Multiple symbiosis in the leafhopper Scaphoideus titanus (Hemiptera: Cicadellidae): details of transovarial transmission of Cardinium sp. and yeast-like endosymbionts. Tissue & cell 40: 231–242.
44. SwiatoniowskaM, OgorzalekA, GolasA, MichalikA, SzklarzewiczT (2012) Ultrastructure, distribution, and transovarial transmission of symbiotic microorganisms in Nysius ericae and Nithecus jacobaeae (Heteroptera: Lygaeidae: Orsillinae). Protoplasma 250 (1) 325–32.
45. SzklarzewiczT, WnekA, BilinskiSM (2000) Structure of ovarioles in Adelges laricis, a representative of the primitive aphid family Adelgidae. Acta Zool-Stockholm 81: 307–313.
46. SzklarzewiczT, KedraK, NiznikS (2006) Ultrastructure and Transovarial Transmission of Endosymbiotic Microorganisms in Palaeococcus fuscipennis (Burmeister) (Insecta, Hemiptera, Coccinea: Monophlebidae). Folia Biol 54: 69–74.
47. SerbusLR, Casper-LindleyC, LandmannF, SullivanW (2008) The genetics and cell biology of Wolbachia-host interactions. Annu Rev Genet 42: 683–707.
48. BuningJ (2005) The telotrophic ovary known from Neuropterida exists also in the myxophagan beetle Hydroscapha natans. Dev Genes Evol 215: 597–607.
49. FrydmanHM, LiJM, RobsonDN, WieschausE (2006) Somatic stem cell niche tropism in Wolbachia. Nature 441: 509–512.
50. TraunerJ, BuningJ (2007) Germ-cell cluster formation in the telotrophic meroistic ovary of Tribolium castaneum (Coleoptera, Polyphaga, Tenebrionidae) and its implication on insect phylogeny. Dev Genes Evol 217: 13–27.
51. SzklarzewiczT, JankowskaW, LukasiewiczK, SzymanskaB (2007) Structure of the ovaries and oogenesis in Cixius nervosus (Cixiidae), Javesella pellucida and Conomelus anceps (Delphacidae) (Insecta, Hemiptera, Fulgoromorpha). Arthropod Struct Dev 36: 199–207.
52. BüningJ (2005) The telotrophic ovary known from Neuropterida exists also in the myxophagan beetle Hydroscapha natans. Dev Genes Evol 215: 597–607.
53. MatovaN, ColleyL (2001) Comparative aspects of animal oogenesis. Dev Biol 231: 291–320.
54. RouilléY, DuguaySJ, LundK, FurutaM, GongQ, et al. (1995) Proteolytic processing mechanisms in thebiosynthesis of neuroendocrine peptides:The subtilisin-like proprotein convertases Frontiers Neuroendocrinol. Front Neuroendocrin 16: 322–361.
