Genetic Analysis of Circadian Responses to Low Frequency Electromagnetic Fields in

Summary

Low frequency electromagnetic fields (EMFs) are associated with electrical power lines and have been implicated in the development of childhood leukemias. However, the Earth also has a natural EMF that animals can detect and which they use in order to navigate and orient themselves, particularly during migrations. One way they might do this is by using specialised photoreceptors called cryptochromes, which when activated by light, generate changes within the molecule that are susceptible to EMFs. Cryptochromes are important components of animal circadian clocks, the 24 hour timers that determine daily behavioral and physiological cycles. We have studied the circadian behavior of the fruitfly and have observed some novel and robust effects of EMFs on the fly's sleep-wake cycle that are mediated by cryptochrome. By using cryptochrome mutants we find that our results do not support the classic model for how this molecule might respond to EMFs. We also show that mammalian cryptochromes can respond to EMF when placed into transgenic Drosophila, whereas in mammalian clock neurons, they cannot. Consequently, the EMF responsiveness of cryptochrome is determined by its intracellular environment, suggesting that other, unknown molecules that interact with cryptochrome are also very important.

Introduction

A wide range of animals are able to detect and exploit the Earth's magnetic field, particularly for the purposes of orientation and navigation [1]–[3]. The biological basis for the detection of electromagnetic fields (EMFs) is not understood but two main theories have been presented. The first involves crystals of magnetite (iron oxide, Fe₃O₄) that can be found in the upper beaks of birds [4] or in the nasal regions of salmonid fish [5]. The second suggests that photoreceptors may play a significant role through the radical pair mechanism (RPM) whereby biochemical reactions generate radical pairs that become sensitive to EMFs [6].

One class of photoreceptors that meets the requirements for the RPM is cryptochrome (CRY), a blue-light photoreceptor that in Arabidopsis is proposed to mediate the effects of EMFs through electron transfer between a triad of Tryptophan residues and the flavin cofactor FAD [7], [8]. In Drosophila melanogaster, CRY is the deep-brain photoreceptor that mediates circadian responses to light [9]–[11], making it a suitable model for studying any link between circadian clock and magnetoreception. In non-drosophilid insects, there can be two CRY homologues, one which plays the circadian photoreceptor role, type 1 CRY, and another, type 2, that acts as the main negative autoregulator for the circadian clock and does not apparently respond to light [12], [13]. In mammals, there are no Type 1 CRYs but two paralogues of Type 2 CRY, which both act as negative autoregulators of the circadian clock [14], [15], but can retain light responsiveness under some conditions [16].

D. melanogaster responds to low intensity EMFs under wavelengths of light to which CRYs are sensitive, but the adaptive implications of these magnetic effects on fly orientation are unclear [17]–[19]. Recently, the genetic and molecular basis of fly magneto-sensitivity has been explored using four different experimental paradigms that have converged on the finding that CRY plays a key role in the EMF response [20], [21], [29]. In the first paradigm, naïve responses of populations of flies to a static EMF are enhanced by associating the field with sucrose and this conditioned response is eliminated in cry mutants [20]. Mutagenesis of tryptophan within the triad (residues Trp-342, Trp-397 and Trp-420 in Drosophila CRY) in the FAD chromophore domain, however, did not disrupt the ability of type 1 cry transgenes from the Monarch butterfly or Drosophila to rescue the EMF response in cry-null mutants [22] Thus it may be that a mechanism other than radical pairs involving the Trp triad is used by Type 1 CRY molecules to sense EMFs. Indeed superoxide radicals and ascorbic acid have been proposed as suitable candidates for forming a radical pair with the FAD [23], [24]. Furthermore, Type 2 human hCRY2 was also able to rescue the fly's EMF response in blue light, suggesting that in a Drosophila cellular environment, hCRY2 may be photosensitive [25].

In the second paradigm, responses to EMF are explicitly clock-dependent and rely on the observation that in constant dim blue light (LL), circadian periods are usually significantly lengthened beyond 24 h due to constitutive activation of CRY [26]. On applying a static EMF for a number of days, about 50% of wild-type flies either lengthened or shortened their circadian period [21]. This alteration in period on EMF exposure is not observed in cry mutants, but as the initial period lengthening due to dim blue light is CRY-dependent, there is no period change for the subsequent EMF exposure to modify. Nevertheless, a relevant observation from this study is that overexpression of CRY in clock neurons leads to a significant decrease in rhythmicity and a variable enhancement of the period changes during EMF exposure in the few animals that were reported to remain rhythmic under these conditions [21]. In both the conditioning and circadian paradigms, the sensing of EMF by flies is wavelength dependent and focused on the action spectra and absorption characteristics of CRY, which is in the blue and UV range [20], [21].

The third paradigm, involves negative geotaxis of adult flies, and is the fly's tendency to walk upwards against gravity. This phenotype is CRY mediated [27], [28] and is susceptible to disruption by static EMFs under blue light [29]. In addition, key CRY-expressing structures such as the eyes, the antennae and a subset of circadian clock neurons, contribute to the EMF geotactic phenotype [29]. The fourth paradigm involves a CRY-mediated increase in the recovery time of Drosophila larvae from electric shock when they are exposed to a static EMF under blue light [30]. In our study we sought to re-examine the effects of EMF on circadian behavior using the Schuderer apparatus, in which responses to EMF can be studied without interference from the Earth's natural magnetic field or from other local magnetic/radiofrequency fields [31]. Under these more controlled and stringent conditions, there is a highly robust and consistent CRY-dependent period response to extremely low frequency and static EMFs as well as an additional novel locomotor phenotype. Further use of cry variants reveals some surprising results, which are difficult to explain with the current RPM. Finally we reveal that the cellular environment of mammalian CRY2 determines whether it is light-sensitive and can respond to EMFs, suggesting that trans-acting factors are critical for CRYs mediation of field effects.

Results

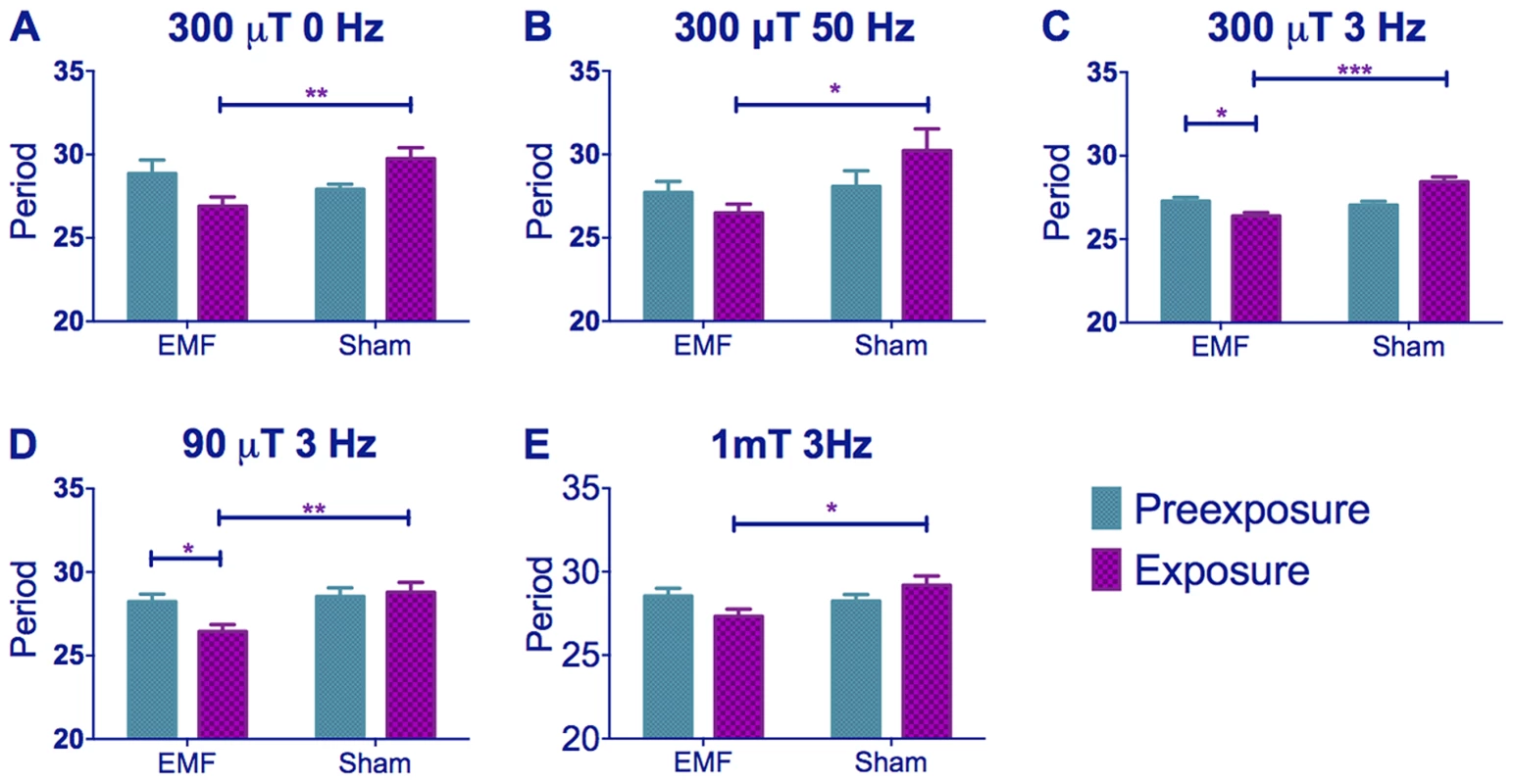

We primarily used 300 µT for our experiments, as this was the intensity used in Yoshii et al., (2009), but we also studied two additional intensities, 90 µT (closer to the Earth's ambient magnetic field) and 1 mT (1000 µT). The minimum frequency possible in the Schuderer apparatus was initially 3 Hz [31] but we also tested 50 Hz (the common frequency in Europe). A subsequent upgrade of the equipment allowed us to also test a static field. Thus the frequencies we used fell within the range of background frequency called the Schumann Resonance [32]. The experimental design was as follows: two groups of flies of the same genotype were studied for seven days under constant dim blue light (LL, hereafter termed pre-exposure) followed by eight days under the same illumination but exposed either to an EMF (EMF exposure) or a sham EMF (sham exposure). The circadian locomotor period was then calculated separately for the pre-exposure and exposure days for each fly and compared (see Methods section for more details). We examined the EMF responses of flies using a standard field intensity of 300 µT with stationary, 3 Hz or 50 Hz frequencies (Figure 1A–C), or using a standard 3 Hz frequency with field intensities of 90, 300 or 1000 µT (1 mT, Figure 1C–E). Irrespective of frequency or intensity of the field, sham-exposed Canton-S (CS) exhibited a lengthening in period between the initial LL pre-exposure and the sham exposure due to the constitutive activation of CRY [26], whereas the EMF-exposed flies showed a significantly shorter period compared to the corresponding sham-exposed flies and to their own pre-exposure (Figure 1, 2A). A three way ANOVA revealed significant effects for EMF frequency (F_(2,294) = 37.28, p∼0), exposure to EMF/sham (F_(1,294) = 14.81, p<0.001), and for the two-way interaction between pre-exposure and EMF/sham (F_(1,294) = 21.73, p<0.01). Importantly, there was no significant three-way interaction (F_(2,294) = 1.01, p = 0.36), revealing that a similar pattern is revealed at all three frequencies at 300 µT (Figure 1A–C). Three way ANOVA also revealed significant effects for intensity (F_{(2, 272)} = 23.59, p<0.001) exposure to EMF/sham (F_(1,272) = 16.69, p<0.001) and for the pre-exposure x EMF/sham interaction (F_{(1, 272)} = 19.38, p<0.001). There was no significant 3-way interaction (F_{(2, 272)} = 0.04, p = 0.96) showing that the flies were responding in a similar manner to these exposures at 3 Hz (Figure 1C–E, Table S1).

To study whether any of these effects associated with EMF exposure could be due to artefacts, particularly those caused by any vibration produced by the electric current flowing through the coils or the turning of the fans in each chamber, we performed a number of additional control experiments. However, manipulating the putative sources of vibration did not reveal any effects that could have contributed to our behavioral results (Figure S1).

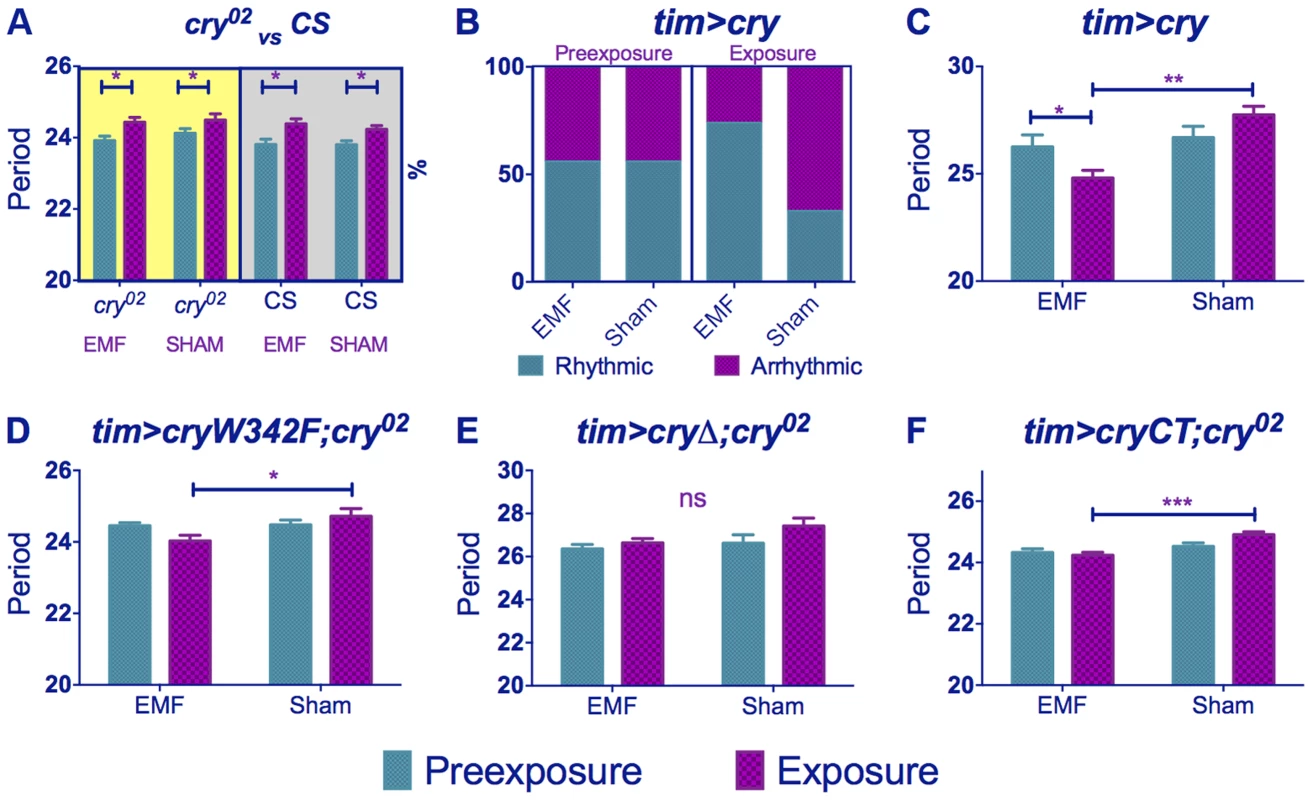

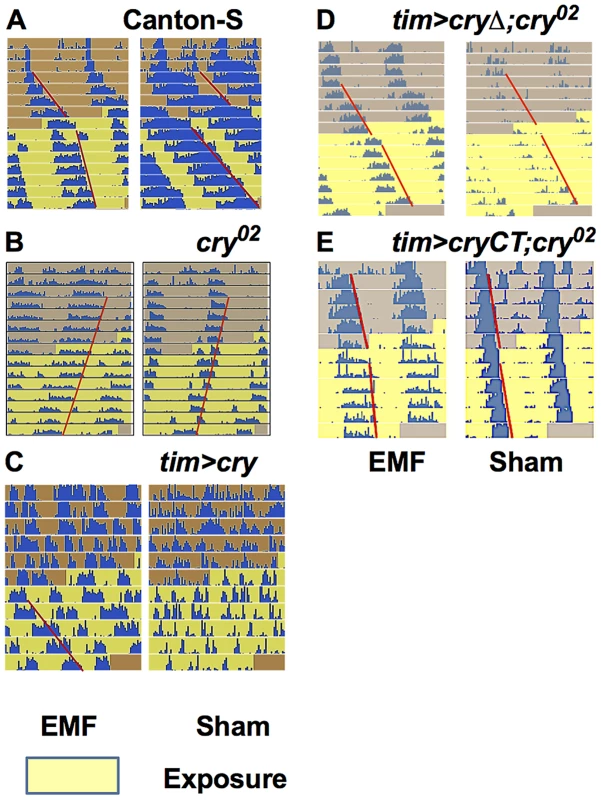

We therefore pursued our analyses using a 3 Hz/300 µT EMF to study any effect of the cry⁰² null mutation [33]. The response to the EMF was abolished in cry⁰² flies (Figure 2B, 3A, Table S1), consistent with a possible role for CRY in determining this phenotype (pre-exposure x EMF/sham exposure interaction F_(1,52) = 2.93, p = 0.09). However, as mentioned earlier, CRY is required in order to generate the initial blue light-dependent lengthening of period and so these results are not informative in determining whether CRY is the magnetoreceptor. cry⁰² flies did show a slight lengthening of period between the pre- and exposure conditions of about 0.5 h (F_(1,52) = 108.4, p<0.001, Table S1) suggesting an ageing effect over the ∼15 day observation [28]. Indeed we observed a similar period lengthening in CS flies exposed to DD for the same number of days during which CRY would not be light-activated (F_(1,54) = 14.40, p<0.001, Figure 3A, Table S1). ANOVA revealed no significant three-way interaction when we compared CS in DD to cry⁰² in LL (genotype x pre-exposure x EMF/sham exposure, F _{(2, 106)} = 0.07, p = 0.79), supporting the view that the slight lengthening of period was due to ageing. This experiment also clearly shows how the period-shortening of CS flies under EMF is light-dependent (Compare Figure 3A in DD with Figure 1C). Consequently the more dramatic lengthening in period of 1–2 h (Figure 1A–E) observed in CS flies in sham conditions under dim blue LL will also include a small ageing component in addition to that generated by constitutive CRY expression (Table S1). The shortening of period in wild-type flies exposed to EMF is therefore observed in spite of a natural tendency of the flies to increase their period over the duration of the experiment due to ageing (Figure 1, Table S1).

We then overexpressed cry in clock cells using timgal4 and observed that ∼55% of the timgal4>cry flies in the wild-type background became arrhythmic during the initial LL pre-exposure interval, consistent with a hyper-activation of CRY (Figure 2C, 3B, Table S1). EMF-exposure, however, abrogated arrhythmicity to ∼25%, suggesting a disruption of CRY signalling under these conditions, whereas sham-exposed flies showed 67% arrhythmicity (χ²₍₃₎ = 13.96, p<0.05, Figure 3B, 2C, Table S1). Furthermore, the flies that stayed rhythmic throughout the timgal4>cry experiment again revealed a significant shortening in period under EMF compared to the sham controls (pre-exposure x EMF/sham exposure interaction (F_(1,79) = 6.23, p = 0.015, Figure 3C, Table S1).

We next examined the responses of the UAScryW342F mutant under timgal4 control in a cry⁰² background (Figure S2) [22]. This mutant carries a Trp to Phe substitution in the final Trp forming the Trp triad that is responsible for donating the required electron to the cascade during light activation [34]. Nevertheless, this mutant is light responsive and significantly lengthens its period in dim blue light (Figure S3A, Table S1). We observed a significant period shortening in EMF exposed compared to sham flies (pre-exposure x EMF/sham exposure interaction F _(1,54) = 4.15, p<0.05, Figure 3D, Table S1). Consequently mutation of Trp-342 in the triad believed to be necessary for the RPM does not significantly disrupt the circadian response to EMF.

We also used the UAScryΔ mutation (Figure S2), again under control of timgal4, in which residues 521–540 of the C-terminal have been deleted [26]. timgal4>cryΔ flies have a long free-running period in DD as if CRY is constitutively active, but CRYΔ can be further activated by blue light [26], [35]. We confirmed this observation by showing that flies carrying timgal4>cryΔ in a cry-null background showed a lengthening of period of 1.2 h under dim blue light compared to DD (F_(1,34) = 6.53, p<0.01, Figure S3B). Surprisingly, however, they did not show any significant period changes under EMF exposure (pre-exposure x EMF/sham Exposure F_(1,174) = 0.74, p = 0.39, Figure 2D, 3E, Table S1) implicating the C-terminal of CRY (CT) in the response to EMF. We therefore tested flies expressing a GFP-CRY-CT (Figure S2) fusion in a cry⁰² genetic background (UASGFPcryCT;timGAL4;cry⁰²). This construct carries only the CRY C-terminal residues 491–542 fused to GFP (see Methods). Remarkably, these flies were still able to respond to light (Figure S3C) and also show a modest response to the EMF (F_(1,118) = 4.9, p<0.02; Figure 2E, 3F, Table S1) confirming the importance of the CRY-CT in the EMF response. We also performed the same experiment in DD but we did not observe any significant EMF effect (pre-exposure x EMF/sham exposure F_(1,82) = 0.1, p = 0.81) although we did find the ageing effect on period (pre-exposure vs exposure F_(1,82) = 4.2, p<0.05). Consequently, for UASGFPcryCT;timGAL4;cry⁰² flies, the slight reduction in period between the pre- and EMF exposure occurs in spite of the ageing effect which would tend to increase period between the two conditions. We should also note here that pre-exposed UASGFPcryCT;timGAL4;cry⁰² flies have periods very close to 24 h and only 0.4 h longer than their DD controls (Table S1), so there is little room to reduce this period further given that CRY is not a canonical clock molecule. Consequently, it would be difficult to see how any CRY manipulation could yield periods shorter than the DD free-running period via changes in CRYs light-mediated TIM interactions and consequent input to the clock.

A novel locomotor phenotype is sensitive to EMF

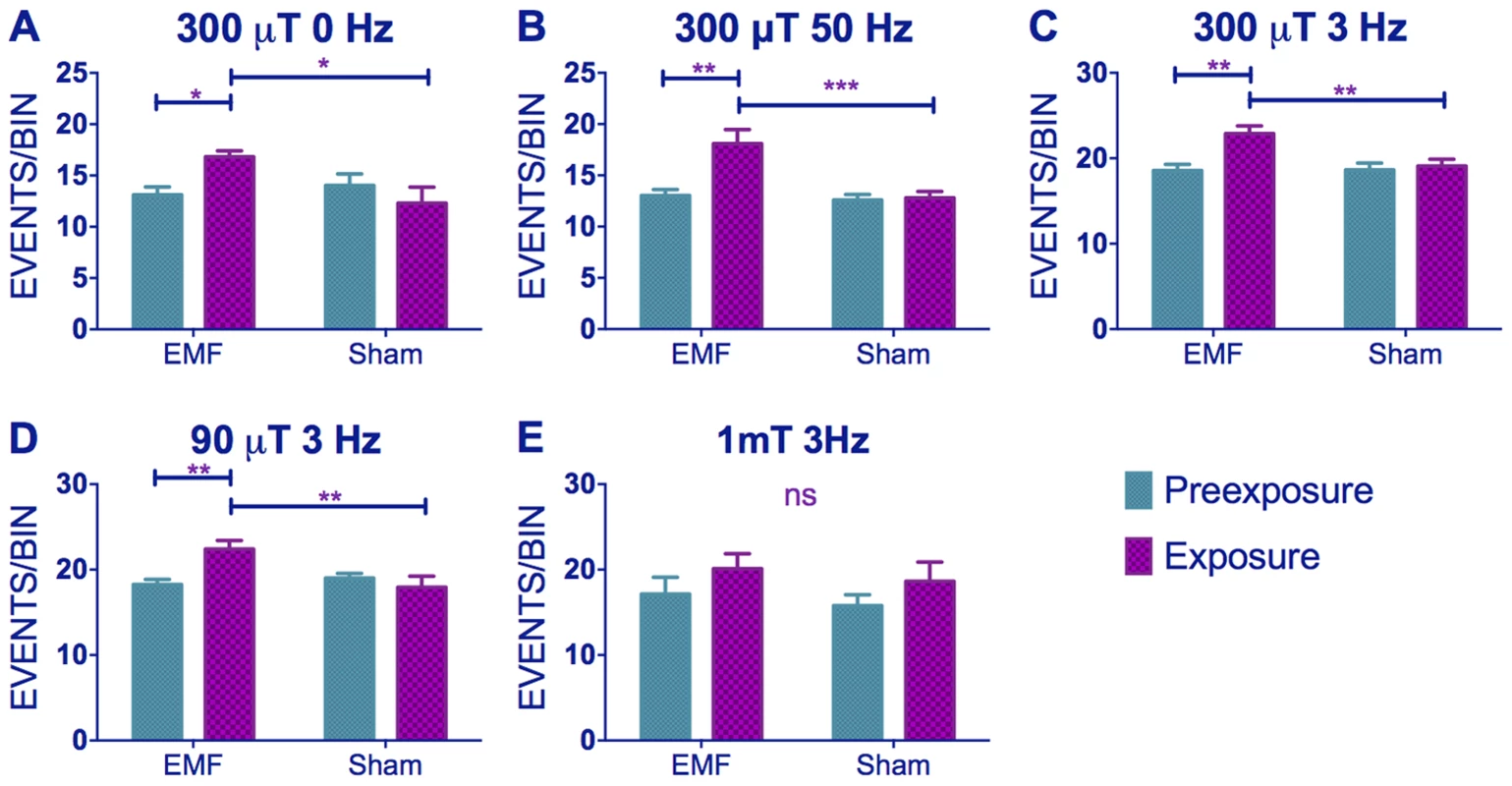

When we scrutinised further our locomotor activity records we observed that exposure to low frequency EMF not only shortened circadian period but it also caused significant hyperactivity in wild-type flies. Comparison of static to 3 and 50 Hz at 300 µT fields revealed significant Frequency (F_(2,294) = 42.35, p∼0), sham/EMF F_(1,294) = 6.75, p<0.01), pre-exposure/exposure (F_(1,294) = 7.98, p<0.01) and pre-exposure x EMF/sham exposure interaction (F_(1,294) = 7.93, p<0.001), but no significant three-way interaction (F_(2,294) = 0.17, p = 0.83) illustrating that all frequencies gave a similar pattern of EMF mediated hyperactivity (Figure 4A–C, Table S2). When we compared 90, 300 and 1000 µT at 3 Hz we did not observe a significant Intensity effect (F_(2,272) = 2.14, p = 0.1), but sham/EMF (F_(1,272) = 4.66 p<0.05), pre-exposure/exposure (F_(1,272) = 8.133, p<0.05) and pre-exposure x EMF/sham exposure interactions (F_(1,2272 = 3.71, p = 0.05) were all significant (Figure 4C–E, Table S2). Post-hoc tests revealed a significant hyperactivity in EMF exposed flies compared to sham at 90 and 300 µT, but not at 1 mT, but this difference was not sufficient to generate a significant three-way interaction (F_(2,272) = 0.71, p = 0.5).

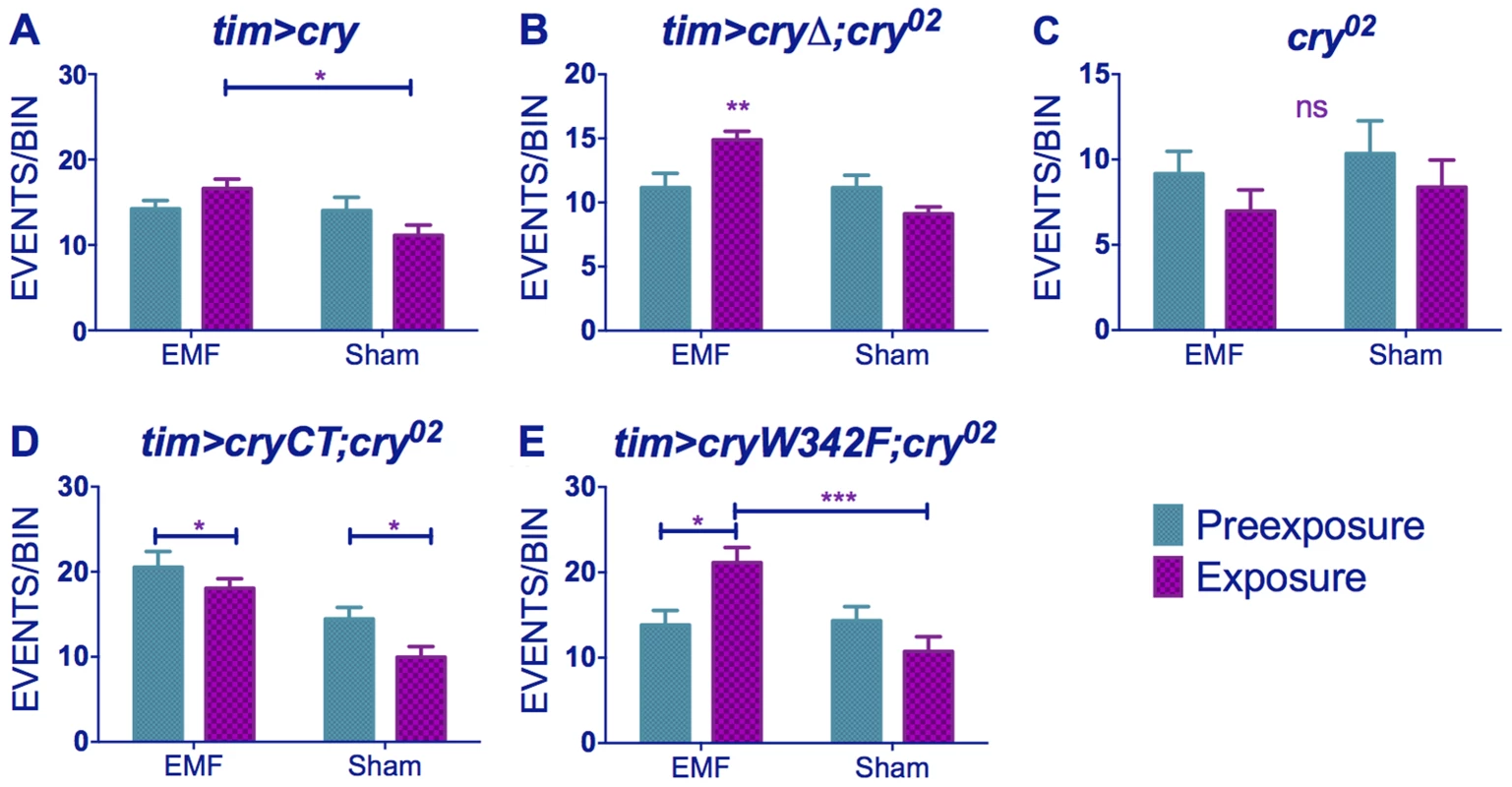

Similar results were obtained for timgal4>cry overexpressing flies (pre-exposure x EMF/sham exposure interaction (F_(1,79) = 4.021, p<0.05, Figure 5A, Table S2) revealing that EMF-exposed flies showed enhanced hyperactivity compared to sham and pre-exposed flies. More surprisingly, timgal4>cryΔ flies also expressed this hyperactivity under EMF exposure (pre-exposure x EMF/sham Exposure interaction F _(1,174) = 11.28, p<0.01, Figure 5B, Table S2) whereas no locomotor differences were detected in cry⁰² (pre-exposure x EMF/sham exposure interaction, F_{(1, 52)} = 0.04, p = 0.95, Figure 5C,Table S2) nor in UASGFPcryCT;timGAL4;cry⁰² (pre-exposure x EMF/sham interaction, F_{(1, 118)} = 0.51, p = 0.46, Figure 5D, Table S2). Furthermore flies expressing the cryW342F mutation also exhibited the hyperactivity associated with EMF exposure (F_(1,54) = 11.9 p<0.01, Figure 5E, Table S2). We therefore conclude that while robust EMF-induced shortening of circadian period requires the CRY C-terminus, the hyperactivity appears to be determined via the N-terminal photolyase-like domain and is not susceptible to disruption by the Trp-342 mutation, indicating that alternative routes are available for the RPM.

hCRY and magnetoreception

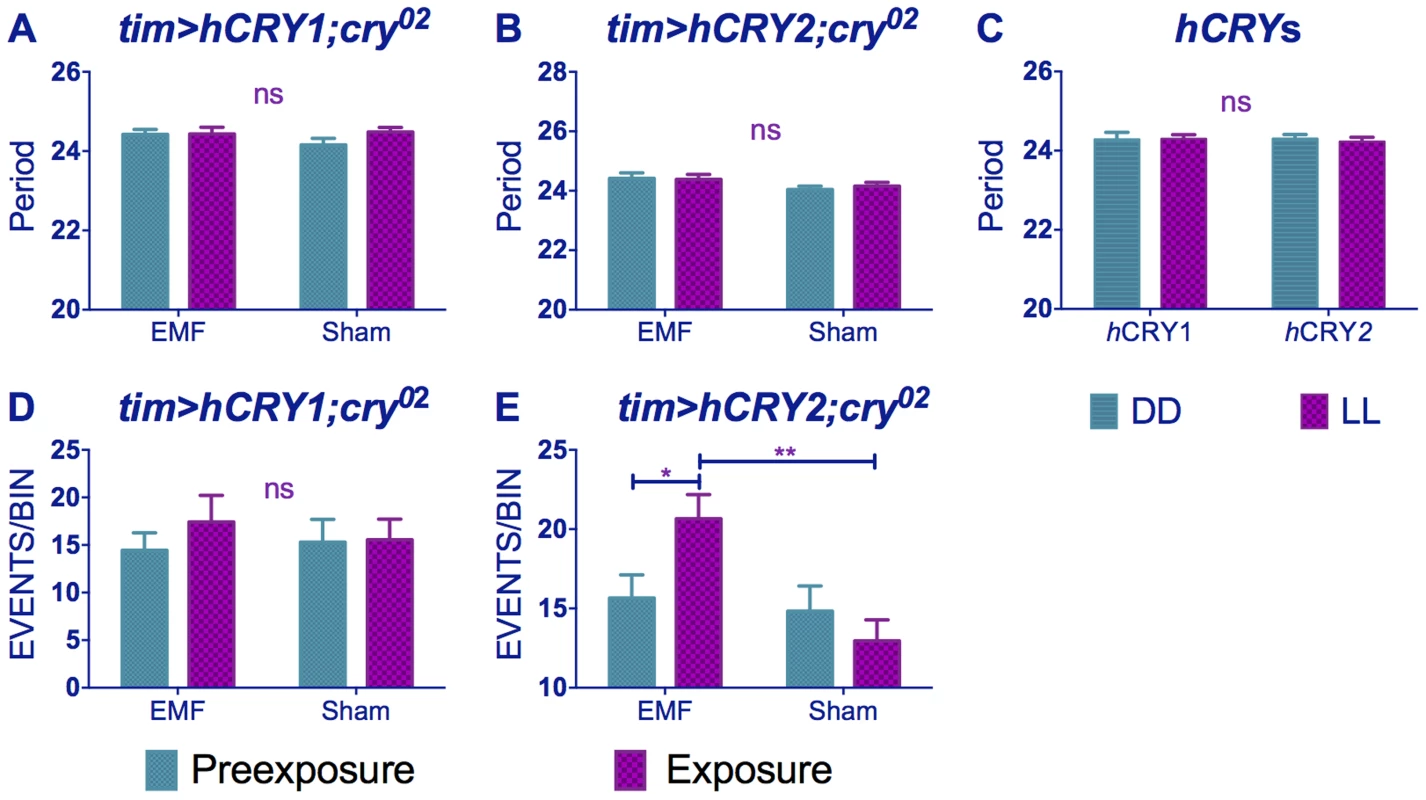

Flies expressing vertebrate non-photoreceptor hCRY2 are reported to exhibit light-dependent magnetoreception in a conditioning assay [25]. By separately expressing tim-GAL4>hCRY1 or hCRY2 on a cry⁰² background, we observed no significant differences in period between exposed and sham flies (Figure 6A, B, Table S1). Indeed, the hCRY1/2 flies behaved as if they did not respond to dim blue LL because their circadian period does not lengthen in LL compared to DD (Figure 6C), although hCRY proteins have been shown to be light degraded in flies [16] (Fig. S3) and hCRY2 has been implicated in mediating EMF response in a light dependent manner [25]. Nevertheless and somewhat surprisingly, flies expressing hCRY2 but not hCRY1 showed the EMF-induced hyperactivity phenotype (hCRY2 pre-exposure x sham interaction F_(1,54) = 5.69 p<0.05, Figure 6D, E, Table S2).

Drosophila CRY is stabilised by EMF

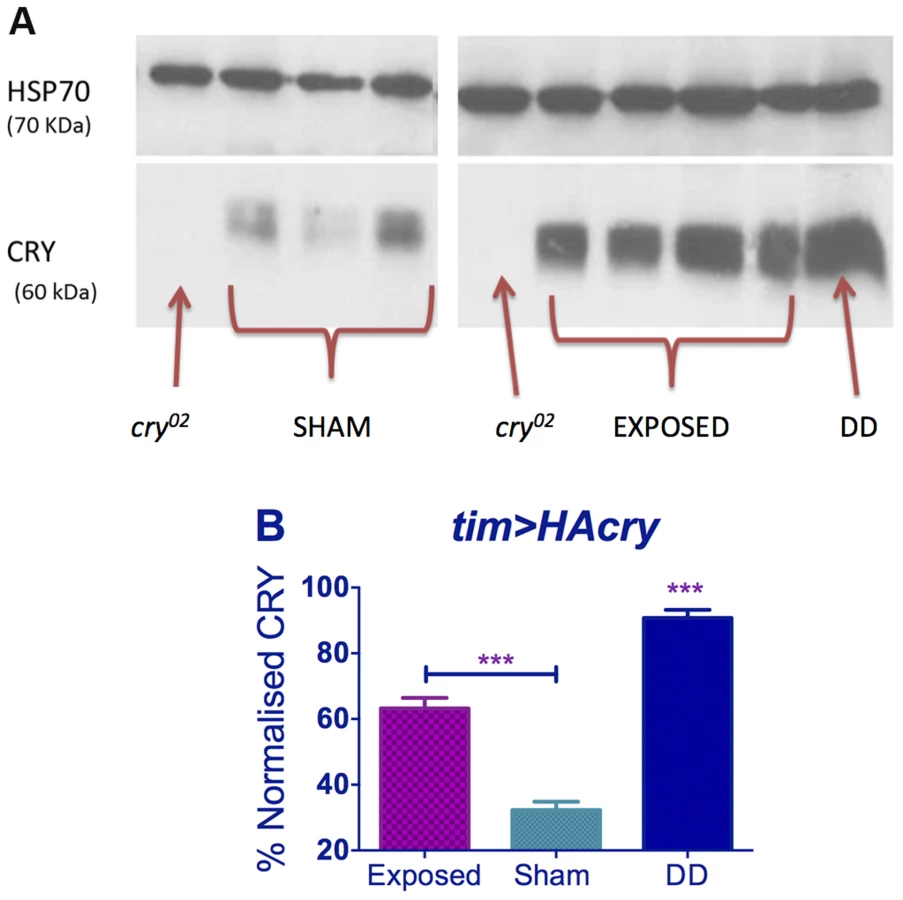

Western analysis revealed, that levels of CRY in DD were significantly elevated compared to sham in dim blue light as expected [11], but we also observed that under EMF exposure, CRY was significantly more abundant compared to sham (p<0.001, Figure 7). EMF therefore appears to reduce CRY degradation, which in turn would suggest that CRY signalling is compromised.

Molecular circadian rhythms in mouse SCN slices do not respond to EMFs

Given that the EMF hyperactivity response could be rescued in fly transformants carrying hCRY2, we asked whether mammalian type 2 CRYs could also be EMF responsive in a circadian context. We therefore used the Schuderer apparatus to expose SCN slices to EMFs ranging from 50 to 500 µT at 50 Hz and examined the rhythmic bioluminescence of the PER2::LUC reporter (Figure S4A, B). We have shown previously that these rhythms are dependent on CRY1 and CRY2 [36] SCN slices were housed in exposure chambers for 5 days with field exposure strengths of 50, 150, 300 and 500 µT, followed by 5 days in sham conditions of 0 µT or vice versa in a paired crossover design. All slices generated very clear and sustained circadian cycles of bioluminescence (Figure S4B). No significant differences were observed, however, in period, period error or relative amplitude error (see Methods) between exposed and sham conditions under any of the EMF intensities (Figure S4 C–H). We also compared the effects of blue versus red light with a 300 µT, 50 Hz field, but again, no significant differences in the three rhythm measures were observed between sham and EMF exposed slices (Figure S5). Thus, if mammalian CRY1 and/or CRY2 have the intrinsic capacity to mediate light-dependent sensing of EMF, the specific CRY-dependent response and/or the intracellular context of the protein may be critical in determining its function.

Discussion

We have identified two light-dependent and robust behavioral responses to EMF in the fly; shortening of circadian period and locomotor hyperactivity. Our findings are consistent with an underlying CRY-dependent magneto-response and importantly confirm and extend the most relevant observation of Yoshii et al (2009), which was that overexpression of CRY in clock neurons enhances the circadian response to EMF. This was observed in two ways in our study, by an increase in the proportion of rhythmicity under EMF in flies overexpressing CRY (55 v. 76%) as well as in an enhanced shortening of circadian period between sham- and EMF-exposed conditions of wild-type versus CRY overexpressing flies (2.07 h±0.34 versus 2.95 h±0.75, respectively Figure 1C, 3C, Table S1). However, these results contrast sharply with those of Yoshii et al [21], who observed a significant decrease in the proportion of rhythmic CRY-overexpressing flies under EMF and a predominant lengthening of period. While both sets of results indirectly support the role of CRY in magnetosensitivity it is unlikely that these differences are solely due to the more controlled EMF environment generated by the Schuderer apparatus.

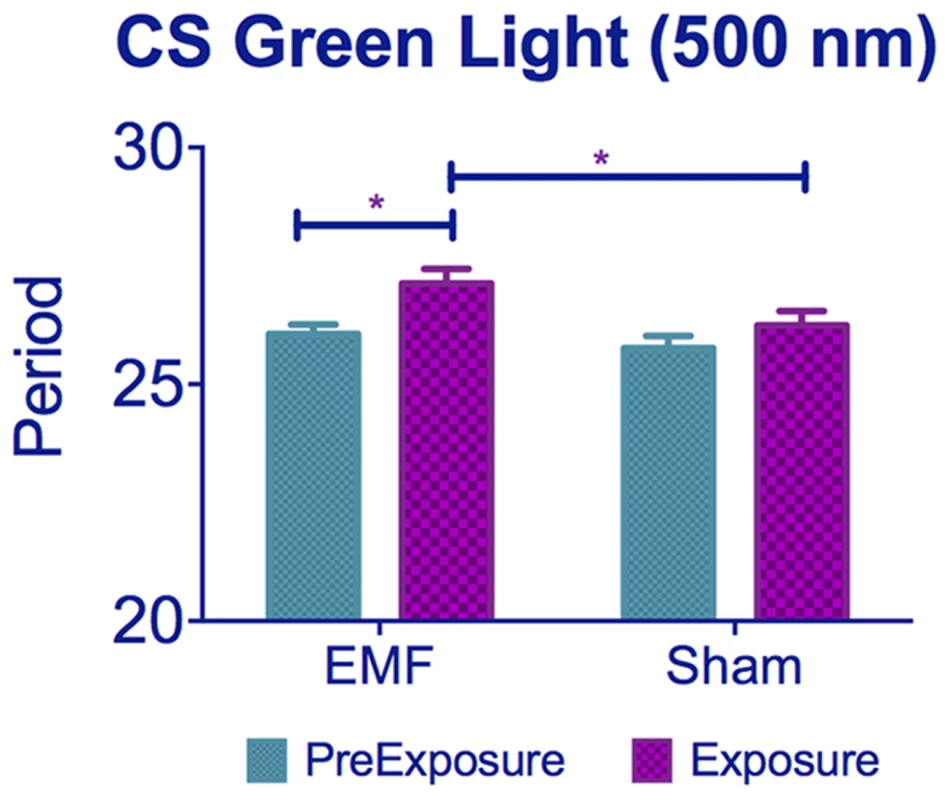

This contradiction may conceivably be resolved by considering the action spectrum of CRY [16], [37] and the ‘antagonistic effect’ of the magnetic field in response to light [38], [39]. Under this proposal, the alignment of the magnetic field would produce inverse or complementary responses under different wavelengths that are dependent on the initial ratio of singlet-triplet states of the radical. This antagonistic effect of wavelength was observed in experiments on magnetic compass orientation in Drosophila, which under green light (500 nm) showed a 90° shift in their alignment compared to flies tested under violet light (365 nm) [18]. This wavelength-dependent effect was also proposed to explain why in the EMF conditioning experiments of Gegear et al. (2008), flies failed to exhibit a response to EMF under full spectrum light when wavelengths below 420 nm were filtered out [38]. As pointed out by Phillips and co-workers, this failure could be due to a change in the nature of the response rather than an inability of the flies to sense the field. Indeed, the response of naïve flies to EMF under full spectrum and full spectrum >420 nm has opposite directions [20]. However, the wavelengths used in our study (430–470 nm) compared to the previous work (445–495 nm [21] and Helfrich-Forster, pers comm)) would initially not appear to be sufficiently different to engage any such antagonistic effect, so the opposite features of the results of the two studies remains puzzling. In an attempt to solve this conundrum, we exposed flies to 500 nm (+/−20 nm) in the Schuderer apparatus, and were surprised to observe that EMF exposed flies revealed a period lengthening rather than the period-shortening we had observed at 450 nm (EMF/Sham Exposure F _(1,141) = 5.12, p<0.05 and pre-exposure/exposure F_(1,141) = 8.77, p<0.01, Figure 8). Taken together these results at the different wavelengths favor the RPM and the antagonistic model mentioned above, whereby small changes in wavelengths may result in a different Triplet-Singlet ratio and therefore the S-T interconversions would strongly affect the CRY product yield [38]. This striking result nicely explains why the results of Yoshii et al. (2009) are in the opposite direction to ours.

Dim LL lengthens circadian period because activation of CRY alters PER and TIM dynamics, so that nuclear accumulation of these proteins is delayed in s-LNv pacemaker neurons, generating a longer period [26]. The shortening of circadian period observed under EMF thus suggests a partial inactivation of CRY. This interpretation is strongly supported by the results of the western blots, which showed a more stable/abundant CRY under EMF. Upon light absorption, CRY undergoes conformational changes leading to its activation and ultimately to its degradation, which is mediated by E3-ubiquitin ligases [9], [11], [35], [40], [41]. Displacement of the CRY C-terminal (CT) induced by light may increase the binding affinity of CRY to its partners, generating more extended positively and negatively charged regions [42]. Thus significantly more abundant CRY under EMF is likely to be due to CRY maintaining a more inactive conformation that attenuates its light-mediated degradation and prevents period-lengthening [43].

The Trp triad has for some years been considered to be indispensable for the photo-induction of CRY by electron transfer to the FAD, and in the Drosophila CRY structure, these are Trp342, Trp397 and Trp420 [42], [44], [45]. A further residue, Trp536 was initially suggested to lie near the FAD binding pocket, potentially representing an electron donor [44] but more recent dCRY structural analyses have residue Phe534 at this location [42], [45]. Nevertheless double mutant W397F/W536F proteins remain photo-inducible as measured by light induced proteolysis in a cell assay [46]. In addition, the W397F CRY mutant protein was effective in light induced TIM proteolysis even at fluences that do not photoreduce flavin [46]. Furthermore, the redox state of flavin played no significant role in light induced CRY conformational changes nor in downstream interactions with JET (but see [43]). These startling results reveal that photoreduction of flavin may not be the primary mechanism that provides CRY light signalling, even though FAD binding is essential [46]. These results have clear implications for the RPM and provide a rationale for why the W342F mutant retains EMF sensitivity in both our circadian and the conditioning assay. However we should add that there is considerable debate at present on the relevance of the redox status of FAD for CRY light signalling [37], [42], [43], [46], [47]. We also cannot exclude the possibility that another residue such as tyrosine may complete the electron transfer [48], or that a photolyase-like photocycle could be involved [35], [47].

The use of the CRYΔ construct allowed us to decouple the two phenotypic effects of EMF. The period-shortening is significantly attenuated by deletion of the CRY C-terminal, whereas the hyperactivity can be mediated by the N-terminal sequences. According to recent structural analyses of dCRY [42], the deletion of Cys523 in CRYΔ could conceivably alter the photoreduction state of the FAD via Met421 which lies close to Trp397 thereby disrupting electron transfer and, presumably, the EMF-induced period-shortening phenotype. Yet CRYΔ leaves the hyperactivity phenotype intact, suggesting that period-shortening might be more sensitive to disruption of the RPM than hyperactivity. However, this is unlikely because the GFP-CRY-CT construct was competent for inducing modest but significant EMF-induced period shortening compared to its corresponding sham control, if not to the pre-exposed flies, but it did not mediate hyperactivity. As none of the Trp residues of the triad are included in this construct, this result raises further difficulties with the RPM as mediated by the triad. GFP is capable of absorbing blue photons and may trigger an electron transfer [49] so it could be that a GFP-mediated transfer to the CRY-C-terminus required by the RPM is mimicking the wild-type CRY response to EMF, albeit somewhat weakly. Such a model would require the GFP-CRY-CT peptide to have a FAD binding pocket, which is unlikely. Alternatively if there is no electron transfer between GFP and CT, then perhaps the CRY-CT is actually the effector for EMFs and represents the domain capable of transmitting the magnetic information by interactions with downstream molecules not yet identified. This would require another light-sensing molecule because the isolated CRY-CT would not have this ability. Such a model would have the CRY-CT mediating the period shortening EMF phenotype via this unknown light-sensor and disrupting interactions with downstream clock molecules, TIM, JETLAG and RAMSHACKLE [40], [41]. The N-terminal could mediate hyperactivity, perhaps via dCRY's known role in mediating light-dependent neuronal firing [50]. However, even though we have demonstrated that a mutation of one of the Tryptophans forming the Trp-triad is not sufficient to abolish the response, we cannot rule out that the Trp-triad is not required for the RPM without simultaneously mutating all three Trp residues.

Finally, of the two hCRYs, both of which have conserved N-terminals but diverged C-terminals compared to dCRY, expression of hCRY2 exhibited the EMF-induced hyperactivity even though neither hCRY responded to LL by increasing period. This result suggests that the C-terminal of hCRYs cannot mediate the downstream events required for period lengthening, which requires interactions with CRYs known Drosophila clock partners. However, the hyperactivity phenotype generated by hCRY2 must require a different downstream pathway that requires the more conserved N-terminal sequences. At the primary sequence level, hCRY2 is only marginally more similar to dCRY than hCRY1 (40.4% v 39.4%) in the N-terminal 500 residues, but whether this translates to more similarity in functional features of protein structure to dCRY is not known [42]. Given hCRY2's responsiveness to an EMF in flies, we subsequently examined whether a circadian assay in mouse SCN slices mediated by the endogenous type 2 mCRY1 and mCRY2 could also respond to EMFs. We were unable to demonstrate any significant effects using a number of different field intensities, in both the presence and absence of suitable illumination for CRY photoactivation. These results suggest that mCRY1 and mCRY2 are not photosensitive during the period that they are active as repressors, at least in the context of SCN neurons. There is some debate concerning the photosensitivity of vertebrate CRYs, which can show photoreduction in vitro [16]. Indeed, as mentioned earlier, hCRY2 shows a photosensitivity in both the conditioning [25] and our hyperactivity assay (but not in our period-lengthening LL assay), so within a Drosophila cellular environment, mammalian CRYs can retain light responses. Within the SCN environment, however, the endogenous mammalian CRYs show no evidence for direct sensitivity to light or EMF. As light information from the retina is transmitted to the SCN by the retinohypothalamic tract [51], perhaps the use of mouse retina, in which CRYs are also expressed at high levels may provide a more appropriate cellular milieu in which to study putative mammalian CRY-mediated responses to EMF.

In conclusion, our results have revealed that under stringently controlled conditions, circadian locomotor behavior can be used to detect two robust CRY-dependent responses to very low frequency EMFs in Drosophila. Our results cast further doubt on the RPM for mediating CRY EMF responses in its conventional form via the Trp triad, yet our results with 500 nm resonate with the antagonistic hypothesis, providing further support for the RPM. New putative radical partners have recently been hypothesised such as ascorbic acid [24], so while the RPM retains its validity, it is not yet clear what is the identity of all the essential players. Our future work will aim to identify the neurons and the associated molecular mechanisms that are responsible for these intriguing EMF-mediated phenotypes.

Methods

Drosophila strains

Flies were raised at 25°C on standard yeast-maize medium under a light-dark (LD 12∶12) cycle. All strains, mutants, GAL4 and UAS transgenes were backcrossed into a w¹¹¹⁸ background for 5–7 generations. UASmychCRY1/2 and UAScryW342F were obtained from Steven Reppert (UMass). timGAL4, UAScry24b [11], UASHAcry and UAScryΔ14.6 have been described elsewhere [26]. UAS-GFP-C-terminal-CRY (UASGFPcryCT) flies were crossed into a cry⁰² background, using standard balancing techniques.

UASGFPcryCT cloning

This chimeric cry construct contains the C-terminal CRY residues 491–542 fused downstream of the GFP gene with an N-terminus tagged with Strep(II). This was generated by amplifying the GFP sequences using a forward primer (primer-Af) containing a start codon and the Strep(II) tag and a reverse primer possessing the relevant GFP sequence plus an additional stretch of bases complementary to the cry C-terminal sequence. A second amplification used a forward primer encoding a tract of complementary GFP nucleotides and the start of the cry- C-terminus with the reverse primer (primer-Br) completing the cry sequences plus stop codons to terminate translation. The products of the two amplifications were added together after gel-extraction with primer-Af and primer-Br to generate the chimeric construct. This was sequenced to check for errors before being inserted into pUAST and outsourced for injection (BestGene, CA, USA).

Behavioral analyses

Circadian locomotor activity was recorded with Drosophila Trikinetics Monitors (Waltham, MA) and analysed using spectral analysis and autocorrelograms [52]. To test the effects of EMF on the free-running circadian period of locomotor activity, we used a modified version of the Schuderer apparatus [31], which consists of two independent double-wrapped coils [53] placed inside two μ-metal boxes within a commercial incubator. The shielded, four quadratic Helmholtz coil systems produce a homogenous, linearly polarized B field (static or oscillating) with perpendicular orientation to the horizontal plane of the Trikinetics monitors (Figure S6, or the Petri dishes carrying the SCN slices, Figure S4A). Each coil is formed with a pair of wires with the current passing in the same direction through both wires for EMF exposure but in opposite directions to provide a sham exposure condition. A PC randomly selects which of the two chambers receives either the EMF or the sham exposure so the operator is blind to which is the experimental chamber. For the fly experiments we initially chose a 300 µT EMF, the intensity at which the maximal responses had been previously observed [21], oscillating at 3 Hz and in constant blue light (LL) at an intensity of 0.25 µWcm⁻² (LED wavelength 450 nm, 40 nm broad range, RS Component). This LL intensity was operationally selected because 60% of flies remained rhythmic under these conditions so any putative effects of EMF on rhythmicity could be observed in both directions (Figure S7A). In addition, the free-running period of the rhythmic flies in dim blue light was 27.5±0.6 h compared to 24.1±0.4 h in DD (p<0.01, Figure S7B). For the 500 nm experiment the same light intensity was used.

One to three day old flies were first entrained at 25°C in the apparatus under a LD12∶12 cycle for three days using white light, before being pre-exposed to continuous dim blue light for seven days, followed by exposure to an EMF or sham for a further eight days under the same blue lighting conditions. Experiments were performed using a static field 3 Hz, 50 Hz each at 300 µT, and also at 90 µT and 1 mT at 3 Hz. Under the RPM, the effect of a superimposed EMF should not be different for static or extremely low frequency fields at the same field intensity, since the oscillations of the field are longer by several orders of magnitude than the radicals' lifetime, which is in the order of microseconds [1]. We observed that under 0.25 µWcm⁻² a 50 Hz oscillating field exposure led to a rate of arrhythmicity in the flies well above 50% and so we reduced the blue light intensity to 0.09 µWcm⁻². The 50 Hz EMF interfered with the circuit for the LEDs causing them to flicker and thereby raising their effective intensity. A radiometer (ILT1400 Lot Oriel) was not able to detect any flickering under static or 3 Hz EMF.

The period was determined during the pre-exposure and during the EMF or sham exposure. Statistical analyses were performed on flies that were rhythmic throughout the experiment, however for some experiments, especially when only a few flies were rhythmic both before and after the exposure, all flies that were rhythmic either before or after the exposure were included in the analysis. General activity levels were calculated for every 30 min bin regardless of period, but only rhythmic flies were included.

dCRY antibody and Western blots

A dCRY anti-serum was generated in guinea-pig against the N-terminal 188 residues of Drosophila CRY fused to GST. In three diagnostic CRY tests, western blots of fly heads revealed that the reagent detected a high level of endogenous CRY from wild-type flies maintained in darkness, which was dramatically reduced in the cry^b nearly-null mutant [10], in the cry⁰² mutant (Figure 7A) as well as in wild-type flies maintained in both under normal laboratory lighting and in constant dim blue light (Fig. 7 sham condition, [11]). For the EMF or sham blots, flies were harvested after 5 days under constant dim blue light and constant darkness (DD) controls were generated by using flies in vials wrapped in aluminium foil and placed inside the same boxes so exposed to the same EMF or sham conditions. A pool of 100 heads, collected at ZT14, was homogenized in 1.5 volume of extraction buffer (20 mM Hepes, pH 7.5, 100 mM KCl, 2.5 mM EDTA, pH 8, 5% glycerol, 0.5% Triton X-100, 1 mM DTT, complete protease inhibitors tablets from Roche). After quantification via Bradford (Sigma) assay, proteins were loaded on a 10% SDS-page and transferred to Nitrocellulose Membrane (GE HealthCare). The following primary antisera were used: mouse Guinea Pig anti-CRY (1∶1,000) and mouse anti-HSP70 (Sigma, 1∶50,000). Secondary horseradish peroxidase–conjugated antisera were goat anti-guinea pig (ABCam Ltd, 1∶10,000) and goat anti-mouse (Sigma, 1∶6,000). Signals were obtained by chemiluminescence (ECL, GE HealthCare) and quantified with GelAnalyser 2010 (GelAnalyser.com, Dr Istvan Lazar). Three biological replicates with three technical replicates (ca 30 heads each) were performed.

Western blots on the UAS-GFP-C-terminal-CRY, UAScryW342F and UASmychCRY1 crossed to timGAL4 were performed as followed: Ten to fifteen flies were kept in DD for 3 days and during the fourth subjective night (ZT 20–22) were collected. Proteins were extracted as described above. The following primary antisera were used: mouse Guinea Pig anti-CRY (1∶1,000, used for UAS-GFP-C-terminal-CRY, UAScryW342F), mouse anti-MYC (Invitrogen, 1∶3000, used for UASmychCRY1), mouse anti-HSP70 (Sigma, 1∶50,000) and mouse anti-TUBα (Sigma, 1∶10000, used for UASmychCRY1). Secondary horseradish peroxidase–conjugated antisera were goat anti-guinea pig (ABCam Ltd, 1∶10,000) and goat anti-mouse (Sigma, 1∶6,000). Signals were obtained by chemiluminescence (ECL, GE HealthCare) and quantified with GelAnalyser 2010 (GelAnalyser.com, Dr Istvan Lazar). Three biological replicates with three technical replicates (ca 30 heads each) were performed.

Mouse SCN slices

All animal work carried out in these studies was licensed under the UK Animals (Scientific Procedures) Act 1986, with Local Ethical Review by the MRC. Sacrifice was by cervical dislocation. Wild type (WT) Per2:Luc mice, generated by J. Takahashi (University of Texas Southwestern Medical Center, Dallas), were housed under a 12 h light∶12 h dark cycle. Brains were removed from pups (P7–P10) and SCN organotypic slices were prepared as previously described [54]. After at least 7 days, SCN slices were transferred to a photon multiplier tube assembly (PMT) for bioluminescence recordings.

EMF exposure for SCN slices

SCN slices were incubated in a Schuderer apparatus-based system, within a light-tight incubator at 37°C, with fibre-optic transmission of bioluminescence signals to a PMT assembly housed outside the incubator to avoid interference with the EMF (Figure S4A). For light exposure, SCN slices were exposed to either 405 nm (blue) or 625 nm (red) light from high-power LEDs (Thorlabs, UK) at 1 µW/cm² coupled to the fibre-optics used for bioluminescence transmission. Automated control of LEDs and PMT allowed a cycle of intermittent light and bioluminescent recordings consisting of 23 min light exposure, 30 s delay, 6 min PMT capture, 30 s delay, providing bioluminescence data acquisition every 30 min.

Statistical analyses

Statistical analyses of Drosophila locomotor rhythms were performed using spectral analysis implemented in the custom-written BeFly! package [52], [55]. Further analyses were carried out using GraphPad Prism version 6.00 for Windows, (GraphPad Software, La Jolla California USA, www.graphpad.com) and STATISTICA (data analysis software system, version 8.0 StatSoft, Inc. 2008, www.statsoft.com). Rhythmic bioluminescence was analysed in BioDare software (A. Millar, University of Edinburgh, UK). A repeated-measure two-way ANOVA was used to test for significant influences of magnetic field exposure and order of field application on circadian period. Period error (a measure of cycle to cycle variability) and relative amplitude error (RAE, an index of the rhythmic coherence of the slice) of SCN bioluminescence was also analysed.
