Reversible Silencing of Cytomegalovirus Genomes by Type I Interferon Governs Virus Latency

Summary

Herpesviruses establish a lifelong latent infection posing the risk for virus reactivation and disease. In cytomegalovirus infection, expression of the major immediate early (IE) genes is a critical checkpoint, driving the lytic replication cycle upon primary infection or reactivation from latency. While it is known that type I interferon (IFN) limits lytic CMV replication, its role in latency and reactivation has not been explored. In the model of mouse CMV infection, we show here that IFNβ blocks mouse CMV replication at the level of IE transcription in IFN-responding endothelial cells and fibroblasts. The IFN-mediated inhibition of IE genes was entirely reversible, arguing that the IFN-effect may be consistent with viral latency. Importantly, the response to IFNβ is stochastic, and MCMV IE transcription and replication were repressed only in IFN-responsive cells, while the IFN-unresponsive cells remained permissive for lytic MCMV infection. IFN blocked the viral lytic replication cycle by upregulating the nuclear domain 10 (ND10) components, PML, Sp100 and Daxx, and their knockdown by shRNA rescued viral replication in the presence of IFNβ. Finally, IFNβ prevented MCMV reactivation from endothelial cells derived from latently infected mice, validating our results in a biologically relevant setting. Therefore, our data do not only define for the first time the molecular mechanism of IFN-mediated control of CMV infection, but also indicate that the reversible inhibition of the virus lytic cycle by IFNβ is consistent with the establishment of CMV latency.

Introduction

Herpesviruses are characterized by their ability to establish a lifelong latent infection in their natural host and reactivate upon immunosuppression. Cytomegaloviruses (CMV) are paradigmatic β-herpesviruses, characterized by strict species specificity, but highly prevalent in numerous mammalian species [1]. Human CMV (HCMV) prevalence ranges from 30 to 90% [2]. While primary infection and latency are usually asymptomatic in immunocompetent individuals, immune suppression results in virus reactivation, which is associated with substantial morbidity and mortality. In particular, CMV reactivation may result in allograft rejection, pneumonia or gastroenteritis in recipients of solid-organ and bone-marrow transplants [3]. Understanding the molecular mechanisms involved in the establishment and maintenance of latency is fundamental for developing effective countermeasures to CMV disease in high-risk populations.

The human and the murine CMV (MCMV) share many biological properties. As such, MCMV infection of mice is a widely used in vivo model of CMV immunity and latency. Latency is characterized by the persistence of silenced virus genomes in the absence of infectious viral particles [4]. Both HCMV and MCMV infect a variety of cell types in their respective host [5], [6], but latency seems to be confined to distinct cell types, such as cells of the myeloid lineage [5], [7]–[10]. While HCMV latency in endothelial cells remains controversial [11], [12], strong evidence supports the notion that liver sinusoidal endothelial cells (LSECs) are a site of MCMV latency [13].

Similar to HCMV, chromatinization and recruitment of cellular repressors to the viral DNA and to the major immediate early (MIE) gene locus are critically involved in the in vivo establishment of MCMV latency [14], [15]. The IE genes regulated by the MIE promoter (MIEP) encode the first viral proteins expressed during productive infection, and act as essential transactivators of early and late genes [16]. Reactivation of latent HCMV from in vivo infected myeloid progenitor cells was shown to be related to MIE chromatinization [17]. Namely, the latent viral genome is associated with repressive chromatin in immature myeloid cells, whereas virus reactivation is accompanied by chromatin remodeling and initiation of transcription at the MIE locus during cell-differentiation. Therefore, MIEP transcriptional activity is generally considered an important checkpoint in CMV latency and reactivation.

In the immunocompetent host, primary infection is controlled by a combination of immunological effectors. Infected cells are directly eliminated, e.g. by cytotoxic effects of NK or T-cells. In addition, the spread of infectious virus is restricted by antibodies or by cytokines that reduce the permissiveness of cells for viral replication. Cytokines such as type I (IFNα/β) or type II interferons (IFNγ) are critical in the control of acute infection [18], [19]. They exert their antiviral action by activating immune effector cells like DCs, T cells or NK cells, but also by inducing transcriptional programs which suppress virus replication in target cells [20].

While it is generally accepted that interferons limit virus spread without killing the infected cell, the exact mechanism of their antiviral action remains unclear. Most importantly, it remains unclear if their effect results in CMV clearance, or if the viral replication is merely suppressed while genomes are maintained in the infected cell. A reversible block of viral replication prior to immediate-early expression would argue that interferons play a key role in the establishment of CMV latency. In a seminal paper, Presti et al. showed that mice that lack type II IFN receptors maintain a productive MCMV infection and that MCMV reactivation from explants of latently infected mice may not be observed in the presence of IFNγ [19]. Unfortunately, this experimental setting could not differentiate if the IFNγ truly suppresses virus reactivation by acting directly in latent cells or merely inhibited viral spread to other cells upon reactivation. In contrast, the role of type I IFN in the establishment and maintenance of latency is difficult to investigate in vivo, as IFNα/β receptor knockout (IFNAR⁻) mice are about 1000-folds more susceptible to MCMV than wild-type mice, and die within a few days post infection [19]. Nevertheless, in vitro experiments showed that IFNβ induced by lymphotoxin α reversibly suppresses HCMV and MCMV gene expression and replication [21]. Moreover, MCMV replication in macrophages is transiently suppressed by synergic action of IFNγ and type I interferons [22]. However, both publications showed that the suppression was only partial, because viral gene expression was reduced, but still detectable [21], [22]. Therefore, the effects of this axis seemed to reflect simmering lytic replication, rather than bona fide viral latency.

In this study, we show that MCMV replication may be completely, but reversibly, inhibited in cells that respond to IFNβ, in a manner consistent with viral latency. On the other hand, cells which failed to respond to IFNβ were permissive for MCMV replication. We show that the inhibition of MCMV replication by IFNβ depends on the inhibition of viral gene expression at the level of IE transcription mediated by nuclear domain 10 (ND10) components, which is fully reversible even after extended culture of in vitro infected cells and in cultures of endothelial cells derived from latently infected mice. In summary, our data indicate that reversible silencing of viral genomes by IFN-induced ND10 components is a key contributor to the establishment of CMV latency.

Results

Restriction of MCMV Replication by IFNβ

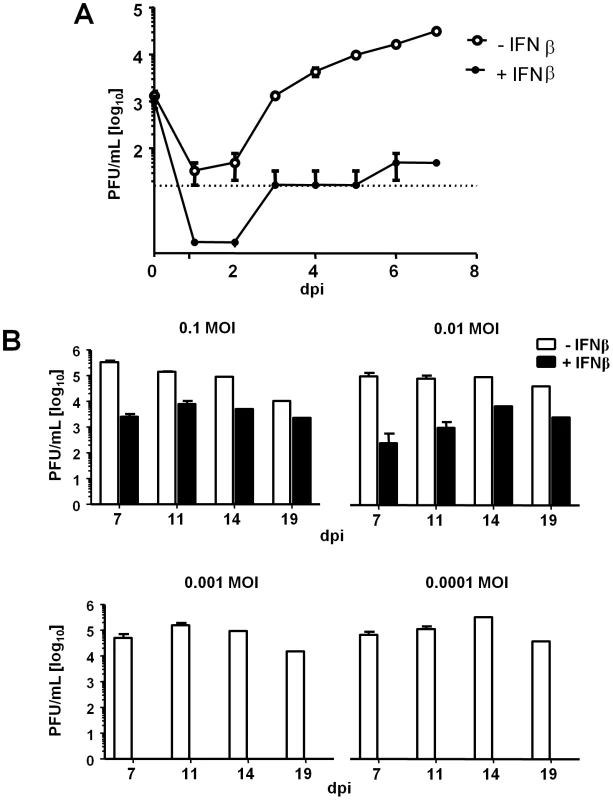

LSECs are a site of MCMV latency [13]. We recently described an LSEC line which enters cell cycle in a doxycycline-dependent manner and is highly permissive for MCMV infection [23]. To study type I interferon (IFN) effects on MCMV replication in quiescent LSECs, growth-arrested cells were incubated with IFNβ for 24 h, infected with MCMV at a multiplicity of infection (MOI) of 0.001 and viral growth was assayed for a week. Until 5 days post infection (dpi), infectious virus was only exceptionally detected in supernatants (SN) of IFNβ-treated LSECs, and viral titers were substantially diminished on 6 and 7 dpi, as compared to untreated cells (Figure 1A). Therefore, consistent with previous reports, IFNβ treatment resulted in delayed viral growth and reduced viral titers, but did not completely block MCMV replication.

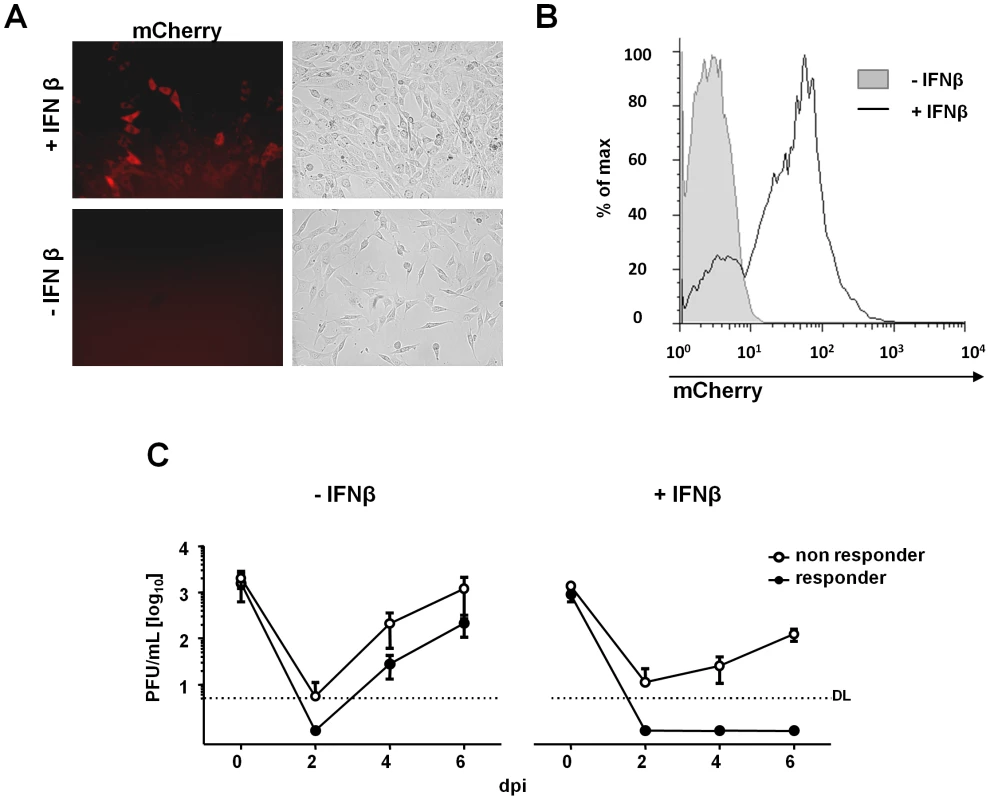

Recently, we reported that a minor proportion of cells remain unresponsive even to high doses of type I interferon [24]. We speculated that MCMV infection of IFNβ-unresponsive cells may generate sufficient amounts of virus to overcome the barrier to infection installed by IFNβ pre-treatment. In that case, infection at low MOI would increase the chance that exclusively IFN-responsive cells are infected and that the infection becomes fully contained. We thus repeated the initial experiment with reduced doses of MCMV, up to a dilution of 1 plaque forming unit (PFU) per 10,000 cells, and monitored the long-term IFNβ effects for up to 19 dpi in growth-arrested LSECs (20,000 cells/well). While IFNβ treated samples infected at an MOI of 0.1 and 0.01 showed substantial virus titers by 7 dpi and later (Fig. 1B, upper panels), MCMV replication was completely abrogated, when the infection was performed at MOIs below 0.01 (Fig. 1B, lower panels). It is important to note that both an MOI of 0.001 and 0.0001 still resulted in complete cell lysis and high viral titers in IFNβ-naïve samples (Fig. 1B, lower panels, white bars). These findings were consistent with the model that CMV infection is contained at very low MOIs because it is restricted to IFNβ-responsive cells. To confirm this hypothesis, we used reporter cells that express an IRF-7-mCherry fusion protein under the control of the IFNβ-responsive IRF-7 promoter (Figure 2A). Reporter cell stimulation with IFNβ (500 U/ml) revealed a small but notable population of non-responding cells (Figure 2B). We separated the cells into responders and non-responders by fluorescence activated cell-sorting (FACS) and then infected them with a dose (MOI 0.01), which could not be contained by IFNβ in the previous experiment (Figure 1B). In the absence of further IFNβ treatment, MCMV titers were diminished in cells which responded to IFNβ (Figure 2C, left diagram). More importantly, virus replication was completely abolished upon continuous IFNβ treatment, but only in IFNβ-responsive cells (Figure 2C, right diagram). In summary, these experiments demonstrate that IFNβ pretreatment is sufficient to restrict MCMV replication in cells which respond to IFNβ. However, virus expansion in the few IFN-unresponsive cells eventually overcomes the resistance of the IFNβ-responsive population.

IFNβ Silencing of MCMV Immediate Early Gene Expression Is Reversible

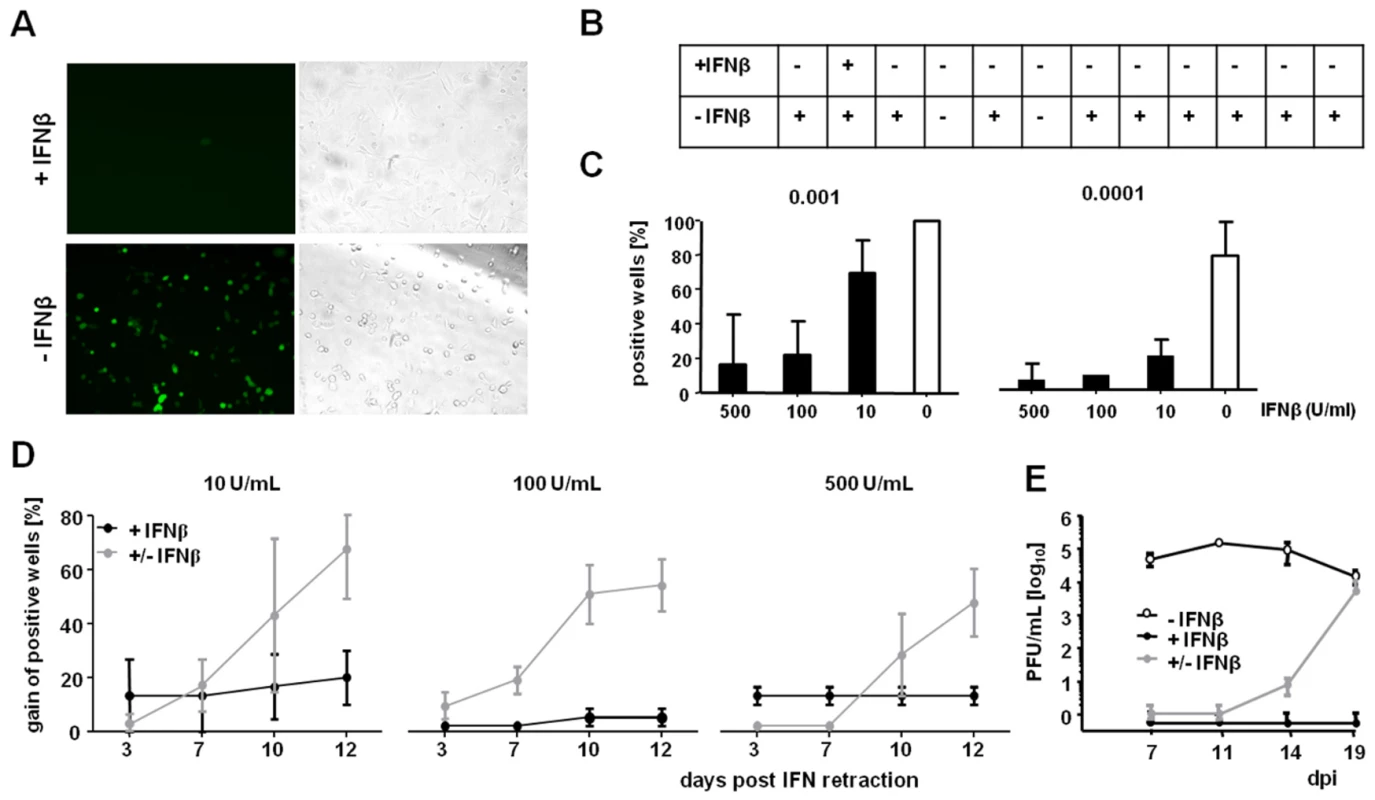

IFNβ abrogated productive MCMV replication in LSECs at low MOIs. To elucidate at which step of infection this block was exerted, we infected LSECs with a recombinant MCMV that expresses two different fluorescent proteins as reporters that reflect the activity of the MCMV major immediate early promoter (MIEP). This virus was named MCMV^r and contains an ectopically inserted, full-length MIEP sequence flanked by the yellow fluorescent protein EYFP, driven by the ie1/3 promoter, and the red fluorescent protein tdTomato that is controlled by the ie2 promoter. MCMV^r grows like WT MCMV in vitro and expresses EYFP and tdTomato with the same scale and kinetics like the MCMV IE1 and IE2 genes, respectively [23]. To determine the onset of viral infection we monitored EYFP expression, which occurs earlier than tdTomato [23], in line with reports that the ie1 gene is immediately expressed at high levels during primary lytic infection and reactivation [25], [26]. MCMV^r infection of LSECs resulted in strong EYFP-expression, which was hardly detectable in IFNβ-treated cells (Figure 3A). To determine if IFNβ completely abrogated MCMV IE gene expression, LSECs were infected with MCMV^r in 96-well plates, scanned for reporter gene expression, and wells were classified as positive when even a single EYFP-fluorescent cell could be observed within a week of infection (representative result of an experiment in 12 wells per condition is shown in Figure 3B). Different IFNβ concentrations were tested with various MOIs, to assess the conditions that allow the complete suppression of viral genes, and the percentage of positive wells was defined (Figure 3C). 500 and 100 U/mL of IFNβ blocked all viral gene expression in more than 80% of wells at 0.001 and 0.0001 MOI for 7 dpi, whereas 10 U/mL showed similar activity only at the lower MOI (Figure 3C). Importantly, in wells that showed one single positive cell, the progress of the lytic infection was irreversible and the virus would always spread to nearby cells. We next tested if the suppressive effect of IFNβ on MCMV gene expression is permanent or reversible, by removing IFNβ at 7 dpi and monitoring the cells for additional 12 days. Remarkably, IFNβ removal resulted in viral gene expression (Figure 3D) and production of infectious virus (Figure 3E) about 7–10 days later, while the percentage of EYFP positive wells remained unchanged (Figure 3D) and viral titers undetectable (Figure 3E) in wells permanently treated with IFNβ. We concluded that IFNβ reversibly suppresses MCMV replication before or at the time of MIEP-driven gene expression. Of note, the same finding was observed following infection with the γ-herpesvirus MHV68 (Figure S1B). In contrast, vesicular stomatitis virus (VSV), which could be efficiently suppressed with IFNβ, was not able to replicate after IFNβ-retraction (Figure S1A). In conclusion, IFNβ silenced the replication of three different viruses. However, this was only reversible for infections with the two herpesviruses.

IFNβ Acts at the Level of MIEP-Driven Gene Expression

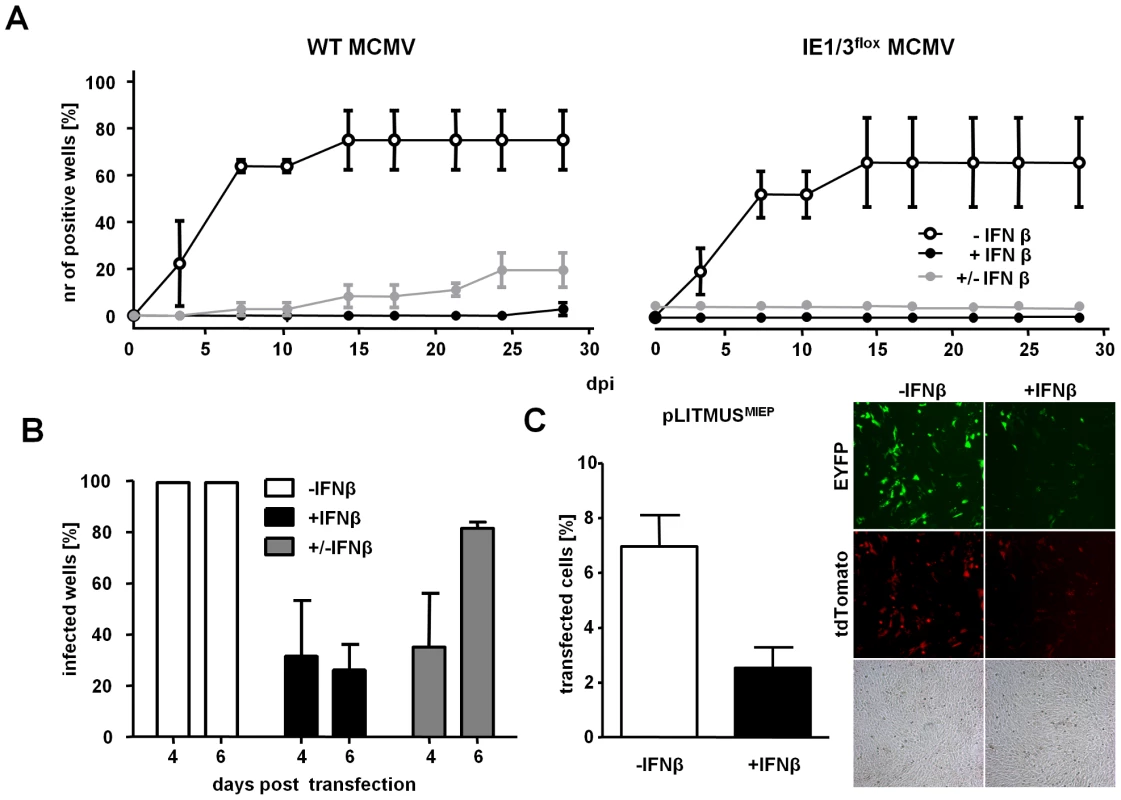

IFNβ reversibly inhibited MCMV replication and expression of genes driven by the ie1/3 promoter. This could be due to a direct block of IE-gene expression, or effects that occurred during the viral entry into the cells. To test if the reversible suppression by IFNβ occurs after the virus has entered the cell and the viral genomes are delivered to the nucleus, we generated a recombinant MCMV in which the ie1/3 locus is flanked by two loxP sites (IE1/3^flox MCMV) which results in IE1 and IE3 deletion when the genome is recognized by the Cre recombinase in the cell nucleus (Figure S2A). Importantly, IE1/3^flox MCMV replicates in Cre-expressing cells, probably due to rapid MIEP-driven gene expression, which precedes the Cre-mediated deletion of target sites (Figure 4A and Figure S2B). We considered that the Cre recombinase would have sufficient time to excise the IE1 and IE3 genes and abrogate reactivation upon IFNβ retraction, if IFNβ blocked viral gene expression after genome delivery to the nucleus. Cre-expressing MEFs were pre-treated with IFNβ, infected with IE1/3^flox MCMV or WT MCMV and the wells were scanned for viral plaques. Viral replication of WT and IE1/3^flox MCMV was efficiently blocked in cells which constantly received IFNβ over a time period of 4 weeks (Figure 4A). IFNβ removal at 7 dpi resulted in virus replication in several wells infected with WT MCMV, consistent with the data obtained from MCMV^r-infected LSECs (Figure 3D). In contrast, IE1/3^flox MCMV failed to replicate upon IFNβ removal from Cre-MEFs, indicating that the IE1/3^flox MCMV genomes were exposed to Cre-recombinase in the nucleus, and the deletion of the ie1/3 genes abrogated the ability of the virus to replicate upon IFNβ-removal.

Since our data indicated that MCMV genomes are delivered to the cell nucleus in the presence of IFNβ, we assumed that it directly inhibits viral gene expression. To test the ability of IFNβ to impair viral gene expression in absence of virion components, we delivered the MCMV genomes into cells by transfection [27]. Since transfection is less efficient in LSECs than in MEFs (data not shown), we transfected MEFs with the MCMV^r bacterial artificial chromosome (BAC) and treated them with IFNβ immediately upon transfection. MIEP-driven expression was detected by fluorescence microscopy for EYFP expression. Four days post transfection, EYFP was observed in all wells transfected in the absence of IFNβ treatment. In contrast, EYFP could be observed in only few of the IFNβ-treated wells (Figure 4B). Most importantly, removing IFNβ resulted in the restoration of MIEP activity by day 6 (Figure 4B). To understand if the inhibition of gene expression was exclusive to the MIEP promoter, or to any incoming DNA, fibroblasts were transfected with plasmids expressing the EYFP and tdTomato under the control of the MCMV MIEP or with plasmids expressing reporter genes under the control of other promoters (SV40 and HCMV). The expression of all reporter genes was substantially diminished in IFNβ treated cells (Figure 4C and data not shown), indicating that IFNβ suppresses gene expression in a manner that is not specific for the MCMV MIEP but to any incoming DNA. Together, these data provide strong evidence that IFNβ-mediated reversible suppression of viral replication occurs directly at the level of gene transcription of foreign DNA entering the nucleus.

The Suppression of Immediate Early Gene Expression by IFNβ Is Due to Transcriptional Silencing Mediated by ND10 Components

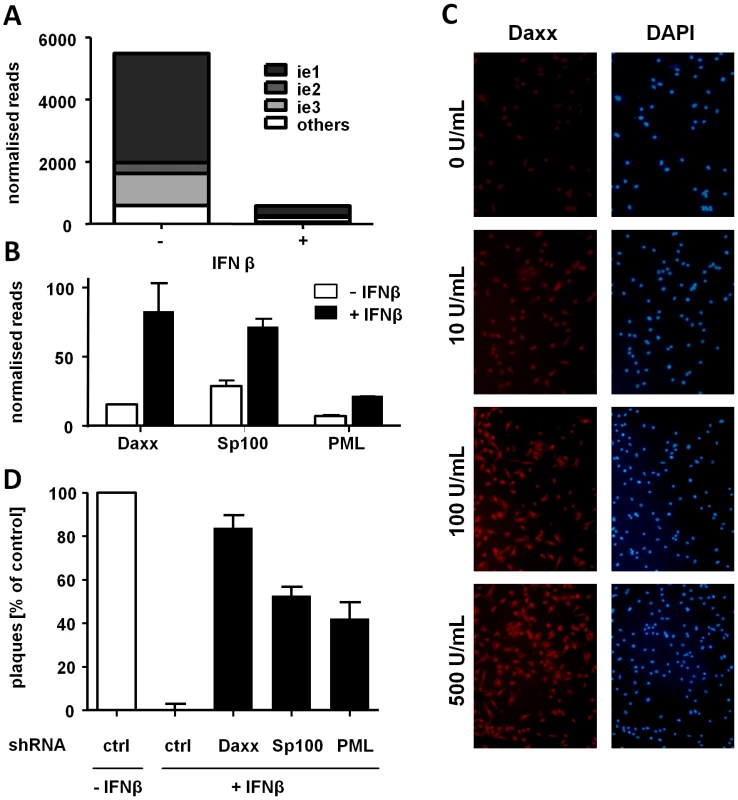

To formally show that IFNβ blocks MCMV replication at the level of gene transcription rather than translation, we analyzed the viral transcriptome of IFNβ-treated LSECs immediately upon MCMV infection. CMV particles carry significant amounts of virion-associated RNA [28], which, upon delivery to infected cells, impede the detection of de novo synthesized immediate early and early viral transcripts. We therefore metabolically labeled newly transcribed RNA with 4-thiouridine (4sU), isolated the labeled RNA by thiol-specific biotinylation and streptavidin-precipitation [29], and deep-sequenced the newly transcribed RNA. To observe the effect of IFNβ at the earliest possible time point after the infection, we adapted the infection protocol and incubated the cells with infectious virus for 5 min only, using an infectious dose that was normalized to match an MOI of 10 in standard infection and virus absorption. This allowed us to focus our analysis on viral transcripts generated during the first hour of infection (hpi). At 1 hpi, the IE gene transcripts were detectable and comprised the majority of viral transcripts, whereas they were highly diminished in IFNβ-treated LSECs (Figure 5A and Table S1). It is important to note that IFNβ treatment also diminished all other viral transcripts that could be detected at 1 hpi, consistent with the observed global suppression of reporter gene expression in all tested expression plasmids. Thus, IFNβ acts at the level of MCMV gene transcription, resulting in strong transcriptional repression of all viral genes expressed in the first hour of infection.

Since IFNβ inhibited MCMV replication at the level of viral IE gene transcription we hypothesized that this effect might be mediated by induction of nuclear domain 10 (ND10) components. ND10 bodies are nuclear structures known to associate with incoming viral DNA restricting CMV replication [30]–[32]. Hence, we screened the host-cell transcriptome for members of the ND10 and compared their transcriptional level in untreated and IFNβ-treated LSECs. Interestingly, three major components of the ND10: Daxx, Sp100 and PML, were upregulated in IFNβ-treated LSECs (Figure 5B and Table S2), consistent with published data [33], [34]. This was confirmed by immunofluorescence staining for Daxx (Figure 5C) and RT-PCR for all three components (Figure S3). To define the relevance of these factors in the IFNβ-mediated suppression of MCMV replication, we performed shRNA-mediated knockdowns of these three ND10 components, which reduced their mRNA levels to those seen in IFN-untreated cells (Figure S3). More importantly, each of the three knockdowns was sufficient to almost completely restore MCMV replication in the presence of IFNβ (Figure 5D). Collectively, these data highlight a key role of ND10 bodies in the transcriptional silencing of CMV gene expression induced by IFNβ.

IFNβ Induces a Reversible Silencing of MCMV In Vivo

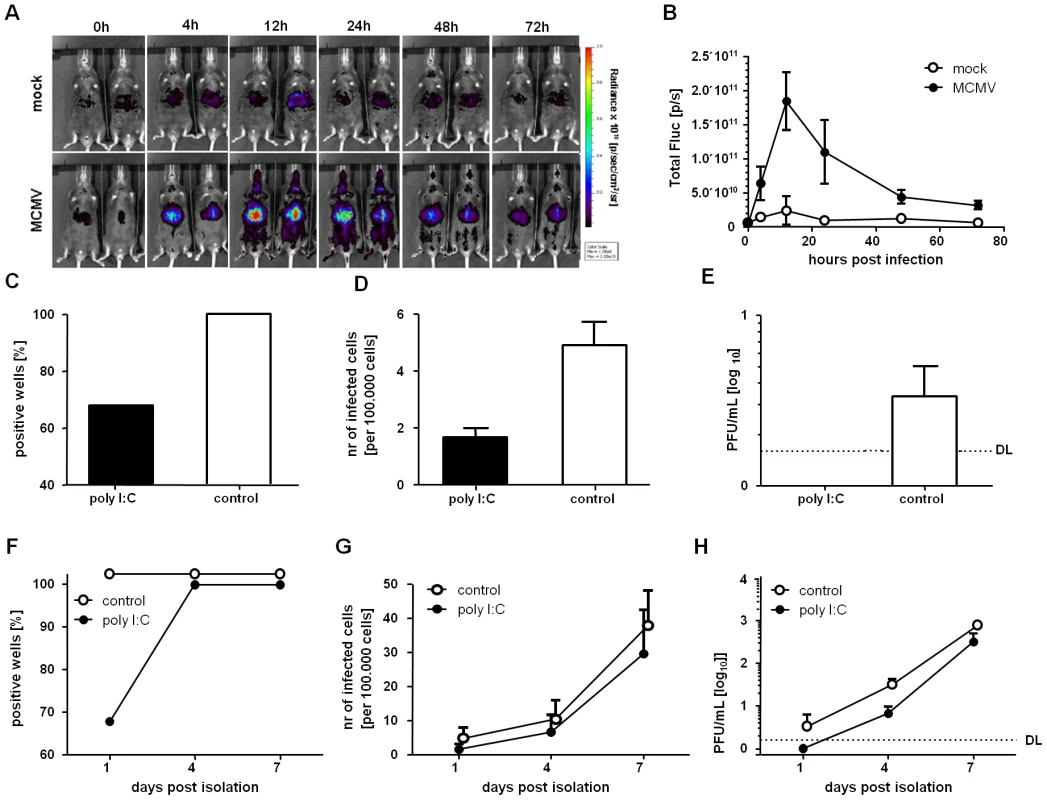

While our results showed very clear IFNβ effects on MCMV lytic replication, it remained open if it also induces MCMV latency in vivo. To understand how MCMV infection influences the production IFNβ in vivo, we infected transgenic mice which carry a luciferase reporter gene under the control of the MX2 promoter [35], a well-characterized IFN stimulated gene (ISG). Luciferase activity could be detected in the MCMV-infected mice already at 4 hpi (Figure 6A), indicating immediate production of IFN upon MCMV infection (Figure 6A). The reporter gene signal peaked at 12 hpi and declined thereafter, although a robust luciferase signal could still be detected by 72 hpi (Fig. 6A, 6B). Interestingly, the response to IFN was most prominent in the liver region throughout the time of monitoring.

To determine if in vivo IFNβ-stimulation also transiently silences MCMV in LSECs, we infected mice with MCMV^r in which the production of IFNβ was induced prior to infection. For this, we used a previously described IFN-β reporter mouse (IFN-β^+/Δβ-luc), allowing the visualization of IFNβ expression by in vivo imaging using firefly luciferase as a reporter [36]. These mice were stimulated with poly I:C and a high activity of the IFNβ promoter could be detected 4 h after poly I:C injection but not in mock treated mice (Figure S4), consistent with the kinetic of MCMV infection (Fig. 6A). Mice were infected with MCMV^r at 8 h post stimulation, and LSECs were isolated from the liver of the infected mice at 72 hpi. LSECs were cultivated for 7 days and analyzed for reporter gene expression at 1, 4 and 7 days post isolation. After 1 day, MCMV reporter gene expression (EYFP) could be detected in all of the wells with LSECs that were isolated from control mice, infected in the absence of poly I:C. In contrast, MCMV ie gene expression was absent in about 1/3 of the wells containing LSECs from poly I:C-stimulated mice (Figure 6C). This was not merely a random redistribution of the EYFP+ cells to fewer wells, because the overall number of EYFP⁺ cells was substantially reduced in LSECs from poly I:C treated mice (Figure 6D). We considered the possibility that the absence of viral gene expression upon in vivo IFN induction is a result of a hindered viral entry in the LSECs. However, this scenario seemed unlikely, because we could not detect any infectious MCMV in the supernatants from poly I:C pre-treated LSEC (Figure 6E), while control LSECs showed detectable titers, probably as a result of ongoing virus shedding in the first 24 hours of culture. To understand if the in vivo MCMV suppression by IFN was due to reversible silencing of gene expression, the cells isolated from poly I:C-treated mice were further cultivated and MCMV gene expression was monitored at 4 and 7 days post isolation and EYFP expression could be observed in all of the wells, including those that were negative at 1 day post isolation (Figure 6F). Likewise, the number of EYFP⁺ cells increased upon cultivation, and by 4 and 7 days post isolation the LSECs from poly I:C treated mice showed similar levels as the controls (Figure 6G). Finally, this was accompanied by full virus reactivation, as demonstrated by the emergence of infectious virus in the supernatants at 4 days post isolation in the IFNβ-stimulated LSECs, and by its expansion by day 7 (Figure 6H). In conclusion, the infection of LSECs stimulated with IFNβ in vivo increased the proportion of cells that contained silent MCMV genomes that were able to re-initiate the replication cycle after explantation, upon several days of ex vivo cultivation. To confirm that this also occurs in the course of natural infection, in wild type mice and in absence of poly I:C treatment, we isolated LSECs from BALB/c mice at 72 hpi infection with MCMV^r and monitored EYFP expression on day 1 and 4 post isolation. By seeding LSECs at a lower concentration per well (50,000 cells per well, instead of 70,000), and using mice expressing IFNβ from both of its alleles (luciferase expression in reporter IFN-β^+/Δβ-luc mice is possible due to a monoallelic exclusion of IFNβ expression), we established conditions where MCMV IE gene expression was completely abrogated in absence of poly I:C prestimulation, because 7 out of 26 wells showed no EYFP expression at all on day 1 post isolation. The majority of these wells (5 out of 7) became positive for EYFP by day 4 post isolation (data not shown), demonstrating that viral genomes, but no gene expression, were present in some cells immediately upon infection. These silenced genomes may re-initiate the lytic gene expression program, therefore strongly arguing that viral latency is established in parallel with lytic replication at the onset of the in vivo infection.

IFNβ Represses MCMV Reactivation from In Vivo Infected LSECs

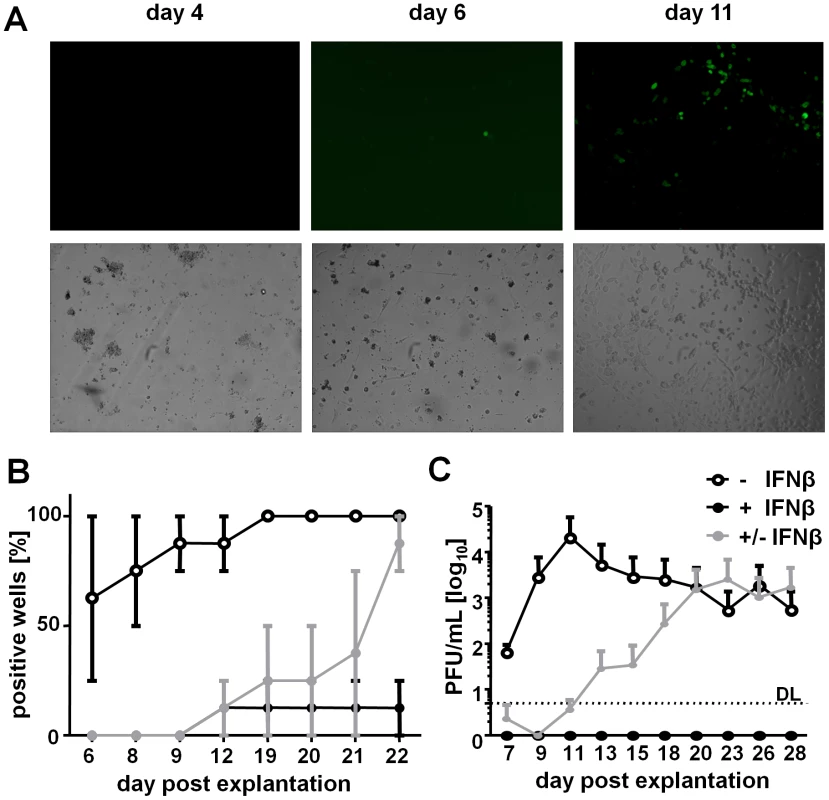

IFNβ reversibly silenced MCMV gene expression in LSECs infected in vivo and in vitro, a phenomenon with intriguing homologies to MCMV latency and reactivation. To determine if IFNβ would be sufficient to suppress MCMV reactivation from LSECs carrying latent viral genomes, and to define if this would also occur at the level of immediate-early gene expression, we infected mice with MCMV^r and isolated the LSECs from the liver of latently infected mice. Infectious MCMV^r is completely cleared from liver by 14 dpi [23]. Primary LSECs were isolated at 4 weeks post infection and cultivated for up to three weeks in vitro. Viral gene expression was monitored by fluorescence microscopy for EYFP expression. After 6 days of cultivation, the LSEC explant monolayers displayed single fluorescent cells (Figure 7A). Within a couple of days, the infection expanded resulting in numerous fluorescent cells. The majority of wells with LSECs that were cultivated in presence of IFNβ exhibited no viral gene expression (Figure 7B). In contrast, IFNβ removal at 6 days post LSEC isolation resulted in a strong increase of EYFP-positive wells, almost to levels seen in the IFN-naive controls (Figure 7B), thereby excluding the suppressive effects of IFNβ to be due to toxic effects. Finally, infectious virus shedding in the cell supernatants was confirmed only in IFN-untreated cells or upon IFNβ removal (Figure 7C). In summary, these data demonstrate that IFNβ is not only able to efficiently inhibit lytic MCMV infection following pre-treatment, but can also efficiently suppress MCMV reactivation of latently infected primary LSECs.

Discussion

It is well-established that IFNβ inhibits lytic CMV replication, but cannot abrogate it completely [37], [38]. Recently, we reported that even high doses of IFNβ cannot activate all cells of a population, leaving a few cells unprotected [24]. We now show that this minority of cells is responsible for the failure of IFNβ to completely abrogate lytic MCMV replication. Consequently, MCMV gene expression and replication are completely blocked by IFNβ at very low doses of infection, when the probability of infection of an IFNβ-unresponsive cell is minimized. Higher doses of infectious MCMV are blocked when infecting sorted IFN-responder cells (Fig. 2). Restricting the infection to IFN-responsive cells allowed us to identify the reversible nature of the IFN-mediated inhibition of CMV replication. This could not be observed in previous studies, because viral IE gene expression in a single cell is sufficient to overcome IFNβ-induced resistance to viral replication in subsequent rounds of infection. This all-or-nothing phenotype is consistent with a model where the initial failure to contain the expression of IE1 results in a positive feedback loop, which reinforces viral transcription that can no longer be controlled by IFNβ [39], [40]. Large amounts of virus released from a single IFN-unresponsive cell are then capable of overcoming the antiviral state in the neighboring IFN-responder cells explaining the inability of IFN to fully suppress productive CMV infection in cell culture.

Consistent with this model, expression of the viral IE1 protein is crucial for the dispersion of ND10 bodies, thereby allowing transcription of viral early genes to proceed [41]. Several components of the ND10 bodies, are induced by IFN. ND10 were initially described as the nuclear domains where HCMV genomes are localized immediately upon infection [42]. Subsequent studies revealed that HCMV replication is inhibited by additive effects of ND10 components, including PML, Daxx [43] and Sp100 [44]. Daxx has been shown to be involved in chromatin modification [45], [46] and was found to bind to the MIEP of MCMV in latently infected mice [14]. In addition, a role in transcriptional suppression has been suggested for the nuclear antigen Sp100 which was shown to repress the transcriptional activity of herpes simplex virus 1 (HSV-1) promoters [47]. We showed here that IFNβ-mediated inhibition of MCMV replication critically depends on the ND10 proteins PML, Daxx and Sp100, rather than on any other IFN induced gene (Figure 5). Our study supports a critical role of ND10 bodies in limiting the viral transcription at the earliest stages of infection, and shows for the first time that this is fully reversible, and thus consistent with the molecular definition of latency. Therefore, we propose that the virus exploits the IFN-mediated induction of ND10 body components to establish latent infection in tissues strongly responding to IFN. In this context, herpesvirus latency may be understood as an immune evasion mechanism to high levels of IFN, because latency offers a choice for the virus to maintain its ability to reactivate in an environment with rampant immune responses until these responses decline.

Our data highlight a crucial role of IFNβ-mediated induction of ND10 components, similar to previous data showing the critical role of PML in the IFN repression of HSV-1 replication [48]. Our results are not necessarily limited to the establishment of latency in endothelial cells. Similar results have been recently observed in macrophages, where interferon induced ND10 expression and an MCMV refractory state at the IE expression level (M. Hassim and P. Ghazal, personal communication). Therefore, IFN may also be involved in the induction of latency in myeloid cells, and it is an intriguing possibility that this may also depend on the induction of ND10 bodies. How do the ND10 bodies silence the viral transcription? Our results may imply that the silencing is not based on the suppression of a specific promoter, but rather of any incoming episomal DNA, although this still needs to be formally confirmed. More importantly, our results showed that a complex nuclear machinery is required for MCMV silencing, because each of the shRNA knockdowns (Daxx, Sp100 or PML) were sufficient to rescue viral transcription, at least in part. Taken together, these results may imply that ND10 bodies silence viral transcription in a manner akin to programmed epigenetic control, but this hypothesis would need to be tested in a detailed study, which goes beyond the scope of this article.

IFNβ was not only able to completely inhibit lytic MCMV replication in vitro and in vivo, but also to prevent virus reactivation from latency in explant cultures. Since both IFNα and IFNβ signal through the same receptor and induce a range of similar genes, it is possible that both type I IFNs exert similar effects on MCMV latency [38], [49], [50]. On the other hand, recent evidence showed distinct differences in the downstream signaling induced by IFNβ and IFNα [51]. Furthermore IFNβ induces the secretion of IFNα in mice [52] and therefore it is possible that in our experiments the IFNβ-stimulation does not act directly, but rather by enforcing the secretion of other antiviral cytokines which may influence MCMV latency. Either way, it is unlikely that the amounts of type I IFNs which are necessary to keep the virus in check in vitro are produced over a prolonged time in the latently infected host, and this is also inconsistent with our kinetic monitoring of IFN responses upon MCMV infection (Fig. 6A and 6B). However, it is conceivable that individual LSECs which respond to type I IFNs generate a reservoir of latently infected cells. Once viral latency has been established, immune control may well be exerted by primed T and NK cells [53]. These cells are activated later during the infection process, but persist longer than type I IFN secreting cells and both have the potential to secrete IFNγ, and thus control lytical CMV replication [19]. MCMV specific effector T-cells are readily detectable in organs of latently infected mice [54], arguing for a strong and ongoing recruitment of immune cells to sites of virus latency, and thus for an active role of the immune system in the prevention of CMV reactivation. An additional layer of control may also result from epigenetic silencing of the viral genomes once latency has been established [10], [15]. In line with a model of epigenetic control of viral transcription, which acts on top of IFNβ mediated transcriptional suppression, IE gene expression restarted with a delay, and could only be observed approximately one week upon IFNβ retraction (Fig. 3D, 7B).

In conclusion, our study establishes a link between type I IFN signaling, ND10 bodies and reversible suppression of CMV transcription and strongly argues for their key role in the establishment of herpesviral latency.

Materials and Methods

Ethics Statement

All animal experiments were performed in compliance with the German animal protection law (TierSchG BGBI S. 1105; 25.05.1998). The mice were handled in accordance with good animal practice as defined by FELASA and GV-SOLAS. All animal experiments were approved by the responsible state office (Lower Saxony State Office of Consumer Protection and Food Safety) under permit number 33.9-42502-04-11/0426.

Cells

M2-10B4 (CRL-1972; ATCC) and NIH 3T3 fibroblasts (CRL-1658; ATCC) were maintained in Dulbecco's modified Eagle medium supplemented with 10% fetal calf serum, 1% Glutamine and 1% Penicillin/Streptomycin. Primary C57BL/6, IFNAR^−/− and CMV-Cre MEFs were prepared and maintained as described previously [55]. Conditionally immortalized LSECs were generated and cultivated as described [23]. NIH3T3 IRF7-mCherry were generated and characterized previously [24].

Mice

All mice were bred at the animal facility of the Helmholtz Centre for Infection Research (HZI) and maintained under specific pathogen-free conditions. Conditional deletion/reporter mice IFN-β^floxβ-luc and Mx2Luc reporter mice were generated and characterized previously [35], [36].

Viruses

MCMV clones were grown on M2-10B4 cells and partially purified as described [56], with the following modification: upon ultracentrifugation, the virus pellet was resuspended in 1.2 ml of Virus standard Buffer (0.05 M Tris, 0.012 M KCl, 0.005 M EDTA) and centrifuged in a microcentrifuge for 5 minutes at 3000×g. The clear supernatant was harvested, aliquoted and stored at −80°C. The BAC-derived wild-type MCMV (MCMV WT) [57] and MCMV^r [23] have been described previously. The 230 kb MCMV BAC Δm157 eGFP was generated by homologous recombination of a linearized PCR fragment expressing the eGFP gene under the control of the minimal CMV promoter into the m157 genomic region of the pSM3fr BAC, essentially as described [58]. In brief, the gene was inserted by a two-step mutagenesis procedure, where in the first step the gene was introduced into the BAC, along with a kanamycin resistance gene (kan) flanked by frt sites, at nucleotide positions 216291 to 216874, thus replacing most of the m157 gene, including its start codon. In a subsequent step, kan was excised by transient expression of flip recombinase, and recombined clones were selected by kanamycin sensitivity, thus generating the Δm157/eGFP pSM3fr plasmid. The recombinant virus MCMV IE1/3^flox contains two loxP sequences which flank the open reading frames of the immediately early genes ie1 and ie3 and is a derivative of MCMV WT [57]. MCMV IE1/3^flox was generated by two-step recombination mutagenesis using the galK selection system and modified to include antibiotic resistance selection in the first mutagenesis step [59]. A linear PCR-derived recombination fragment encoding galK and kanamycin resistance (Kan^R) was amplified from the pGPS/galKn plasmid [59] using primers P9 and P11 (for primer and construct sequences see supplementary table S4), inserted into SW102 E. Coli carrying the MCMV WT BAC genome and recombined BAC clones were selected on kanamycin plates. The synthetic DNA construct C1 (Geneart) was subsequently introduced, replacing the GalK/Kan gene with a loxP site at nucleotide position 177965–177974 according to the published MCMV genome annotation [60]. The second loxP-site was inserted with the same method, using primers P43 and P45 in the first mutagenesis step and the synthetic DNA product C2 (Eurofins MWG Operon) inserted in the second step at nucleotide position 182837–182846. The entire sequence of the final BAC clone was sequenced in an Illumina sequencer to exclude illegitimate recombination events. The newly generated BACs were transferred into MEFs and reconstituted viruses grown as described above. VSV-GFP [61] and MHV68 GFP [62] were grown as described previously.

MCMV Growth Kinetics

Confluent monolayers of non-cycling LSECs or NIH3T3 were infected with MCMV WT or MCMV^r at the Multiplicity of infection (MOI) of 0.1. After 1 h, the cells were washed with PBS, supplied with fresh medium and incubated for 6 days. SN were harvested in triplicates and stored at −70°C until they were titrated on MEFs.

IFNβ-Treatment and Virus Infections

Confluent monolayers of non-cycling LSECs were infected in 96-well plates with MCMV^r, MHV68 GFP or VSV GFP at indicated MOIs. LSECs were treated with recombinant mouse IFNβ (PBL Interferon Source, Piscataway, NJ) as follows: (1) untreated LSECs (−IFNβ) were cultivated with normal medium throughout the experiment. (2) IFNβ-treated LSECs (+IFNβ) were stimulated 24 h before the infection and supplied with IFNβ throughout the experiment. (3) LSECs, in which the IFNβ was retracted (+/−IFNβ) were stimulated 24 h before the infection and cultivated for 7 days in the presence of IFNβ. At 7 dpi, the IFN-containing medium was exchanged with normal medium and cells were cultivated without IFNβ until the end of the experiment. For all conditions, the cells were supplied with fresh medium every 2–3 days. Infected cells were monitored by Fluorescence Microscopy for reporter gene expression at the indicated time points and wells that showed viral replication indicated by fluorescent cells, were classified as positive.

Immunofluorescence

LSECs were cultivated on chamber slides (Thermo Scientific) and stimulated for 24 h with IFNβ. The cells were stained with Daxx (clone 25C12; 1∶25) rabbit mAb (Cell Signaling) according to the manufacture's protocol. In brief, cells were fixed with Formaldehyde, permeabilized with Triton-X-100 and anti-rabbit Alexa 488 (clone B13C; 1∶200) was used as secondary antibody. The cells were mounted with VECTASHIELD (Vector Laboratories) prior to microscopic analysis.

In Vivo Infection and Reactivation Assay

6 to 10 weeks old C57BL/6 mice (Janvier) were intraperitoneally infected with 10⁶ PFU of MCMV^r and housed in SPF conditions throughout the experiment. Initial isolation of mouse liver non parenchymal cell (NPC) was performed according to a published protocol [63]. In brief, liver was perfused with 5 ml liver perfusion medium (Gibco-Invitrogen, Paisley, UK) and with 5 ml liver digestion medium (Gibco-Invitrogen, Paisley, UK). Upon removal of the liver from the mouse, the liver was cut in small pieces, incubated for 30 min in liver digestion medium and gently pressed through a Nylon 100 µm cell strainer (BD Falcon). Cells up from five livers were pooled, washed in PBS, resuspended in 40% Percoll (Biochrom), gently overlaid onto 70% Percoll, and centrifuged at 750× g for 20 min. NPC collected from the interface were washed twice and resuspended in PBS/1%FCS. Upon red blood cell lysis, LSECs were isolated from NPCs by immunomagnetic sorting. For this purpose, cells were counted and resuspended in 10 µl of antimouse-CD146–conjugated magnetic beads (Miltenyi Biotec) and 90 µl of PBS+1% FCS per 10⁷ nucleated cells, incubated for 15 minutes at 4°C and magnetically separated according to the manufacturer's protocol. Isolated LSECs were maintained in RPMI supplemented with 10% fetal bovine serum (FBS) (PAN Biotech, Aidenbach Germany), penicillin (100 U/mL), streptomycin (100 µg/mL), L-glutamine (2 mM), 1 mM sodium pyruvate and 0.2 mM 2-mercaptoethanol (Gibco-Invitrogen, Paisley, UK) on plates coated with 0.5% gelatin (Sigma, St. Louis, MO, USA). Cells were seeded and cultivated in an incubator at 37°C, 7% CO₂ and 5% O₂, at maximal humidity. LSECs were treated with recombinant mouse IFNβ and monitored by fluorescent microscopy for signs of virus reactivation as detailed above. For plaque assay, LSECs were treated with recombinant mouse IFNβ (PBL Interferon Source, Piscataway, NJ) as described above with the following modifications: LSECs were treated with 100 U/mL and the IFNβ was removed after seven days of cultivation. Triplicate SN were stored at −70°C and titrated on IFNAR^−/− MEFs.

Cell Sorting

NIH3T3 IRF7-mCherry cells were stimulated with IFNβ (500 U/mL). The cells were trypsinized 24 h later, resuspended in PBS and sorted in mCherry^high and mCherry^low populations using a FACS Aria II (BD Bioscience) cell sorter.

Stimulation and of IFNβ-Reporter Mice and In Vivo Imaging

For the stimulation of IFN-β^+/Δβ-luc mice, poly I:C (100 µg/mouse) was injected i.v. or the mice were mock injected with PBS only. To visualize the reporter gene in IFN-β^+/Δβ-luc and Mx2-luc mice, the mice were injected i.v. with 150 mg/kg of D-luciferin in PBS (Calipers), anesthetized using Isofluran (Baxter) and monitored using an IVIS 200 imaging system (Calipers). Photon flux was quantified using the Living Image 3.0 software (Calipers). Overlays were analyzed using the Living Image 4.1 software. Relative intensities of emitted light were presented as pseudocolor overlays ranging from red (most intense) to black (least intense). Data were expressed as radiance, quantified as photons/sec/cm²/sr. Steradian (sr) refers to the photons emitted from a unit of solid angular measure.

Deep Sequencing of Nascent RNA and Transcriptome Analysis

Cells were treated with IFNβ (500 U/ml) for 24 h prior to infection. Cells were infected with WT MCMV at a nominal MOI of 1. Virus was allowed to absorb for 5 minutes at 2000 rpm in a tissue culture centrifuge and was removed immediately thereafter, which increases the infectivity rate by a factor of 10 as compared to cells infected with the same amount of virus for 1 h, in the absence of centrifugation (See Figure S5). Importantly, this increased the time resolution to the 5 minutes of virus absorption. The labeling and isolation of nascent RNA was performed for 1 h as described [29], and biological duplicates of the transcriptome (100 ng of nascent RNA per sample) were used for TruSeq RNA Library construction using TruSeq RNA sample preparation kit (Low-Throughput protocol) according to manufacturer's protocol. The final amplified library was purified using AMPure XP Beads (Agencourt). Quality of TruSeq Libraries were checked using Agilent Technologies 2100 Bioanalyzer and run on Genome Analyzer IIx (Illumina Inc.) in single end mode with length of 36 nt per read.

The program BWA [64] was used to align the reads to a reference genome composed of the mouse genome (version mm10) with the MCMV genome (NC_004065.1) inserted as an extra chromosome. Reads were read into the R statistical language version 2.15 [65] counted, and evaluated with the R package edgeR [66] following the edgeR tutorial. Annotation for the mouse was downloaded using the GenomicFeatures R package (available from the Bioconductor website) from the UCSC database, while viral annotation was created from the NCBI Genbank NC_004065 GFF file using GenomicFeatures. Mouse and virus data were analysed both separately and together, and reads per kilobase per million (RPKM) values were generated. Significantly differently expressed genes were determined by edgeR using two replicates.

shRNA-Mediated Knockdown and Reverse Transcription PCR

shRNAs-sequences targeting murine DAXX, SP100, and PML or non-coding (NC) shRNA were generated by using the online tool from Integrated DNA Technologies (IDT) or the database from the RNAi-consortium. Design of shRNA-vector inserts for of pRNA-U6/Neo (GeneScript #SD1201) was performed according to the manufacturer's manual. Sense and antisense siRNA sequences were ordered as loop-sequences annealed before ligation into the shRNA-vector. Single clones were selected and sequenced. Both Sense and Antisense sequences of the used shRNAs are listed in Table S3. LSECs were transfected with 2 µg plasmid DNA encoding for shRNA targeting Daxx, SP100, PML or a non-targeting control-shRNA. 24 h following transfection, medium was exchanged by RPMI supplemented with IFNβ (500 U/mL), incubated for 24 h upon which the RNA was extracted from cells with TRIzol (Invitrogen), according to the manufacturers protocol. cDNA was synthesised with SyperScript II (Invitrogen) and oligo(dT)_12–18 primers according to manufacturer's recommendation. qRT-PCR for genes of interest was performed using peqGOLD REAL-TIME (Peqlab) and SYBR Green in a LightCycler 480 (Roche) and the results were normalised to GAPDH.
