Differentiation, Distribution and γδ T Cell-Driven Regulation of IL-22-Producing T Cells in Tuberculosis
Differentiation, distribution and immune regulation of human IL-22-producing T cells in infections remain unknown. Here, we demonstrated in a nonhuman primate model that M. tuberculosis infection resulted in apparent increases in numbers of T cells capable of producing IL-22 de novo without in vitro Ag stimulation, and drove distribution of these cells more dramatically in lungs than in blood and lymphoid tissues. Consistently, IL-22-producing T cells were visualized in situ in lung tuberculosis (TB) granulomas by confocal microscopy and immunohistochemistry, indicating that mature IL-22-producing T cells were present in TB granuloma. Surprisingly, phosphoantigen HMBPP activation of Vγ2Vδ2 T cells down-regulated the capability of T cells to produce IL-22 de novo in lymphocytes from blood, lung/BAL fluid, spleen and lymph node. Up-regulation of IFNγ-producing Vγ2Vδ2 T effector cells after HMBPP stimulation coincided with the down-regulated capacity of these T cells to produce IL-22 de novo. Importantly, anti-IFNγ neutralizing Ab treatment reversed the HMBPP-mediated down-regulation effect on IL-22-producing T cells, suggesting that Vγ2Vδ2 T-cell-driven IFNγ-networking function was the mechanism underlying the HMBPP-mediated down-regulation of the capability of T cells to produce IL-22. These novel findings raise the possibility to ultimately investigate the function of IL-22 producing T cells and to target Vγ2Vδ2 T cells for balancing potentially hyper-activating IL-22-producing T cells in severe TB.
Published in the journal:
. PLoS Pathog 6(2): e32767. doi:10.1371/journal.ppat.1000789
Category:
Research Article
doi:
https://doi.org/10.1371/journal.ppat.1000789
Summary
Differentiation, distribution and immune regulation of human IL-22-producing T cells in infections remain unknown. Here, we demonstrated in a nonhuman primate model that M. tuberculosis infection resulted in apparent increases in numbers of T cells capable of producing IL-22 de novo without in vitro Ag stimulation, and drove distribution of these cells more dramatically in lungs than in blood and lymphoid tissues. Consistently, IL-22-producing T cells were visualized in situ in lung tuberculosis (TB) granulomas by confocal microscopy and immunohistochemistry, indicating that mature IL-22-producing T cells were present in TB granuloma. Surprisingly, phosphoantigen HMBPP activation of Vγ2Vδ2 T cells down-regulated the capability of T cells to produce IL-22 de novo in lymphocytes from blood, lung/BAL fluid, spleen and lymph node. Up-regulation of IFNγ-producing Vγ2Vδ2 T effector cells after HMBPP stimulation coincided with the down-regulated capacity of these T cells to produce IL-22 de novo. Importantly, anti-IFNγ neutralizing Ab treatment reversed the HMBPP-mediated down-regulation effect on IL-22-producing T cells, suggesting that Vγ2Vδ2 T-cell-driven IFNγ-networking function was the mechanism underlying the HMBPP-mediated down-regulation of the capability of T cells to produce IL-22. These novel findings raise the possibility to ultimately investigate the function of IL-22 producing T cells and to target Vγ2Vδ2 T cells for balancing potentially hyper-activating IL-22-producing T cells in severe TB.
Introduction
IL-22 is a member of IL-10 cytokine family and primarily produced by Th17 T cells [1]. IL-22 signals though its heterodimer receptor comprised of IL-22R1 and IL-10R2 [2], with the IL-22 binding effect dictated by IL-22R1 that are expressed mainly on skin and mucosal epithelial cells such as digestive system, respiratory system and kidney but not on immune cells [1],[3],[4]. Upon binding to its receptor, IL-22 exerts its effect by activating STAT signal transduction pathways [2],[4]. Accumulating evidence suggests that IL-22 can be either pathogenic/inflammatory or protective depending upon environmental and host conditions. IL-22 has the ability to induce antimicrobial peptide β-defensin 2 and 3 or psoriasin in keratinocytes [2],[4],[5], and up-regulate host defense genes such as Lcn2 (encoding lipocalin-2) [6],[7]. IL-22 can also induce expression of acute phase reactants to protect against acute liver inflammation [2],[3],[4]. On the other hand, IL-22 can induce inflammatory effects. IL-22 is indeed a major inflammatory mediator in dermal inflammation and acanthosis in mouse models [8],[9]. However, it is not clear how IL-22-producing T cells involve or orchestrate host immune response. Since the subset of murine T cells producing IL-22 also produce IL-17 [1], knowledge about the IL-22-producing T cells is mainly derived from studies of IL-17-producing Th17 cells in autoimmune and inflammatory diseases. In fact, development, function and immune regulation of human IL-22-producing T cells in infections remain largely unknown.
Tuberculosis remains one of the leading causes of morbidity and mortality due to infectious diseases, with 8 million new cases and >2 million deaths reported word-wide each year [10],[11]. Although human CD4 T cells have been shown to be important for protection against adult form of pulmonary tuberculosis [12], the role of IL-22-producing T cells in TB is not known. While IL-17 and IL-23 were investigated in mouse TB model [10],[13], we have recently demonstrated that severe tuberculosis induces unbalanced up-regulation of immune gene networks and over-expression of IL-22 in nonhuman primates [14]. It has also been reported that Th17 cells producing IL-22 and IL-17 can be detected by in vitro antigen re-stimulation-based intracellular cytokine staining (ICS) in BCG-vaccinated and M. tuberculosis-infected humans [15]. However, differentiation kinetics, local/systemic distribution, and immune regulation of human IL-22-producing T cells during M. tuberculosis infection remain unknown. Elucidation of these aspects may potentially device immune regulatory strategy in which immune responses of IL-22-producing T cells can be balanced to facilitate protective response but minimize inflammatory consequence in tuberculosis.
Vγ2Vδ2 T cells exist only in primates and constitute 60–95% of circulating human γδ T cells [16],[17]. Studies from us and others suggest that Vγ2Vδ2 T cells play a role in mediating anti-microbial immune responses [18],[19],[20],[21],[22],[23]. Vγ2Vδ2 T cells can be specifically activated by certain low m.w. foreign- and self-nonpeptidic phosphorylated metabolites of isoprenoid biosynthesis [e.g. (E)-4-hydroxy-3-methyl-but-2-enyl pyrophosphate (HMBPP) and isopentenyl pyrophosphate (IPP)] [24],[25],[26],[27]. We have shown that HMBPP produced by M. tuberculosis and other microbes is associated with antigen presenting cell (APC) membrane and recognized by Vγ2Vδ2 TCR [28]. We have also demonstrated that HMBPP-specific Vγ2Vδ2 T cells can readily migrate and accumulate in the pulmonary compartment during M. tuberculosis infection, and that rapid recall expansion of these cells is associated with immunity against fatal tuberculosis in juvenile rhesus monkeys [21],[29]. More recently, we reported that HMBPP activation of Vγ2Vδ2 T cells can antagonize IL-2-induced CD4+CD25+Foxp3+ T regulatory cells in mycobacterial infection [30], suggesting that Vγ2Vδ2 T cells may play a regulatory role as well in immune responses against tuberculosis. Our findings in the macaque TB model system raise the possibility to study cell-cell interaction and mutual regulation between Vγ2Vδ2 T cells and IL-22-producing T cells during M. tuberculosis infection.
In the current study, we first demonstrated differentiation kinetics and local/systemic distribution of IL-22-producing T cells during M. tuberculosis infection of macaques. We then provided the first evidence indicating that effector function of IL-22-producing T cells differentiated from M. tuberculosis infection was susceptible to down-regulation by HMBPP activation of Vγ2Vδ2 T cells. We also elucidated an immune mechanism underlying HMBPP/Vγ2Vδ2 T-cell-mediated immune regulation of IL-22-producing T cells.
Results

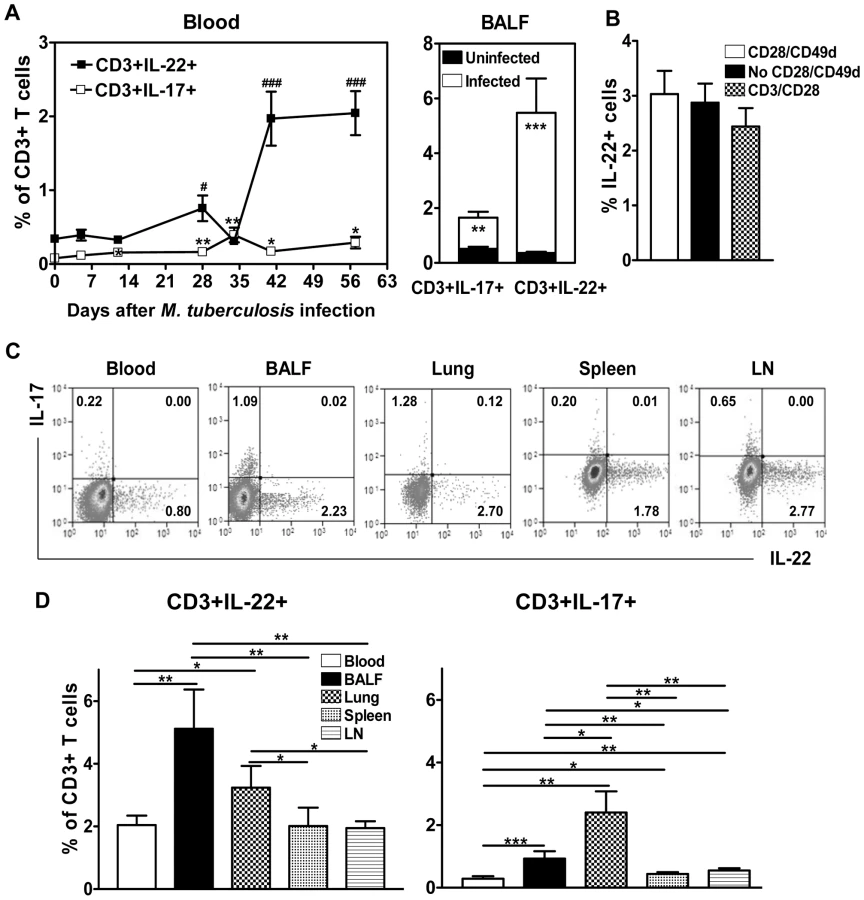

M. tuberculosis infection drove apparent increases in numbers of T cells capable of producing IL-22 or IL-17 de novo without in vitro Ag stimulation in the blood and BAL fluid
We have recently demonstrated that primary tuberculosis can induce a 220-fold up-regulation of IL-22 transcripts in macaques [14]. Another group used in vitro antigen stimulation-based assays to detect human T cells producing IL-22 protein in cross-sectional time points of tuberculosis [15]. Our findings at gene-expression levels suggest that T cells actively producing IL-22 de novo may be detected directly without in vitro antigen re-stimulation during M. tuberculosis infection of macaques. Thus, macaques were infected with M. tuberculosis by bronchoscope-guided inoculation as previously described [31],[32], and assessed for the development of IL-22 producing T cells using the modified ICS that skipped in vitro antigen re-stimulation (see Method section). Interestingly, significant increases in numbers of T cells actively producing IL-22 in blood were seen at week 4 after M. tuberculosis infection, and at weeks 6 and 8, such increases were more apparent and sustained in the blood of the infected macaques (Fig. 1A). Similarly, significant increases in numbers of IL-22 producing T cells were also detected in bronchoalveolar lavage fluids (BALF) during the infection (Fig. 1A). On note, these IL-22-producing T cells were similarly detected in the medium alone or medium plus CD3/CD28 mAbs (Fig. 1B, and data not shown). Most T cells actively producing IL-22 were CD4+ T cells (Fig. S1 and [3],[15]). Since it has been reported that majority IL-17 expressing T cells also co-express IL-22 [5], we similarly measured IL-17-producing T cells as described above. Surprisingly, although numbers of IL-17-producing T cells increased significantly over time after the infection, the magnitude of increase in IL-17-producing T cells was significantly lower than that in IL-22-producing T cells at weeks 6–8 after the infection (Fig. 1A). In fact, we found that most of IL-22 producing T cells were distinct from IL-17 producing T cells (Fig. 1C), with very few T cells co-expressing IL-22 and IL-17. This suggested that these IL-22 and IL-17 producing T cells may differentiate distinctly during M. tuberculosis infection of macaques. Thus, these results demonstrated that T cells capable of producing IL-22 or IL-17 de novo could be detected without in vitro antigen re-stimulation, and that M. tuberculosis infection drove significant increases in numbers of IL-22-producing T cells in the blood and airway.
T cells actively producing IL-17 or IL-22 were preferentially increased in the lung with severe tuberculosis lesions, whereas IL-22-producing T cells were similarly distributed in the blood and lymphoid tissues
Distribution of IL-22-producing T cells in lymphoid and nonlymphoid compartments during M. tuberculosis infection remains largely unknown. It is not known either whether tuberculosis lesions in lung infection sites can preferentially drive expansion of T effectors cells actively producing IL-22 or IL-17. To address these questions, we isolated lymphocytes from BAL fluid, and right caudal lung lobe (infection site), spleen and mesentery lymph nodes obtained from the M. tuberculosis-infected macaques, and measured T cells actively producing IL-17 or IL-22 without in vitro antigen re-stimulation. All the macaques showed severe TB lesions in the infection site ([31],[32] and data not shown). While blood and lymphoid tissues accommodated similar numbers of T cells actively producing IL-22, lymphocytes in lungs and BAL fluid contained significantly greater numbers of IL-22-producing T cells (Fig. 1D). In fact, IL-17-producing T cells were also apparently detectable in lung lymphocytes, although numbers of these cells were quite low in the blood, spleen and mesentery lymph nodes (Fig. 1D). Overall, numbers of IL-22-producing T cells were consistently higher than those of IL-17-producing T cells in all anatomic compartments tested (Fig. 1D).

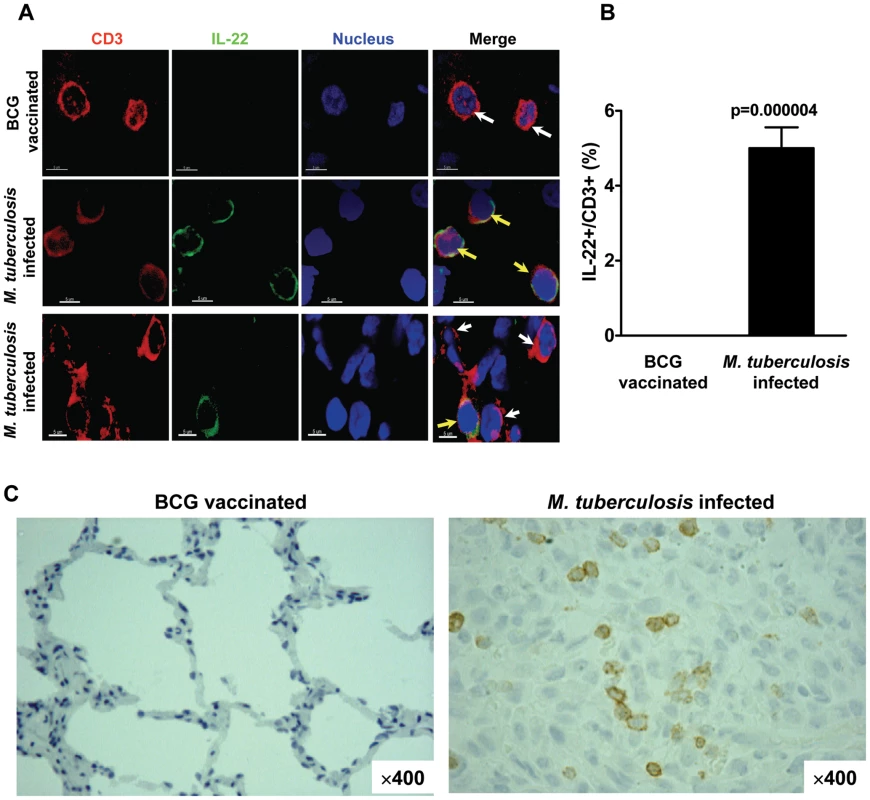

To confirm the presence of T cells actively producing IL-22 in lung tissues, we performed in situ detection of IL-22-producing T cells using confocal microscopy imaging [33] and immunohistochemistry [31],[32]. IL-22 protein could readily be detected in CD3+ T cells in the lung tissue sections from the right middle and caudal lobes of M. tuberculosis-infected monkeys but not from healthy BCG-vaccinated monkeys (Fig. 2A). The mean percentage numbers of CD3+IL-22+ T cells were up to 6% in CD3+ T cells (Fig. 2B). Similarly, the immunohistochemistry studies showed that a number of IL-22-producing T cells were distributed in lung TB granuloma in the right caudal lobe from M. tuberculosis-infected monkeys but not in the lungs from the BCG-vaccinated controls (Fig. 2C), indicating that IL-22-producing T cells were present in TB granuloma. Taken together, T cells actively producing IL-17 or IL-22 were preferentially expanded in the lung infection site with tuberculosis lesions, whereas IL-22-producing T cells were similarly distributed in the blood and lymphoid tissues.

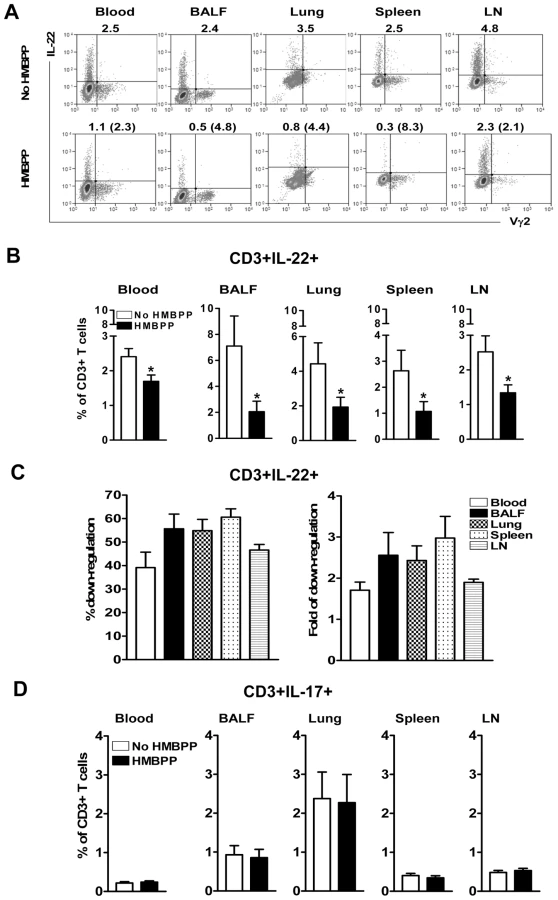

Phosphoantigen HMBPP activation of Vγ2Vδ2 T cells down-regulated the capability of T cells to actively produce IL-22 but not IL-17 de novo in lymphocytes from blood, lung/BAL fluid, spleen and lymph nodes
The immune regulatory factors regulating T cells actively producing IL-22 during infections have not been studied. Because Vγ2Vδ2 T cells recognize phosphoantigen HMBPP produced by M. tuberculosis and other microbes, and contribute to adaptive immune responses and immune regulation in mycobacterial infections [21],[30], we sought to determine whether phophoantigen activation of Vγ2Vδ2 T cells can exert a potential impact on IL-22-producing T cells. Our finding that IL-22-producing T cells and Vγ2Vδ2 T cells are both distributed in lungs, blood and lymphoid tissues (Fig. 3A, 4A, 5A and [31]) in M. tuberculosis infection provides a useful setting in which to study the interaction between these two T-cell subpopulations. Thus, lymphocytes isolated from the blood, lung/BAL fluid, spleen and lymph nodes of the infected macaques were stimulated for one hr with HMBPP, and then assessed for a change in the capability of T cells to produce IL-22 de novo in comparison with that of lymphocytes without Ag stimulation. Interestingly, HMBPP activation of Vγ2Vδ2 T cells consistently led to down-regulation of the capability of T cells to produce IL-22 de novo in lymphocytes from blood, lung/BAL fluid, spleen and mesenteric lymph nodes (Fig. 3A, 3B). The percentage numbers of T cells actively producing IL-22 were reduced 1.4–7.9 folds after HMBPP stimulation, with mean reduced folds being 1.71±0.20 in blood (p = 0.0166), 2.56±0.55 in BAL fluid (p = 0.0249), 2.43±0.36 in lung (p = 0.0430), 2.98±0.53 in spleen (p = 0.0446), and 1.90±0.08 in lymph nodes (p = 0.0188) when compared to corresponding cell numbers detected without HMBPP stimulation (Fig. 3A, 3B and 3c). In contrast, HMBPP activation of Vγ2Vδ2 T cells had almost no impact on the capacity of T cells to produce IL-17 from the blood, lung/BAL fluid, spleen and lymph node (Fig. 3D). This result suggested that HMBPP activation of Vγ2Vδ2 T cells selectively down-regulated IL-22-producing T cells but not IL-17-producing T cells. Overall, the HMBPP-mediated reduction in de novo production of IL-22 by T cells was seen in lymphocytes from all the compartments, but the down-regulation appeared more dramatic in lymphocytes from lung/BAL fluid and spleen (Fig. 3A, 3B). This might be due to the fact that greater numbers of Vγ2Vδ2 T cells were present in these compartments in tuberculosis [31]. Stimulation of lymphocytes using overlapping ESAT6/Ag85 peptides did not lead to significant reduction in IL-22-producing T cells (data not shown). These results therefore demonstrated that HMBPP activation of Vγ2Vδ2 T cells down-regulated the capability of T cells to actively produce IL-22 de novo during M. tuberculosis infection.

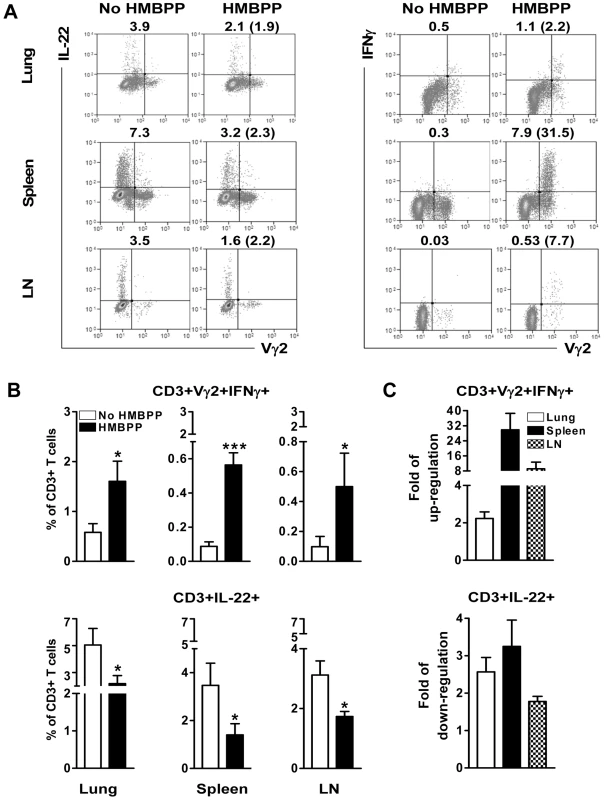

Up-regulation of IFNγ-producing Vγ2Vδ2 T effector cells after HMBPP stimulation coincided with the down-regulated capacity of T cells to produce IL-22 de novo
We then asked the question as to whether effector function of Vγ2Vδ2 T cells after HMBPP stimulation contributed to the down-regulated capability of T cells to actively produce IL-22 de novo. Since IFNγ is one of the major cytokines produced by phosphoantigen-activated Vγ2Vδ2 T cells [16],[29], we sought to determine whether there was a connection between the increase in IFNγ-producing Vγ2Vδ2 T effector cells and the down-regulation of IL-22-producing-T cells after HMBPP stimulation. To this aim, we measured the numbers of IL-22-producing T cells and IFNγ-producing Vγ2Vδ2 T effector cells after HMBPP stimulation of lymphocytes from lung, spleen and mesenteric lymph nodes in comparison with those without HMBPP stimulation. Interestingly, while the numbers of T cells producing IL-22 dropped significantly after HMBPP stimulation of lymphocytes, with mean reduced folds being 2.57±0.39 in lungs (p = 0.0316), 3.25±0.71 in spleens (p = 0.0331) and 1.78±0.14 in mesenteric lymph nodes (p = 0.0126), the numbers of IFNγ-producing Vγ2Vδ2 T cells increased dramatically in all these HMBPP-stimulated lymphocyte populations (Fig. 4A, 4B and 4C). The increase in numbers of IFNγ-producing Vγ2Vδ2 T effector cells was most significant in spleen lymphocytes (29.83±8.71-fold increase, p<0.0001) when compared with the numbers without HMBPP stimulation (Fig. 4C). Two- to ten-fold increases in IFNγ-producing Vγ2Vδ2 T cells were also seen after HMBPP-stimulation of lymphocytes from lungs (2.23±0.35, p = 0.0217) and lymph nodes (9.17±3.55, p = 0.0311) (Fig. 4C). We also measured production of cytotoxic molecule perforin after HMBPP stimulation to examine if cytotoxic effector of Vγ2Vδ2 T cells contributed to the down-regulation of IL-22-producing T cells. No significant changes in numbers of perforin-producing Vγ2Vδ2 T cells from blood and BAL fluid were seen after HMBPP stimulation (data not shown). These data provided evidence demonstrating inverse relationship between IFNγ-producing Vγ2Vδ2 T effector cells and IL-22-producing T cells, suggesting that effector function of Vγ2Vδ2 T cells after HMBPP stimulation contributed to the down-regulation of the capability of T cells to actively produce IL-22 de novo.

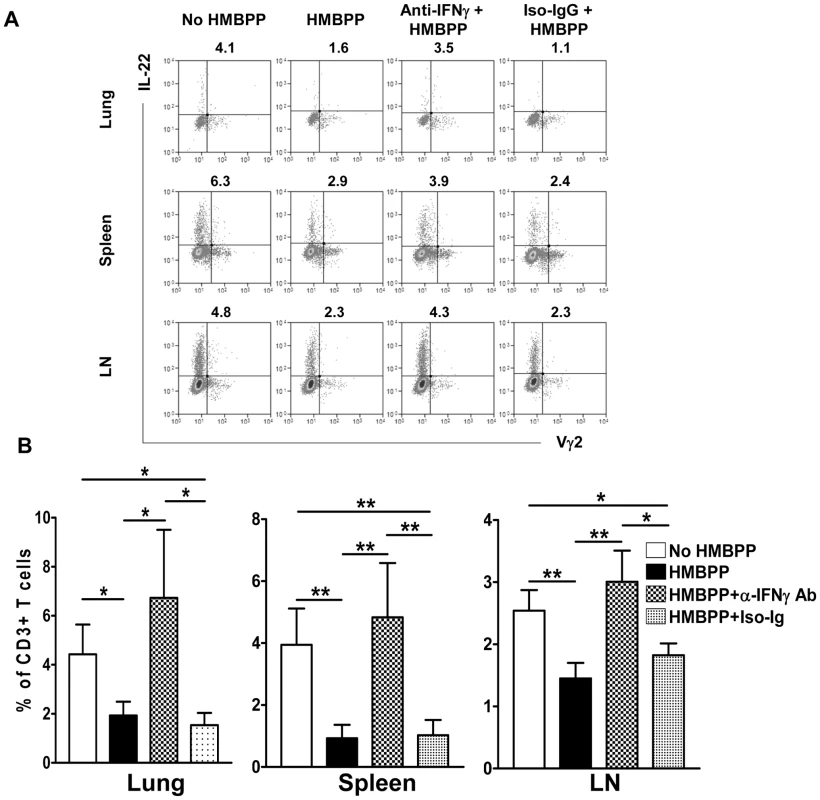

Anti-IFNγ neutralizing Ab treatment reversed the HMBPP-mediated down-regulation effect on IL-22-producing T cells
Given the possibility that effector function of Vγ2Vδ2 T cells after HMBPP activation contributed to the down-regulation effect on IL-22-producing T cells, the central question now was whether IFNγ networking function or cytotoxic activity of Vγ2Vδ2 T cells mediated the down-regulation of IL-22-producing T cells. Since HMBPP-activated Vγ2Vδ2 T cells from mycobacterium-infected macaques do not exhibit cytotoxic activity against autologous CD4 T cells [30] (data not shown), we focused on the mechanistic studies determining whether blocking the effector function of IFNγ production by Vγ2Vδ2 T cells could reverse the down-regulation effect on IL-22-producing T cells. We therefore performed cytokine neutralization experiments using anti-IFNγ neutralizing antibody [30], and examined if neutralization of IFNγ could abrogate HMBPP-mediated down-regulation of IL-22-producing T cells. Interestingly, anti-IFNγ neutralizing antibody effectively reversed the HMBPP-mediated down-regulation of IL-22-producing T cells (Fig. 5A, 5B). In fact, the blocking effect exerted by anti-IFNγ neutralizing antibody was so dramatic that the numbers of T cells capable of producing IL-22 in the lymphocytes after the HMBPP + anti-IFNγ Ab co-treatment were comparable to those seen without HMBPP stimulation in lymphocytes from lungs, spleens, and mesenteric lymph nodes (Fig. 5A, 5B). In contrast, control isotype antibody had no detectable effect on IL-22-producing T cells (Fig. 5A, 5B). These results suggested that γδ T-cell-driven IFNγ-networking function was one of the mechanisms by which phosphoantigen-activated Vγ2Vδ2 T effector cells down-regulated the capability of T cells to produce IL-22 de novo during M. tuberculosis infection.
Discussion
The current study represents the first extensive investigation of the development, distribution, and immune regulation of IL-22-producing T cells differentiated from primary M. tuberculosis infection. Interestingly, tuberculosis-driven T cells can actively produce IL-22 or IL-17 de novo without the requirement of in vitro antigen re-stimulation. The increase in numbers of IL-22 or IL-17 producing effector T cells is particularly evident in the lung tissues during the late stage of M. tuberculosis infection. More importantly, in situ studies using confocal microscopy and immunohistochemistry can readily detect these IL-22-producing T cells in lung tissue sections and granulomas (Fig. 2A, 2B, and 2C) from infected monkeys, indicating that IL-22-producing T cells are present in TB granulomas or lesions. These findings are quite contrasted to the recent report showing that Th17 cells in M. tuberculosis-infected individuals are detected under the condition of in vitro antigen re-stimulation [15]. It is generally believed that cytokine proteins produced by CD4 T cells usually can not be detected directly in vivo unless they receive potent in vitro Ag re-stimulation. The presence of large numbers of IL-22-producing T cells in lungs suggests that M. tuberculosis antigens may have activated these cells to a great extent so that they are capable to produce large quantity of IL-22 or IL-17 in vivo. This notion is consistent with greater numbers of IL-22- or IL-17-producing T cells distributed in lung tissues with high TB burden and severe TB lesions. These T cells appear to be fully matured or differentiated after exposure to M. tuberculosis, as in vitro stimulation by triggering TCR/CD3 signaling using anti-CD3/CD28 do not dramatically increase or decrease the number of IL-22-producing T cells in lymphocytes (Fig. 1B, and data not shown).
It is noteworthy that human IL-22-producing Th17 cells detected at cross-sectional time points in patients with active TB are lower than those in healthy mycobacterium-exposed individuals [15]. The explanation for this may be simply due to the difference in immune competence between chronically-active adult tuberculosis in humans and primary M. tuberculosis infection in macaques. Chronically active adult TB usually occurs as a result of reactivation TB somehow after immune control of primary M. tuberculosis infection, and often display depressed cellular immune response [34],[35]. Therefore it is not surprised that the levels of IL-22 and IL-17 producing Th17 cells in active TB patients are lower than those in M. tuberculosis-exposed healthy controls. Tuberculosis-driven IL-10-producing T cells might down-regulate human IL-22 and IL-17 producing Th17 cells in chronically-active TB [36]. In contrast, the macaques in our studies were naïve at the time of experimental M. tuberculosis infection, and were able to develop competent immune responses, characterized by the increased numbers of IFNγ+ and TNFα+ Th1 cells in the blood and lungs following M. tuberculosis infection (data not shown). Furthermore, IL-10-producing T cells in this study are almost undetectable or extremely low during primary M. tuberculosis infection (data not shown). Therefore, these differences may help to explain why we see apparent increases in IL-22-producing T cells during primary M. tuberculosis infection of naïve macaques, whereas chronically-active TB patients display depressed responses of IL-22-producing T cells.
Our study provided the first evidence that T cells actively producing IL-22 are susceptible to down-regulation by immune activation of certain T effector subsets. We have shown that the capability of T cells to produce IL-22 can be down-regulated by phosphoantigen activation of Vγ2Vδ2 T effector cells. Such relationship between IL-22-producing T cells and HMBPP activation of Vγ2Vδ2 T effector cells may somehow predict the in vivo cell-cell interaction in lung and lymphoid tissues. In fact, these two different T effector cell subpopulations co-exist in all anatomic compartments tested during M. tuberculosis infection (Figs. 3–5). Particularly, these two T cell subpopulations producing their own effector cytokines can be detected in situ in M. tuberculosis infected lung tissues and TB granulomas (Fig. 2A, 2C, [31]). The negative effects of Vγ2Vδ2 T effector cells on IL-22-producing T cells underscores broad regulatory function of Vγ2Vδ2 T effector cells as phosphoantigen-activation of Vγ2Vδ2 T cells can also antagonize IL-2-induced CD4+CD25+Foxp3+ T regulatory cells in mycobacterial infection [30]. On the contrary, HMBPP activation of Vγ2Vδ2 T cells did not significantly down-regulate IL-17-producing T cells. While the mechanism for the selective down-regulation of IL-22-producing T cells is unknown, it is possible that IL-22-producing T cells and IL-17-producing T cells are two distinct T cell subsets in macaques, and therefore regulated by different mechanisms [15]. This is consistent with the report describing distinct IL-22 and IL-17 producing Th17 cells among CD4 T cells in active pulmonary TB patients [15]. It was noteworthy that in order to perform consistent or comparable evaluation of T effector cells in different compartments in TB, we collected blood and BALF (Fig. 3) at the end point matching the necropsy schedule to study the interaction between Vγ2Vδ2 T cells and IL-22/IL-17-producing T cells. The frequency of IL-22-producing T cells at the end stage might be highest (Fig. 1A) in all different compartments so that γδ T-cell-driven down-regulation of IL-22-producing T cells was quite evident.
Our mechanistic study in IFNγ-neutralizing experiments demonstrate that IFNγ networking function from HMBPP-activated Vγ2Vδ2 T effector cells can effectively down-regulate the IL-22 production effector function of IL-22-producing T cells that are matured or differentiated during M. tuberculosis infection. Molecular pathways for IFNγ networking function from Vγ2Vδ2 T-cells in down-regulation of IL-22 producing T cells may be complex, since exogenous IFNγ is not able to activate/expand Vγ2Vδ2 T cells or to down-regulate mature IL-22-producing T cells (data not shown). We cannot exclude the possibility that endogenous IFNγ acts in concert with other cytokines produced by Vγ2Vδ2 T effectors to down-regulate IL-22-producing T cells. The current finding suggests that IFNγ networking function from HMBPP-activated Vγ2Vδ2 T cells serves at least as a negative host factor for down-regulation of IL-22 producing T cells during M. tuberculosis infection. The γδ T-cell-driven IFNγ networking function may be significant for the potential in vivo regulation of IL-22-producing T cells by Vγ2Vδ2 T effector cells. HMBPP produced by M. tuberculosis metabolite pathway can activate Vγ2Vδ2 T cells with endogenous production of IFNγ and other effectors, leading to down-regulation of IL-22-producing T cells.
Given the possibility that IL-22-producing T cells may be either inflammatory/pathogenic or protective during infections depending upon bacterial burdens and host conditions, HMBPP-activated Vγ2Vδ2 T effector cells may play a regulatory role in balancing IL-22-mediated inflammatory and anti-microbial responses. During a M. tuberculosis infection with low-level bacterial burdens, activation extent of Vγ2Vδ2 T cells and IL-22-producing T cells would be low or limited due to low-level production of HMBPP and protein Ags. Such low-degree activation of Vγ2Vδ2 T cells would lead to no or subtle down-regulation of IL-22 production. Thus, low or moderate levels of IL-22 may facilitate potential innate responses by promoting pulmonary epithelial cells' capacity to produce antimicrobial peptides [3],[6],[7],[37]. On the other hand, high bacterial burdens during severe M. tuberculosis infection may induce unbalanced overproduction of IL-22 and severe lesions [14], an outcome consistent with IL-22-mediated inflammatory responses and diseases [8],[9],[37]. In this case, potent activation of Vγ2Vδ2 T cells driven by high-level production of HMBPP in severe tuberculosis may potentially down-regulate IL-22-production and antagonize IL-22-producing T cell-mediated inflammation. From this standpoint, the findings from the current work raise the possibility to determine whether the HMBPP treatment regimen for expanding Vγ2Vδ2 T effector cells [29] may confer some therapeutic benefits regulating tuberculosis lesions.
Thus, we have demonstrated differentiation, local/systemic distribution and immune regulation of mature T cells capable of producing IL-22 de novo during M. tuberculosis infection. Particularly, we have illustrated that phosphoantigen activation of Vγ2Vδ2 T cells can down-regulate IL-22-producing T cells through IFNγ-networking function. Since the role of IL-22-producing T cells in M. tuberculosis infection remains unknown in humans, our current findings provide a useful system to further understand the interplay between IL-22-producing T cells and Vγ2Vδ2 T effector cells in M. tuberculosis infection and their mutual contribution to anti-tuberculosis responses.
Materials and Methods
Ethics statement
The use of macaques and experimental procedures were approved by Institutional Animal Care and Use Committee and Biosafety Committee, University of Illinois College of Medicine at Chicago (UIC), and we followed the national and international guidelines regarding “The use of non-human primates in research to minimize potential suffering of the studied macaques. Daily or weekly clinical follow-up were taken to ensure that animals were not suffering from severe coughing, respiratory distress, depression, refusion to take food, body-weight loss or other potential life-threatening signs. Human euthanization procedures were immediately taken if those signs occur progressively.
Animals
Fifteen adult cynomolgus macaques ranging in age from 3 to 9 years old and eighteen adult Chinese rhesus macaques monkeys ranging in age from 4 to 11 years old were used in this study. Cynomolgus and rhesus macaques exhibited similar responses of IL-22-producing T cells and Vγ2Vδ2 T cells after M. tuberculosis infection. All monkeys were naïve prior to M. tuberculosis infection, based on tuberculin skin tests, IFNγ ELISOPOT assays, and thoracic radiographs. M. tuberculosis infected macaques were housed at the Biologic Research Resources Annex BSL3 nonhuman primate facilities in UIC and sacrificed at 8 weeks after infection. As a control, tissues sections for in situ IL-22 detection were prepared from lung tissues of 3 healthy rhesus monkeys, which were vaccinated intravenously with 106 CFU BCG Pasteur 4 years earlier (Fig. 2). As another control, BAL fluid was collected from nine naïve cynomolgus macaques to measure IL-17- or IL-22-producing T cells (Fig. 1A).
M. tuberculosis infection
Each monkey was infected with 500 CFU of M. tuberculosis Erdman (the standard challenge stock from FDA) by the bronchoscope-guided injection of the inoculum into the right caudal lobe as previously described [31],[32]. This was done in the procedure room at the Annex BSL3 nonhuman primate facilities at UIC. The inoculum used for infection was diluted and plated on 7H11 agar plates (BD) to further confirm the bacterial CFU dose for inoculation.
Bronchoalveolar lavage (BAL)
This was done essentially the same as previously described [29],[31].
Isolation of lymphocytes from blood, BAL fluid, lung, spleen and mesenteric lymph nodes
PBMC were isolated from freshly collected EDTA blood by Ficoll-Paque plus (Amersham, Piscataway, NJ) density gradient centrifugation. For isolation of lymphocytes from BAL fluid, freshly retrieved BAL fluid was filtered through 40-um cell strainers (BD) into 50 ml-conical tubes (BD) followed by 5 min ×1500 rpm centrifugation. The supernatant was gently discarded without disturbing the cell pellets. Cell pellets were then treated with 5 ml RBC blood lysis buffer (Sigma-Aldrich) for 10 min or waited till the suspension became clear and washed once with 5% FBS-PBS. Lung and spleen tissues were minced with sharp scissors and squeezed with sterile copper mesh in Petri dish and colleted with RPMI followed by filtering through 40-um cell strainers. Mesenteric lymph nodes were carefully teased apart with 18-gauge needle in Petri dish with RPMI to form single cell suspension. Collected cell suspensions from lung, spleen and mesenteric lymph nodes were further purified by Ficoll-Paque plus density gradient centrifugation to collect pure lymphocytes. The freshly isolated lymphocytes from blood, BAL fluid, lung, spleen and mesenteric lymph nodes were stained by trypan blue to identify the viability and numerate cell counts. The lymphocytes were finally suspended into 10% FCS-RPMI media with a concentration of 107 cells/ml for further study.
Antigens (Ag) and Antibodies (Ab)
Phosphoantigen compound HMBPP was produced, characterized, validated and provided by Dr. Hassan Jomaa from Justus-Liebig-Universität Giessen, Giessen, Germany. HMBPP used in the study was >98% pure [29], and specifically stimulated activation/expansion of Vγ2Vδ2 T cells but not other cell subpopulations[28]. This allowed us to determine if HMBPP activation of Vγ2Vδ2 T cells in lymphocytes could down-regulate IL-22-producing T cells in the CD3+ T-cell pool. PPD and 15mer overlapping peptides spanning Ag85B were purchased from Mycos Research (Loveland, CO) and GenScript Corporation (NJ), respectively. Anti-CD28 (CD28.2, BD) and anti CD49d (9F10, BD) were used in the assays as costimulatory Abs. The following Abs were used for surface and intracellular cytokine staining for flow cytometry: CD3-PECY7 (SP34-2, BD), CD4-FITC (L200, BD), Vγ2-FITC (7A5, Endogen), IFNγ-Allophycocyanin (4S.B3, BD), IL-17-PE (eBio64CAP17, eBioscience), IL-22-biotinylated (anti-human, RD), streptavidin-Pacific blue (invitrogen). Anti-IFNγ neutralizing Ab (MD-1, eBioscience) and purified mouse IgG isotype control (eBioscience) were used in blocking assay.
Intracellular cytokine staining (ICS) assays, anti-IFNγ neutralizing Ab blocking assay, and control experiments
106 lymphocytes isolated from blood, 106 or 3–5×105 lymphocytes (depending on availability) from BAL fluid, lung, spleen and mesenteric lymph node were used in each reaction (round bottom 96-well plate) to measure IL-22- or IL-17-producing T cells as well as IFNγ- or perforin-producing Vγ2Vδ2 T cells. Lymphocytes were incubated for one hr with (i) medium alone (termed No CD28/CD49d), (ii) medium plus co-stimulatory CD28 (1 ug/ml) and CD49d (1 ug/ml) mAbs (termed CD28/CD49d), or (iii) HMBPP (40 ng/ml) plus CD28/CD49d mAbs (termed HMBPP). For confirmation purposes, lymphocytes were also incubated for one hr with medium plus CD3 (1 ug/ml) and CD28 (1 ug/ml) mAbs (termed CD3/CD28), PPD (20 ug/ml) plus CD28/CD49d mAbs, or 15mer overlapping peptides spanning Ag85B (2 ug for each peptide) plus CD28/CD49d mAbs. The initial one-hour incubation was carried out in a 200 ul final volume in round bottom 96-well plates at 37°C, 5% CO2, followed by five hr incubation in the presence of brefeldin A (GolgiPlug, BD). We found that at late time points after M. tuberculosis infection, appreciable numbers of IL-22-producing T cells could be directly measured by the intracellular cytokine staining (ICS) without in vitro antigen stimulation, and that numbers of IL-22-producing T cells directly measured in medium only were comparable with those detected in medium plus CD28/CD49d mAbs or medium plus CD3/CD28 mAbs (Fig. 1B, and data not shown).
For anti-IFNγ neutralizing antibody blocking assay, 106 or 3–5×105 lymphocytes from lung, spleen and mesenteric lymph node were treated as a test group with anti-IFNγ neutralizing Ab (5 ug/ml) together with HMBPP (40 ng/ml) in presence of CD28/CD49d mAbs. As control groups, cells were treated with medium plus CD28/CD49d mAbs only, HMBPP plus CD28/CD49d mAbs, or HMBPP plus mouse isotype IgG (5 ug/ml) and CD28/CD49d mAbs. The 1 hr reaction was followed by 5 h incubation with brefeldin A as described above.
After a total of six hr incubation, cells in 96-well plate were transferred into 5 ml polystyrene round bottom tubes (BD) for surface and intracellular staining. Cells were washed once with 2% FBS-PBS and stained at RT for at least 15 min with surface marker Abs (CD3, CD4 and Vγ2) followed by twice wash with 2% FBS-PBS. Cells were permeabilized for 45 min (cytofix/cytoperm, BD) and washed twice by Perm buffer (BD), and then stained another 45 min for IFNγ, IL-17 and IL-22-biotinylated and repeated Perm wash twice. Cells stained with biotinylated-IL-22 were further stained for 45 min with streptavidin-pacific blue conjugate followed by final twice Perm buffer wash. Last, cells were resuspended in 2% formaldehyde-PBS (Protocol Formalin, Kalamazoo, MI) and subjected to flow cytometry analysis.
To ensure the specific immune staining in ICS, matched normal serum or isotype IgG served as negative controls for staining cytokines or surface markers. As in vivo control experiments, PBMC were obtained biweekly for 8 weeks from three healthy uninfected and five SHIV-infected cynomolgus macaques, and assessed for IL-22-producing T cells using the ICS assay as described above (medium only or medium plus CD28/CD49d). No or very few IL-22-producing T cells (<0.02% of CD3) were detectable in the longitudinal control experiments (data not shown).
Flow cytometry analysis
Fixed lymphocytes were run on a CyAn ADP flow cytometer (DakoCytomation, Carpinteria, CA) for analysis. Lymphocytes were gated based on their forward scatter, side scatter and pulse-width characteristics. At least 40,000 gated events were analyzed using Summit Data Acquisition and Analysis Software created by DakoCytomation. Cells stained with different color conjugated Abs alone were used as controls and to estimate the amount of compensation needed for the different color combinations. Further gating and determination of quadrant position for analysis were based on specific Ab staining (positives) together with negative background determined by either unstained cells or isotype control stained cells. Flow cytometric dot plots were displayed by bi-exponential scaling. Since IL-22-producing T cells and Vγ2Vδ2 T cells both expressed CD3, flow-cytometry gating on CD3 objectively revealed HMBPP-stimulated increases in percentages of IFNγ-producing Vγ2Vδ2 T cells and associated decreases in percentages of IL-22-producing T cells within the CD3+ T-cell population. Such interrelation between Vγ2Vδ2 T cells and IL-22-producing T cells could not be precisely determined by presenting IL-22-producing cells in CD4+ T cells because Vγ2Vδ2 T cells usually do not express CD4. Furthermore, because IL-22 was also produced by CD8 T cells and γδ T cells (Fig. S1), determining IL-22 production in CD3+ T cells would be more conclusive than in CD4+ T cells.
Confocal microscopy imaging
≈5-µm-thick frozen lung sections were prepared, as we recently described [31], from optimal cutting temperature compound (OCT)-embedded lung tissues from healthy macaques vaccinated with BCG four year before, or M. tuberculosis-infected macaques. Tissue sections were first incubated overnight in a wet box with polyclonal rabbit anti-human IL-22 (N-terminus, Capralogics,) and monoclonal mouse anti-human CD3 (F7.2.38, Dako) or isotype control IgG or normal rabbit serum. After thoroughly washed with PBS, tissue sections were fixed with 2% formalin and washed thoroughly with PBS. Tissue sections were then incubated with FITC-conjugated donkey anti-rabbit IgG (Biolegend) and Cy3-conjugated goat anti-mouse IgG (Biolegend, USA), followed by thorough PBS washing. Next, tissue sections were fixed gently with 2% formalin again and washed thoroughly with dd water to remove the salt in PBS. Finally, tissue sections were mounted on slides using fluorescence mounting medium with DAPI for confocal microscope [Zeiss, LSM 510, (63× numerical aperture)] imaging.
Immunohistochemistry analysis of IL-22 producing T cells in lung tissues
Standard protocols for immunohistochemical analyses were used to evaluate IL-22-producing T cells in lung tissue sections prepared from OCT-embedded tissues as we previously described [31]. A peroxidase-based visualization kit (Envision system K1395; Dako, Caprinteria, CA) was used for immunohistochemical staining. Frozen specimens embedded in OCT were cut into 6-um thick sections by use of a cryostat, fixed, permeabilized in cold acetone for 10 min, and washed in PBS. The sections were treated for 10 min with 1% hydrogen peroxide in PBS to quench endogenous peroxidase, rinsed in PBS, blocked for 10 min with serum-free protein block (X0909; Dako), and rinsed in PBS. The sections were incubated with rabbit anti-human IL-22 (CI0144; Capralogics) Ab at a concentration of 50 ug/ML for 1 h at room temperature and then incubated for 30 min with peroxidase-labeled polymer-conjugated goat anti-rabbit immunoglobulin. The sections were rinsed in PBS after each incubation, developed using 3,3′-diaminobenzidine chromogen solution as a substrate for 3–6 min, and counterstained with Gill's hematoxylin (Fisher Scientific) for 2 seconds. After dehydration in grade alcohols, sections were cleared in xylene and coverslipped.
Statistical analysis
Statistical analysis was done by using GraphPad Prism software (GraphPad Software, Inc., La Jolla, CA). Normality test was first performed to decide whether the data were normally distributed. All the data in this study passed the normality test, and analyzed by Student t test (parametric method). All the P values shown in this study were derived from Student t test. P<0.05 was considered significant. Only P values <0.05 were shown in the text.
Supporting Information
Zdroje
1. ZenewiczLA
YancopoulosGD
ValenzuelaDM
MurphyAJ
StevensS
2008 Innate and adaptive interleukin-22 protects mice from inflammatory bowel disease. Immunity 29 947 957
2. WolkK
SabatR
2006 Interleukin-22: a novel T- and NK-cell derived cytokine that regulates the biology of tissue cells. Cytokine Growth Factor Rev 17 367 380
3. ZenewiczLA
YancopoulosGD
ValenzuelaDM
MurphyAJ
KarowM
2007 Interleukin-22 but not interleukin-17 provides protection to hepatocytes during acute liver inflammation. Immunity 27 647 659
4. WolkK
KunzS
WitteE
FriedrichM
AsadullahK
2004 IL-22 increases the innate immunity of tissues. Immunity 21 241 254
5. LiangSC
TanXY
LuxenbergDP
KarimR
Dunussi-JoannopoulosK
2006 Interleukin (IL)-22 and IL-17 are coexpressed by Th17 cells and cooperatively enhance expression of antimicrobial peptides. J Exp Med 203 2271 2279
6. AujlaSJ
ChanYR
ZhengM
FeiM
AskewDJ
2008 IL-22 mediates mucosal host defense against Gram-negative bacterial pneumonia. Nat Med 14 275 281
7. ZhengY
ValdezPA
DanilenkoDM
HuY
SaSM
2008 Interleukin-22 mediates early host defense against attaching and effacing bacterial pathogens. Nat Med 14 282 289
8. ZhengY
DanilenkoDM
ValdezP
KasmanI
Eastham-AndersonJ
2007 Interleukin-22, a T(H)17 cytokine, mediates IL-23-induced dermal inflammation and acanthosis. Nature 445 648 651
9. MaHL
LiangS
LiJ
NapierataL
BrownT
2008 IL-22 is required for Th17 cell-mediated pathology in a mouse model of psoriasis-like skin inflammation. J Clin Invest 118 597 607
10. KhaderSA
BellGK
PearlJE
FountainJJ
Rangel-MorenoJ
2007 IL-23 and IL-17 in the establishment of protective pulmonary CD4+ T cell responses after vaccination and during Mycobacterium tuberculosis challenge. Nat Immunol 8 369 377
11. NorthRJ
JungYJ
2004 Immunity to tuberculosis. Annu Rev Immunol 22 599 623
12. FlynnJL
ChanJ
2001 Immunology of tuberculosis. Annu Rev Immunol 19 93 129
13. LockhartE
GreenAM
FlynnJL
2006 IL-17 production is dominated by gammadelta T cells rather than CD4 T cells during Mycobacterium tuberculosis infection. J Immunol 177 4662 4669
14. QiuL
HuangD
ChenCY
WangR
ShenL
2008 Severe tuberculosis induces unbalanced up-regulation of gene networks and overexpression of IL-22, MIP-1alpha, CCL27, IP-10, CCR4, CCR5, CXCR3, PD1, PDL2, IL-3, IFN-beta, TIM1, and TLR2 but low antigen-specific cellular responses. J Infect Dis 198 1514 1519
15. ScribaTJ
KalsdorfB
AbrahamsDA
IsaacsF
HofmeisterJ
2008 Distinct, specific IL-17- and IL-22-producing CD4+ T cell subsets contribute to the human anti-mycobacterial immune response. J Immunol 180 1962 1970
16. ChenZW
2005 Immune regulation of gammadelta T cell responses in mycobacterial infections. Clin Immunol 116 202 207
17. SicardH
IngoureS
LucianiB
SerrazC
FournieJJ
2005 In vivo immunomanipulation of V gamma 9V delta 2 T cells with a synthetic phosphoantigen in a preclinical nonhuman primate model. J Immunol 175 5471 5480
18. OttonesF
DornandJ
NaroeniA
LiautardJP
FaveroJ
2000 V gamma 9V delta 2 T cells impair intracellular multiplication of Brucella suis in autologous monocytes through soluble factor release and contact-dependent cytotoxic effect. J Immunol 165 7133 7139
19. PocciaF
AgratiC
MartiniF
CapobianchiMR
WallaceM
2005 Antiviral reactivities of gammadelta T cells. Microbes Infect 7 518 528
20. PocciaF
BattistiniL
CiprianiB
MancinoG
MartiniF
1999 Phosphoantigen-reactive Vgamma9Vdelta2 T lymphocytes suppress in vitro human immunodeficiency virus type 1 replication by cell-released antiviral factors including CC chemokines. J Infect Dis 180 858 861
21. ShenY
ZhouD
QiuL
LaiX
SimonM
2002 Adaptive immune response of Vgamma2Vdelta2+ T cells during mycobacterial infections. Science 295 2255 2258
22. WangL
KamathA
DasH
LiL
BukowskiJF
2001 Antibacterial effect of human V gamma 2V delta 2 T cells in vivo. J Clin Invest 108 1349 1357
23. SpencerCT
AbateG
BlazevicA
HoftDF
2008 Only a subset of phosphoantigen-responsive gamma9delta2 T cells mediate protective tuberculosis immunity. J Immunol 181 4471 4484
24. HintzM
ReichenbergA
AltincicekB
BahrU
GschwindRM
2001 Identification of (E)-4-hydroxy-3-methyl-but-2-enyl pyrophosphate as a major activator for human gammadelta T cells in Escherichia coli. FEBS Lett 509 317 322
25. TanakaY
MoritaCT
TanakaY
NievesE
BrennerMB
1995 Natural and synthetic non-peptide antigens recognized by human gamma delta T cells. Nature 375 155 158
26. AltincicekB
MollJ
CamposN
FoersterG
BeckE
2001 Cutting edge: human gamma delta T cells are activated by intermediates of the 2-C-methyl-D-erythritol 4-phosphate pathway of isoprenoid biosynthesis. J Immunol 166 3655 3658
27. BelmantC
EspinosaE
PoupotR
PeyratMA
GuiraudM
1999 3-Formyl-1-butyl pyrophosphate A novel mycobacterial metabolite-activating human gammadelta T cells. J Biol Chem 274 32079 32084
28. WeiH
HuangD
LaiX
ChenM
ZhongW
2008 Definition of APC presentation of phosphoantigen (E)-4-hydroxy-3-methyl-but-2-enyl pyrophosphate to Vgamma2Vdelta 2 TCR. J Immunol 181 4798 4806
29. AliZ
ShaoL
HallidayL
ReichenbergA
HintzM
2007 Prolonged (E)-4-hydroxy-3-methyl-but-2-enyl pyrophosphate-driven antimicrobial and cytotoxic responses of pulmonary and systemic Vgamma2Vdelta2 T cells in macaques. J Immunol 179 8287 8296
30. GongG
ShaoL
WangY
ChenCY
HuangD
2009 Phosphoantigen-activated V{gamma}2V{delta}2 T cells antagonize IL-2-induced CD4+CD25+Foxp3+ T regulatory cells in mycobacterial infection. Blood 113 837 845
31. HuangD
ShenY
QiuL
ChenCY
ShenL
2008 Immune distribution and localization of phosphoantigen-specific Vgamma2Vdelta2 T cells in lymphoid and nonlymphoid tissues in Mycobacterium tuberculosis infection. Infect Immun 76 426 436
32. ChenCY
HuangD
WangRC
ShenL
ZengG
2009 A Critical Role for CD8 T cells in a Nonhuman Primate Model of Tuberculosis. PLoS Pathog 5 1000392 doi:10.1371/journal.ppat.1000392
33. ChenY
ShaoL
AliZ
CaiJ
ChenZW
2008 NSOM/QD-based nanoscale immunofluorescence imaging of antigen-specific T-cell receptor responses during an in vivo clonal V{gamma}2V{delta}2 T-cell expansion. Blood 111 4220 4232
34. SanchezFO
RodriguezJI
AgudeloG
GarciaLF
1994 Immune responsiveness and lymphokine production in patients with tuberculosis and healthy controls. Infect Immun 62 5673 5678
35. ZhangM
LinY
IyerDV
GongJ
AbramsJS
1995 T-cell cytokine responses in human infection with Mycobacterium tuberculosis. Infect Immun 63 3231 3234
36. GongJH
ZhangM
ModlinRL
LinsleyPS
IyerD
1996 Interleukin-10 downregulates Mycobacterium tuberculosis-induced Th1 responses and CTLA-4 expression. Infect Immun 64 913 918
37. OuyangW
KollsJK
ZhengY
2008 The biological functions of T helper 17 cell effector cytokines in inflammation. Immunity 28 454 467
