Attenuation of the Sensing Capabilities of PhoQ in Transition to Obligate Insect–Bacterial Association

Summary

Sodalis glossinidius, a maternally inherited endosymbiont of the tsetse fly, maintains genes encoding homologues of the PhoP-PhoQ two-component regulatory system. This two-component system has been extensively studied in facultative bacterial pathogens and is known to serve as an environmental magnesium sensor and a regulator of key virulence determinants. In the current study, we show that the inactivation of the response regulator, phoP, renders S. glossinidius sensitive to insect derived cationic antimicrobial peptides (AMPs). The resulting mutant strain displays reduced expression of genes involved in the structural modification of lipid A that facilitates resistance to AMPs. In addition, the inactivation of phoP alters the expression of type-III secretion system (TTSS) genes encoded within three distinct chromosomal regions, indicating that PhoP-PhoQ also serves as a master regulator of TTSS gene expression. In the absence of phoP, S. glossinidius is unable to superinfect either its natural tsetse fly host or a closely related hippoboscid louse fly. Furthermore, we show that the S. glossinidius PhoQ sensor kinase has undergone functional adaptations that result in a substantially diminished ability to sense ancestral signals. The loss of PhoQ's sensory capability is predicted to represent a novel adaptation to the static symbiotic lifestyle, allowing S. glossinidius to constitutively express genes that facilitate resistance to host derived AMPs.

Introduction

Many animals have adopted mutualistic associations with bacteria. These associations are based on an exchange in which the bacterial symbiont provides functions that enhance host survival, and the host provides a stable, nutrient-rich home for the bacterial symbiont. Over the course of macroevolutionary time, the metabolic and physiological activities of the host and symbiont become increasingly integrated, leading to an obligate mutualism. Under these conditions, the host cannot survive without the ancillary functions provided by the bacterial symbiont and the bacterium cannot persist outside of the host. The reliance of the bacterial symbiont on the animal host is elegantly illustrated in a number of insect-bacterial symbioses. In these associations, dependency arises as a result of bacterial genome degeneration and size reduction [1]. In extreme cases, when the symbiotic partners have co-evolved for long periods of time, bacterial endosymbionts display pronounced genome streamlining. For example, bacterial endosymbionts of aphids, Buchnera spp., have genome sizes ranging from 0.42 to 0.66 Mbp, that are substantially smaller than those of close, free-living relatives (e.g. Escherichia coli K-12; 4.6 Mbp) [2].

Although genome streamlining is most conspicuous in ancient associations, the early stages of this process have been observed in symbiotic associations that are more recent in origin. For example, the relationship between tsetse flies and their bacterial endosymbiont Sodalis glossinidius is predicted to be relatively recent in origin [3], and although the genome size of S. glossinidius (4.29 Mbp) is similar to that of close, free-living relatives (e.g. Yersinia enterocolitica; 4.6 Mbp) [4], a significant portion of the S. glossinidius genome is composed of pseudogenes that have been inactivated as a consequence of relaxed selection, because they no longer play a vital role in the symbiosis [5]. However, despite this extensive genome degeneration, several recently derived endosymbionts (including S. glossinidius) have been shown to maintain intact copies of genes sharing high levels of sequence identity with homologs encoding virulence determinants in common plant and animal pathogens [6]–[10]. Since these virulence genes are not found in ancient mutualistic endosymbionts, it has been suggested that they play a transient role in the establishment of these symbiotic associations [1]. Notably, like many plant and animal pathogens, recently derived insect endosymbionts also maintain an extensive repertoire of regulatory genes [5], [11]. However, while pathogens use these regulators to rapidly coordinate adaptations to diverse environments (e.g. host vs. non-host), the mutualistic endosymbionts of insects are permanently host associated and are therefore entrenched in a more static lifestyle. The ecological changes associated with a lifestyle switch from opportunism to obligate host association are therefore predicted to mediate adaptive changes in the functions of regulatory circuits that serve as environmental sensors.

Many Gram-negative pathogens utilize the PhoP-PhoQ two-component regulatory system to modulate adaptive responses to changes in levels of divalent cations, including magnesium, in the environment [12]–[14]. When magnesium availability is high, the inner membrane sensor kinase PhoQ dephosphorylates the cytoplasmic response regulator PhoP, maintaining the system in a deactivated state. When magnesium availability is low, PhoQ autophosphorylates and transfers its phosphoryl group to PhoP. Phosphorylated PhoP then activates the expression of target genes that are associated with adaptation to the low magnesium environment [13], [14]. In multicellular eukaryotes, intra and extracellular concentrations of magnesium vary considerably. While extracellular concentrations are in the millimolar range, intracellular concentrations tend to be in the micromolar range [12], [13], [15]. Notably, in many facultative intracellular pathogens, PhoP-PhoQ regulates the expression of genes important for intracellular survival. Low intracellular magnesium levels drive PhoP-PhoQ-dependent expression of loci involved in magnesium transport [13], [14] and structural modifications of the lipid A portion of the bacterial lipopolysaccharide (LPS) [16]. Whereas magnesium transport genes allow bacteria to obtain adequate amounts of magnesium for survival, LPS modifications protect the bacteria against stressful conditions found within eukaryotic phagosomes, such as low pH and high levels of antimicrobial peptides (AMPs) [13], [15]. Notably, in addition to low magnesium, the PhoP-PhoQ system is also known to detect and respond to other host derived signals found within phagosomes, such as AMPs [17] and acidic pH [18]. In contrast to magnesium, which inhibits PhoP-PhoQ, the binding of AMPs or the exposure of cells to acidic conditions results in the activation of PhoP-PhoQ [17], [18].

At present, very little is known about how mutualistic endosymbionts evade or overcome the challenges imposed by the insect immune system. The immune systems of multicellular organisms utilize a vast array of mechanisms to combat invading microorganisms. The immune cells of both insects and vertebrates are known to synthesize various cationic AMPs that kill bacteria by interacting with lipid A and forming holes into the bacterial lipid membrane. In insects, these immune peptides combat bacterial pathogens by functioning as antibiotics that are secreted into the hemolymph and stored within phagocytic cells, where they are used to kill engulfed bacteria [19], [20]. To date, only two insect endosymbionts (S. glossinidius and Candidatus Arsenophonus arthropodicus) have been cultured in the laboratory and tested for resistance to cationic AMPs; notably, both of these endosymbionts were found to display high levels of resistance in vitro [21]–[23].

In the current study, we show that the mutualistic insect endosymbiont S. glossinidius utilizes a PhoP-PhoQ two-component regulatory system to modulate the expression of genes involved in lipid A modifications that confer bacterial resistance to host derived AMPs. In the absence of PhoP, S. glossinidius demonstrates increased sensitivity to host derived AMPs, an aberrant profile of type-III secretion system (TTSS) gene expression and an inability to colonize its natural host, the tsetse fly, and a close dipteran relative, the hippoboscid louse fly. In addition, our results indicate that the PhoP-PhoQ system of S. glossinidius has undergone sensory adaptations in the transition to a permanent association with its insect host.

Results

PhoP Is Required for Resistance to Cationic AMPs In Vitro

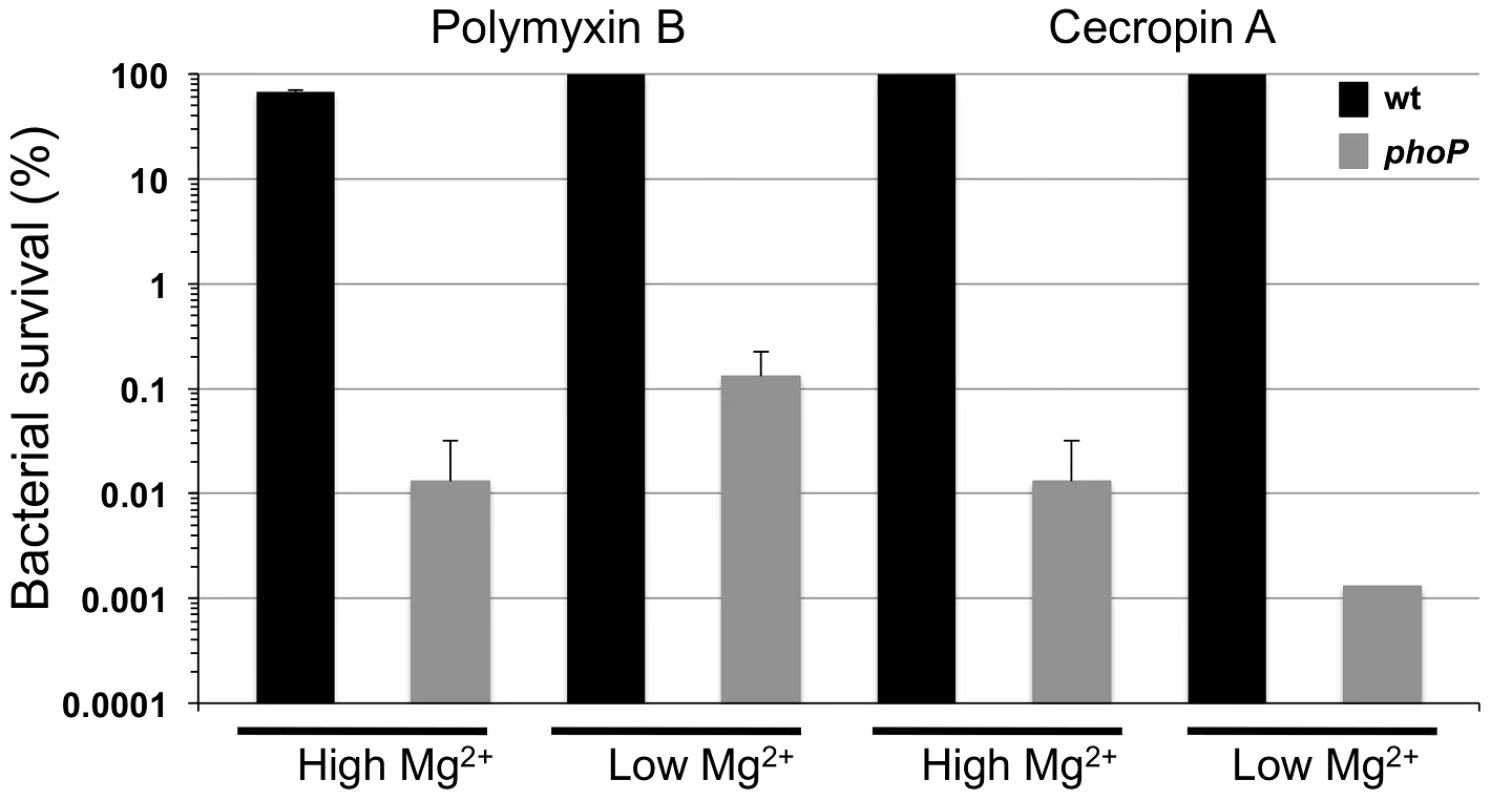

In previous studies, S. glossinidius was shown to be highly resistant to the effects of a number of cationic AMPs [22], [23]. In the current study we examined the sensitivity of a S. glossinidius phoP mutant [24] to polymyxin B and the insect immune peptide, cecropin A, which is known to be produced by the host of S. glossinidius [25], [26]. Whereas wild type S. glossinidius demonstrated high levels of resistance as expected, the phoP mutant strain was found to be extremely sensitive (c. 1000-fold increase in sensitivity) to both AMPs (Figure 1). Resistance to polymyxin B, but not cecropin A, was slightly increased in response to low magnesium availability in the S. glossinidius culture medium (Figure 1). However, this effect was mediated in both the wild type and phoP mutant strains, indicating that it is PhoP-independent. These results show that PhoP-PhoQ plays a vital role in mediating AMP resistance in S. glossinidius.

PhoP Activates Expression of a Gene Known to Mediate Resistance to Cationic AMPs

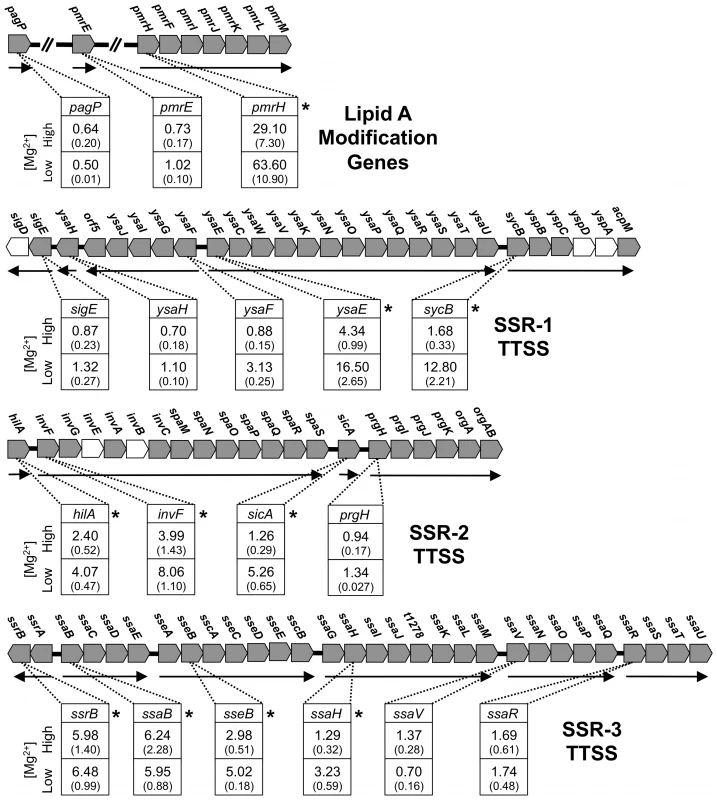

In facultative intracellular pathogens, resistance to AMPs is mediated by structural modifications of the lipid A portion of the bacterial LPS [12], [13]. Because cationic AMPs kill bacteria by interacting with unmodified lipid A and interfering with the permeability of the bacterial lipid membrane [17], [19], we reasoned that the S. glossinidius phoP mutant might lack the ability to carry out the necessary structural modifications of lipid A. Inspection of the S. glossinidius genome sequence revealed the presence of three loci (pagP, locus tag SG1577; pmrE, locus tag SG1368; and pmrH, the first gene in the pmrHFIJKLM operon, locus tags SG1845 to SG1839, respectively) encoding proteins known to mediate modifications that reduce the negative charge of lipid A, preventing the binding of positively charged AMPs [13]. PagP mediates the palmytoylation of lipid A, a structural modification associated with bacterial resistance to alpha-helical AMPs such as cecropin A. PmrE and the proteins encoded by the pmrH operon mediate the synthesis and incorporation of 4-aminoarabinose into the lipid A, a modification associated with bacterial resistance to the cyclic lipopeptide polymyxin B [27].

Our quantitative PCR results show that pagP and pmrE are not regulated by PhoP (Figure 2). Instead, both genes were found to display high levels of expression under all conditions tested (data not shown), suggesting that they have likely evolved to a state of constitutive expression. However, the expression of the pmrH operon was found to be PhoP-dependent in S. glossinidius (Figure 2). When cells were grown in medium with high levels of magnesium, wild type S. glossinidius showed 29-fold higher levels of pmrH mRNA relative to the phoP mutant (Figure 2). Furthermore, when cells were grown in medium containing low levels of magnesium, the levels of pmrH mRNA were 63-fold higher in wild type S. glossinidius relative to the phoP mutant (Figure 2). Together, these results indicate that S. glossinidius uses the PhoP-PhoQ system to activate the transcription of the pmrH operon and direct modifications of lipid A that are important determinants of resistance to both polymyxin B and cecropin A.

Sodalis glossinidius phoP Mutant Displays an Altered Lipid Composition

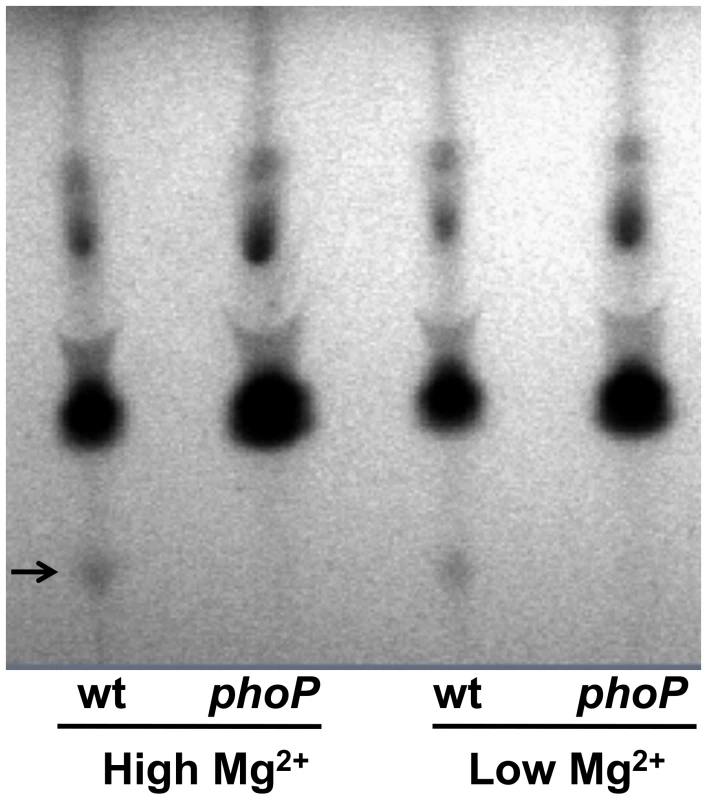

Because PhoP-PhoQ often govern the expression of genes involved in the structural modifications of the outer surface of the bacterial lipid membrane [16], [28] we sought to determine if the genetic inactivation of phoP resulted in changes in the overall lipid composition of S. glossinidius cells. We carried out a thin layer chromatography (TLC) analysis of lipids derived from the wild type and phoP mutant strains of S. glossinidius. Our TLC analysis shows that the wild type S. glossinidius produces an additional (as yet uncharacterized) lipid species that is absent in the phoP mutant strain (Figure 3). This result reinforces the notion that S. glossinidius also utilizes the PhoP-PhoQ system to regulate expression of genes involved in lipid metabolism.

PhoP Also Regulates Type-III Secretion System Genes in Sodalis glossinidius

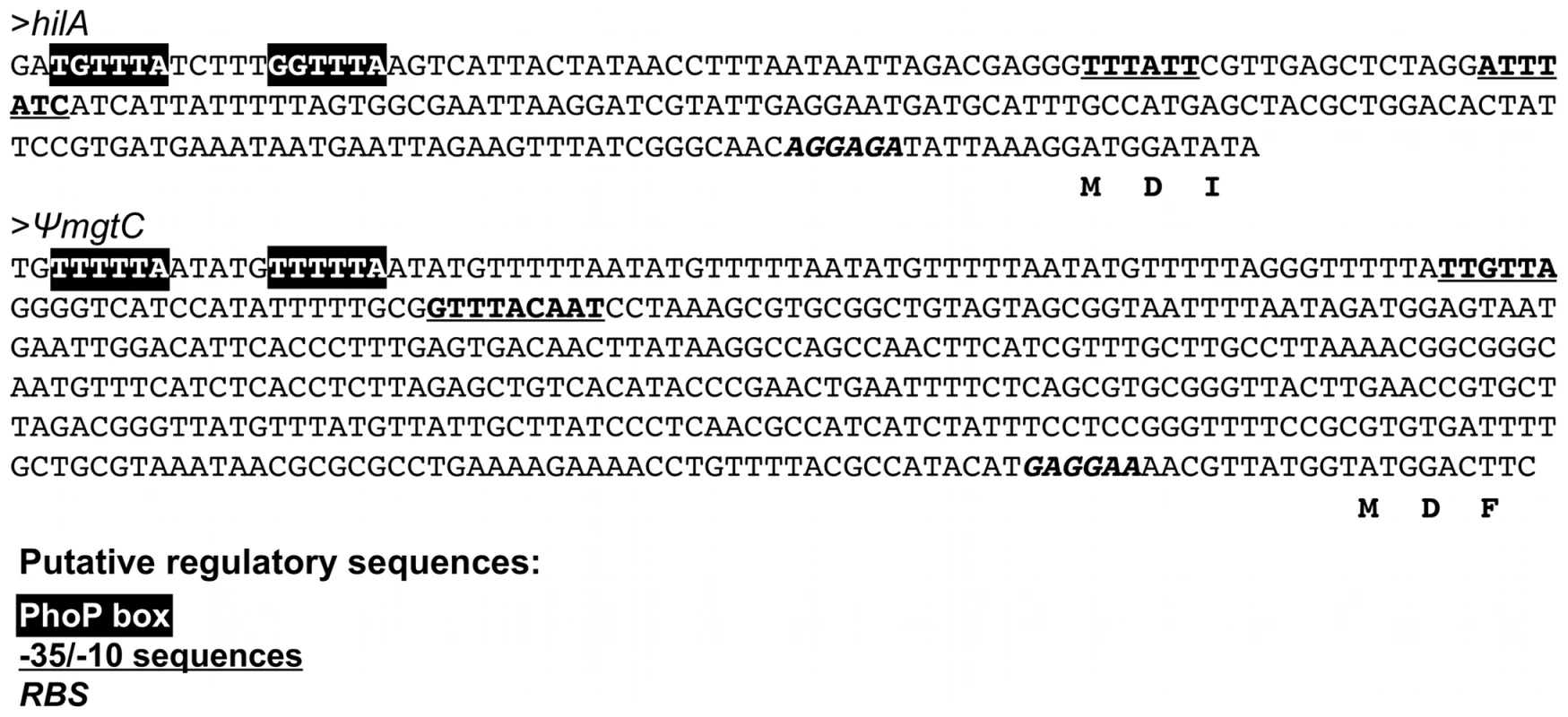

Some PhoP regulated promoters have a characteristic direct repeat sequence, known as a PhoP box, which serves as a binding site for phosphorylated PhoP [29], [30]. Inspection of the S. glossinidius genome sequence revealed the presence of a consensus PhoP box upstream of hilA (accession no. AAS66857; Figure 4), which is known to encode a master regulator of type-III secretion in Salmonella enterica [31]. Because the S. glossinidius genome has three distinct symbiosis regions (designated Sodalis Symbiosis Regions; SSR's) encoding TTSS genes [5], we elected to measure the effect of phoP inactivation on the basal expression levels of the genes found in these three distinct chromosomal locations using quantitative PCR. The phoP mutant was found to have significantly lower levels of transcripts encoding YsaE, SycB (SSR-1), HilA, InvF, SicA (SSR-2), SsrB, SsaB, SseB and SsaH (SSR-3; Figure 2). These results indicate that the S. glossinidius PhoP-PhoQ two-component system is also involved in the activation of TTSS genes that are known to be required for the invasion of insect cells and for intracellular survival [8].

Sodalis glossinidius phoP Mutant Fails to Superinfect Insect Hosts

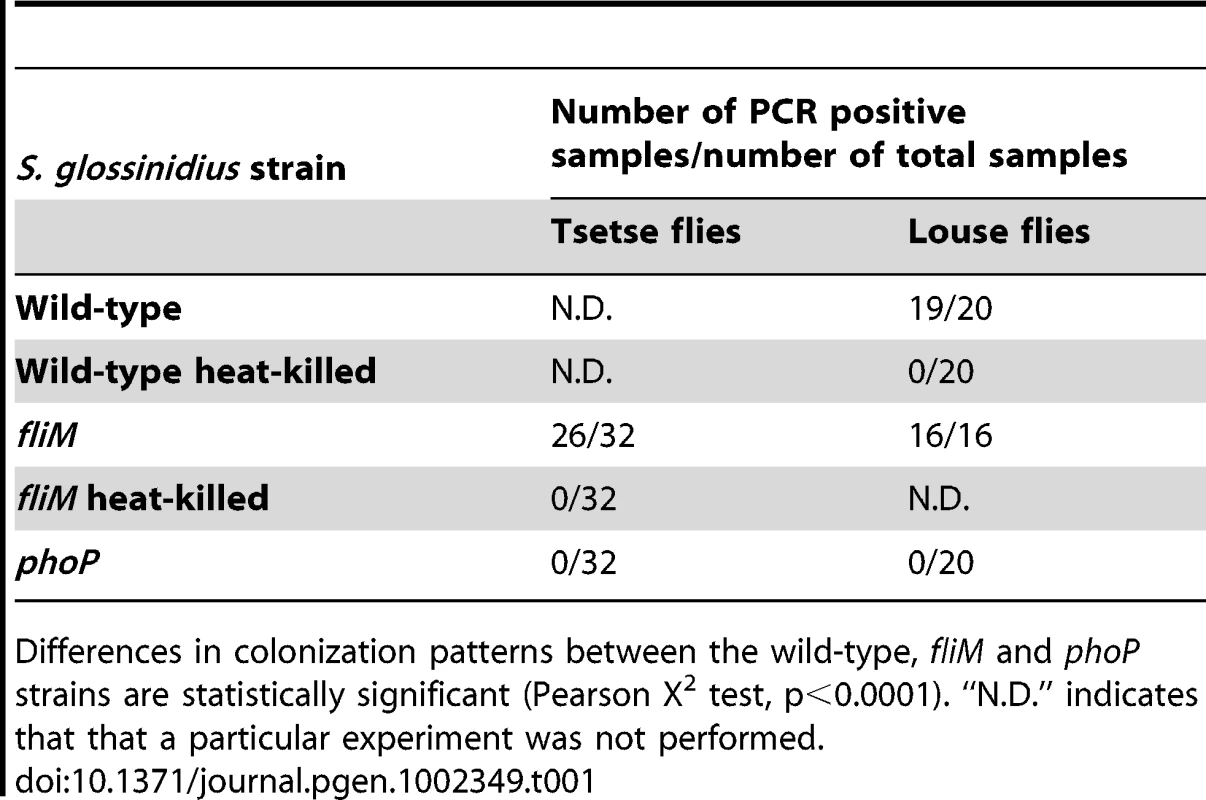

One important component of insect immunity involves the synthesis and secretion of high quantities of AMPs into the hemolymph [20]. Since insect endosymbionts, including S. glossinidius, are often found in the hemolymph of their insect hosts [32], [33], and because S. glossinidius uses TTSSs to invade and replicate within insect cells [6], [8], we assessed the ability of the phoP mutant strain of S. glossinidius to superinfect their natural tsetse fly host, Glossina morsitans morsitans, and a closely-related hippoboscid louse fly, Pseudolynchia canariensis, following intrathoracic microinjection. The superinfection approach [34] was selected to avoid the requirement to treat host insects with antibiotics to remove native symbionts, because this procedure is known to compromise the immune system of the fly [35]. The presence of native S. glossinidius in the tsetse fly therefore mandated the use of a recombinant (fliM mutant) S. glossinidius strain in lieu of a wild type control strain so that microinjected bacteria could be differentiated from native symbionts by PCR. In comparison to the fliM mutant strain, the phoP mutant strain was found to be completely defective in its ability to superinfect the host insect (Table 1). At seven days following microinjection, we were able to detect the fliM mutant strain in 26 out of 32 tsetse flies sampled. In contrast, we were unable to detect either the phoP or fliM heat-killed mutant strains in any of the tsetse flies sampled at seven days post-microinjection (Table 1). In the hippoboscid louse flies, which are closely related to tsetse flies [36] but do not maintain a native population of S. glossinidius, we compared the superinfection abilities of wild type, fliM and phoP mutant strains of S. glossinidius. In this experiment, wild type and fliM mutant S. glossinidius were detected in all flies sampled at seven days following microinjection, and the phoP mutant and heat-killed strains of S. glossinidius were not detected in any flies at seven days post injection (Table 1). Based on these results, we conclude that the phoP mutant strain of S. glossinidius is killed by the insect immune system following superinfection in both tsetse flies and hippoboscid louse flies. This indicates that the PhoP-PhoQ two-component regulatory system is essential for the establishment and maintenance of an S. glossinidius infection in an insect host.

Effects of Acidic pH, Magnesium, and Cationic AMPs on Sodalis glossinidius

In many facultative bacterial pathogens, the PhoP-PhoQ system functions as a magnesium sensor that controls the expression of genes mediating physiological adaptations to changes in environmental levels of magnesium [13]-[15]. In addition, the PhoQ sensor kinase is known to detect and respond to conditions of acidic pH [18], and the binding of cationic AMPs that displace magnesium ions [17]. Several lines of evidence indicate that the S. glossinidius PhoP-PhoQ system has a diminished ability to respond to environmental magnesium. First, in S. enterica AMP resistance is controlled by the PhoP-PhoQ two-component system. Salmonella enterica cells grown under conditions of high magnesium availability are >1000-fold more susceptible to AMPs [37]. In contrast, our AMP resistance assay showed that although PhoP-PhoQ controls AMP resistance in S. glossinidius, this phenotype is only marginally affected by magnesium availability in the culture medium (Figure 1). Second, our gene expression analyses show that PhoP activates the transcription of pmrH and a number of TTSS genes in S. glossinidius. However, while the expression of some of these genes is considerably higher in wild type S. glossinidius relative to the phoP mutant strain, transcriptional changes in response to environmental magnesium were unexpectedly small. Finally, the results from our TLC lipid analysis showed that, regardless of magnesium concentration, wild type S. glossinidius synthesizes a lipid species that is not found in the phoP mutant strain (Figure 3).

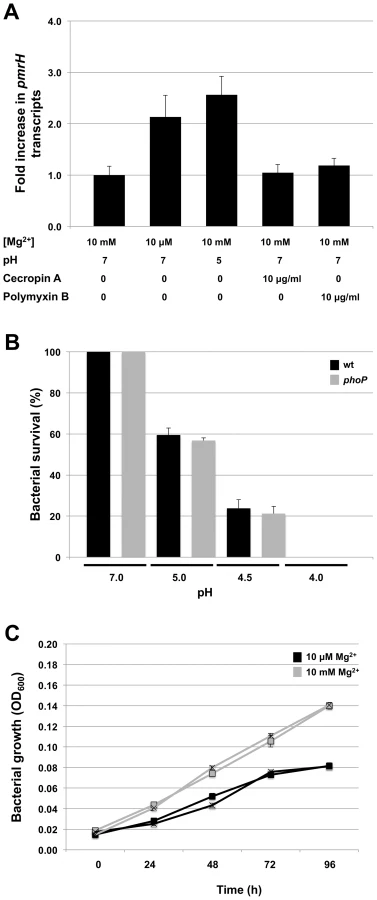

To further explore the role of magnesium, acidic pH and the presence of AMPs on signaling mediated by the S. glossinidius PhoQ, we first used quantitative PCR to measure changes in the numbers of transcripts of pmrH in wild type cells under different culture conditions. The results show that pmrH expression was only slightly increased under conditions of low magnesium availability or low pH (2-fold and 2.6-fold increases, respectively). Furthermore, the presence of the AMPs cecropin A or polymyxin B in the culture medium had no significant effect on pmrH gene expression (Figure 5A).

Since cellular adaptations mediated by PhoP-PhoQ are anticipated to be functionally linked to the physiological signals sensed by PhoQ, we also tested the abilities of wild type and phoP mutant strains of S. glossinidius to resist acid stress, and to grow under conditions of magnesium starvation. Notably, both wild type and phoP mutant strains of S. glossinidius showed the same level of sensitivity towards acid stress (Figure 5B). Similarly, no significant difference was observed in the abilities of wild type and phoP mutant strains of S. glossinidius to grow in a defined medium in which bacterial growth was clearly limited by a lack of magnesium (Figure 5C). Together, these results indicate that (i) the S. glossinidius PhoP-PhoQ system displays an atypical, diminished response to magnesium, acidic pH and AMPs, and (ii) the S. glossinidius PhoP response regulator does not facilitate tolerance towards acid stress or magnesium starvation in S. glossinidius, as it does in several enteric pathogens.

Salmonella enterica Strains Expressing Sodalis glossinidius PhoQ Are Magnesium-Insensitive

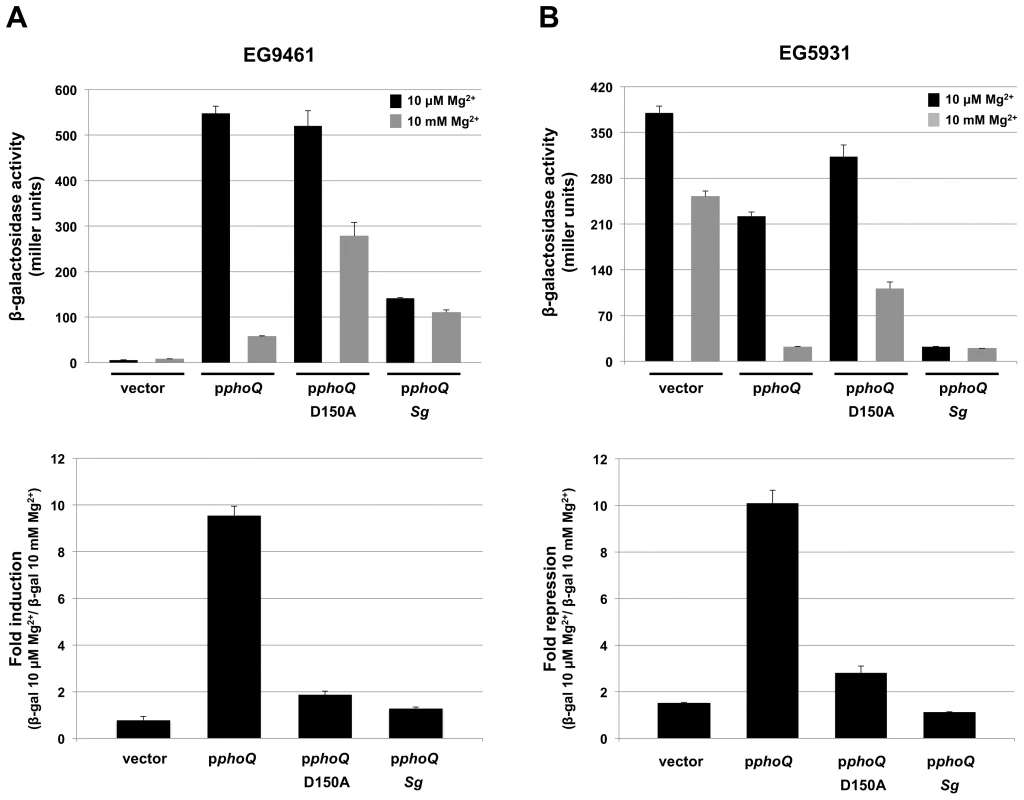

To further analyze the magnesium sensing capability of the S. glossinidius PhoQ sensor kinase we took advantage of an approach that was initially devised to study the magnesium binding property of the S. enterica PhoQ homologue [38]. We utilized two S. enterica strains (EG5931 and EG9461) both of which encode a phoQ null allele and a transcriptional fusion of the lac gene to a chromosomal copy of the S. enterica PhoP activated pmrC gene (pmrC::MudJ). Whereas one of these strains (EG9461) has a wild type phoP allele and can be used to measure induction levels of PhoP-activated genes at low magnesium availability, the other strain (EG5931) has a phoP* allele encoding a protein that efficiently autophosphorylates from acetyl phosphate (i.e., independently from PhoQ). Because PhoP* responds normally to the phosphatase activity of PhoQ, strain EG5931 can be used to examine the capability of PhoQ to dephosphorylate PhoP and repress transcription of PhoP-activated genes [38], [39].

We used strain EG9461 to test the ability of the S. glossinidius PhoQ sensor kinase to induce the expression of PhoP-activated genes in response to low magnesium availability. For controls, we complemented strain EG9461 with either a plasmid vector alone, a plasmid expressing the S. enterica wild type PhoQ sensor kinase (pphoQ) or a plasmid expressing a S. enterica PhoQ variant with mutation D150A (pphoQ D150A) in the magnesium ligand-binding site [38] (Figure S1). Strain EG9461 harboring the plasmid vector alone does not express a PhoQ protein and, therefore, produces no β-galactosidase activity from the pmrC::MudJ reporter fusion (Figure 6A). On the other hand, when this strain is complemented with a plasmid expressing the S. enterica wild type PhoQ sensor kinase (pphoQ), the expression of the reporter fusion mimics that of wild type cells; this strain displays high expression at low magnesium levels and low expression at high magnesium levels (Figure 6A). When complemented with a plasmid expressing the S. enterica PhoQ variant with mutation D150A (pphoQ D150A), strain EG9461 is derepressed under conditions of high magnesium availability (Figure 6A) [38]. In addition, when strain EG9461 is complemented with a plasmid expressing the S. glossinidius PhoQ protein (pphoQ Sg) there is an increase in β-galactosidase activity of the reporter fusion relative to that of strain EG9461 harboring the plasmid vector alone (Figure 6A), indicating that S. glossinidius PhoQ does phosphorylate the S. enterica PhoP response regulator. However, consistent with our previous observation, the resulting strain shows only a slight change in reporter gene activity in response to magnesium (Figure 6A).

Similar results were obtained in an experiment involving S. enterica strain EG5931, which expresses an autophosphorylating phoP* allele. In this case strain EG5931, harboring the plasmid vector alone, displayed high levels of β-galactosidase activity from the reporter fusion, regardless of magnesium availability (Figure 6B). Yet, because the phoP* allele responds normally to the phosphatase activity of PhoQ, complementation of strain EG5931 with a plasmid expressing the S. enterica wild type PhoQ (pphoQ) produced a strain that displayed a gene expression profile mimicking that of wild type cells. As with strain EG9461, complementation of strain EG5931 with a plasmid expressing the S. enterica PhoQ variant with mutation D150A (pphoQ D150A) gave rise to a strain that had a reduced capability to promote magnesium mediated repression of the pmrC::MudJ reporter fusion (Figure 6B) [38]. In addition, when strain EG5931 was complemented with a plasmid expressing the S. glossinidius wild type PhoQ protein (pphoQ Sg), the resulting strain again demonstrated little or no response to magnesium. Furthermore, this strain demonstrated decreased β-galactosidase activity of the reporter fusion relative to that of strain EG5931 harboring the plasmid vector alone (Figure 6B), indicating that the S. glossinidius wild type PhoQ sensor kinase does maintain a phosphatase activity. Together, these results further support our observation that the S. glossinidius PhoQ has a substantially diminished ability to sense magnesium.

Evidence for Magnesium Sensing in an Ancestral Precursor of the S. glossinidius PhoQ

Given that the majority of PhoP-PhoQ homologues studied in bacteria are known to respond aggressively to changes in acidic pH, magnesium and cationic AMPs [13], [14], [17], [18], it is striking that the S. glossinidius PhoQ sensor kinase displays a substantially reduced ability to respond to these signals. In many facultative pathogens, PhoP-PhoQ is known to play an important role in mediating magnesium homeostasis [13], [14]. When PhoQ senses conditions of low magnesium availability, PhoP responds by increasing expression of specialized, ATP-driven magnesium transporters (designated MgtA and MgtB in S. enterica) [14], [40], [41]. While S. glossinidius maintains intact copies of the generalized magnesium transporters corA (locus tag SG2341) and mgtE (locus tags SG0628 and SG1738) that are not regulated by PhoP-PhoQ in other bacteria, it completely lacks mgtA and maintains only a disrupted copy of mgtB with multiple frameshifts (Table 2). However, the disrupted copy of mgtB, encoded within the mgtCB pseudo-polycistron maintains a canonical PhoP box (Figure 4), implying that in the recent evolutionary past S. glossinidius used PhoP-PhoQ to coordinate the expression of genes involved in magnesium transport. Since it would be unexpected to have a magnesium transport system controlled by a PhoP-PhoQ system that is unable to sense magnesium, we conclude that an ancestral precursor of the S. glossinidius PhoQ protein possessed an increased magnesium sensing capability. This implies that the reduction in S. glossinidius PhoQ's ability to sense magnesium is a derived characteristic.

Discussion

The transition in lifestyle from opportunism to obligate host association is often accompanied by the inactivation and loss of genes that are assumed to have played an important role in a facultative lifestyle but no longer provide an adaptive benefit in an obligate host-associated lifestyle [1]. While these degenerative changes are not expected to negatively impact the function of the symbiotic relationship, they are anticipated to increase host dependence as a result of niche specialization on the part of the symbiont. Furthermore, the transition from a dynamic lifestyle to a static, obligate host-associated lifestyle is expected to reduce the requirement for symbionts to engage in regulatory activities that normally enhance the ability of bacteria to survive in a changing environment.

In the current study we explored the role of the two-component regulatory system, PhoP-PhoQ, in the insect endosymbiont, S. glossinidius, which is an obligate, mutualistic associate of tsetse flies [42]. PhoP-PhoQ is of particular interest because it is found in a wide range of facultative pathogens [13], [14], [16] and plays an important role in enabling these bacteria to sense their presence in the host environment and mediate changes in gene expression that facilitate important adaptations to the host-associated lifestyle. Our results show that PhoP-PhoQ also plays an essential role in the maintenance of the mutualistic association between S. glossinidius and its insect host. In the absence of phoP, S. glossinidius is highly sensitive to the bactericidal effects of AMPs in vitro and is incapable of superinfecting either its natural host or a closely related hippoboscid louse fly.

In S. enterica and other facultative pathogens, the sensor kinase PhoQ plays an important role in the sensing of magnesium, AMPs and acidic pH. Thus, the most striking result to emerge from the current study is that the PhoP-PhoQ system of S. glossinidius differs from its counterparts in other bacteria by having a substantially reduced ability to sense these environmental cues. For example, the S. glossinidius PhoP-PhoQ system elicited only a minor reduction (c. 2-fold) in the expression of target genes in response to a 1000-fold increase in the level of magnesium in the culture medium. Similarly, the S. glossinidius PhoP-PhoQ system was found to be largely unresponsive to a change in pH; S. glossinidius cells cultured under acidic conditions showed only a 2.6-fold increase in the expression of a PhoP-regulated target gene relative to cells cultured at neutral pH. In S. enterica, the constitutive expression of PhoP-activated genes is known to have a deleterious impact on bacterial virulence and survival in host tissues [43], due to the fact that the initial activation of PhoP induces a transcriptional surge that enables S. enterica to rapidly initiate virulence gene expression [44]. In the current study, we were unable to identify any conditions under which the S. glossinidius PhoP-PhoQ system was effectively repressed. In vitro, S. glossinidius was found to display high levels of resistance to AMPs under all conditions tested, indicating that the dynamics of PhoP-based gene regulation in S. glossinidius are locked in a constitutively active state, at least with respect to signaling mediated by magnesium, AMPs and pH change.

The presence of a canonical PhoP binding site in the promoter sequence of an inactivated mgtB allele indicates that in the recent evolutionary past, S. glossinidius used a magnesium-sensing PhoP-PhoQ to control the expression of a high affinity magnesium transporter. The proposed reduction in PhoQ's ability to sense magnesium (and other signals) can be rationalized in several ways. First, if the primary mandate of PhoQ's magnesium sensing capability was to control magnesium uptake, then the inactivation of the gene encoding this magnesium transporter could have facilitated relaxed selection on the ability of PhoQ to sense magnesium. Second, since magnesium binding drives the repression of PhoP-regulated target genes, the loss of a requirement to repress these genes, perhaps resulting from a switch to a static host-associated lifestyle, could also have facilitated relaxed selection on PhoQ's sensing capabilities. Third, it is conceivable that the loss of PhoQ's ability to sense magnesium and acidic pH provided an adaptive advantage in S. glossinidius' current lifestyle. Like many recently derived insect endosymbionts, S. glossinidius inhabits the hemolymph of its insect host [32] where it is anticipated to be exposed simultaneously to high concentrations of both AMPs [20], [25], [26] and magnesium [12], [45], at neutral pH [46]. In this environment, the magnesium- or pH-mediated repression of PhoP-regulated genes would likely be deleterious due to the fact that it would yield an AMP sensitive phenotype that is incompatible with survival in the AMP-rich hemolymph. Conversely, a magnesium-insensitive PhoQ would be expected to facilitate the constitutive activation of PhoP-regulated target genes, ensuring resistance towards AMPs in magnesium-rich hemolymph.

Since the mechanism of magnesium binding by the S. enterica PhoQ homologue has been well characterized through structural and functional studies [38], [47], we inspected the sequence of the S. glossinidius PhoQ protein to determine if there are any obvious modifications that can explain it's reduced sensitivity to magnesium. Notably, the S. glossinidius PhoQ sequence maintains several amino acid substitutions that replace key acidic residues in a location corresponding to a magnesium ligand-binding site in the PhoQ protein of S. enterica (Figure S1) [38], [47]. In S. enterica, mutant strains harboring PhoQ sequences lacking just one of these key acidic residues demonstrate >5-fold reduction in their ability to repress the transcription of PhoP-activated genes in response to magnesium (pphoQ D150A in Figure S1 and [38]). Thus it is conceivable that the loss of three key acidic residues in the S. glossinidius PhoQ substantially reduced the ability of this sensor kinase to bind magnesium, explaining the reduction in the magnesium dependent PhoQ transcriptional repression of PhoP-activated genes observed in S. glossinidius. An alignment of PhoQ sequences derived from a selected range of gamma Proteobacteria shows that PhoQ homologues from two insect endosymbionts (S. glossinidius and Arsenophonus nasoniae) along with the soft-rot plant pathogen Dickeya dadantii (formerly Erwinia chrysanthemi) each have putative magnesium-binding patches that lack the requisite acidic residues and are therefore predicted to be compromised in terms of magnesium-sensing (Figure S1A). While mutations in this conserved region likely contribute to a decreased magnesium sensing capability, it is possible that changes in other regions of PhoQ also contribute to this phenotype. Indeed, we noticed that the S. glossinidius PhoQ homologue also maintains a hydrophobic phenylalanine residue located at position 121, instead of a charged histidine residue that is found in the S. enterica PhoQ (Figure S1A). In S. enterica, this charged residue has also been shown to be important for magnesium binding and magnesium mediated repression [38].

Although magnesium sensing is recognized as the primary function of PhoQ [14], [15], we cannot rule out the possibility that the S. glossinidius PhoQ has evolved the ability to sense a novel signal in the insect host. For example, it has recently been shown that the PhoQ protein of Edwardsiella tarda has evolved to detect changes in temperature, in addition to magnesium, to coordinate the expression of protein secretion systems that play an important role in virulence [48]. However, it is clear that the S. glossinidius PhoQ has lost the ability to sense key signals that play an important role in the functionality of PhoP-PhoQ in many pathogens. The adaptive benefit of PhoP-PhoQ in S. glossinidius now appears to be solely due to the ability of this regulatory system to serve as a constitutive driver for the expression of genes that have critical functions in the symbiosis. To this end, the modification or loss of sensory functions in a two-component system is not necessarily paradoxical, as long as an adaptive benefit is realized as a result of the output of the response regulator. Of course a similar functional outcome could be achieved by modulating the promoter sequences of all PhoP-regulated genes to achieve constitutive expression in the absence of PhoP. Although more evolutionary steps are needed to achieve this outcome, it might ultimately be favored by natural selection because it represents a more frugal solution. Indeed, such a transition might already be underway in S. glossinidius, evidenced by the fact that the lipid A modification genes, pagP and pmrE, are expressed independently of PhoP, whereas PhoP is required for the expression of these genes in S. enterica [27].

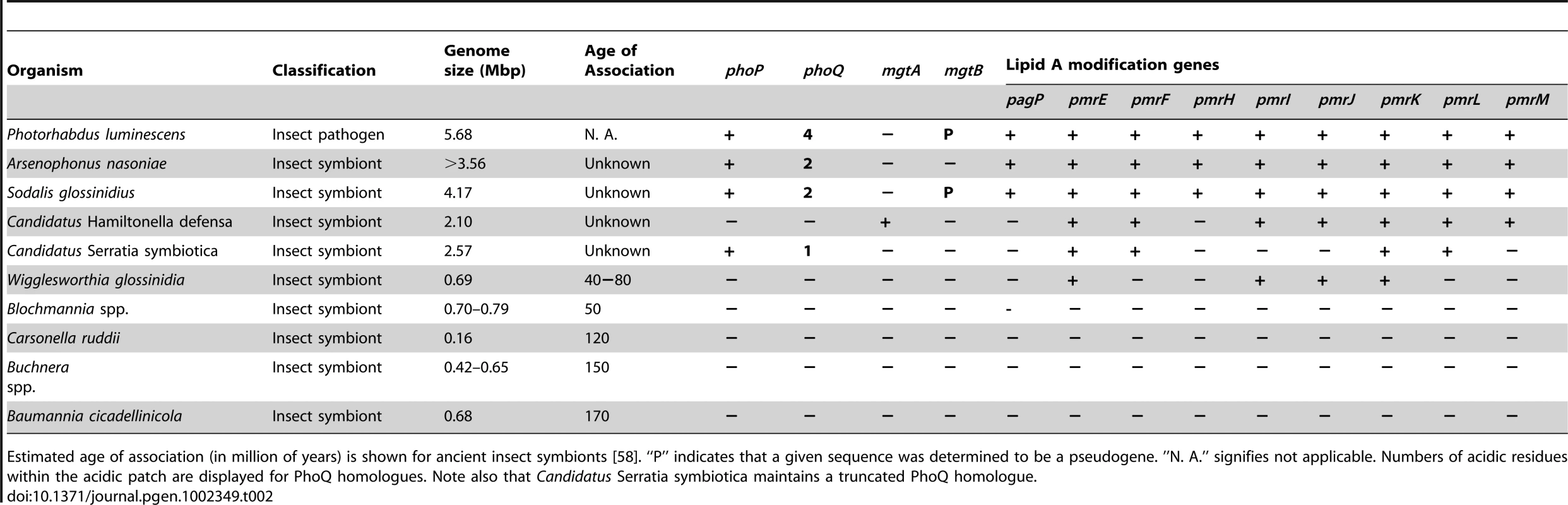

In a wider evolutionary context, it is interesting to note that intact homologues of phoP-phoQ and the lipid modification genes are only present in the genome sequences of recently established insect endosymbionts (Table 2). This suggests that the functions of PhoP-PhoQ and the lipid A modification genes are required only as a stopgap in the early stages of symbiotic interactions, to enable bacteria to resist attack from the host immune system to facilitate the establishment and maintenance of persistent infections in host tissues. This is supported by the results of our superinfection experiments, which show that a phoP mutant strain of S. glossinidius is unable to establish infection in an insect host. Taken together, these observations suggest that recently established insect endosymbionts have an intrinsic ability to overcome the insect immune system and establish persistent infections in insects, and this may help to explain the broad distribution of certain recently established insect endosymbionts (e.g. relatives of S. glossinidius and Arsenophonus spp.) in distantly related host insects [10], [21], [42], [49]–[51]. It also explains differences observed in patterns of co-evolution between insects and endosymbionts of different inferred ages. While the phylogenies of insects and their ancient endosymbionts demonstrate high levels of congruence, implying little or no ongoing horizontal symbiont transmission or novel colonization events, the phylogenies of insects and their recently established endosymbionts are often discordant [1].

At a broad level, the results obtained in the current study reinforce the notion that the molecular mechanisms facilitating host-symbiont interactions have a common origin in both pathogenic and mutualistic associations. More specifically, our findings illustrate the capability of a complex regulatory circuit to adapt to a change in lifestyle. Furthermore, the degeneration of the sensing capability of PhoQ may represent a snapshot of a wider picture of regulatory simplification that is concomitant with a transition to a static, mutualistic, host-associated lifestyle that reduces the requirement for bacteria to engage in environmental sensing.

Materials and Methods

Bacterial Strains and Culture Conditions

Escherichia coli W25113 was maintained in Luria-Bertani (LB) medium at 37°C, or 30°C when harboring the repA101 (ts) plasmid pKD46 [52]. Salmonella enterica strains were maintained at 37°C in either LB medium or N-minimal medium [38] containing either 10 mM or 10 µM MgCl₂. Sodalis glossinidius strains were maintained at 25°C in the semi-defined liquid Mitsuhashi- Maramorosch (MM) medium as described previously [42] or in a defined medium composed of 6 g/l casamino acids, 4 g/l glucose, 0.2 g/l KCl, 7.0 g/l NaCl, 0.12 g/l NaHCO₃, 0.18 g/l NaH₂PO₃, 10 µg/ml of thiamine, 10 mM or 10 µM of CaCl₂, and 10 mM or 10 µM MgCl₂, pH 7. When rapidly dividing symbiont cultures were needed, liquid cultures of S. glossinidius were maintained in an orbital shaker at 200 rpm. For isolation of symbiont clones, bacteria were plated on 1% MM agar plates, supplemented with 5% defibrinated horse blood, and incubated at 25°C under microaerophilic conditions (5% Oxygen, 10% CO₂, balanced with N₂). Where appropriate, antibiotics were added to culture media at the following concentrations: 100 µg/ml (E. coli and S. enterica) or 50 µg/ml (S. glossinidius) of ampicillin, 15 µg/ml (chromosomal insertions) or 50 µg/ml (high copy number plasmids) of chloramphenicol, 50 µg/ml of kanamycin, 10 µg/ml tetracycline. When needed, 3′-5′-cyclic adenosine monophosphate (cAMP; Sigma Aldrich) was added to the culture medium at a final concentration of 5 mM.

Construction of Replacement Alleles

Replacement alleles for S. glossinidius were generated using the lambda-Red recombineering system in E. coli [52]. The strategy for construction of replacement alleles for S. glossinidius is illustrated in Figure S2. Briefly, S. glossinidius genes were amplified by polymerase chain reaction (PCR) using Phusion High-Fidelity DNA polymerase (New England Biolabs). PCR products were ligated into pCR-Blunt II-TOPO (Invitrogen) and transformed into E. coli by electroporation. Clones were grown and plasmid DNA was isolated using the QIAprep Spin Miniprep Kit (Qiagen). Recombinant plasmids were then transformed into E. coli (pKD46) and replacement alleles were generated by lambda-Red mediated insertion of a chloramphenicol resistance cassette (derived from pEpiFOS-5, Epicentre), according to the method described previously [52]. Following curing of pKD46, plasmids containing the replacement alleles were extracted, diluted and introduced into E. coli by electroporation. The replacement alleles were verified by DNA sequencing and plasmids containing the correct allele sequence were used as PCR templates for the generation of linear DNA substrates for recombineering in S. glossinidius.

Transformation of Sodalis glossinidius

All S. glossinidius transformations (using both plasmid and linear DNA constructs) were conducted using a heat-shock method [53]. Following transformation, the cells were allowed to recover overnight at 25 °C in liquid MM medium prior to plating.

Lambda-Red Mediated Insertions in Sodalis glossinidius

Lambda-Red mediated chromosomals insertions were generated as described previously [24]. Briefly, cultures of S. glossinidius harboring pKD46 were grown without shaking to an OD_600nm of approximately 0.2. The cultures were then transferred to a shaking incubator and grown overnight until OD_600nm reached 0.5. The cells were pelleted at 5,000 × g for 10 min at 4°C, and washed twice with an equal volume of 0.85% (w/v) NaCl and resuspended in a final volume of 1 ml of 0.85% (w/v) NaCl. The cell suspensions were inoculated into 200 ml of fresh MM liquid medium [42] supplemented with 0.5% (w/v) arabinose and 5 mM cAMP, and incubated at 25°C with shaking for 30 min to facilitate induction of the lambda-Red functions. After induction, the cells were made chemically competent and transformed with linear DNA using the heat-shock method [53]. Following overnight recovery, the cells were resuspended in 150 µl of MM liquid medium. To assess cell viability following transformation, 15 µl of cell suspension was plated on MM blood agar plates alone. To select for recombinant clones, the remaining 135 µl was spread on an MM blood agar plate containing ampicillin and chloramphenicol. Plates were incubated under microaerophilic conditions and inspected for growth after 9 days. Putative recombinant clones were then isolated as single colonies and the presence of chromosomal insertions was confirmed by DNA sequencing.

Curing of Lambda-Red Plasmid from Sodalis glossinidius

Following lambda-Red recombineering, plasmid pKD46 was cured from S. glossinidius by maintaining recombinant strains in the absence of plasmid selection. Cultures were grown under these conditions with shaking for approximately 50 generations prior to passage into fresh medium. Cultures were passaged a total of five times and then plated on MM blood agar plates supplemented with chloramphenicol alone. After 7 days of growth, colonies were screened for ampicillin sensitivity by replica plating onto MM blood agar plates supplemented with chloramphenicol and ampicillin.

Antimicrobial Peptide Resistance Assay

Antimicrobial peptide resistance assays were performed using a modified version of a previously described method [54]. Wild type and phoP mutant strains of S. glossinidius were grown to mid-log phase in MM liquid medium. 20 ml of each culture was transferred to 50 ml tubes and the cells were harvested by centrifugation at 5,000 × g for 10 minutes at 4°C. The cells were washed twice with an equal volume of 0.85% (w/v) NaCl and resuspended in 1 ml of 0.85% (w/v) NaCl. 0.5 ml of each cell suspension was inoculated into 20 ml of defined medium containing either 10 mM or 10 µM MgCl₂ and CaCl₂. Following an 8 h incubation (with shaking), the cells were harvested and washed, and 1 ml of cell suspension was inoculated into a 50 ml tube containing 9 ml of either 0.85% (w/v) NaCl alone, or 0.85% (w/v) NaCl supplemented with polymyxin B or cecropin A at a final concentration of 50 µg/ml. The cells were incubated at 25°C for 10 minutes, diluted in 0.85% (w/v) NaCl and approximately 1,000 colony forming units (CFU) were plated on MM blood agar plates. Plates were incubated for 5 days at 25°C under microaerophilic conditions and the resulting colonies were counted. All assays were carried out in triplicate.

Acid Resistance Assay

Wild type and phoP mutant strains of S. glossinidius were grown to mid-log phase in MM liquid medium. The cells were harvested by centrifugation at 5,000 × g for 10 minutes at 4°C and washed twice with an equal volume of 0.85% (w/v) NaCl. Approximately 2×10⁸ CFU were inoculated in 10 ml of MM medium at various pH levels (7.0, 5.0, 4.5 and 4.0). Following 1 h incubation, the cells were diluted in 0.85% (w/v) NaCl solution and approximately 1,000 CFU were plated on MM blood agar plates. Plates were incubated for 5 days at 25°C under microaerophilic conditions and the resulting colonies were counted. All assays were carried out in triplicate.

Growth Curves

Wild type and phoP mutant strains of S. glossinidius were grown to mid-log phase in MM liquid medium. 5 ml of each culture was harvested by centrifugation at 5,000 × g for 10 minutes at 4°C. The cells were then washed twice with an equal volume of defined medium containing 10 µM MgCl₂ and inoculated into 10 ml aliquots of defined medium containing either 10 mM or 10 µM MgCl₂ and CaCl₂. The cultures were maintained at 25°C, and measurements of turbidity (OD_600nm) were obtained at 24 h intervals.

Salmonella enterica Complementation Experiments

Salmonella enterica serovar Typhimurium EG9461 [27] and EG5931 [39] harboring pUHE21-2 lacI^q [55] or pUHE21-2 lacI^q derivatives were grown overnight in N-minimal medium containing 10 mM MgCl₂. Overnight cultures were diluted 1∶100 in fresh N-minimal medium containing 10 mM MgCl₂ and allowed to grow for 4 h. The cells were harvested by centrifugation at 8,000 × g for 3 min at 4°C, washed twice with 0.85% (w/v) NaCl, and resuspended in N-minimal medium containing either 10 mM or 10 µM MgCl₂. Following 3 h of growth, β-galactosidase activity was determined as described by Miller [56].

Total Lipid Extraction and Thin Layer Chromatography

Wild type and phoP mutant strains of S. glossinidius were grown to mid-log phase in MM liquid medium. 200 ml of each culture was harvested by centrifugation at 5,000 × g for 10 minutes at 4°C. The cells were then washed twice with an equal volume of 0.85% (w/v) NaCl. After the second wash, the cells were harvested as described above and resuspended in 5 ml of 0.85% (w/v) NaCl. 2.5 ml of each cell suspension was inoculated into 200 ml of defined media containing either 10 mM or 10 µM MgCl₂ and CaCl₂, and the cultures were incubated for 8 h with shaking. Following incubation, the cells were harvested by centrifugation at 5,000 × g for 10 minutes at 4°C and washed with an equal volume of 0.1% (w/v) ammonium acetate. The cell suspensions were centrifuged as described above and resuspended at a final concentration of 3×10¹¹ CFU/ml. 200 µl of each cell suspension was used for total lipid extraction in accordance to the Folch method [57]. Lipid extracts were spotted on a 20×20 cm C₁₈ thin layer chromatography plate (Whatman) and developed twice with chloroform: methanol: water (60∶30∶5, by volume). After chromatography, the plate was allowed to dry and lipids were visualized by iodine staining.

RNA Isolation and Quantitative PCR Analyses

RNA was prepared using the SV Total RNA Isolation System (Promega). Following RNA purification, sample aliquots were treated with Turbo DNase (Ambion) to remove contaminating DNA. RNA samples were then reverse transcribed using the Maxima First Strand cDNA Sysnthesis kit (Fermentas). Quantitation of cDNA was performed in triplicate using the Maxima SYBR Green/ROX qPCR Master Mix (Fermentas). Samples were analyzed using an iCycler iQ Multicolor Real-Time PCR Detection System (Bio-Rad). Relative transcript levels were estimated using the standard curve method, with expression levels normalized against a gene encoding a ribosomal protein (RplB) that is expressed constitutively in S. glossinidius [8]. A list of the primer sets and respective target genes is presented in Table S1.

Microinjection of Sodalis glossinidius into Louse and Tsetse Flies

Glossina morsitans morsitans Westwood tsetse flies were maintained at the Institute of Tropical Medicine (Antwerp, Belgium) as described previously [25]. Pseudolynchia canariensis hippoboscid louse flies were maintained on a pigeon colony at the University of Utah. Mid-log phase S. glossinidius cells were collected in a 1.5 ml tube by centrifugation at 8,000 g for 2 min and resuspended in PBS. Insects were injected into the ventral thorax with ≈ 2×10⁴ CFU of the S. glossinidius phoP mutant strain, fliM mutant strain [24], serving as a positive control for tsetse flies, or fliM and wild type strain (serving as a positive controls for louse flies). Microinjections were also performed with heat-killed wild type and fliM mutant strains (80°C for 15 min) to serve as negative controls. Insects were sacrificed for DNA isolation at various times post-injection and the resulting DNA samples were screened for the presence of bacteria using PCR primers specific for S. glossinidius wild type and the chloramphenicol resistance markers of the mutant strains.
