The GATA Factor ELT-1 Works through the Cell Proliferation Regulator BRO-1 and the Fusogen EFF-1 to Maintain the Seam Stem-Like Fate

Summary

Seam cells in Caenorhabditis elegans provide a paradigm for the stem cell mode of division, with the ability to both self-renew and produce daughters that differentiate. The transcription factor RNT-1 and its DNA binding partner BRO-1 (homologues of the mammalian cancer-associated stem cell regulators RUNX and CBFβ, respectively) are known rate-limiting regulators of seam cell proliferation. Here, we show, using a combination of comparative genomics and DNA binding assays, that bro-1 expression is directly regulated by the GATA factor ELT-1. elt-1(RNAi) animals display similar seam cell lineage defects to bro-1 mutants, but have an additional phenotype in which seam cells lose their stem cell-like properties and differentiate inappropriately by fusing with the hyp7 epidermal syncytium. This phenotype is dependent on the fusogen EFF-1, which we show is repressed by ELT-1 in seam cells. Overall, our data suggest that ELT-1 has dual roles in the stem-like seam cells, acting both to promote proliferation and prevent differentiation.

Introduction

The regulation of the decision between cell proliferation and differentiation is a key aspect of metazoan development, ensuring that the correct number and type of cells are present. The RUNX family of transcription factors (RUNX1, 2 and 3), together with their binding partner CBFβ, are key players in the control of stem cell proliferation in haematopoiesis [1]–[3], osteogenesis [4]–[6] and neurogenesis [7], [8]. Moreover, mutations in these genes are known to cause a variety of diseases, with both CBFβ and RUNX genes having the potential to act as either oncogenes or tumour suppressors, depending on the nature of the mutations and the context in which they act [9].

In the nematode worm, Caenorhabditis elegans, RUNX and CBFβ are each represented by a single gene, rnt-1 and bro-1 respectively. Reflecting their role in mammalian tissues, RNT-1 and BRO-1 are involved in the regulation of the division patterns of the stem cell-like seam cells [10]–[12]. The seam comprises a specialized epithelial tissue of lateral hypodermal cells located along each side of the worm and provides a tractable model system for studying the balance between proliferative and differentiative developmental decisions. The seam cells are considered stem cell-like because of their ability to both self-renew and to produce a variety of differentiated cell types; in addition to increasing the number of seam cells during some divisions, the lineage contributes cells to the hypodermis (an epithelial tissue), as well as giving rise to neurons and glial cells [13]. Seam cells do not self-renew throughout adult life, and have not yet been shown to reside in a classic “niche”, hence the qualification stem-like, but they do provide a useful simplified model for the stem cell mode of division throughout larval development that is well established [14]–[21].

The choice between the two very different developmental alternatives of proliferation and differentiation is intrinsically linked to the way in which the seam cells divide. Symmetrical divisions allow the expansion of the stem cell pool, as both daughters of the division retain the seam (stem cell-like) fate. Conversely, asymmetrical divisions initiate developmental pathways that result in the production of differentiated cell types. Whilst one daughter of the division (the posterior daughter, in the case of cells V1-6 in the seam lineage) retains the seam fate, the other loses its ability to proliferate further and instead proceeds to differentiate into one of a number of different cell types, most commonly assuming the hypodermal fate and fusing with the hyp7 syncytium. In this case, the differentiation event involves fusion with a different cell type, although seam cells can differentiate independently of fusion, for example taking on neuronal fates [13]. At the end of larval development, seam cells undergo homotypic fusion, producing the fully differentiated adult seam cell syncytium that secretes the alae [13]. The seam cells divide repeatedly throughout larval development, and the form that the division takes (symmetrical or asymmetrical) is critically dependent on the developmental stage of the worm. The nature of these stem cell-like divisions, and thus the fate of the daughter cells arising from them, therefore requires precise regulation both spatially and temporally.

In C. elegans, rnt-1 and bro-1 are rate-limiting regulators of seam cell divisions, with both genes being required for proliferation in this tissue. In rnt-1 and bro-1 mutants, the number of seam cells present in individuals is reduced due to division failures within the seam lineage [12]. Furthermore, over-expression of rnt-1 and bro-1 results in hyperplasia of the seam [10]. In this study, we have examined the mechanisms underlying the regulation of bro-1 expression. We identified a small (122 bp) conserved non-coding element (CNE) within the first intron of bro-1, which we show to be both necessary and sufficient for bro-1 expression in the seam. In order to identify direct upstream regulators of bro-1, a yeast one-hybrid screen was performed using this conserved element as bait. This, coupled with an in vitro binding assay, demonstrates that the GATA transcription factor ELT-1 directly regulates bro-1 through this CNE. The involvement of both GATA and RUNX/CBFβ factors in regulating a stem cell-like lineage in C. elegans thus mirrors the situation in mammalian systems, where the activities of these proteins are intricately linked with the specification of stem cell populations (for example haematopoietic stem cells [22]).

We then sought to further investigate the role of ELT-1 in seam cells. Analysis of the elt-1 RNAi phenotype suggests that ELT-1 has both bro-1-dependent and independent functions in the seam. ELT-1 functions through bro-1 to promote proliferation of seam cells and through eff-1 to repress inappropriate differentiation and fusion with the hypodermal syncytium. We also show that apical junction components themselves are important for the maintenance of seam cell fate, providing the correct contacts and therefore creating an environment in which cells are protected from differentiation signals emanating from surrounding tissues. Any disruption to the continuity of this environment contributes to the initiation of differentiation and loss of the seam fate.

Results

The first intron of bro-1 contains a highly conserved sequence element that is both necessary and sufficient for bro-1 expression in seam cells

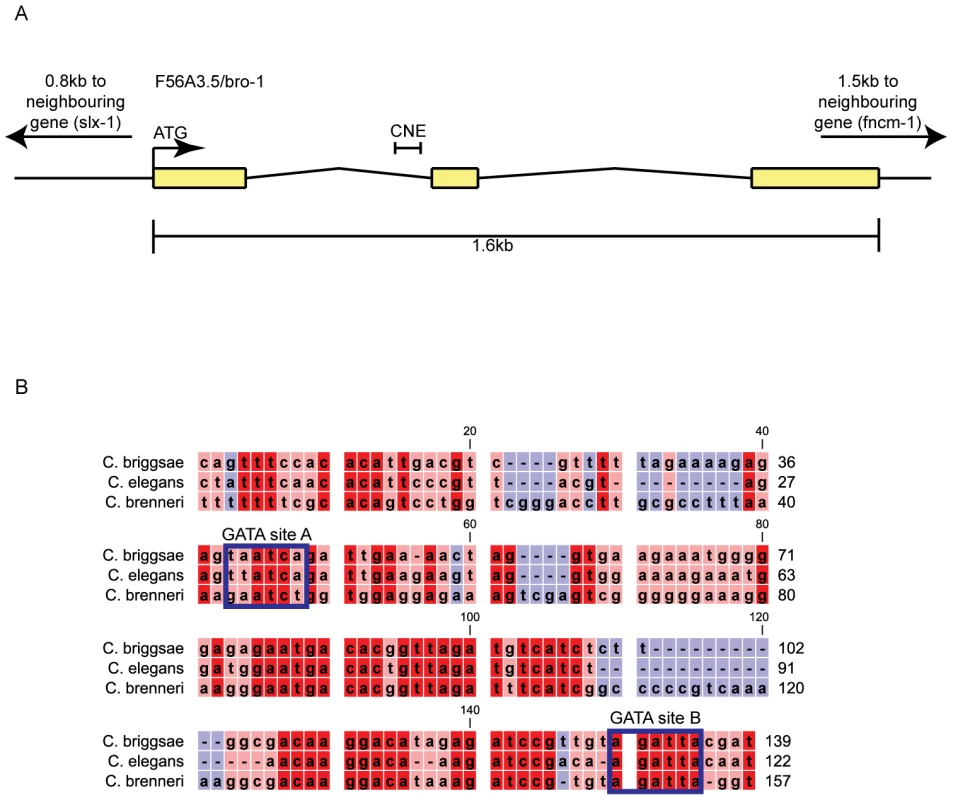

Comparative sequence analysis revealed high levels of conservation between exonic regions of bro-1 in C. elegans and C. briggsae (73, 85 and 75% identity for exons 1, 2 and 3 respectively, compared to an average of 53% identity for introns 1 and 2). In contrast, we found no significant blocks of conservation in the 0.8 kb between bro-1 and the next upstream gene. However, a 122 bp region within the first intron was found to be highly conserved (3 species alignment shown in Figure 1B) (69% identity compared to 48% for the rest of the introns). We termed this the “bro-1 Conserved Non-coding Element” (bro-1 CNE).

Next, we tested the ability of the bro-1 CNE to act as an enhancer for cell-specific expression. When used in conjunction with the pes-10 minimal promoter (bro-1 CNE::gfp), the CNE was able to drive seam cell-specific GFP expression in worms (Figure 2A–2C). A vector containing a similar-sized fragment of a different, non-conserved region of intron 2 failed to drive any discernable GFP expression (data not shown). Furthermore, when the intergenic region between bro-1 and the nearest upstream gene was used, no GFP expression was evident (data not shown). To further characterise the importance of the CNE in regulating bro-1 expression, we first deleted the 122 bp region from the bro-1::dsRED2 construct [10]. The wild type construct (containing the full bro-1 genomic region) drives expression in seam cells and rescues the bro-1 mutant male tail phenotype caused by division failures in V and T lineage seam cells (Figure 2J). In contrast, the mutagenised bro-1::dsRED2 construct did not express in seam cells, and was unable to rescue the bro-1 male tail phenotype (Figure 2K). Secondly, we used the CNE (together with the pes-10 minimal promoter) to drive expression of bro-1 cDNA::gfp (see Text S1 and [23]). This construct drove seam cell expression, and rescued the bro-1 mutant phenotype (Figure 2L). Thus, the bro-1 CNE is both necessary and sufficient for bro-1 expression in seam cells.

The GATA transcription factor ELT-1 interacts directly with the bro-1 CNE

Next, we used a yeast one-hybrid system to determine which transcription factors are able to bind to the bro-1 CNE. Three tandem copies of the CNE were used as bait and screened with a mixed stage C. elegans transcription factor cDNA library. Of 120 positive colonies, 110 contained the clone encoding the GATA factor ELT-1, demonstrating that ELT-1 protein binds to the bro-1 CNE in this assay.

The bioinformatics software Patch [24] revealed the presence of possible binding sites for GATA transcription factors in the CNE (Figure 1B), two of which are relatively well conserved across Caenorhabditis species [25], [26]. Site A matches the GATA consensus sequence WGATAR, while site B is slightly different (AGATTA), but matches the target sequence for the human GATA family member GATA6 [26]. To investigate the significance of these sites, both were deleted separately from the bro-1::dsRED2 rescuing construct. While deletion of site A had no effect on tail rescuing ability, deletion of site B abolished the ability of the construct to rescue bro-1 mutant tails (Figure 3A).

ELT-1 specifically binds GATA site B within the bro-1 CNE

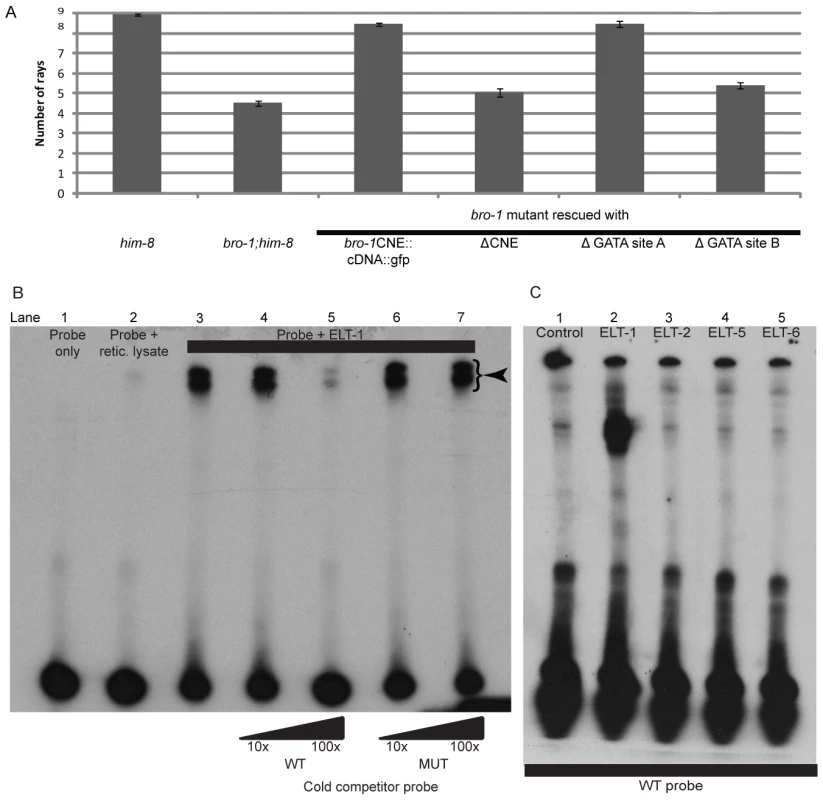

To confirm this interaction, an Electrophoretic Mobility Shift Assay (EMSA) was performed using in vitro translated ELT-1 protein and a portion of the bro-1 CNE containing GATA site B as a probe. ELT-1 protein was able to bind the CNE, resulting in a shift in the position of the labelled probe (Figure 3B). Cold competitor probe was able to compete with the identical labelled probe, resulting in a diminution in intensity of the shifted band. However, cold probe with a mutation in GATA site B (AGATTA to ATAGTA) was unable to compete with the wild type labelled probe, suggesting that ELT-1 protein interacts directly with GATA site B.

Other C. elegans members of the GATA family of transcription factors were tested for their ability to bind the bro-1 CNE using the same band shift assay; all failed to shift the labelled probe (Figure 3C). Taken together, these data suggest that amongst the members of the GATA family in C. elegans, ELT-1 alone mediates bro-1 transcriptional activity in the seam by direct binding to GATA site B within the CNE.

ELT-1 regulates bro-1 expression in vivo

The fact that bro-1 seam expression disappears when ELT-1 binding site B within the bro-1 regulatory region is deleted suggests that ELT-1 is an activator of bro-1 expression. To confirm this, we monitored bro-1::gfp expression in animals subjected to elt-1 RNAi and observed a decrease in signal intensity (data not shown). It was necessary to reduce the level of elt-1 expression by RNAi as elt-1 alleles are embryonic lethal; therefore only the effects of a small reduction in elt-1 expression could be analysed. To quantify this, we measured endogenous elt-1 and bro-1 transcript levels by qRT-PCR in animals surviving the elt-1 RNAi treatment. These animals (most of which exhibited seam defects) were found to have a 1.5 fold reduction in elt-1 transcript levels and a 1.7 fold decrease in bro-1 transcript levels, demonstrating that ELT-1 plays a major role in regulating bro-1 expression in vivo.

ELT-1-deficient worms, like bro-1 mutants, exhibit division failures in the seam lineage

ELT-1 has previously been reported to be essential for seam differentiation and maintenance, with elt-1(RNAi) animals having fewer seam cells as assayed by the seam cell marker scm::gfp [27]. Significantly, the average number of seam cells in elt-1(RNAi) animals (13.6 seam cells per side, ±0.3, n = 83) is very similar to that of bro-1 mutants (14.0 seam cells per side, ±0.3, n = 91) and significantly lower than animals fed control HT115 bacteria containing the empty feeding vector L4440 (15.8 seam cells per side, ±0.1, n = 30). The cellular basis of this phenotype has not been previously described, therefore lineage analysis was performed to elucidate the cellular mechanism of seam cell loss.

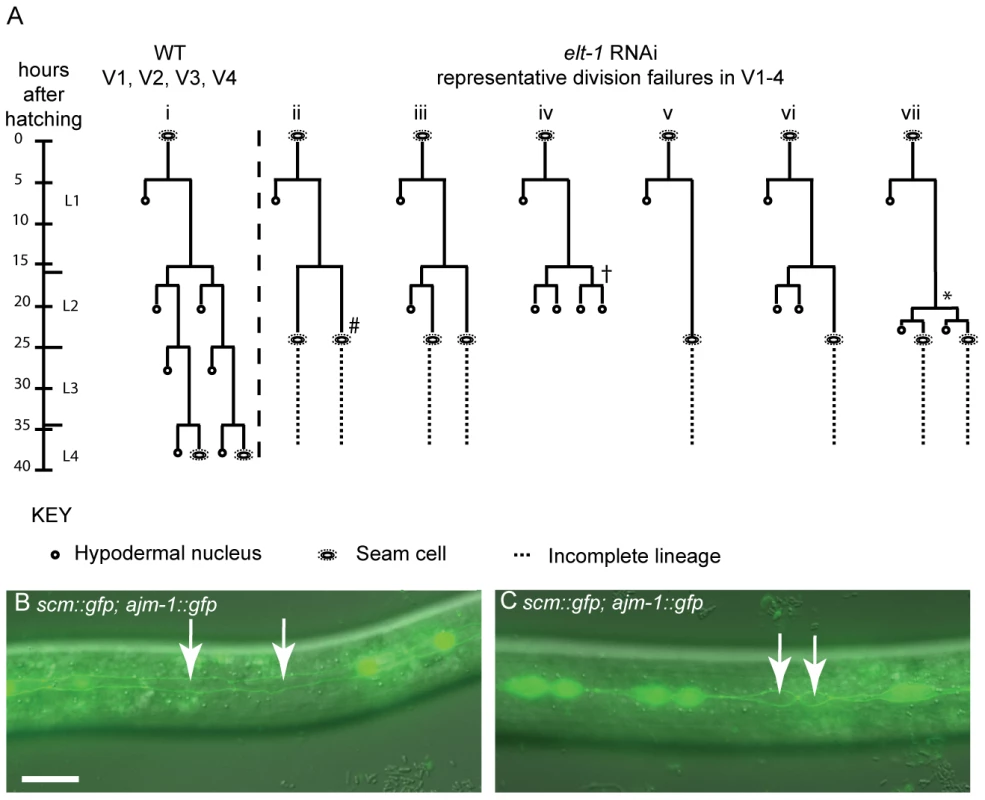

elt-1(RNAi) worms have variable seam division failures (Figure 4A). These defects were observed during both the symmetrical and asymmetrical divisions of L2, suggesting that the role of ELT-1 is not limited to one type of division. However, given the difficulties in pursuing the lineage analysis past L3 (these worms are very sick), we cannot exclude the possibility that the role of ELT-1 in regulating seam cell division is limited to the L2 stage. Division failures were not observed during the L1 asymmetric division, although embryonic developmental abnormalities often meant that the number of seam cells present at the start of L1 was lower than that of wild type worms. Nevertheless, the ability of the remaining seam cells to undergo the asymmetric L1 division parallels the situation in rnt-1 and bro-1 mutants, where division failures are restricted to the subsequent divisions. These division defects are distinct from the classic retarded heterochronic phenotypes, in which stage-specific stereotypical division “cassettes” occur at the wrong stage. In the case of lin-4, the L1 pattern of division is re-iterated at later stages, resulting in fewer seam cells overall [28]. In the case of elt-1(RNAi) and rnt-1/bro-1 mutants, the defects seen were not representative of stereotypical division patterns occurring at the wrong stage, but rather involved outright division failures, or occasionally symmetrisation towards the hypodermal fate.

To assess whether the division failures observed in elt-1(RNAi) worms were correlated with loss of seam fate, the integrated scm::gfp reporter wIs51 [29] was used as a seam cell marker. We observed that even worms which do not show gross morphological abnormalities, and which therefore can be followed by lineage analysis throughout development, frequently exhibit loss of scm::gfp from usually one or two seam cells from the late L1 stage onwards. While the seam cell remains clearly visible under DIC (retaining its distinctive eye-shaped seam morphology), GFP expression fades over 30–60 minutes until the cell shows no fluorescence at all (Figure 4B). To confirm the identity of these ‘seam’ cells that fail to express scm::gfp, cell boundaries were visualised using the ajm-1::gfp reporter (which marks the apical junctions between seam cells and the surrounding hyp7 syncytium, in which it is not expressed). These cells were always bounded by AJM-1::GFP, confirming their seam identity (as suggested by their morphology). Thus, when seam cells are counted in elt-1(RNAi) animals using scm::gfp, not all of the seam cells present will be observed. In addition to division failures, therefore, the loss of expression of the ‘seam’ marker scm::gfp also likely accounts for the apparent progressive loss of seam cells previously reported in elt-1(RNAi) worms [27].

Interestingly, a similar phenotype is observed in bro-1 and rnt-1 mutants (data not shown). However, while loss of this marker has been attributed to degeneration of seam cells [27], we have not observed this phenomenon in either rnt-1/bro-1 mutants or elt-1(RNAi) worms; seam cells retain their characteristic “eye” shape and position within the seam line, but may lose scm::gfp in these backgrounds. Given the prevalence of using scm::gfp as a marker of seam fate, we were surprised to observe that scm::gfp expression does not in fact seem to be tightly correlated with proliferative potential; lineage analysis revealed that cells that stop expressing scm::gfp often undergo the correct number of divisions at the appropriate times. Conversely, we observed division failures in seam cells strongly expressing scm::gfp. Taken together, this suggests that while scm::gfp may mark seam cells during normal development, it is not an infallible marker for seam cell fate, perhaps because particular elements of seam ‘fate’ are uncoupled in elt-1(RNAi) and rnt-1/bro-1 mutant animals.

Cells that remained in the seam line but failed to divide, always retained expression of ajm-1::gfp, regardless of whether or not they expressed scm::gfp (Figure 4B and 4C). This suggests that their failure to divide results not from a change of fate per se (from seam to hypodermis), but rather from a loss of proliferative ability. This is supported by dpy-7p::yfp expression, which marks cells that have adopted a hypodermal fate but is not expressed in seam cells; cells bounded by AJM-1::GFP never expressed dpy-7p::yfp, even when they fail to undergo scheduled divisions (data not shown).

ELT-1 works independently from BRO-1 to prevent seam cells fusing inappropriately with the hypodermis

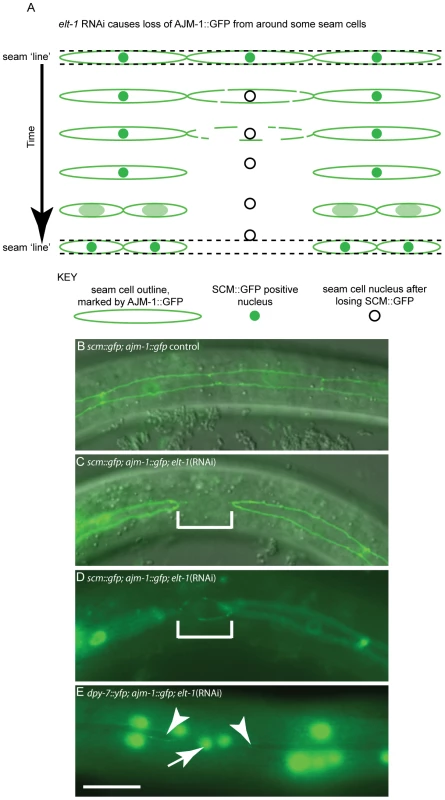

Unlike the situation in bro-1 mutants, however, observation of elt-1(RNAi) animals carrying the integrated ajm-1::gfp construct revealed that some cells, at the same time as losing scm::gfp expression, lose AJM-1::GFP, used here as a marker of seam cell boundaries (data not shown and Figure 5A–5D). This may be predictive of inappropriate fusion with the hyp7 syncytium. Cells were never observed that lost ajm-1::gfp but retained scm::gfp. The ‘disintegration’ of the AJM-1::GFP continues until only vestigial traces are evident between the two seam cells on either side of the affected cell, as shown in Figure 5D.

In the hours subsequent to losing ajm-1::gfp expression, we observed that the seam cell tends to become rounder and move out of the line of the seam, with both the morphological and positional changes being indicative of the acquisition of hypodermal fate. To test this, a strain carrying the integrated transgenes ajm-1::gfp and dpy-7::yfp was used. In several cases, cells were observed during lineage analysis losing ajm-1::gfp and then acquiring dpy-7::yfp expression. Gaps in ajm-1::gfp expression in the seam were correlated with the presence of dpy-7::yfp-expressing nuclei which had not yet, or only partially, moved out of the line of the seam (Figure 5E). Thus, elt-1 RNAi causes an additional phenotype not observed in rnt-1 or bro-1 mutants, whereby some seam cells differentiate inappropriately by fusing with the hypodermal syncytium.

Overall, our data suggests three distinct phenotypes observed in elt-1(RNAi) animals. The first, in common with rnt-1 and bro-1 mutants, involves division failure in the absence of a permanent change in cell fate (i.e. not involving fusion with the hypodermis). Secondly, loss of SCM::GFP is also observed in elt-1(RNAi) animals (as well as in rnt-1 and bro-1 mutants), but we found this to be independent of division failure. Thirdly, in elt-1(RNAi) animals but not in rnt-1/bro-1 mutants, we observed inappropriate adoption of the hypodermal fate as shown by the acquisition of DPY-7::YFP, preceded by loss of scm::gfp expression and of AJM-1::GFP from the apical junctions. While these cells always lose SCM::GFP, fusion with the hypodermis is not always the consequence of SCM::GFP loss. However, AJM-1::GFP is very tightly linked to the seam fate; loss of AJM-1::GFP is always coupled with fusion to the hyp7 syncytium and acquisition of the hypodermal fate.

The elt-1 (RNAi) fusion defect is dependent on EFF-1

If cells are lost from the seam in elt-1(RNAi) animals because of inappropriate fusion with the hyp7 syncytium, we would anticipate that ectopic eff-1 expression would be evident, as the fusogen EFF-1 is known to be required for this fusion event [30]. To test this, a transgenic strain carrying both an eff-1 transcriptional reporter, which normally expresses in dorsal and ventral hypodermis but not in seam cells, and ajm-1::mCherry was used. In elt-1(RNAi) animals, we observed ectopic eff-1p::gfp expression in seam cells that had lost their AJM-1 boundary (Figure 6A). Furthermore, we found that elt-1 RNAi induced fusion of seam cells with the hyp7 syncytium was suppressed in eff-1 mutants (Figure 5A, 5C, 5D and Figure 6C). Taken together, these data suggest that ELT-1 represses eff-1 expression in seam cells in order to prevent fusion of these cells with the surrounding hypodermal syncytium, thus maintaining their distinct stem cell-like fate.

Seam cell membrane integrity, as marked by apical junctions, is required to maintain stem cell-like identity and sufficient to prevent differentiation

In order to address more directly the role of seam cell boundaries in determining the stem cell-like identity of seam cells, we knocked down the expression of components of apical junctions by RNAi. Given the essential functions of these proteins in a variety of cell types throughout development, it was necessary to use a seam-specific RNAi approach [31]. Knockdown of either ajm-1, let-413 or dlg-1 gave a similar phenotype, involving breaks in the AJM-1::GFP boundary, associated loss of scm::gfp expression and withdrawal from further division (Figure 6D; let-413 and dlg-1 data not shown). When ajm-1 was knocked down by RNAi, 66% of animals displayed breaks in the seam boundary as marked by ajm-1::mCherry (n = 50), whereas in controls not subjected to RNAi 5% of animals displayed breaks (n = 36) (the odd break in the seam would be expected due to mosaicism of the ajm-1::mCherry scm::gfp array). Therefore, seam cell membrane integrity, as marked by apical junctions, is essential for the maintenance of seam stem cell-like fate.

Next, we wanted to examine whether the presence of an intact boundary around the seam cells is sufficient to specify seam fate. This could happen in two ways: the boundary could either promote seam fate, or block differentiation signals from the surrounding environment. To test this, we used an eff-1 mutant in which anterior daughters retain their AJM-1::GFP marked boundary and remain in contact with the seam line instead of moving into the hypodermis. In other words, ectopic AJM-1::GFP boundaries are present in this strain. To assess whether these cells inappropriately retain the seam fate we monitored scm::gfp expression, as well as dpy-7::yfp expression. Firstly, we found that ectopic AJM-1::GFP bordered cells frequently do not express scm::gfp (Figure 6B), suggesting that these cells do not retain all aspects of seam fate. Perhaps this is not surprising, given that these cells are the anterior daughters of asymmetric seam divisions and would have already received the instruction to withdraw from further proliferation. However, we never observed dpy-7::yfp expression in these cells (Figure 6E), indicating that differentiation is repressed. This suggests that fusion of seam cells with hyp7 (mediated by EFF-1) is essential as a trigger for differentiation in this context. These cells are therefore in developmental ‘limbo’, being neither completely seam nor hypodermis. Thus, although the anterior daughters of asymmetric seam divisions are destined to differentiate at division, the nature of the differentiation event is not specified at this stage and requires further inputs; it is not until cell fusion and membrane breakdown occurs, as marked by the loss of apical junction boundaries, that the hypodermal fate is adopted.

Overall, therefore, seam cell boundaries may not be sufficient to specify all aspects of seam fate, but they are sufficient to prevent differentiation. Our data therefore suggest that the seam stem cell-like fate is retained by the blocking of “hypodermalizing” signals in cells that are bounded by apical junctions. ELT-1, therefore, plays dual roles in specifying the stem cell-like properties of the seam cells; on the one hand activating proliferative potential via bro-1, and on the other preventing inappropriate differentiation through the repression of eff-1 and consequent maintenance of seam boundaries (Figure 7).

Discussion

C. elegans seam cells are an excellent model for stem cell-like modes of division, sitting as they do at the crossroads between the developmental decision to proliferate (thus renewing the pool of pluripotent precursors), or to pursue a differentiation pathway towards one or more specialised cell types. We used comparative genomics coupled with a yeast one-hybrid screen and promoter deletion analysis to define upstream regulators of bro-1 expression; a gene known to be essential for seam cell proliferation. Surprisingly, we found that sequences necessary and sufficient for the expression of bro-1 lie exclusively within an intron. Our evidence adds strength to the concept that highly conserved non-coding sequences correlate with biologically important enhancer elements [32], [33]. Multiple lines of evidence suggest that ELT-1 binds to this intronic sequence; in a yeast one-hybrid screen using the CNE as bait, ELT-1 was identified in 92% of positive clones, whilst an EMSA band shift experiment not only confirmed this finding, but demonstrated that the putative GATA site towards the 3′ end of the CNE (GATA site B) is essential for ELT-1 binding, an observation confirmed by rescue experiments.

Taken together, evidence from our yeast one-hybrid screen, in vitro binding assay, rescue experiments and quantitative RT-PCR experiments suggest that ELT-1 is a direct upstream transcriptional regulator of bro-1. This model is supported by the similarities between elt-1 (RNAi) and bro-1 mutant phenotypes in terms of failures of seam cell divisions, and loss of scm::gfp expression. It therefore seems highly likely that elt-1 and bro-1 (as well as rnt-1) function within the same developmental pathway to promote seam cell proliferation. It is interesting to note that the L1 (asymmetric) division is robust and appears unaffected in both elt-1 RNAi and bro-1/rnt-1 mutant worms. This division is most likely regulated by a separate pathway. The involvement of both the CBFβ/RUNX complex and a GATA transcription factor in the regulation of the proliferation of the stem cell-like seam cells is reminiscent of the situation in Drosophila and in mammals, where GATA and RUNX factors work together to regulate blood cell formation [34]. Indeed, mammalian Runx1 is known to be transcriptionally activated by Gata2 [22]. Thus, the direct regulatory relationship between ELT-1 and bro-1 suggests yet another mode of interaction between members of these two gene families.

elt-1(RNAi) worms display a striking phenotype which is not observed in bro-1 mutant animals, however. This involves loss of the apical cell junction marker ajm-1::gfp from some seam cells, followed by movement of the cell out of the seam and subsequent differentiation into the hypodermal fate. It has previously been argued that seam cell phenotypes (loss of scm::gfp positive cells and gaps in ajm-1::gfp expression) in elt-1(RNAi) worms do not result from inappropriate fusion of the seam with the hypodermis, on the basis that scm::gfp-expressing cells are never observed in the hypodermal syncytium [27]. However, here we argue that cells do indeed fuse with hyp7 in elt-1(RNAi) animals, but first lose their scm::gfp and AJM-1 boundary, as well as changing their morphology as they undergo the transition from seam to hypodermal fate and begin to express hypodermal markers. Thus, we suggest that the breaks in AJM-1::GFP result not from degeneration of the seam cells but are the result of a transition between two cell fates; the proliferative seam fate, which is associated with the AJM-1::GFP boundary, and the differentiated syncytial hyp7 fate, which is not.

In terms of its bro-1-independent role in the seam, elt-1 appears to function upstream of EFF-1. The role of the fusogen eff-1 is critical in the seam [30] and is responsible for promoting the fusion of hypodermal seam daughters with the hyp7 syncytium by causing the formation of pores in the membrane [35]. Indeed, eff-1 over-expression has been shown to result in inappropriate fusion of seam cells with hyp7 [36]. This phenotype is strikingly similar to that seen in elt-1(RNAi) animals, and suggests that ELT-1 acts to repress eff-1 in the seam, thereby preventing seam cells from fusing with hyp7. Our finding that ectopic eff-1 expression is observed in elt-1(RNAi) animals confirms this.

Inappropriate fusion of the seam cells with the hypodermis has been reported previously; this phenomenon has been observed in embryos and newly hatched animals in which elt-5 and elt-6 (which act redundantly) had been knocked down by RNAi [29]. Moreover, similar to the observations described here for elt-1(RNAi) animals, fusion in the case of elt-5/elt-6 RNAi was accompanied by gradual dissolution of the AJM-1::GFP boundary around the seam cells [29]. We therefore suggest that there is a network of GATA factors acting to prevent inappropriate differentiation of seam cells throughout development. In addition, other transcription factors have been shown to regulate seam cell development, for example NHR-25, BAF-1 and CEH-16 as well as heterochronic regulators like LIN-14 and LIN-29 [14], [15], [28], [37]–[39]. The interactions between all these genes will be an interesting area for future study.

The apparent close relationship between the presence of intact apical junctions and the stem cell-like properties of seam cells is suggestive of similarities with stem cells in Drosophila. In the testes and ovaries of Drosophila, germline stem cells (GSCs) are retained in what has been termed a niche; the niche concept, introduced over 30 years ago [40], describes how stem cells can be maintained in a proliferative state by signals from a microenvironment, consisting of cells and the extracellular components they produce. The niche is essential for the stem properties of such cells and, as these cells move out of the niche, so they lose these properties in favour of differentiated cell fates. In this way, far from merely creating an inert environment in which the Drosophila GSCs reside, the cells around these stem cells provide cues which regulate the maintenance of the stem cell pool, physically anchor the GSCs to the niche, and even control the polarity of the stem cells, determining the positions of the daughters of GSC divisions relative to one another and to the niche. The mechanisms underlying the complex interactions between GSCs and their niche microenvironment involves extracellular signalling [41]–[45] as well as physical adhesion of stem cells to the niche [46], with the DE-cadherin and Armadillo/β-catenin apical junction complex being both important in recruiting GSCs to the niche and required for the maintenance of the stem cell pool. Loss of either of these proteins results in dramatic depletion of GSCs from the niche. Here, we show that C. elegans apical junction proteins are required to maintain the undifferentiated stem cell-like fate of the seam cells.

Perhaps there is something analogous to a seam stem cell “niche” in C. elegans, in the sense that cell contacts (marked by, and dependent on, apical junction proteins) are required to maintain a microenvironment in which the seam cells are prevented from differentiation. The importance of cellular contacts for seam development has previously been recognized. For example, the developmental fate of the V5 seam cell has been shown to be dependent on correct seam cell contacts either side [47], and proliferation of the seam cells has been shown to be perturbed when contacts between seam cells are not properly re-established following division [15]. Thus, both the proliferation and differentiation of the seam cells has been shown to be dependent on signals from the surrounding microenvironment, raising the question of whether they do in fact reside in a niche. In support of the niche concept, we find that cells that have withdrawn from the proliferation programme as a result of asymmetric division, but which have failed to fuse with the hyp7 syncytium (as a result of eff-1 mutation), do not express markers of differentiation like dpy-7. In other words, the boundary provides protection from differentiation signals. However, this notion of a niche has to remain speculative in the absence of defining the nature of these signals.

Intriguingly, the regulation we have discussed in seam cells, in which ELT-1 represses eff-1 in order to prevent fusion and differentiation of cells that have the proliferative fate, mirrors the situation in vulval precursor cells (VPCs). In the developing vulva, the 6 VPCs P3.p–P8.p are prevented from fusing with the hyp7 syncytium in early larval stages (in L3 this exclusion from hyp7 is limited to P5.p–P7.p) [48]. Fusion with hyp7 acts to limit the developmental potential of Pn.p cells (as it does with anterior seam daughters) and is restricted to those that flank the developing vulva [48]. LIN-39 acts to prevent this fusion by repressing eff-1 in P3.p–P8.p during L1 and in P5.p–P7.p during L3 [49]–[51]. In eff-1 mutants, unfused VPCs fail to differentiate into the hypodermal fate, retaining their AJM-1 boundary and at least some aspects of the vulval fate. These cells fail to proliferate, however, suggesting that other signals are required for the induction of normal vulval development. This is analogous to the situation with unfused seam cells in eff-1 mutants, which also fail to divide once they leave the seam line, remaining in developmental “limbo”. In both cases, however, fusion with hyp7 and associated breakdown of cell boundaries is required for cells to take on the differentiated hypodermal fate. In both the seam and the developing vulva, therefore, only those cells that are prevented from fusing with hyp7 (thereby retaining their boundaries) are protected from differentiation and retain further developmental and proliferative potential.

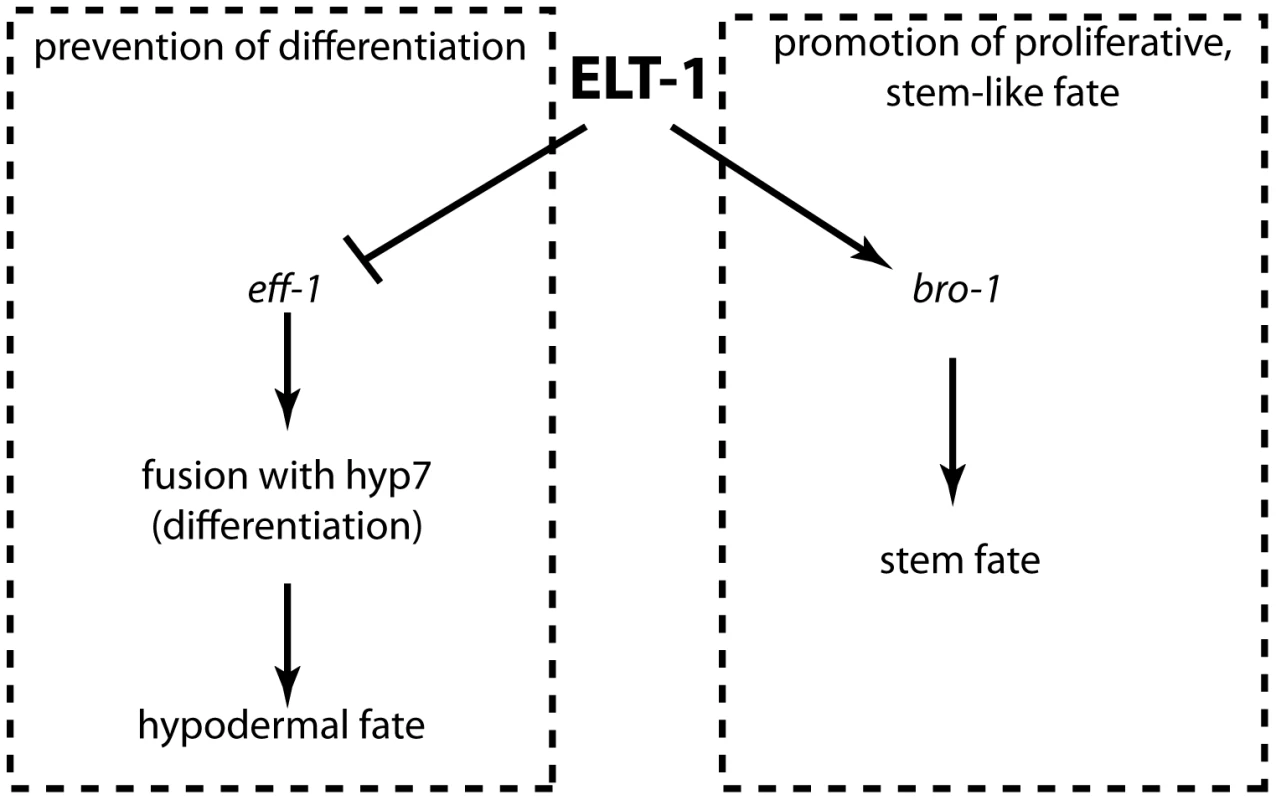

Overall, we present a model (Figure 7) in which the GATA factor ELT-1 plays important dual roles in maintaining the ‘stemness’ of the seam cells, by both promoting the proliferative fate and preventing differentiation. Firstly, ELT-1 acts directly through bro-1 to promote proliferation and self-renewal of the seam. Secondly, ELT-1 is essential for maintaining the integrity of the seam cell compartment, as marked by apical junctions. In fulfilling this latter role, ELT-1 works through EFF-1. When eff-1 is repressed, the boundaries around the seam cells are maintained, and thus differentiation is prevented. We also find that apical junction components themselves are important for maintaining seam cell fate, but are not arguing that ELT-1 acts directly on apical junction components. Indeed, as has been previously suggested, apical junction breakdown could be a relatively late event in the cell fusion process [35], [52]. Taken together, these data suggest that the seam cells reside in a microenvironment in which they are protected from differentiation by the boundary that separates them from the hyp7 syncytium. Thus, the seam microenvironment may satisfy the criteria of a niche in certain respects, protecting seam cells from influences that would otherwise trigger differentiation. The GATA factor ELT-1 works through bro-1 to promote seam cell proliferation and through eff-1 to maintain seam cells in the undifferentiated state.

Materials and Methods

Strains and maintenance of worms

All strains used were derived from the wild type N2 Bristol strain. Manipulations and maintenance of strains were performed as previously described [53]. Strains used are described in Table S1.

Lineage analysis and microscopy

Lineage analysis was performed as previously described [12]. For lineage analysis of elt-1(RNAi) animals, 3 µl of a freshly prepared solution of M9 and HT115 E. coli cells expressing the elt-1 dsRNA (scraped from a 2 mM IPTG NGM plate, on which they had been growing at 20°C for several days) was placed on the pad. For each slide, a single worm was transferred into this drop with an eyelash pick. A coverslip was then slowly lowered on top of the worm, and microscopy performed with Nomarski (DIC) optics and a 100× oil immersion objective (Zeiss). Photomicrographs were taken using a 63× Zeiss oil immersion objective and Axiovision software (Release 4.5).

RNAi

elt-1 knockdown by RNAi was performed as described previously [27], using an identical feeding construct to pPM88, named pAW565. The seam specific RNAi strategy is described in Text S1 and all other RNAi was performed by feeding as previously described [54].

Plasmid construction

Plasmids used in transgenic strains are described in Table S1 and detailed cloning strategies described in Text S1.

Construction of transgenic worms

Injections were performed as described previously [55] using the unc-119⁺ (pDP#MM016β) transformation marker [56]. Constructs were injected at 10–20 ng/µl.

Band shift experiments

cDNAs of elt-1, elt-2, elt-3, elt-5 and elt-6 were amplified from a mixed stage cDNA preparation using Phusion polymerase (Finnzymes). The PCR products were cloned into the pCR®-XL-TOPO vector (Invitrogen) and the TNT® Quick Coupled Transcription/Translation kit (Promega) was then used for in vitro transcription and translation. To make the labelled probes, oligonucleotides covering ‘GATA site B’ were synthesised (WT probes: CB204 gatccgacaagattacaatccacat, CB206 atgtggattgtaatcttgtcggatc; mutant probes: CB205 gatccgacaatagtacaatccacat; CB207 atgtggattgtactattgtcggatc), annealed by heating and gradual cooling, and labelled with [γ-³²P] dATP (for hot WT probes) or without [γ -³²P] dATP (for cold, competitor probes). The DNA binding reaction was carried out on ice for 30 minutes before the reaction mixture was loaded onto a 7% non-denaturing polyacrylamide gel and run at 4°C in 0.5×TBE.

Yeast one-hybrid screen

The entire 122 bp bro-1 CNE was used as bait in the yeast one-hybrid screen; three copies were inserted in the forward direction into the Clontech Matchmaker vectors pHisi-1 and pLacZi and integrated into yeast strain YM4271 [57] as described in Text S1. YM4271 [pbro-1HIS; pbro-1LAC] was then transformed with a mixed stage transcription factor cDNA library and plated onto –his, -leu, -ura 15 mM 3-AT SD plates. All colonies that grew within 3 days were assayed for lacZ expression [58], and after re-isolating plasmids and re-checking, positive clones were sequenced.

Quantitative RT-PCR analysis

qRT-PCR was performed on synchronised worms obtained by bleaching gravid animals and seeding the eggs onto elt-1 RNAi or L4440 control plates. Larvae were harvested after 1–2 days by washing with M9. RNA was extracted by the hot phenol method [59] and mRNA levels of elt-1/bro-1 and a normaliser (nuo-2, expressed in all seam cells) were assessed using SYBR-Green and a Qiagen Rotor-Gene Q machine. Expression levels were assayed by the 2^−ΔΔCT method [60].
