Co-dependence of HTLV-1 p12 and p8 Functions in Virus Persistence

Summary

HTLV-1 persists despite a vigorous host immune response. We found that polymorphism of HTLV-1 orf-I alter the relative amounts of the p12 precursor and its cleavage product p8, and is associated with differences in blood virus levels in humans, a correlate of disease risk. Reverse genetics in 160 HTLV-1 infected individuals demonstrated that equivalent levels of p8 and p12 are associated with high virus levels and, accordingly, genetically engineered HTLV-1s that express either predominantly p12 or p8 are poorly infectious in macaques. We found that expression of p8 is sufficient for productive infection of monocytes. Expression of either p12 alone or p8 alone is insufficient to protect infected cells from MHC-class-I restricted CTL killing. However, the balanced expression of both provides resistance of infected cells to CTL killing. Together, our findings provide the rationale to explore novel approaches to target the cleavage of the p12 protein, an essential step for viral infectivity and persistence.

Introduction

HTLV-1 causes Adult T-cell Leukemia/Lymphoma (ATLL) [1], [2] or HTLV-1 Associated Myelopathy/Tropical Spastic Paraparesis (HAM/TSP) in approximately 2–3% of the 15–20 million individuals infected by the virus worldwide [3], [4]. HTLV-1 persists in the host despite a vigorous cellular and antibody response, suggesting that the virus has developed effective mechanisms to counteract host immune surveillance [5]. The HTLV-1 open reading frame-I (orf-I) protein products p12 and p8 increase NFAT activity [6], [7], STAT-5 transcriptional activity and IL-2 production [8]–[10] in T-cells. In addition, they cause down-regulation of ICAM-1 and -2, but not ICAM-3 surface expression, allowing escape of infected cells from NK cell killing [11]. The p12 protein precursor is processed by proteolytic cleavage that removes a non-canonical endoplasmic reticulum (ER) retention/retrieval signal at its amino-terminus to yield p8 (Figure 1A) [12], [13]. The p8 protein traffics to the cell surface, is recruited to the immunological synapse following T-cell receptor (TCR) ligation, and down-regulates TCR proximal signaling [14]. In addition, p8 increases cell adhesion and virus transmission and is transferred to neighboring cells via cellular conduits [15]. Both p8 and p12 can form homo- or hetero-dimers through a highly conserved single cysteine (position 39) or are palmitoylated and remain monomeric (Figure 1A) [16], [17]. Orf-I knockout viruses are not infectious in non-human primates [18], suggesting the importance of orf-I in human infection. Here, studying a cohort of 160 HTLV-1 infected individuals, using an experimental model of macaque infection and using in vitro relevant models of HTLV-1 infection, we demonstrate that natural mutations within orf-I can affect the relative amounts of p12 and p8, which in turn, correlate with viral DNA levels in blood, the best predictor of risk for the development of HAM/TSP or ATLL [19]–[22]. In addition, we demonstrate that both proteins are essential for the in vitro resistance to cytotoxic T-lymphocyte (CTL) killing of HTLV-1 infected cells.

Results

HTLV-1 orf-I in humans

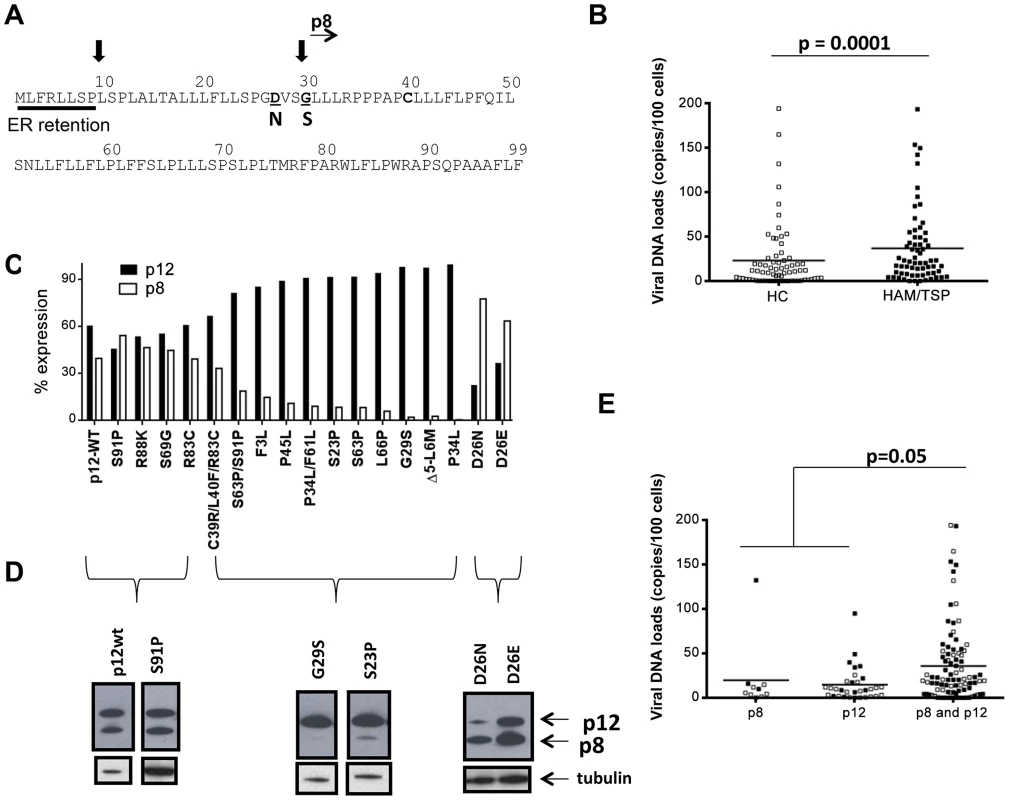

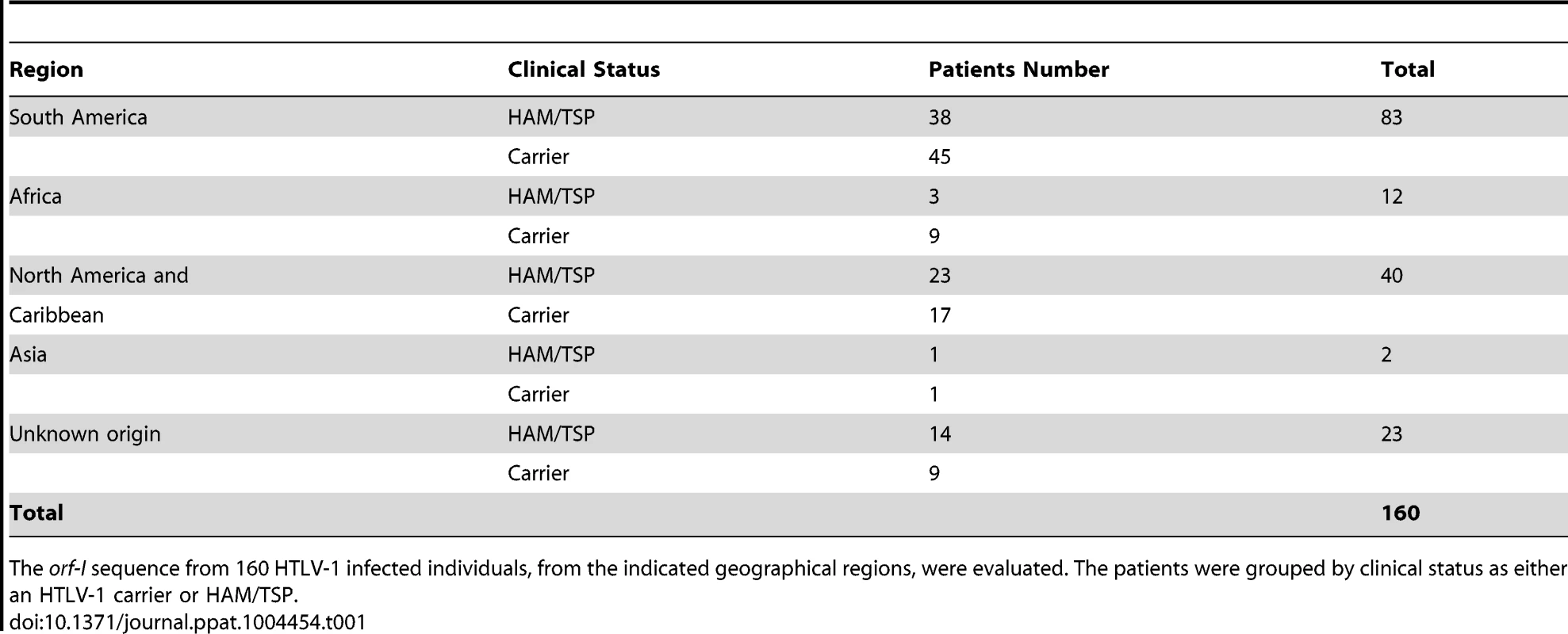

Analysis of orf-I was performed on 160 HTLV-1 infected individuals from various geographical areas (Table 1), 79 had HAM/TSP and 81 were carriers. Genomic DNA was isolated from patient PBMCs and used to quantify the viral DNA load and for studies on the orf-I gene. As expected, individuals with HAM/TSP had significantly (p = 0.0001) higher PBMC viral DNA loads than carriers (Figure 1B). We obtained DNA sequences for a total of 834 clones from these patients and compared them to our reference orf-I cDNA [13] and found 216 variants (i.e., one or more nucleotide changes compared to the consensus sequence). One hundred thirty of these variants (85%) were unique. The most frequent non-synonymous mutations within the orf-I gene yielded G29S, P34L, S63P, R88K, and S91P amino acid changes. In line with orf-I being necessary for infection, none of the approximately 1600 orf-I sequences analyzed had a premature termination codon. We selected 17 non-synonymous mutations based on either their proximity to the cleavage sites or their frequency in humans and inserted them into the reference orf-I cDNA (herein defined as p12WT) and transfected the expression constructs into 293T-cells. The relative amount of p8 and p12, evaluated by Western blot and densitometric scans was calculated as a percentage of total expression from the orf-I gene (Figure 1C). A minimum of two up to 20 independent Western blot experiments were performed as indicated for each mutant in the legend of Figure 1C. We observed 3 distinct patterns of expression (Figure 1C and Figure 1D). The first consisted of balanced expression of p8 and p12, as for p12WT. All these mutations were downstream of both cleavage sites (mutants S91P-61% of patients, R88K-10% of patients, S69G-12% of patients and R83C-6% of patients). The second class consisted of predominant expression of p12 (mutants F3L-4% of patients, P45L-9% of patients, S23P-15% of patients, P34L/F61L-23% of patients, S63P-62.5% of patients, L66P-10% of patients and G29S-30% of patients) (Figure 1A). The viral DNA loads for patients with the G29S mutations (Supplemental Table S3) follow the same trend as the overall patient pool in that patients with HAM/TSP had higher viral DNA loads. The third pattern was generated by a rare mutation in position 26 between the two cleavage sites from aspartic acid (D) (present in p12 WT, see Figure 1A) to either asparagine (N) (mutated in 5% of patients) or glutamic acid (E) (mutated in 2% of patients), resulting in the predominant expression of p8 [12].

Analysis of the three orf-I expression patterns and viral DNA levels in blood revealed significantly higher viral levels in individuals whose cDNA expressed both p8 and p12 (p = 0.05), compared to those that predominantly expressed either p8 or p12 (Figure 1E). No correlation with disease status was observed within this patient cohort.

p8 and p12 are required for persistent infection of macaques

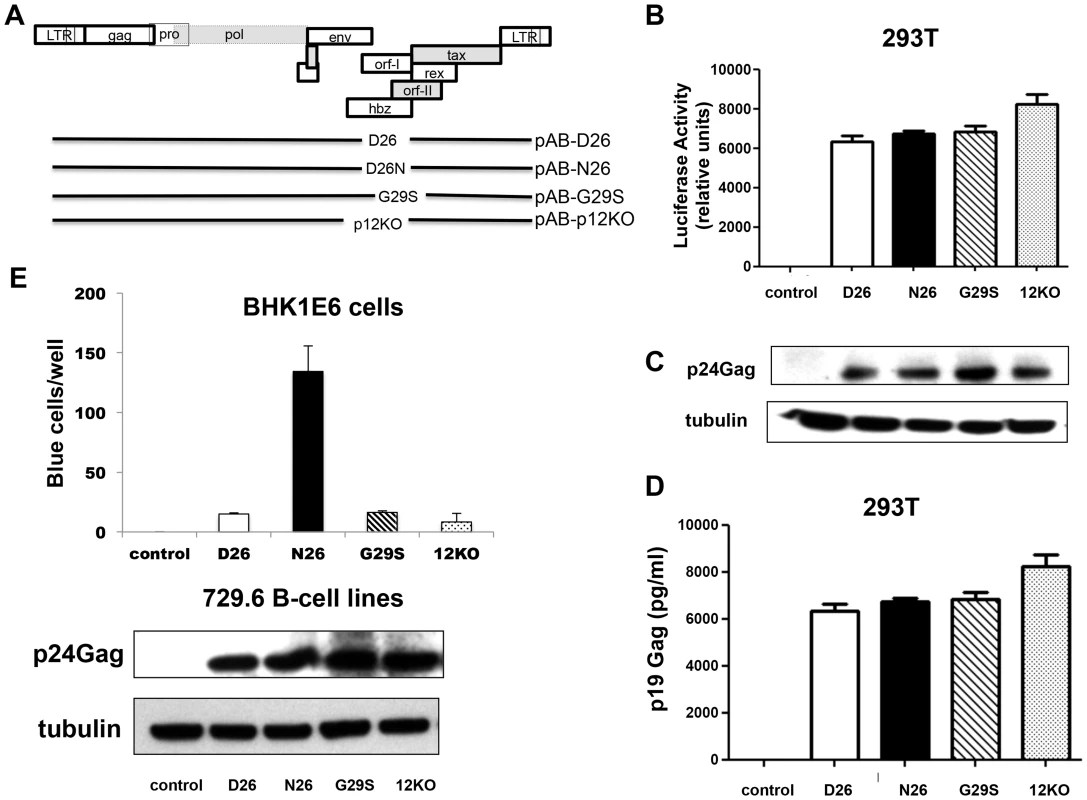

To directly assess the requirement of p8 and p12 on viral infectivity and persistence, we engineered the HTLV-1 molecular clone pAB [18], that carries an orf-I identical to p12WT designated here as pAB-D26 (Figure 2A). Glycine 29 was substituted with serine to generate pAB-G29S as this mutation impairs cleavage of p12 to p8, resulting predominantly in p12 expression (Figure 1D) [12]–[18]. Because substitution of N or E at position 26, results in predominant expression of p8 (Figure 1D), we generated pAB-N26. Importantly, the mutations introduced in the orf-I gene did not alter the amino acid sequences of the hbz or orf-II genes that overlap with orf-I. The isogenic clone pAB-p12KO, mutated at the orf-I initiation ATG to eliminate expression of both p8 and p12 (Figure 2A) was used as a control since it is infectious in vitro but not infectious in vivo [18]. The molecular clones were co-transfected with an HTLV-1-LTR-Lucifease construct into 293T-cells to demonstrate their equivalent ability to produce the Tax protein and activate the viral LTR (Figure 2B). All viruses produced equivalent amounts of intracellular p24Gag (Figure 2C) and extracellular p19Gag (Figure 2D).

We generated stable 729.6 human B-cell lines producing the viral mutants as described [18]. These cell lines were clonal and expressed equivalent levels of intracellular p24Gag and extracellular p19Gag (Figure 2E, lower panels). We observed differences in viral transmission when the cell lines were co-cultured with the reporter cell line, BHK1E6 [23], which contains the β-galactosidase gene under the control of the HTLV-1-LTR promoter. The D26, G29S, or 12KO viruses were transmitted equivalently, but the N26 virus was transmitted 10-fold more efficiently (Figure 2E), consistent with the ability of p8 to increase virus transmission [15].

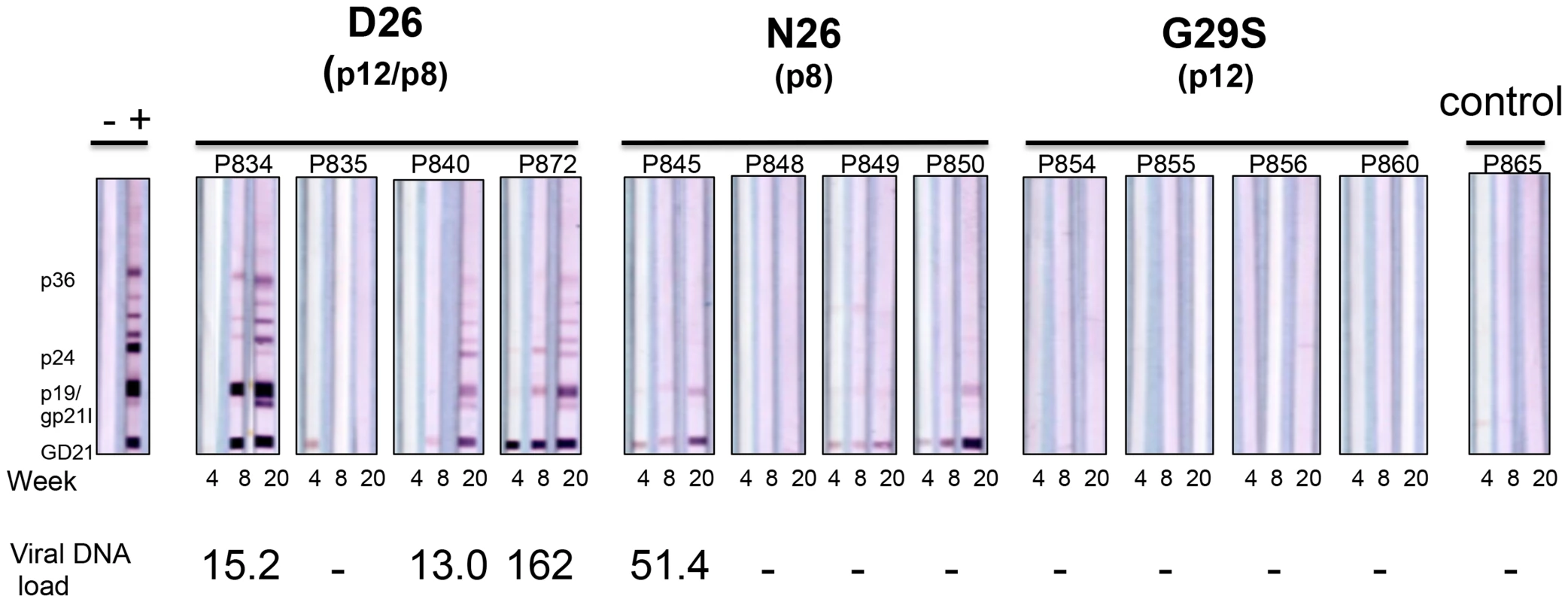

Whether it is p8, p12, or both that contribute to the requirement of orf-I for infection in vivo remains unclear [18]. To address this point, we inoculated intravenously the lethally γ-irradiated B-cell lines producing equivalent levels of p19Gag (Supplemental Table S1) from the D26 virus into four macaques, the N26 virus into four macaques and the G29S virus into four macaques. One animal was inoculated with parental uninfected 729.6 cells as a control. Three (P834, P840, P872) of the four animals exposed to the D26 virus became HTLV-1 positive by PCR with viral levels greater than 50 copies per one million cells for at least one time point throughout the study and fully seroconverted for viral antigens (Figure 3). In contrast, only one animal (P845) exposed to the N26 virus was PCR positive for viral DNA and only three animals showed weak reactivity to HTLV-1 antigens. None of the four animals in this study or four animals from a previous study exposed to G29S virus became PCR positive or seroconverted (Figure 3). We verified that the virus in animal P845, infected with N26 virus, retained the mutation at position 26 by cloning and sequencing orf-I from its PBMCs. These results suggest that expression of both p12 and p8 is required for efficient HTLV-1 infection and viral persistence. However, they also suggest that p8 may be sufficient for infection and at least partial seroconversion; particularly since none of the eight animals inoculated with virus predominantly expressing p12 seroconverted or had detectable viral DNA.

p8 is essential for productive infection of monocytes

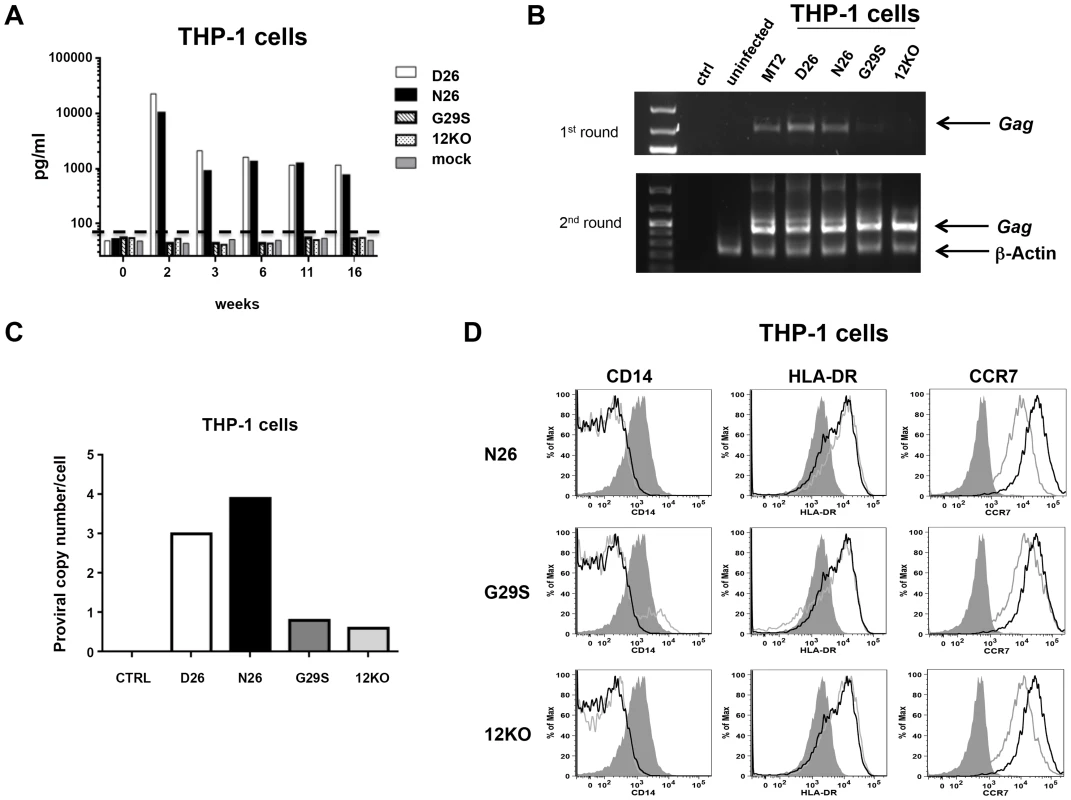

HTLV-1 infects monocytes and dendritic cells [24]–[26] but the role of infected monocytes to HTLV-1 pathogenesis remains unclear. We have previously demonstrated that the abrogation of orf-I expression results in loss of HTLV-1 infectivity of primary monocyte-derived dendritic cells [18] and further that infection of the monocytic cell line THP-1 mirrored results of ex vivo, primary dendritic cells [25]. To define the relative contribution of p8, p12, or both to monocyte infection, we exposed the monocytic cell line THP-1 to equivalent amounts of virus as measured by p19Gag from unfiltered cell-free supernatants. Representative cultures are shown (Figure 4). Cultures exposed to D26 or N26 viruses had greater than 10,000 pg/ml of p19Gag in their supernatants at week 2 (Figure 4A) and virus production was maintained up to 16 weeks. In contrast, cultures infected with G29S or 12KO viruses had only background levels of p19Gag, as seen in control cultures (mock-infected with 729.6 culture supernatant). Genomic DNA isolated from the exposed THP-1 cells at week 18 was tested by nested PCR for viral DNA. The level of HTLV-1 DNA detected by PCR was consistent with the level of p19Gag released into the supernatant and was highest in the cultures infected with the D26 and N26 viruses (Figure 4B). Quantitative PCR showed that the D26 and N26 infected cultures contained 3–4 viral DNA copies per cell, while the G29S and 12KO infected cultures contained less than 1 copy per cell (Figure 4C). Interestingly, despite the differences in viral production, all HTLV-1 infected THP-1 cultures displayed down-regulation of CD14 and up-regulation of the activation markers HLA-DR and CCR7 (Figure 4D). These results suggest that p8 expression is necessary and sufficient for productive HTLV-1 infection in monocytes since p8 is expressed in both D26 and N26, but not in G29S and 12KO.

Evasion of CTL activity requires both p12 and p8

CTLs play an important role in limiting viral replication and spread by recognizing and lysing virally infected cells. The orf-I protein products interfere with the normal trafficking of the MHC-class-I molecule and are thought to reduce CTL recognition [27], [28]. To dissect the impact of p12 and/or p8 on CTL responses in the context of the whole virus, we generated immortalized infected CD4⁺ T-cells lines from an HLA.A2 healthy donor that allowed the use of the human CTL clone from a HAM/TSP patient that recognize the HLA.A2 restricted Tax peptide [11]–[19] [29]. The CD4⁺ T-cells were cultured for over a year prior to analysis; viral production, viral DNA copy numbers, and the level of expression of the orf-I gene in the infected cultures is summarized in Supplementary Table S2. In line with previous results [15], T-cells producing N26 transmitted virus better than those producing D26, G29S and p12KO (Figure 5A).

We reported previously that orf-I expression down-regulates the surface expression of major histocompatibility complex (MHC)-class-I in overexpression models [28]. Interestingly, in here, we observed that the surface expression of HLA.A2 was clearly down-regulated in CD4⁺T-cells that produce the G29S virus indicating that p12 expressed by the virus, down-regulates MHC-class-I in primary human CD4⁺ T-cells (Figure 5B).

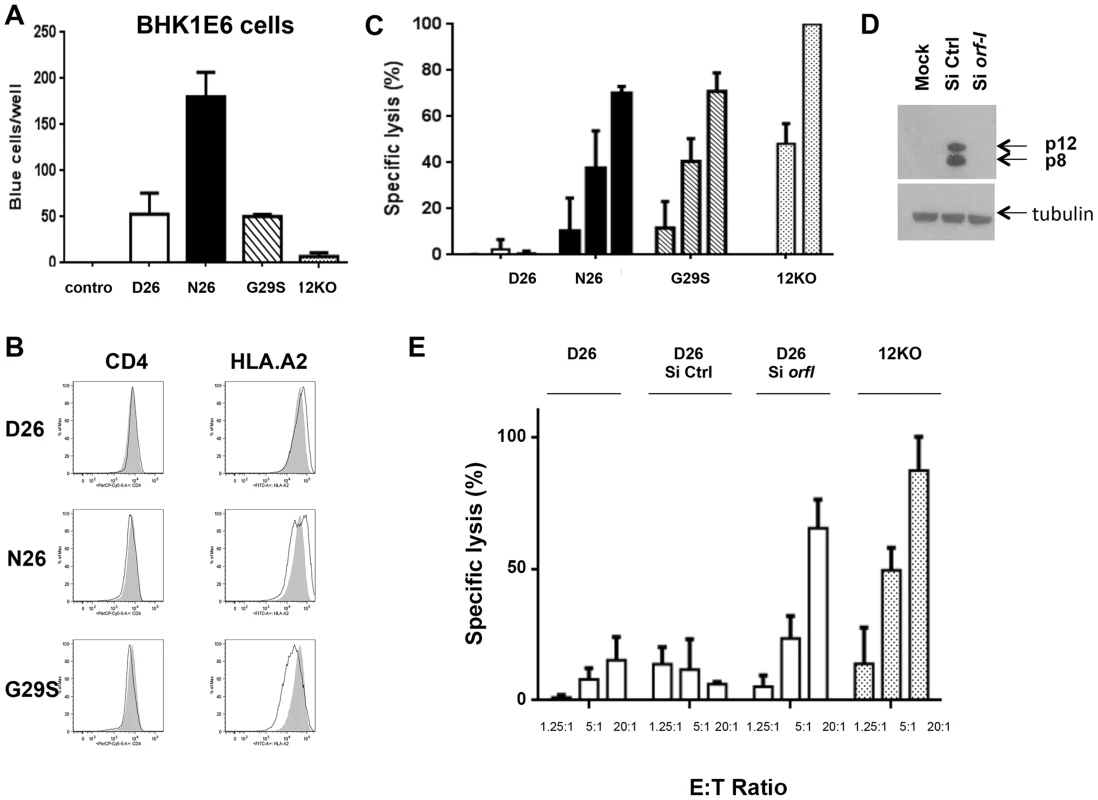

Next, we studied whether infection of T-cells with the different viruses affected their susceptibility to CTL killing. The CD4⁺ T-cells infected with D26, N26, G29S and 12KO were loaded with equivalent amounts of the immunodominant Tax [11]–[19] peptides and co-cultured with the CTL clone at various effector-to-target ratios. We observed the highest CTL killing of the 12KO cells, suggesting that the absence of both p8 and p12 makes cells susceptible to CTL killing (Figure 5C). We found reduced killing of cells infected with N26 that predominantly express p8, as well as in G29S that predominantly express p12. Strikingly, we observed nearly complete resistance to CTL killing at all effector-to-target ratios of cells infected with D26 that express a balanced level of p8 and p12 (Figure 5C). The resistance to CTL killing of the D26 infected CD4⁺ T-cells was abrogated by siRNAs targeting the orf-I mRNA but not control siRNA (Figure 5D and 5E). These results suggest that balanced expression of p12 and p8 is required to protect HTLV-1 infected cells from CTL killing.

Discussion

The p12 precursor, encoded by orf-I, contains two proteolytic cleavage sites, the first site, between amino acids 9 and 10 and the second site, between amino acids 29 and 30 [12]. The p12 precursor is an ER associated protein and its cleavage removes a non-canonical ER retention/retrieval signal that generates p8, a protein that localizes to the cell surface [12]. Both p8 and p12 interact with the β and γc chains of the interleukin-2 receptor (IL-2R) [10], the heavy chain of the MHC-class-I [28], calreticulin and calnexin [30], and ICAM-1 and ICAM-2 [11]. The p8 protein traffics to lipid rafts, is recruited to the immunologic synapse following T-cell receptor (TCR) ligation where it down-regulates TCR proximal signaling [12] and co-localizes with lymphocyte function-associated antigen-1 (LFA-1), increasing its clustering [15]. The p8 protein also increases T-cell adhesion, the formation of cellular conduits, and HTLV-1 transmission [15]. A novel feature of p8 is its ability to be rapidly transferred from cell-to-cell through cellular conduits [15]. Here, we investigated the specific contribution of each isoform to viral infectivity of T-cells and monocytes in vitro and in viral persistence in vivo.

We hypothesized, that genetic mutations, which surround the putative cleavage sites, affect the relative levels of p8 and p12 that may have consequences in HTLV-1 infection. By using reverse genetics on samples from HTLV-1 infected individuals, we have identified genetic polymorphisms that affect the efficiency of cleavage of the p12 precursor protein into p8. The first and most frequent group of mutations results in an intermediate efficiency of cleavage that yields an equivalent amount of p8 and p12. This phenotype is associated with productive infection of monocytes and a high viral DNA level in blood that is a correlate of disease development [20]–[22], [31]. The second most frequent phenotype, yields predominantly p12 and affects the ability of the virus to productively infect monocytes. The third rarer phenotype, results in higher levels of p8 and a virus that retains its ability to productively infect monocytes. However, consistent with our studies in macaques and CTL sensitivity, both the second and third phenotypes are associated with low virus DNA levels in blood of naturally infected humans. We found that HLA-DR expression, as well as CD80 and CCR7 were up-regulated in monocyte cultures infected by HTLV-1, even when low or undetectable viral proteins are expressed. The role of infected monocytes to HTLV-1 pathogenesis is unclear. However, HTLV-1 infection of monocytes has been demonstrated [25], [26], [32], [33] and viral infection is associated with an increased frequency of more differentiated monocytes (CD16^bright) that may spread the virus to tissues [34].

These results suggest that orf-I plays a role in viral persistence however, an early study by Furukawa and colleagues [35] found in one HAM/TSP patient a virus with a mutation at the start codon of orf-I and that this virus was transmitted in the individual's family. In contrast to our work, Furukawa et al. did not clone the orf-I products and assess its expression and stability [35]. In addition, the authors have not ruled out that the orf-I gene was expressed in those individuals through alternative splicing. Several groups have shown that cryptic splice sites and donor sites are present in retroviral sequences and that gene products can be produced through alternative splice acceptor/splice donor usage. Thus, although we have not demonstrated an absolute requirement for orf-I in HTLV-1 infection in humans, it is clearly required in non-human primates [18]. In addition, the results of this study and that of Furukawa et al. [35], finding only 1 in 304 patients which do not retain orf-I expression (0.3%), suggests that orf-I expression is likely to provide an advantage in HTLV-1 persistence.

Over-expression studies showed that p12 contributes to evasion from CTL by interacting with the MHC-class-I Heavy chain (Hc) in the ER and preventing its association with β₂-microglobulin [27], [28], [36]. This interaction induces the MHC-class-I Hc retro-translocation into the cytosol for degradation by the proteasome, decreasing cell surface MHC-class-I. The p8 protein was recently shown in exogenous expression studies to be transferred to uninfected cells [15]. Therefore, we speculate that the contribution of p8 to CTL escape may be ascribed to the ability of this protein to be transferred to CD8⁺ T-cells, whereby it may down-regulate TCR signaling, resulting in the weakening of the strength of the immunological synapse [15], and inhibition of CTL degranulation. Indeed, the p8 protein is recruited to lipid rafts within the immunological synapse upon engagement of TCR by CD3 ligation and causes T-cell anergy [12]. More recent studies demonstrated a reduction in the strength of the immunological synapse in the presence of p8 [15]. This is in line with the finding that not only the number of HTLV-1-specific CTLs is important, but also their functional avidity [37] and even if they are abundant [38]–[40], they do not clear infection. Collectively our results suggest a model whereby a combination of effects of p8 and p12 on monocyte infectivity, viral transmission, and escape from CTL favors viral persistence (Figure 6).

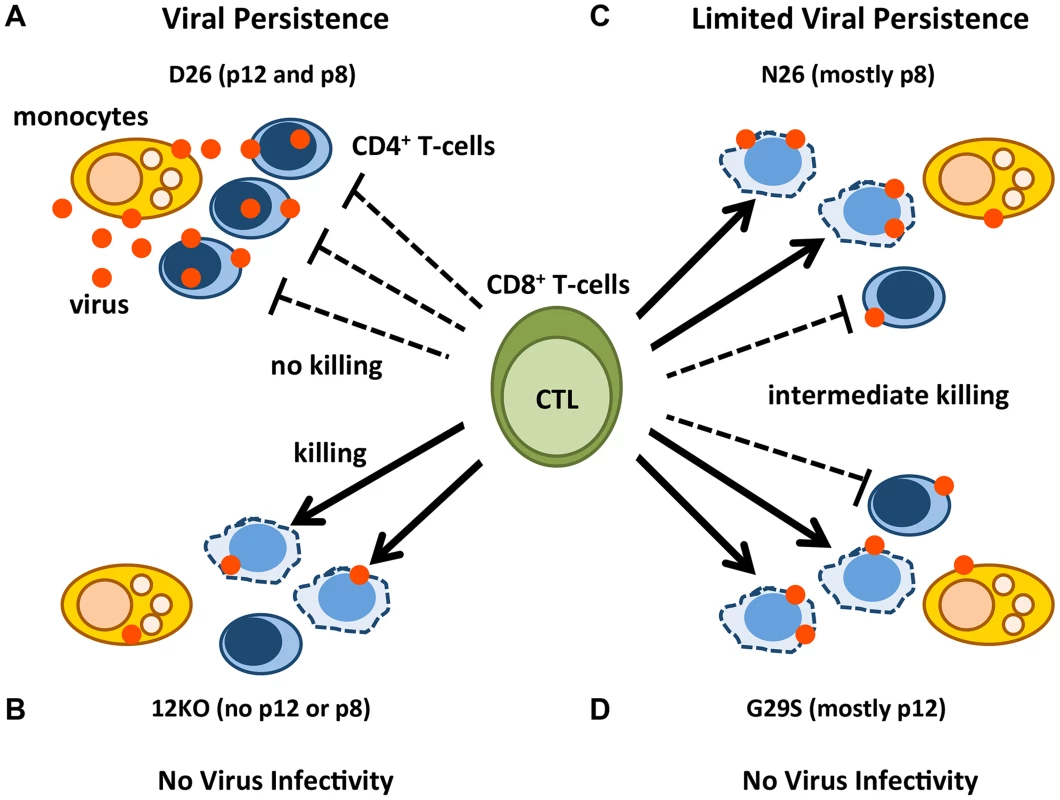

A virus expressing both p12 and p8 (D26) infects monocytes, is efficiently transmitted to CD4⁺ T-cells, renders them less prone to CTL lysis and persists (Figure 6A). In contrast, a virus ablated in p8 and p12 expression (12KO) is poorly infectious in monocytes and CD4⁺T-cells in vitro, the infected cells are susceptible to CTL killing and infection is not sustained in vivo (Figure 6B). Virus expressing mainly p8 (N26), has an intermediate phenotype; it maintains its infectiousness for monocytes and CD4⁺ T-cells, but because it only partially protects infected CD4⁺ T-cells from CTL does not cause a robust infection in vivo (Figure 6C). Consistent with the concept of co-dependence of p8 and p12 functions for viral persistence in the host, a virus expressing mainly p12 (G29S) is poorly infectious in monocytes, the CD4⁺ infected T-cells are partially susceptible to CTL killing and the virus is not infectious in macaques (Figure 6D and Figure 3).

It is likely that p12 and p8 also affect other steps in antigen processing and presentation of HTLV-1 peptides on MHC-class-I. The p12/p8 proteins interact with calnexin and calreticulin [30] which may affect the folding of MHC-class-I and its peptide loading [41]. Similarly, the interaction of p12 and p8 with the 16 kDa protein of the V-ATPase that occurs in the ER [42] may prevent the assembly of the mature form of the V-ATPase and acidification of the secretory pathway. Recent work shows that the p8 protein traffics to the cell surface via the secretory pathway [12]. Thus, p8's association with the V-ATPase could alter not only the secretory and the endocytic pathway, but also receptor recycling on the cell membrane. Thus, future work is necessary to assess whether p12 and p8 interaction with the V-ATPase has important functional implication in antigen processing and presentation.

Our results from the macaque studies and CTL killing assays suggest that HTLV-1 virus expressing p12 only should be efficiently eliminated. However, we do find infected individuals, both carriers and HAM/TSP patients, harboring HTLV-1-p12 only virus. Several factors may influence the persistence of HTLV-1 p12 only virus. First, from earlier studies by Nicot et al [8], p12 expression through its activation of STAT5 decreases the IL-2 requirement and thus confers a proliferative advantage to infected cells. Second, we see that expression of p12 alone does down-modulate MHC class 1 expression on infected T-cells. The down-modulation could be sufficient in vivo to allow escape from some CTL clones. Third, p12 protein has been shown to down-modulate ICAM-1 and ICAM-2 suggesting that infected cells would be less susceptible to NK cell killing [11]. Further, while we find that HTLV-1 G29S virus does not productively infect THP-1 cells, infection does occur and in preliminary studies we find that activation of infected cells stimulates infectious virus production. This would allow the virus to persist undetected in an infected individual and upon activation spread of the virus. Finally, from our studies on p13 and Tax [43] we find that there is significant interplay between viral proteins. Our studies have focused on orf-I mutations, but it is possible that changes in other viral genes can impact the role of orf-I in immune evasion.

In conclusion, our data suggest that while infection of monocytes is important in HTLV-1 infection, viral persistence also necessitates a coordinated expression of p12 and p8 to avoid CTL recognition of infected cells. Thus, pharmacologically altering the efficiency of cleavage of the p12 precursor could have profound effects on viral persistence, by restoring the effectiveness of the host immune response to HTLV-1 and ultimately decreasing the risk of disease development through the reduction of the number of HTLV-1 infected cells.

Materials and Methods

Ethics statement

This study was carried out in strict accordance with the recommendations described in the Guide for the Care and Use of Laboratory Animals of the National Institute of Health, the Office of Animal Welfare and the United States Department of Agriculture. All non-human primate work was approved by the NCI Division of Intramural Research Animal Care and Use Committees (IACUC; protocol no. 458). The animals were housed, feed, given environmental enrichment and handled in accordance with the standards of the Association for the Assessment and Accreditation of Laboratory Animal Care International. Appropriate steps were taken to minimize suffering in accordance with the Weatherall report (“The use of non-human primates in research”). The animals were housed and experiments conducted at Advance Bioscience Laboratories in Rockville, MD in accordance with the standards of the American Association for Accreditation of Laboratory Animal Care. Non-human primates are housed in a rolling rack system and the cage configuration within the rooms allow for establishment of visual contact with other species members. Positive human interaction with the staff includes providing food treats, positive verbal and non-verbal communication, systematic husbandry and consistent staffing. A dietary enrichment and novel food program has been in place in the colony since 1987. Each animal is provided with sensory and cognitive enrichment that include foraging and food-based enrichment strategies, toys, auditory and visual enrichment and hideaways. All procedures were carried out under anesthesia (Telazol, Ketamine/Xylazine or Ketamine HCl) by trained personnel under the supervision of veterinary staff and all efforts were made to ameliorate the welfare and to minimize animal suffering in accordance with the Weatherall report for the use of non-human primates recommendations. Early endpoint criteria, as specified by the IACUC approved score parameters, were used to determine when animals should be humanely euthanized.

Blood samples from HTLV-1-infected patients and non-infected (ND) donors were obtained from the Centre Hospitalier Universitaire de Fort-de-France in Martinique and Institut Pasteur de Cayenne in French Guyana, the Bahia School of Medicine and Public Health and the National Institutes of Health Clinical Center. Patients suffering from HAM/TSP or HTLV-1 asymptomatic carriers were recruited according to World Health Organization (WHO) criteria. All subjects gave fully informed, written consent and all clinical investigations have been conducted according to the principles expressed in the Declaration of Helsinik. All samples were anonymized and research conformed to the guidelines of the ethics review board of the National Cancer Institute.

Patient samples and HTLV-1 viral DNA loads

The study comprised 160 HTLV-1 infected individuals from different geographical regions (Caribbean, France, North America, Africa, and Brazil) with different disease status (Table 1). The subjects for the analysis were participants in research studies conducted at the institutions of the authors. Informed consent was written and obtained from each subject in accordance with the Declaration of Helsinki. DNA extracted from PBMCs of HTLV-1 infected individuals was used to determine the viral DNA load. Real-time PCR analysis of HTLV-1 (Tax) was performed with 100 ng of cellular DNA as previously described [19]. HTLV-1 viral DNA levels were calculated by the following formula: (copies of HTLV-1 (pX)/(copies of beta-actin/2)×100 cells. We are using the term viral DNA load since our assay does not distinguish between integrated and unintegrated viral DNA. The same DNA was used as templates for PCR reactions using Platinum High Fidelity PCR Supermix (Invitrogen, Carlsbad, CA) according to the manufacturer's protocol. In the reaction, 10 pmol/µl of each primer: 12-Fwd 5′-CACCTCGCCTTCCAACTG-3′, p12-p30-Rev 5′-GGAGTATTTGCGCATGGCC-3′ were used for amplification of the p12-p30 (872 bp) region at Tm = 55°C. For samples with no visible amplified PCR product 2 µl of the PCR reaction was used as a template for nested PCR with primers: p12-nested-F 5′-GTCTAGTATAGCCATCAACC-3′ and p30-mid-nested-Rev 5′- CTGGACAGGTGGCCAGTA-3′. PCR products were purified by gel electrophoresis and QIAquick Gel Extraction Kit (Qiagen, Valencia, CA) and subsequently, cloned into pCR4 TA TOPO vector (Invitrogen, Carlsbad, CA) according to the manufacturer's protocol. QIAprep Spin Miniprep Kit (Qiagen, Valencia, CA) was used for plasmids isolation. Five to 20 clones per patient were isolated and sequenced. The 1530 orf-I sequences for the HTLV-1 infected individuals are available from Genbank under the accession numbers in Text S1. The study on the immunophenotype of blood monocytes was performed on patient samples obtained through the NIH Clinical Center (Table 1).

Expression plasmids

The pME18S p12deltaSL expression plasmid has been described previously [14]. This plasmid served as a backbone for generation of p12 mutants by means of PCR or by QuickChange Site-Directed Mutagenesis Kit (Stratagene, La Jolla, CA) using site-specific mutagenic oligonucleotides according to the manufacturer's instructions. The following oligonucleotides were used and the sequence of plasmid clones was analyzed to confirm the mutations.

F3L-F: 5′-CCTAGCACTATGCTGCTTCGCCTTCTCAGCfCCCT-3′

F3L-R: 5′-AGGGGCTGAGAAGGCGAAGCAGCATAGTGCTAGG-3′

S23P-F: 5′-GCTCCTGCTCTTCCTGCTTCCTCCGGGCGACGTCAGCG-3′

S23P-R: 5′-CGCTGACGTCGCCCGGAGGAAGCAGGAAGAGCAGGAGC-3′

D26N-F: 5′-CCTGCTTTCTCCGGGCAACGTCAGCGGCCTTC-3′ (for p12 subgroup A template – with S (serine) at the 23^rd amino acid position in p12)

D26N-R: 5′-GAAGGCCGCTGACGTTGCCCGGAGAAAGCAGG-3′ (for p12 subgroup A template)

D26N-F: 5′ -CCTGCTTCCTCCGGGCAACGTCAGCGGCCTTC-3′ (for p12 subtype B template - with P (proline) at the 23^rd amino acid position in p12)

D26N-R: 5′-GAAGGCCGCTGACGTTGCCCGGAGGAAGCAGG-3′ (for p12 subtype B template)

D26E-F: 5′-CTGCTTTCTCCGGGCGAAGTCAGCGGCCTTCTTC-3′

D26E-R: 5′- GAAGAAGGCCGCTGACTTCGCCCGGAGAAAGCAG-3′

G29S-F: 5′-TGCTTTCTCCGGGCGACGTCAGCAGCCTTCTTCTC-3′

G29S-R: 5′-GCGGAGAAGAAGGCTGCTGACGTCGCC-3′

delta29-F: 5′-GTGGCTCGAGACCATGCTTCTTCTCCGCCCGCCTC-3′

delta29-R: 5′-TCGGTCTAGAAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCA-3′

P34L-F: 5′-GGCCTTCTTCTCCGCCTGCCTCCTGCGCCGTGC-3′

P34L-R: 5′-GCACGGCGCAGGAGGCAGGCGGAGAAGAAGGCC-3′

P45L-F: 5′-GCCTTCTCCTCTTCCTTCTTTTTCAAATACTCAGC-3′

P45L-R: 5′-GCTGAGTATTTGAAAAAGAAGGAAGAGGAGAAGGC-3′

S63P-F: 5′-CTCCCGCTCTTTTTTCCGCTTCCTCTTCTCCTC-3′

S63P-R: 5′-GAGGAGAAGAGGAAGCGGAAAAAAGAGCGGGAG-3′

L66P-F: 5′-GCTCTTTTTTTCGCTTCCTCCTCTCCTCAGCCCGTCGCTGCCG-3′

L66P-R: 5′-CGGCAGCGACGGGCTGAGGAGAGGAGGAAGCGAAAAAAAGAGC-3′

S69G-F: 5′-GCTTCCTCTTCTCCTCGGCCCGTCGCTGCCGAT-3′

S69G-R: 5′-ATCGGCAGCGACGGGCCGAGGAGAAGAGGAAGC-3′

R88K-F: 5′-GGCTCTTTCTCCCCTGGAAGGCCCCGTCGCAGCCGGCCG-3′

R88K-R: 5′-CGGCCGGCTGCGACGGGGCCTTCCAGGGGAGAAAGAGCC-3′

S91P-F: 5′-CCCCTGGAGGGCCCCGCCGCAGCCGGCCGCGGC-3′

S91P-R: 5′-GCCGCGGCCGGCTGCGGCGGGGCCCTCCAGGGG-3′. Expression of all mutants were assessed by western blot analysis using the anti-HA1 antibody clones12CA5 and 3F10-HRP (Roche Applied Science, Indianapolis, IN).

Cell culture and DNA transfection

293T- and BHK1E6 cells were grown in Dulbecco's modified Eagle medium (DMEM) supplemented with 10% fetal bovine serum (FBS), 2 mM penicillin-streptomycin and 5 mM L-glutamine. The 729.6 B-cells were grown in RPMI 1640 supplemented with 10% FBS, 2 mM penicillin-streptomycin and 5 mM L-glutamine. The HTLV-1 molecular clones pAB-D26 (WT), pAB-G29S (p12), and pAB-p12KO were previously described. To generate pAB-N26 (p8), mutation of GAC to AAC at amino acid 26 of orf-I (a glutamic acid to asparagine substitution) was introduced into the pBST ClaI/SalI cassette using QuickChange Site-Directed Mutagenesis Kit (Stratagene, La Jolla, CA) and then ligated to the pACH backbone. The mutant clones were verified by DNA sequencing of the ClaI/SalI fragment inserted in the provirus.

To confirm that the clones were producing virus, they were transfected into 293T-cells using Effectene reagent (Qiagen, Valencia, CA). Briefly, 10 µg of DNA of pAB-D26 (WT), pAB-N26, pAB-G29S, and pAB-p12KO was transfected into 10 cm dish of 293T-cells. After 48 hours, the cells were extracted for total protein with radioimmunoprecipitation assay (RIPA) buffer and analysis of intracellular HTLV-1-p24 (Advanced BioScience Laboratories Inc., Rockville, MD) and tubulin (Sigma-Aldrich, St. Louis, MO).

Intracellular Tax expression was characterized by co-transfecting molecular clones and an HTLV-1-LTR-luciferase reporter into 293T-cells. The pRL-TKLuc plasmid was used as a transfection control. After 48 hours, cells were extracted with Passive Lysis Buffer (Promega, Milwaukee, WI) and protein samples analyzed with Dual-Glo reagent (Promega, Milwaukee, WI) for LTR activation. The culture supernatant from these transfections were spun down to remove any cell debris and analyzed by p19Gag ELISA (ZeptoMetrix, Buffalo, NY) for virus production.

The siRNA nucleofection assays were performed using the Human T-cell Nucleofection Kit (Lonza, Basel, Switzerland) and program O-017 as described by the manufacturer. Briefly, CD4⁺ D26 producing T-cells (2×10⁶) were incubated with 20 nM of either control siRNA or siRNA to orf-I (5′GCACUAUGCUGUUUCGCCUUCUCAG3′) (Stealth RNA, Invitrogen, Carlsbad, CA). Forty-eight hours after nucleofection, cells were used in the cytotoxicity assay. Knockdown of Orf-I expression was monitored by transient transfection of Orf-I expression constructs and siRNA into 293T-cells using Lipofectamine 2000 (Invitrogen, Carlsbad, CA) as described by the manufacturer.

Generation and characterization of HTLV-1 producing cell lines

Stable HTLV-1 producing 729.6 human lymphoblastoid B-cells were produced as described previously [18]. Briefly 729.6 cells (5×10⁶) were electroporated with 5 µg of pAB-D26, pAB-G29S, pAB-N26 or pAB-p12KO using AMAXA Nucleofector II, Nucleofection kit V at M-013 (Lonza, Basel, Switzerland) according to the manufacturer's guidelines. Infected cells were selected by culture in neomycin as previously described [44]. The supernatant p19Gag production was measured by ELISA assay (ZeptoMetrix, Buffalo, NY). To analyze the clonality of the cell lines, 2–5×10⁷ cells were grown up in the absence of G418 and genomic DNA extracted using a Genomic DNA Wizard Kit (Promega, Milwaukee, WI) following the manufacturer's guidelines. DNA (25 µg) was digested with either High Fidelity EcoRI or XhoI (New England Biolabs, Ipswich, MA), run on an 0.8% agarose gel overnight, denatured with Denaturing Solution (Biosource, Madison, WI) and neutralized with Neutralizing Buffer (KD Medical, Columbia, MD), then blotted overnight to Immobilon NY+ membrane and crosslinked at 1.5×10⁶ J with a UV crosslinker. Biotinylated probe was synthesized with a Phototope kit and pAB-D26 molecular clone (New England Biolabs, Ipswich, MA). Membrane was prehybridized in Ultrahyb buffer (Ambion Life Technologies, Grand Island, NY) at 42°C for 2 hours, 10 pmol of probe added and hybridized overnight. Membrane was washed according to the Ultrahyb manufacturer guidelines and developed using the Phototope Star chemiluminescence kit (New England Biolabs, Ipswich, MA).

Using negative selection beads (Invitrogen, Carlsbad, CA), CD4⁺ T-cells were isolated from un-infected peripheral blood mononuclear cells. Stable HTLV-1 producing CD4⁺ T-cell lines were established by co-cultivation of donor un-infected primary HLA.A2⁺/CD4⁺ T-cells with lethally γ-irradiated 729.6-HTLV-1 infected lines. T-cells were cultured in RPMI supplemented with 20% FBS and 100 U of interleukin-2 for one year. Virus production was monitored by p19Gag ELISA (ZeptoMetrix, Buffalo, NY) and viral genomic sequences verified by sequencing of the ClaI-SalI fragment as described above.

Chronically infected THP-1 cells were produced as previously described [25]. Briefly, supernatant from 729.6 HTLV-1 producer cell lines were collected and ultra-centrifuged at 23000 rpm for two hours and thirty minutes at 4°C to concentrate the virus. Pellets were suspended in PBS and p19Gag measured by ELISA assay (ZeptoMetrix, Buffalo, NY). Equivalent amounts of p19Gag were used for infection of THP-1 cells. Briefly, THP-1 cells were suspended in virus preparations and centrifuged at 3000 rpm for one hour at room temperature in the presence of 8 µg/ml polybrene (Sigma, St. Louis, MO). Cultures were maintained in RPMI 1640, 10% FBS, with 50 µM β-mercaptoethanol and p19Gag production monitored.

Infectivity assays

BHK1E6 cells (1×10⁵) containing a lacZ reporter gene downstream of the,LTR promoter [23], were co-cultured for 48 hours with either control un-infected cells or HTLV-1 producers D26, N26, G29S and 12KO (1×10⁶). Monolayers were washed twice with PBS to remove medium and suspension cells and assayed using a β-galactosidase Staining Kit according to manufacturer's instructions (Active Motif, Carlsbad, CA). The β-galactosidase expressing cells were counted by brightfield microscopy.

Animal inoculation and sample collection

The macaques used in this study were male colony-bred Indian Rhesus Macaques (RMs) obtained from Covance Research Products. The animals were housed, feed, given environmental enrichment and handled in accordance with the standards of the Association for the Assessment and Accreditation of Laboratory Animal Care International. Appropriate steps were taken to minimize suffering in accordance with the Weatherall report (“The use of non-human primates in research”). The care and use of the animals were in compliance with all relevant institutional (National Institutes of Health) guidelines. All macaques were 2–3 years of age and seronegative for simian T-cell lymphotropic virus 1 and simian immunodeficiency virus at the initiation of the study. RMs were inoculated with lethally irradiated 729.6 producer cells. Supernatant p19 levels were measured prior to inoculation and cell numbers were adjusted to give equivalent amounts of p19Gag per animal (Supplementary Table S1). Four macaques each were used for the N26 and D26 viruses and eight each for the G29S virus. One macaque was infused with irradiated control parental 729.6 cells. All macaques received an equivalent dose of virus based on p19Gag expression levels per million cells, as previously described [18].

Mononuclear cells were separated from whole blood specimens by density gradient centrifugation (Ficoll). PBMCs (5×10⁶) from animals positive for proviruses were washed in PBS and DNA isolated using the Genomic DNA Wizard kit as described by the manufacturer (Promega, Milwaukee, WI).

HTLV serology and quantitative PCR

Reactivity to specific viral antigens in the sera of infected animals was detected with the use of a commercial HTLV-1 western immunoblot assay (GeneLabs Diagnostics, Redwood City, CA). Quantitative Real-time PCR analysis was performed as described previously [18]. Proviral loads were normalized to the macaque albumin gene and expressed as the number of HTLV-1 proviral DNA copies per 10⁶ PBMCs. The limit of detection for the PCR assay is one copy in ten thousand cells. DNA sequencing of the orf-I genes was performed from ex vivo samples of macaque cellular DNA to check for reversions of point mutations to wild-type. After genomic DNA was isolated from 5×10⁶ PBMCs, PCR was performed using primers p12-Fwd, 5′-CACCTCGCCTCCCAACTG-3′ and p30-Rev, 5′-GGAGTATTTGCG- CATGGCC-3′ which amplified the fragment (871 nucleotides) spanning positions 6414 to 7285 of the HTLV-1 genome. The PCR amplicon was cloned into the pCR4TOPO vector (Invitrogen, Carlsbad, CA) using the manufacturer's protocol and 10 unique colonies sequenced. The level of orf-I mRNA was quantified using splice site-specific quantitative RT-PCR (qRT-PCR) as described [45]. After isolation of total cellular RNA, RT-PCR was performed using primers: p12-1B, 5′-GTCCGCCGTCTAG∧CACTATG-3′; p12 reverse, 5′-GGAGGAAGCAGGAAGAGC-3′; probe, MP-1 5′(FAM)-TTCGCCTTCTCAGCCCCTTGTCT-3′(TAMRA). All samples were normalized to Gapdh mRNA copy number.

Flow cytometry

Surface staining for CD4⁺ T-cells was performed for 30 minutes at room temperature with antibodies to CD4 and HLA.A2 from BD Biosciences (San Jose, CA). All cells were fixed with 1% paraformaldehyde and at least 50,000 events acquired on an LSRII (BD Bioscience, San Jose, CA). Data analysis was performed with FlowJo 9.4 software (Tree Star Inc., Ashland, OR). THP-1 staining was performed with antibodies to CD14, CD83, HLA-DR from Biolegend (San Diego, CA) and CD80/CD86 and CCR7 from BD Bioscience (San Jose, CA).

Cytotoxicity assay

The cytolytic activity against target cells was assayed using previously characterized HTLV-1 Tax11-19 (LLFGYPVYV)-specific CD8⁺ CTL clone [29]. The CTL clone was maintained by weekly stimulation with peptide-pulsed (1 mg/ml) irradiated PBMCs from an HLA-A201⁺ non-HTLV-1 infected individual. CTL culture medium was IMDM containing 10% human serum, 2 mM L-glutamine, 100 U/ml penicillin and 100 µg/ml streptomycin. Human recombinant interleukin-2 (50 U/ml) was added on the next day of stimulation. Target cells were CD4⁺ T-cells infected with HTLV-1 D26, N26, G29S or 12KO and autologous Epstein-Barr virus-transformed B-cells as a positive control. The cytotoxicity assay was performed using DELFIA EuTDA Cytotoxicity assay (Perkin Elmer). Target T-cells were loaded with bis (acetoxymethyl) 2,2′:6′,2″-terpyridine-6,6″-dicarboxylase (BATDA) and pulsed with or without 100 ng/ml of Tax peptide. Target cells (3×10³) were incubated with CTL clones for 3 hours at 37°C in 96 well plates at indicated effector-to-target ratios. The supernatant (20 µl) was incubated with 200 µl of Europium solution, and the fluorescence was measured in a fluorometer (Wallac 1420 VICTOR³; Perkin Elmer). The percent specific lysis was calculated as (experimental release−spontaneous release)/(maximum release−spontaneous release)×100. The assay was performed in triplicate.
