Ischemic and non-ischemic causes of ST-segment elevation in patients with chest pain: a systematic review of the literature

Overview

The electrocardiogram remains the most crucial tool in the diagnosis on ST-segment elevation myocardial infarction. It is ra­pidly available, easily reproducible, and highly cost effective. To the trained interpreter it is also highly sensitive and specific. Early diagnosis and subsequent treatment of ST-segment myocardial infarction relies on rapid performance and correct interpretation of the electrocardiogram. In addition to acute myocardial infarction, there are multiple other causes of ST-segment elevation in the patient with active chest pain. The clinician must be aware of these differential diagnoses, and be able to quickly confirm or exclude alternative causes of ST-segment elevation. The purpose of this article is to review the electrocardiographic findings in acute myocardial infarction in comparison to other alternative diagnoses that may present with ST-segment elevation. This discussion concludes with three case based examples of atypical causes of ST-segment elevation in the patient with chest pain.

Keywords:
electrocardiogram – ST-segment elevation – myocardial infarction – differential diagnosis

Introduction

Primary percutaneous coronary intervention (PPCI) is the preferred treatment of ST-segment elevation myocardial infarction (STEMI) [1–3]. Patients with STEMI, should undergo PPCI emergently; no later than 12 hours after the onset of chest pain [4,5]. The Task Force of American College of Cardiology (ACC) and the European Society of Cardiology (ESC) guidelines state that increased levels of troponin or other biomarkers are a main dia­gnostic criteria for acute myocardial infarction [6]. However, because increase troponin level is not seen earlier than 6–8 hours after an acute event, the diagnosis of STEMI must be ini­tially confirmed or excluded based upon clinical presentation and ST-segment elevations on 12-lead electrocardiogram (ECG). It is further suggested, that ECG diagnosis of STEMI should take no longer than 10–15 minutes. This may not always be feasible, as the time between the onset of symptoms and the first contact with a patient experiencing a suspected acute coronary syndrome varies. Furthermore, first contact with the medical system is often not directly with the Emergency Department, but may vary from emergency medical services to a primary care physician. Additional causes of delay to reperfusion include patient transfer from hospitals without PPCI capability, activation of the catheterization laboratory [8,9] or intra-procedural difficulties [5]. Regardless of manner of presentation, the ECG remains the most important means of STEMI diagnosis given its rapid availability, low cost, and high sensitivity to a trained interpreter.

This report reviews the ECG diagnosis of STEMI, with the main emphasize on the differential diagnosis between ischemic and non-ischemic causes of ST-segment elevation (STE).

ECG diagnosis of STEMI

In the patient with chest pain, the diagnosis of STEMI requires new STE at the J-point in two contiguous leads of > 0.2 mV in men in leads V_2–3 (> 0.15 mV for women) and/or > 0.1 mV in limb leads and V_4–6 leads [6]. These ECG criteria are simple and straightforward, however, there are multiple non-ischemic causes of STE; particularly in precordial leads [7]. Important causes of STE mimicking STEMI are left ventricular hypertrophy, acute myocarditis/pericarditis, previous myocardial infarction, and numerous other non-cardiac causes [7]. The ECG diagnosis of STEMI also depends on the expertise of the initial person evaluating the patient with chest pain. As mentioned this may be a paramedic, emergency department physician or general internist, all with vastly different ECG interpretation experience and ability. There are different approaches for assessing the role and importance of the ECG in patients with suspected STEMI, and understanding how different non-ischemic etiologies may effect accurate interpretation.

False positive activation of cardiac catheterization laboratory for primary PCI

The ECG remains a highly sensitive tool for the diagnosis of STEMI. Given the seriousness of the diagnosis, most interpreters value high sensitivity over specificity. This trade-off allows for investigation of a reasonably high false positive rate of diagnosis. The incidence of false positive activation of the catheterization laboratory for PPCI varies between 6.4 to 22.7% with an average rate of 12.7% [10–12]. False positive cardiac catheterization may be defined as performance of angiography for a suspected STEMI that reveals no acute intracoronary occlusion. The strength of this approach is that all patients undergo coronary angiography. Larson et al [10] reported one of the first studies using this approach. The patient population included both transfers from community hospitals and from the emergency department of a tertiary cardiovascular center in Minnesota. 1,335 patients with suspected STEMI underwent emergent coronary angiography. 187 patients (14%) did not have a culprit coronary artery occlusion. Sixty patients with­out culprit coronary artery did have significant coronary artery disease requiring coronary bypass surgery, non--emergent percutaneous intervention, or conservative management. The remaining 127 patients did not have obstructive coronary artery disease. These patients were evaluated, and the etiologies of STE on ECG were determined. The most frequent causes of STE were early repolarization, pre­vious myocardial infarction, or non--dia­gnostic ECG. Less common ECG abnormalities were pacemaker rhythm or right bundle branch block. It is of interest that 44% of patients with new or presumably new left bundle branch block on ECG did not have culprit coronary artery. A similar study by Gu et al [11] reported coronary angiography of 820 patients presenting with chest pain and ST-segment elevations. PPCI was performed in 767 patients. Similar to the previous study, thirty-four patients had significant coronary disease without a culprit lesion. These patients were managed either conservatively or underwent coronary bypass surgery. Nineteen patients had other structural heart diseases, vascular diseases or non-cardiac abnormalities.

Perugini et al [12] reported on false positive activation of catheterization laboratory in a cohort of 3 780 pa­tients. The diagnosis of STEMI was confirmed in 3,447 patients, while 333 patients did not have a culprit coronary artery occlusion. Seventy-five patients with normal coronary arteries had STEMI (2%), eighty-four had chronic coronary artery disease (2.3%), and thirty-six had Takotsubo cardiomyo­pathy (1.0%). The remaining hundred thirty-eight patients had various non--ischemic etiology for ST-segment elevation (3.7%).

Perugini et al [12] also undertook a simulation in which two experienced cardiologists re-analyzed 369 ECGs with STE and chest pain lasting for 20 minutes. The only additional available information were age and gender. The interpreters were required to answer two questions: First, does the patient have acute myocardial infarction warranting activation of the catheterization laboratory? Second, is STEMI unlikely and activation of the catheterization laboratory is not necessary? Based on these experienced interpreters there were 240 true positive, 44 false positive, 79 true negative and 6 false negative. The sensitivity and specificity were 0.97% and 0.64%, respectively. The positive and negative predictive values were 0.71% and 0.96% respectively; showing even the most experienced of interpreters may have some difficulty in determining the etiology of ST elevations.

Nfor et al [13] analyzed false positive STEMI diagnosis in the emergency department to determine the incidence, predictors, and prognosis of false positive STEMI. There were 489 patients with possible STEMI. A culprit coronary artery was found in 89% of pa­tients while 11% of patient did not have an infarct related artery. Independent predictors of absence of culprit coronary artery occlusion were: lack of chest pain, absence of reciprocal ST-segment changes, less than 3 risk factors for CAD, symptom duration longer than 6 hours, recent illicit drug use, stable hemodynamics, and direct transfer from other hospitals. The three most frequent causes for false positive activation of a cardiac catheterization laboratory were early repolarization (14.8%), acute myocarditis//pericarditis (14.8%) and Takotsubo cardiomyopathy (11.1%). A minority of false positives could ultimately be attributed to other abnormalities such as coronary artery spasm or NSTEMI. It is important to note that 48.1 % of patients without culprit coronary arteries had “serious acute cardiac pathology” warranting further evaluation and treatment. In this series, even non--ischemic ST-segment elevation warranted further cardiac care.

Patients with STE on ECG without culprit coronary artery occlusion can be divided into two broad categories. The first group consists of pa­tients with coronary artery disease or other structural heart disease in which coronary angiography excludes acute myocardial infarction, but clarifies the true diagnosis and helps in patient management. The second group consists of patients with ST-segment elevation on ECG either without ischemic heart disease nor other acute cardiac pathology. These patients often have acute non-cardiac disease such as pulmonary embolization or aortic dissection. These patients gain no benefit from coronary angiography and may be harmed by potential complications of angiography as well as delay in obtaining a true diagnosis and treatment.

Errors in interpretation of the ECG and discrepancies in the emergency department

Frequently an emergency physician is the first contact with a patient complaining of chest pain. Brady et al [14] reported on ECG proficiency amongst emergency physicians. There were nine possible causes of STE, including acute myocardial infarction. Emergency physicians correctly identified STE due to acute myocardial infarction in 29 out of 31 cases (93.5%). In this study, emergency physicians misinterpreted 12 out of 202 patients with STE (5.9%). The most frequent causes of missed diagnosis were early repolarization followed by left ventricular aneurysm. Early repolarization and left ventricular hypertrophy were the incor­rect diagnoses most frequently given to the two patients with a missed diagnosis of acute myocardial infarction.

The same group published a second study [15] reviewing the diagnosis of STE by six Emergency Medicine physicians. Interpreters knew only age, gender, and presence of chest pain. Each interpreter had to answer two ques­tions. First, was there STE and second was the morphology of STE consistent with STEMI more so than any other etiology. There were 599 pa­tients with suspected acute myocardial infarction and 211 with non-ischemic STE. Discrepancy in ECG interpretation was present in 61 patients, particularly for the diagnosis of left ventricular hypertrophy (47.5%), left bundle branch block (19.7%), early repolarization (11.5%), and less frequently acute myocardial infarction, pericarditis or left ventricular aneurysm. Similarly the most common reason for disagreement was in the interpretation of left ventricular hypertrophy (42.9%) and acute myocardial infarction (28.6%) secondary to atypical concave STE.

Discrepancies in interpretation of STE by ECG experts and invasive cardiologists

Jayroe and et al [16] asked fifteen well know ECG experts from the US, Europe, and Israel, to differentiate between ischemic and non-ischemic STE on ECG. 116 ECGs in patients with suspected STEMI were evaluated. In addition to recommending PPCI versus conservative management, they were also asked to choose between 15 possible alternative causes of STE. The patient population included Caucasians, Asians, Hispanic and African Americans. An important consideration was that only 8 out of 116 patients (6.9%) had STEMI. Recommendation for PPCI varied between 7.8 and 33%. The sensitivity of the individual reader varied between 50–100% (mean 75%) and specificity between 73–97% (mean 85%). The choices of non-acute ischemic causes of STE markedly varied. These results were unexpected and suggested need for revision of ECG criteria for STEMI [16].

In a related report of 84 patients, the authors asked 7 interventional cardiologists the same questions [17]. In contrast to the previous study, 48 % pa­tients had STEMI. The percentage of patients in whom the intervetionalists recommended PPCI varied between 33–75%. The sensitivity for STEMI was between 55–83% (average 71%) and specificity 32–79% (average 63%). These results were similar to their first study except for a lower sensitivity.

The less than expected accuracy in diagnosis of STE etiology amongst highly experienced ECG experts is not surprising and suggests that ECG alone has important limitations in identifying patients for PPCI. Fortunately in clinical practice, ECG is always correlated with history, physical and laboratory findings.

ST-segment elevation in patients with normal coronary arteries

The incidence of normal coronary arteries in patients with suspected STEMI undergoing coronary angiography varies between 2.6% to 13% [18–20]. There are multiple reasons for normal coronary artery in a true STEMI. Likewise, there are other cardiac and non--cardiac diseases mimicking myocardial infarction (hypertrophic cardiomyopathy, myocarditis or pulmonary embolization). The incidence of ECG misinterpretation is highly variable. In Widimsky’s study [18] the incidence of ECG misinterpretation was 19% among experienced interpreters. Prasad et al [20] reported the results of 690 patients with suspected STEMI. 594 pa­tients (86%) had culprit coronary artery occlusion, nine and eleven had severe coronary artery disease without complete arterial occlusion, or left bundle branch block respectively. Using strict STE criteria the sensitivity and specificity were 93.1 and 44.7% respectively with 79.4% positive and 59.6% negative predictive value. In comparison, expert cardiologists who re-analyzed 160 and 76 patients with STEMI and normal coronary artery confirmed STEMI in 93% in patients with culprit coronary artery but only in 55% in those with normal coronary arteries.

In patients who present with normal coronary arteries and STE, acute cardiac and non-cardiac diseases have to be ruled out. This is particularly true for pulmonary embolization, aortic dissection, coronary spasm, myocarditis or pericarditis. D-dimmer and pulmonary and aortic imaging are helpful in pa­tients with suspected pulmonary embolization or aortic dissection [21]. More difficult is the diagnosis of myocarditis. Presently myocarditis can be accurately diagnosed by showing myocardial edema on MRI. In addition, MRI helps to confirm or exclude the diagnoses of myocardial infarction, pericarditis, Takatsubo cardiomyopathy, or valvular heart diseases. A more detailed discussion of the use MRI in patients with acute coronary syndrome, with normal coronary arteries is undertaken by Agewal et al [21].

Atypical presentations of coronary occlusions requiring urgent coronary angiography

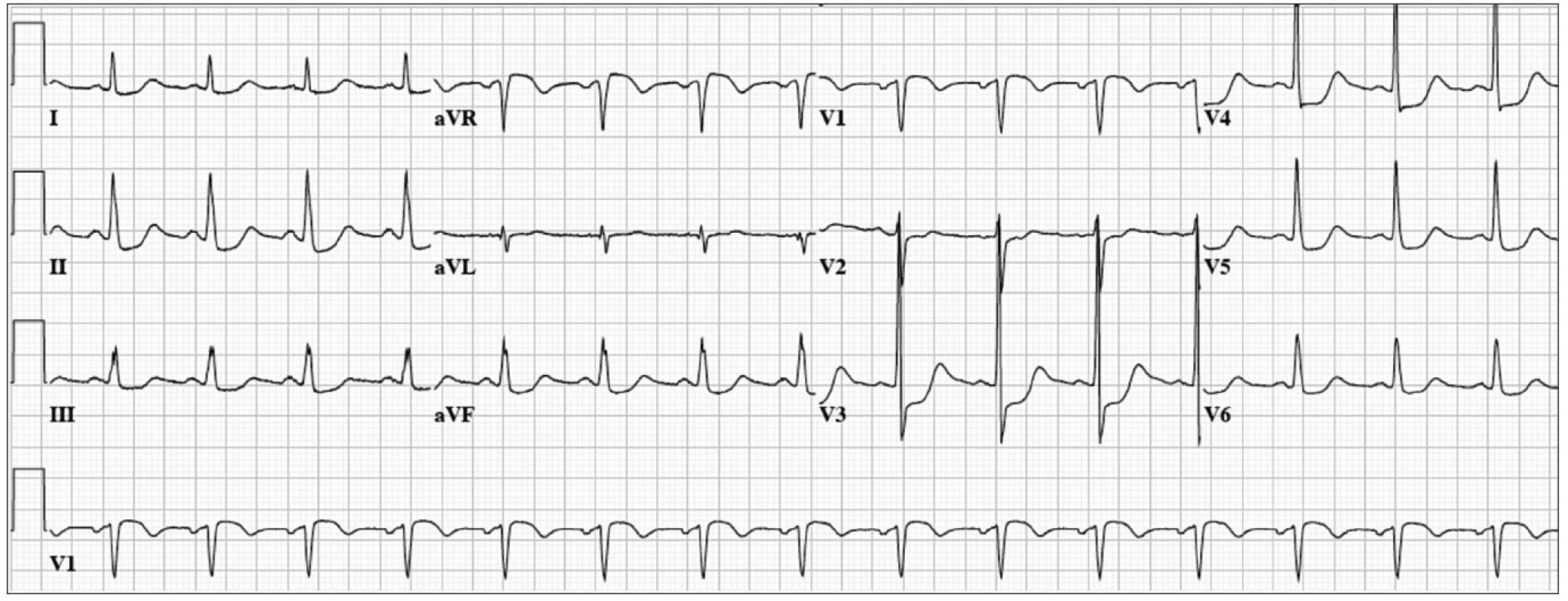

Two ischemic events requiring emergent coronary angiography are left main coronary artery disease (LMCA) [23] and unstable angina with a „Wellens” ECG pattern [24]. The most common ECG manifestations of acute occlusion of LMCA are ST-segment depression in six or more leads and ST-segment elevation in lead aVR and occasionally also in V₁ [23]. Our pa­tient was a 62 year-old woman with history of hypertension. She developed severe chest pain, hypotension and dia­phoresis 24 hours after knee replacement. The ECG (Fig. 1) showed normal sinus rhythm at a rate of 94 bpm, ST segment depression in 9 leads, the most pronounced in lead V₃ and V₄ and ST elevation in lead aVR and V₁. Coronary angiogram revealed left main coronary artery thrombosis. The patient underwent emergency coronary artery bypass and made uneventful recovery.

A second indication for urgent coronary angiography is unstable angina presenting with mild ST elevation followed by deep T-wave inversion in mid-precordial leads also known as the Wellens ECG pattern [24]. In these patients coronary anatomy usually shows severe mostly proximal LAD lesion. More recently, however, similar ECG patterns were reported in patients with coronary spasm, normal coronary arteries, intracerebral bleeding, myocardial bridging, and pulmonary edema [25]. Migliore et al reported 4 patients with similar ECG of different etiology in whom MRI showed myocardial edema.

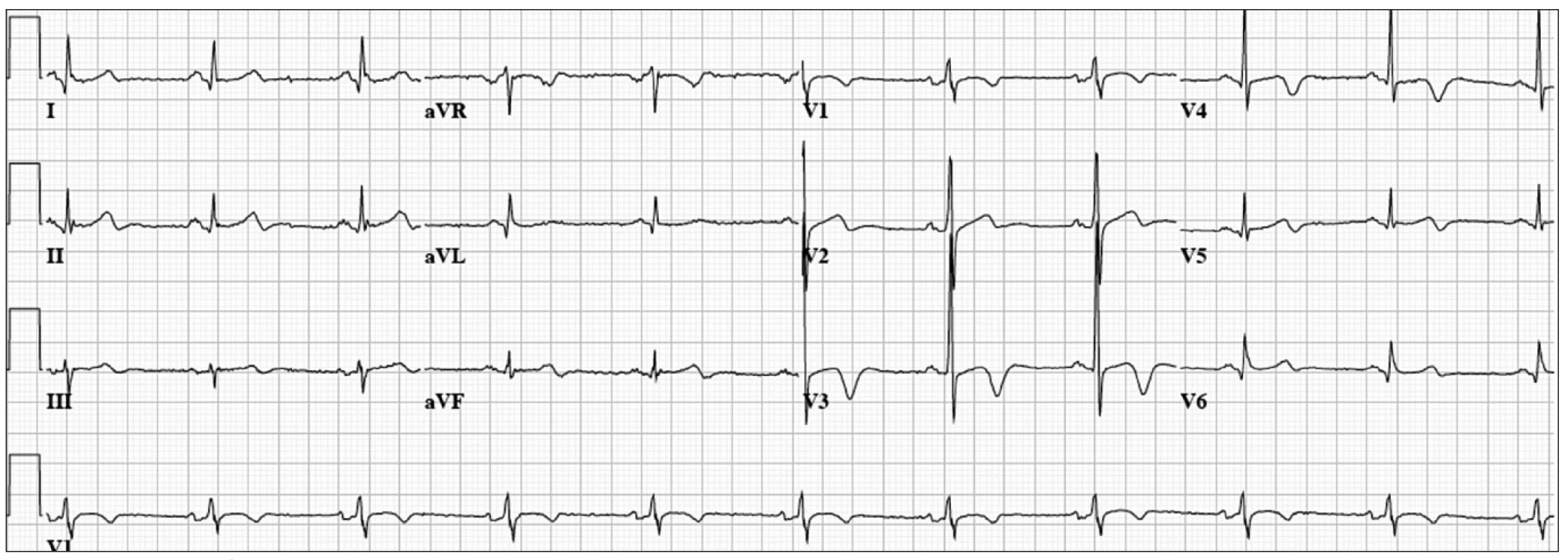

Our patient was a 53 year-old man with hypertension. He developed chest pain while running. The ECG (Fig. 2) showed normal sinus rhythm at a rate of 61 bpm, mild ST-segment elevation with T wave inversion in the mid-precordial leads. Emergent coronary angiogram revealed non-obstructive coronary artery disease with significant myocardial bridging of the mid LAD. He was treated with oral calcium channel blockers and made a complete recovery.

Another atypical presentation of proximal left anterior occlusion can be prominent or normal T wave amplitude in leads V_2–4 with or without ST depression lasting from 1 to 14 days. Some patients will show the normal ECG evolution of an anterior myocardial infarction. This type of acute myocardial infarction was originally reported by Sagie et al [26], and more recently with a slightly different ECG pattern by de Winter et al [27] and Verouden et al [28]. Identification of this “atypical” presentation of LAD occlusion may be difficult, but is important for early reperfusion.

Pride and et al [29] published acute coronary syndrome with isolated anterior ST-segment depression due to complete coronary artery occlusion. This was a sub-study of TRITON--TIMI 38 trial of 13 608 patients. Isolated anterior ST-segment depression was found in 1 198 patients (8.8%). Of these patients, 26% had complete occlusion of one of the main coronary arteries. The most common culprit artery was the left circumflex coronary artery. The 30-day incidence of composite death and myocardial infarction was significantly higher in patients with an occluded coronary artery.

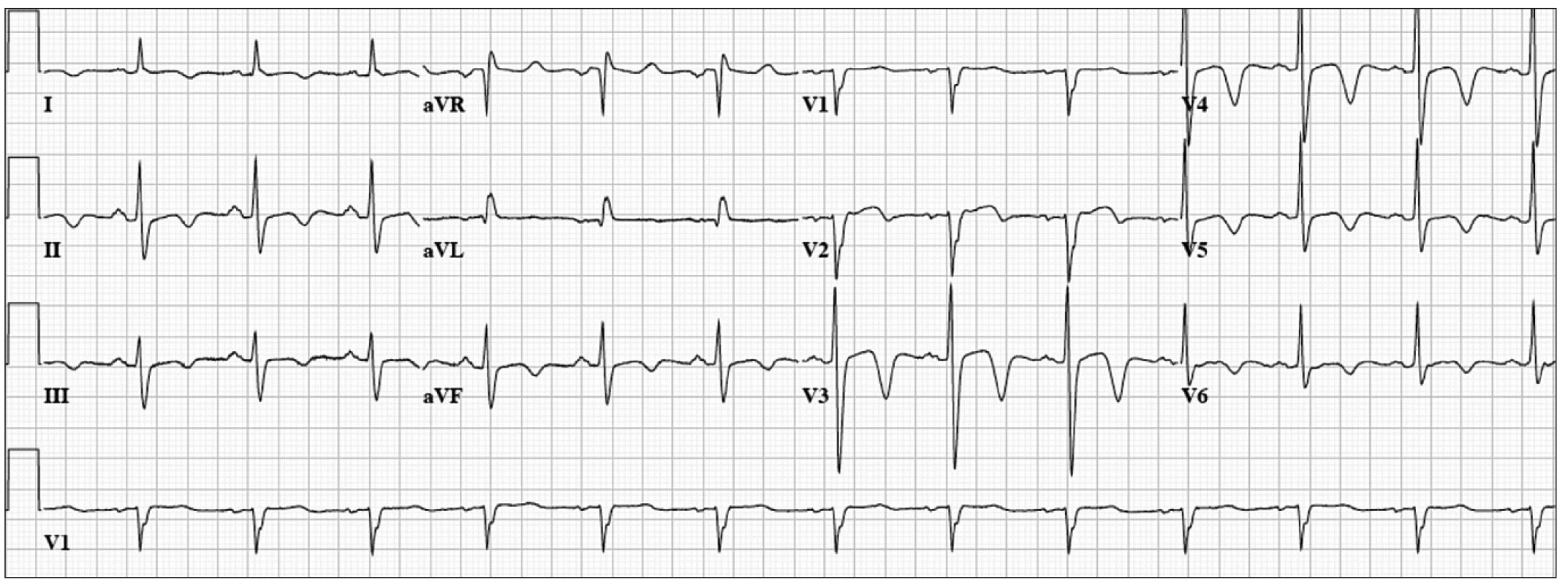

Our final patient was a 52 year-old woman with dyslipidemia who presented with acute onset of chest pain and profound dyspnea. ECG (Fig. 3) revealed normal sinus rhythm at a rate of 78 bpm, mild ST-segment elevation in I, aVL, and V_2–3, with deep T-wave inversions in the precordial leads. Emergent coronary angiogram revealed mild non-obstructive coronary artery disease, and a severely reduced ejection fraction with severe hypokinesis of the apex and distal anterior, septal, lateral, and inferior wall segments. The remaining wall segments were hyperkinetic. She was given a diagnosis of Takotsubo cardiomyopathy (previously described). She was treated for several months with beta-blockers and an ACE inhibitor with near normalization of her ejection fraction. In this case, ECG changes that are typically associated with myocardial ischemia were present without coronary artery disease.

Finally, it is important to remember that acute myocardial infarction can be seen in patients with normal or non-specific ECG changes. These are most often patients with occlusion of the left circumflex artery or a branch of a main coronary artery.

Conclusions

Presently the ECG remains the initial diagnostic tool in patients with suspected STEMI. However, as discussed the ECG has important limitations. First, STE can be seen in other cardiac and non-cardiac conditions. Second, there are atypical ECG presentations of acute coronary occlusion that may not have ST-segment elevation. Third, a negative ECG does not exclude an acute coronary syndrome. Without correlating the ECG with clinical findings, and cardiac bio-markers, even experienced expert cardiologists have difficulty differentiating between ischemic and non-ischemic causes of ST-segment elevation based solely on the resting ECG. Finally, the initial dia­gnosis of STEMI is made by various types of physicians or paramedics, all with different ECG expertise, contributing to inaccuracies of diagnosis.
