Female Behaviour Drives Expression and Evolution of Gustatory Receptors in Butterflies

Summary

Secondary plant compounds are strong deterrents of insect oviposition and feeding, but may also be attractants for specialist herbivores. These insect-plant interactions are mediated by insect gustatory receptors (Grs) and olfactory receptors (Ors). An analysis of the reference genome of the butterfly Heliconius melpomene, which feeds on passion-flower vines (Passiflora spp.), together with whole-genome sequencing within the species and across the Heliconius phylogeny has permitted an unprecedented opportunity to study the patterns of gene duplication and copy-number variation (CNV) among these key sensory genes. We report in silico gene predictions of 73 Gr genes in the H. melpomene reference genome, including putative CO₂, sugar, sugar alcohol, fructose, and bitter receptors. The majority of these Grs are the result of gene duplications since Heliconius shared a common ancestor with the monarch butterfly or the silkmoth. Among Grs but not Ors, CNVs are more common within species in those gene lineages that have also duplicated over this evolutionary time-scale, suggesting ongoing rapid gene family evolution. Deep sequencing (∼1 billion reads) of transcriptomes from proboscis and labial palps, antennae, and legs of adult H. melpomene males and females indicates that 67 of the predicted 73 Gr genes and 67 of the 70 predicted Or genes are expressed in these three tissues. Intriguingly, we find that one-third of all Grs show female-biased gene expression (n = 26) and nearly all of these (n = 21) are Heliconius-specific Grs. In fact, a significant excess of Grs that are expressed in female legs but not male legs are the result of recent gene duplication. This difference in Gr gene expression diversity between the sexes is accompanied by a striking sexual dimorphism in the abundance of gustatory sensilla on the forelegs of H. melpomene, suggesting that female oviposition behaviour drives the evolution of new gustatory receptors in butterfly genomes.

Introduction

Nearly 50 years ago Ehrlich and Raven proposed that butterflies and their host-plants co-evolve [1]. Based on field observations of egg-laying in adult female butterflies, feeding behavior of caterpillars, and studies of systematics and taxonomy of plants and butterflies themselves, they outlined a scenario in which plant lineages evolved novel defensive compounds which then permitted their radiation into novel ecological space. In turn, insect taxa evolved resistance to those chemical defences, permitting the adaptive radiation of insects to exploit the new plant niche. Ehrlich and Raven's theory of an evolutionary arms-race between insects and plants drew primarily from an examination of butterfly species richness and host-plant specialization. It did not specify the sensory mechanisms or genetic loci mediating these adaptive plant-insect interactions.

Insects possess gustatory hairs or contact chemosensilla derived from mechanosensory bristles, scattered along a variety of appendages [2]–[4]. In adult butterflies and moths, gustatory sensilla are found on the labial palps and proboscis (Figure 1), the legs (Figure 2A) [5], the antennae (Figure 2B) [6], [7], and the ovipositor [8], [9]. In adult Heliconius charithonia legs, the 5 tarsomeres of the male foreleg foretarsus are fused and lack chemosensory sensilla, while female foretarsi bear groups of trichoid sensilla (n = 70–90 sensilla/tarsus) associated with pairs of cuticular spines [10]. Each trichoid sensilla contains five receptor neurons. These sensilla are sensitive to compounds that may be broadly classified as phagostimulants (e.g., sugars and amino acids), which promote feeding behavior, or phagodeterrents (secondary plant compounds), which suppress it [11]; in adult females they may also modulate oviposition [12].

Genes for vision, taste and smell are likely to be crucial genomic loci underlying the spectacular diversity of butterfly-plant interactions. The availability of genomes for two butterfly species, the postman Heliconius melpomene (Nymphalidae) [13] and the monarch (Danaus plexippus) [14], as well as the silkmoth (Bombyx mori) [15], enables us to examine the evolutionary diversification of gustatory (Gr) and olfactory (Or) receptor genes that mediate insect-plant interactions. Each of these species feeds on hosts from different plant families. Silkmoth larvae feed on mulberry (Morus spp., Moraceae) and monarch larvae feed on milkweed (Asclepias spp., Apocynaceae). The larvae of Heliconius feed exclusively on passion flower vines, primarily in the genus Passiflora (Passifloraceae). In addition, adult Heliconius are notable for several derived traits such as augmented UV color vision [16], pollen feeding (Figure 1B) [17], [18], and the ability to sequester substances from their host plants that are toxic to vertebrate predators such as birds [19], [20].

In Drosophila melanogaster, the Gr gene family consists of 60 genes [21]–[24], several of which are alternatively spliced, yielding 68 predicted Gr transcripts [24]. One or more of these Gr proteins including possibly obligatory co-receptors [25]–[27] may be expressed in each gustatory receptor neuron [11]. Originally considered members of the G-protein-coupled receptor (GPCR) family, insect Grs have an inverted orientation in the membrane compared to the GPCR family of vertebrate Grs [28] and are part of the same superfamily as the insect Ors [21]. Signalling pathways for insect Grs may be both G-protein dependent [29], [30], [31] and G-protein independent [32]. For the vast majority of Drosophila Grs the specific compounds to which they are sensitive remain unknown. Nonetheless, several receptors for sugars [33]–[35], CO₂ [26], [36], bitter substances [37]–[39] and plant-derived insecticides [25] have been identified in flies.

Knowledge of the Gr gene family for insects outside Drosophila is sparse and has primarily relied on the analyses of individual reference genomes. Expression studies are challenging, due to the very low expression of Grs in gustatory tissues [21], [23]. In addition, Grs and Ors typically have large introns, small exons and undergo fast sequence evolution, making their in silico identification using automated gene prediction algorithms from genomic sequences problematic. Thus, the large repertoire of Grs (and Ors) that have been examined in the reference genomes of the pea aphid [40], the honey bee [41], the red flour beetle Tribolium castaneum [42], the mosquitoes Aedes aegypti [43] and Anopheles gambiae [44], and several Drosophila spp. [45], [46] have required extensive manual curation. In Lepidoptera, a large insect group which includes ∼175,000 species, completely described Gr (and Or) gene models from genomes are rare and limited to B. mori [47], D. plexippus [14] and H. melpomene (Grs, this study; Ors, [13]). In other lepidopteran species, only fragmentary Gr data are available: five sequences in Spodoptera littoralis [48], three in Heliothis virescens [49], two in Manduca sexta [50], [51] and one in Papilio xuthus [52].

Adult females of each Heliconius species only lay eggs on a limited number of host plants [53], and therefore need to recognize different species from among the large and diverse Passifloraceae family, which also show a remarkable diversity of chemical defences [54]. The evolutionary arms race between Heliconius butterflies and their hosts led us to hypothesize that Heliconius Grs (and Ors) might be subject to rapid gene duplication and gene loss as well as copy-number variation (CNV). Recent work taking advantage of published Drosophila genomes has shown a relationship between host specialization and/or endemism and an increased rate of gene loss, as well as a positive relationship between genome size and gene duplication [46], [55]. Moreover, Drosophila Grs appear to be evolving under weaker purifying selection than Ors [55].

We previously used the reference genome sequence for H. melpomene to annotate three chemosensory gene families, encoding the chemosensory proteins (CSPs), the odorant-binding proteins (OBPs), and the olfactory receptors (Ors). This demonstrated a surprising diversity in these gene families. In particular there are more CSPs in the butterfly genomes than in any other insect genome sequenced to date [13]. We build on this work below by characterizing the Gr gene family in the reference H. melpomene melpomene genome and in two other lepidopteran species whose genomes have been sequenced, B. mori (Bombycidae) and D. plexippus (Nymphalidae), by performing in silico gene predictions and phylogenetic analysis. We then analyzed whole-genome sequences of twenty-seven individual butterflies, representing eleven species sampled across all major lineages of the Heliconius phylogeny and including sixteen individuals from two species, H. melpomene and its sister-species H. cydno. We also generated RNA-sequencing expression profiles of the proboscis and labial palps, antennae and legs of individual adult male and female butterflies of the sub-species H. melpomene rosina from Costa Rica (∼1 billion 100 bp reads). We used these data to address four major questions: Are different chemosensory modalities less prone to duplication and loss than others (e.g., taste vs. olfaction)? Is there evidence of lineage-specific differentiation of Gr (and Or) repertoires between genera, species and populations? What is the relationship between CNVs and the retention of paralogous genes over long-term evolutionary timescales? Are the life history differences between males and females reflected in the expression of Grs and Ors as well as in the retention of novel sensory genes in the genome?

We find higher turnover of the Grs than the Ors over longer evolutionary timescales, and evidence for both gene duplication and loss among a clade of intronless Grs between lepidopteran species and within the genus Heliconius. We also find for H. melpomene and its sister species, H. cydno, evidence of copy-number variation (CNVs) within their Gr and Or repertoires. Lastly, our RNA-sequencing suggests both tissue-specific and sex-specific differences in the diversity of expressed Grs and Ors, with female legs expressing a more diverse suite of Grs than male legs. Our data set revealing the expression of 67 of 73 predicted Gr genes and 67 of 70 predicted Or genes in adult H. melpomene butterflies is the most comprehensive profiling of these chemosensory gene families in Lepidoptera to date, and suggests how female host plant-seeking behaviour shapes the evolution of gustatory receptors in butterflies.

Results

Annotation of Grs in the reference genome of H. melpomene

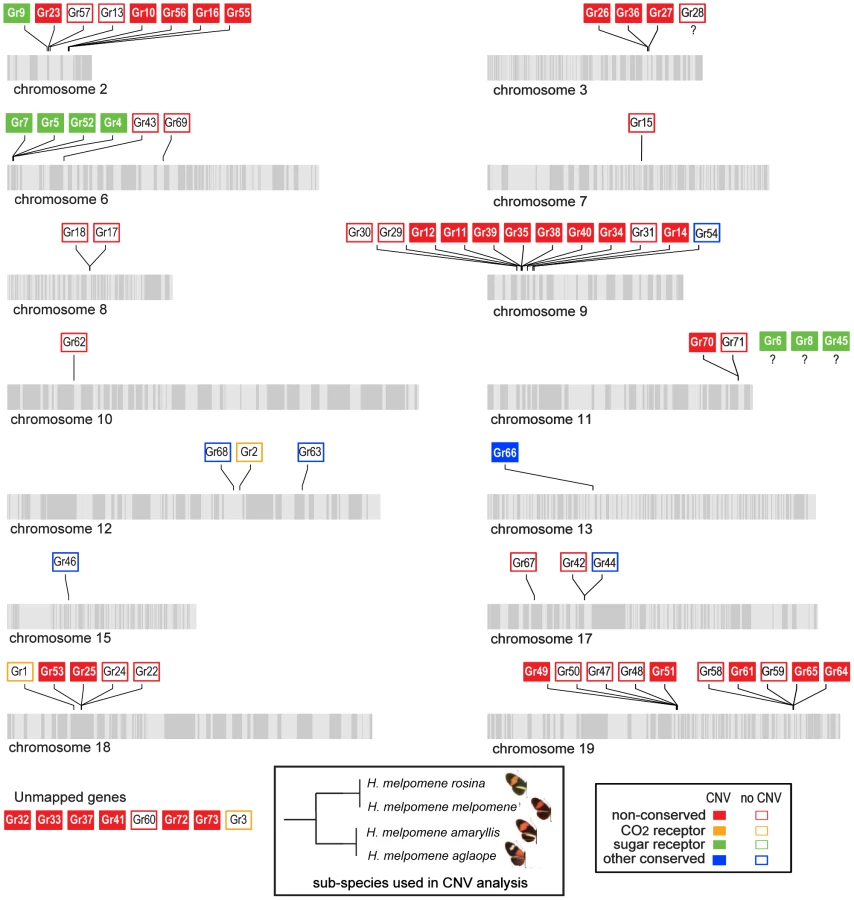

In total, we manually annotated 86,870 bp of the H. melpomene melpomene reference genome (Table S1). Our 73 Gr gene models, consisted of 1–11 annotated exons, with the majority having three or four exons; six were intronless. We found genomic evidence (but not RNA-seq evidence) of possible alternative splicing of the last two exons of HmGr18, bringing the total number of predicted Grs to 74. Alternative splicing has not been previously described in the silkmoth B. mori [47], but is known to occur in most other insects examined, including D. melanogaster, Anopheles gambiae, Aedes aegypti and T. castaneum [24], [43], [44]. We also identified eleven new putative Grs in the monarch butterfly genome, DpGr48-56, DpGr66 and DpGr68 (Table S1) [14].

All but five of our gene models contained more than 330 encoded amino acids (AAs) while individual gene models ranged from 258–477 AAs. Several Gr genes contained internal stop codons (Table S1). In at least one case, we found RNA-seq evidence of an expressed pseudogene–HmGr61–with two in-frame stop codons. In other cases, the 5′ end of our assembled transcripts was not long enough to verify the internal stop codons in the genome assembly. The Grs are located on 33 distinct scaffolds, with 58 forming clusters of 2–8 genes on 18 scaffolds, distributed across 14 chromosomes.

Gene duplication and loss in a clade of putative bitter receptors

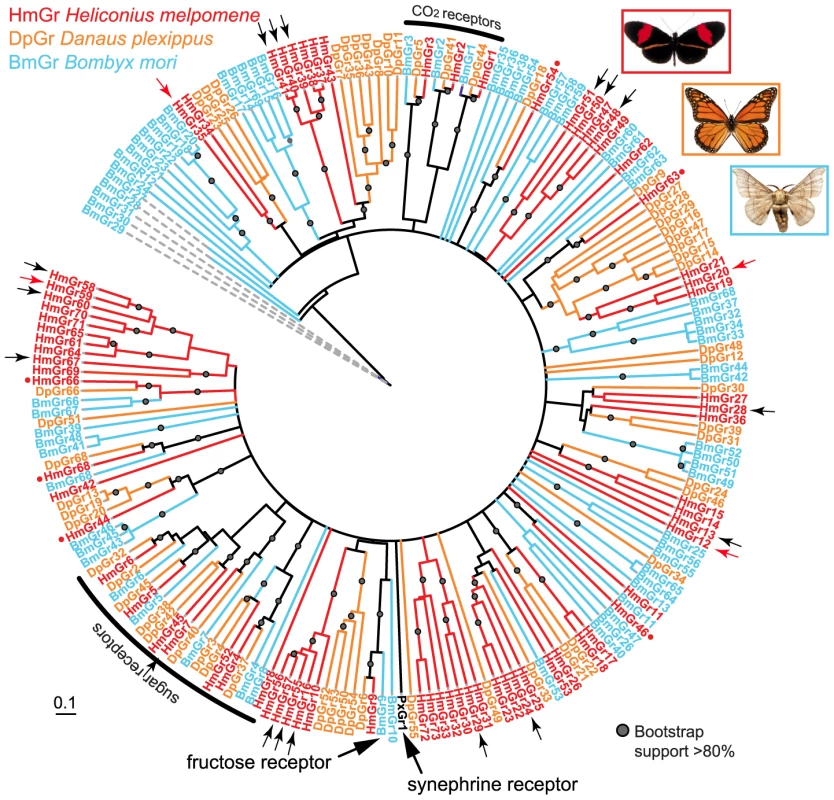

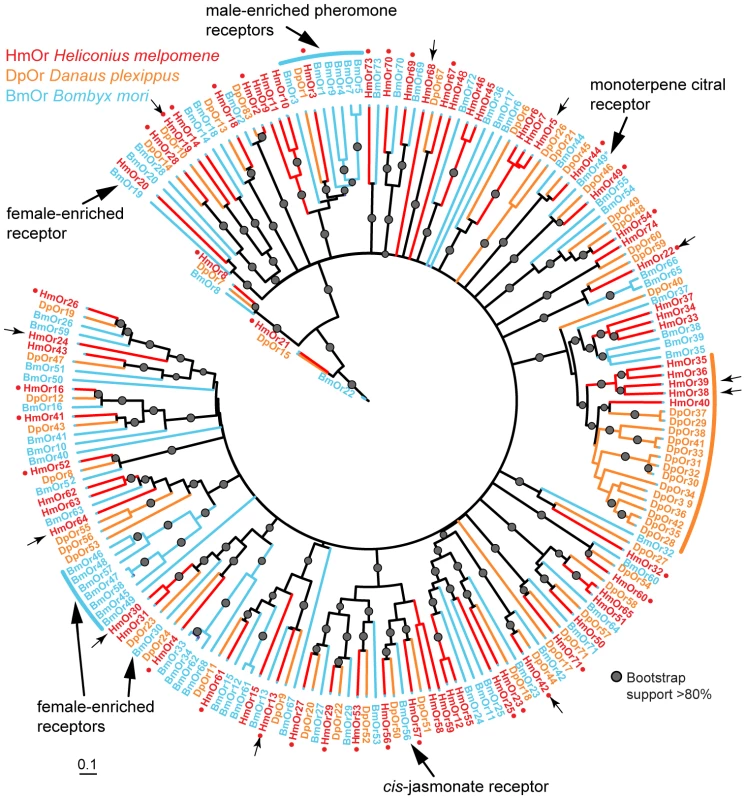

To study the patterns of gene duplication and loss more broadly across the Lepidoptera, we next examined the phylogenetic relationships of Grs from the three lepidopteran reference genomes [13]–[15]. Across the gene family phylogeny a large number of duplications among the putative ‘bitter’ gustatory receptors of Heliconius or Danaus have occurred, while the putative CO₂ and sugar receptors are evolving more conservatively, with only single copies in the H. melpomene reference genome (see below)(black arcs, Figure 3). A majority (∼64%) of Gr genes found in the H. melpomene genome are the result of gene duplication since Heliconius shared a common ancestor with Danaus or Bombyx. This is in contrast to the more conserved pattern of evolution of the Ors (Figure 4) [13] where a majority (37 of 70 or 53%) of genes show a one-to-one orthologous relationship with either a gene in Danaus, in Bombyx or both.

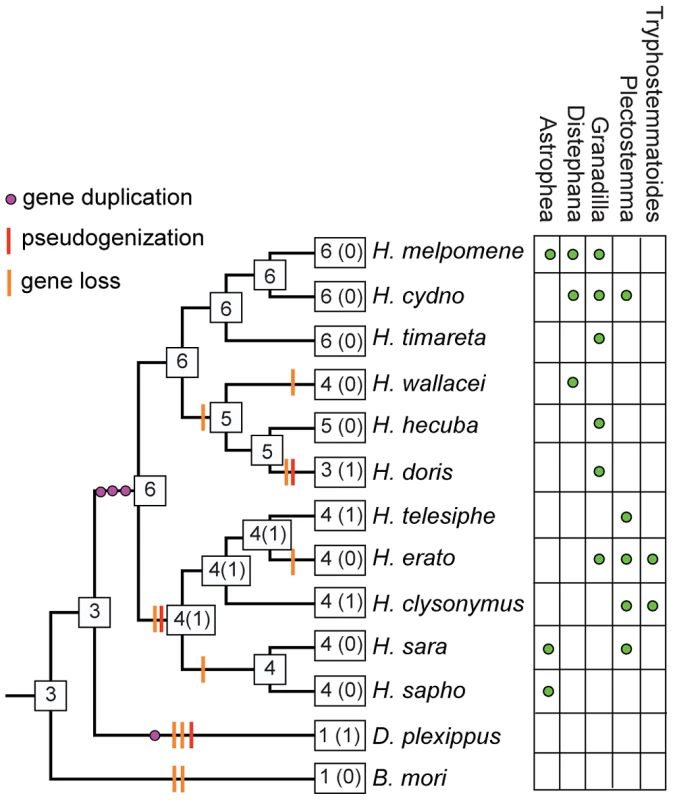

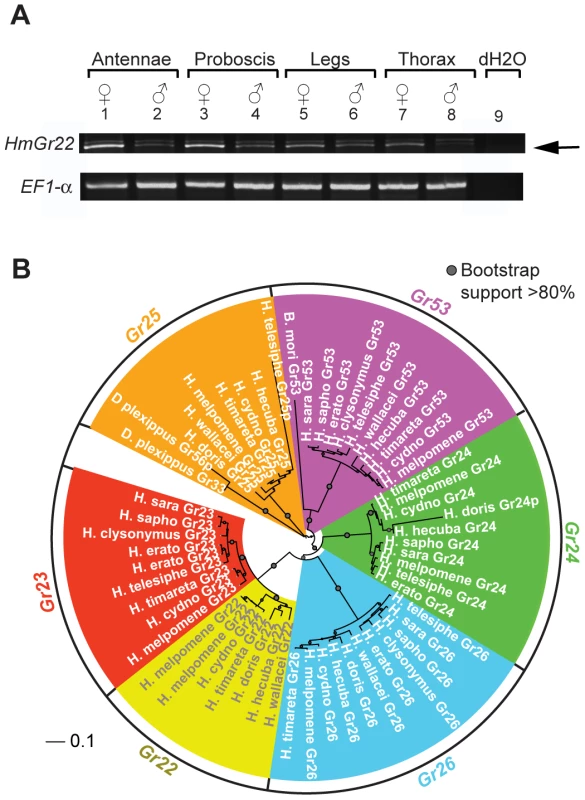

Within the genus Heliconius there is a great diversity of host plant preferences for different Passiflora species. To look at the relationship between gene duplication and loss over this shorter timescale, we focussed our efforts on a group of six intronless Grs, HmGr22-26 and Gr53, because it is only feasible to identify single-exon genes with high confidence, given that the Illumina whole-genome sequencing approach leads to poorly assembled genomes (Table S2). These genes are also of interest as some members of this group are very highly expressed. Notably HmGr22 is one of the most widely expressed genes in our adult H. melpomene transcriptomes, which was verified by reverse-transcriptase (RT)-PCR and sequencing of the PCR products (Figure 5A). In this regard HmGr22 resembles another intronless Gr, the silkmoth gene BmGr53, which is expressed in adult male and female antennae and larval antennae, maxilla, labrum, mandible, labium, thoracic leg, proleg and gut [32]. The remaining five intronless Grs have much more limited domains of expression in adult H. melpomene (see below). We searched for these genes in de novo assemblies of whole-genome Illumina sequences from eleven species across the Heliconius phylogeny. We investigate whether, as in Drosophila, a high turnover in putative bitter receptors is observed in species with host plant specializations or in species which are endemic and thus smaller in effective population size [46].

Although patterns of host plant use are complex within the genus, some notable host-plant shifts have occurred, leading to the prediction that gene loss may have occurred along more specialized lineages [46]. For example, H. doris unlike many Heliconius, tends to feed on large woody Passiflora that can support their highly gregarious larvae [53]. It also probably has a smaller effective population size than most other Heliconius species. From the 11 species studied, we identified a total of 44 intact or nearly intact intronless Grs, as well as three intronless pseudogenes (Genbank Accession Nos. KC313949-KC313997)(Table S2 and S3). We also identified one intact intronless Gr each in monarch and silkmoth and one intronless Gr pseudogene in monarch. Phylogenetic analysis indicates that six intact intronless Gr genes were present at the base of the genus Heliconius while the intronless Gr pseudogene in monarch was the result of duplication since Heliconius and monarch shared a common ancestor (Figure 5B, Figure 6). Subsequent to the radiation of the genus Heliconius, there have been a number of gene losses. Whereas all members of the melpomene clade (H. melpomene, H. cydno, H. timareta) retained genomic copies of all six genes, members of the erato clade (H. erato, H. clysonymus and H. telesiphe) and sara-sapho clade (H. sara and H. sapho) have lost their copies of Gr22 and Gr25. In addition, members of the so-called primitive clade (H. wallacei, H. hecuba, and H. doris) have lost Gr23, while H. doris and H. wallacei have apparently lost Gr24 independently (Figure 6). The woody plant specialist, H. doris, has retained the fewest intronless Grs, apparently also having lost its copy of Gr53, a pattern mirrored by Drosophila host plant specialists [46]. We have, however, no direct evidence that the intronless Grs are in fact involved in host plant discrimination so the observed patterns of loss may be better explained by other variables such as effective population size.

CNVs occur frequently among paralogous gustatory receptor genes

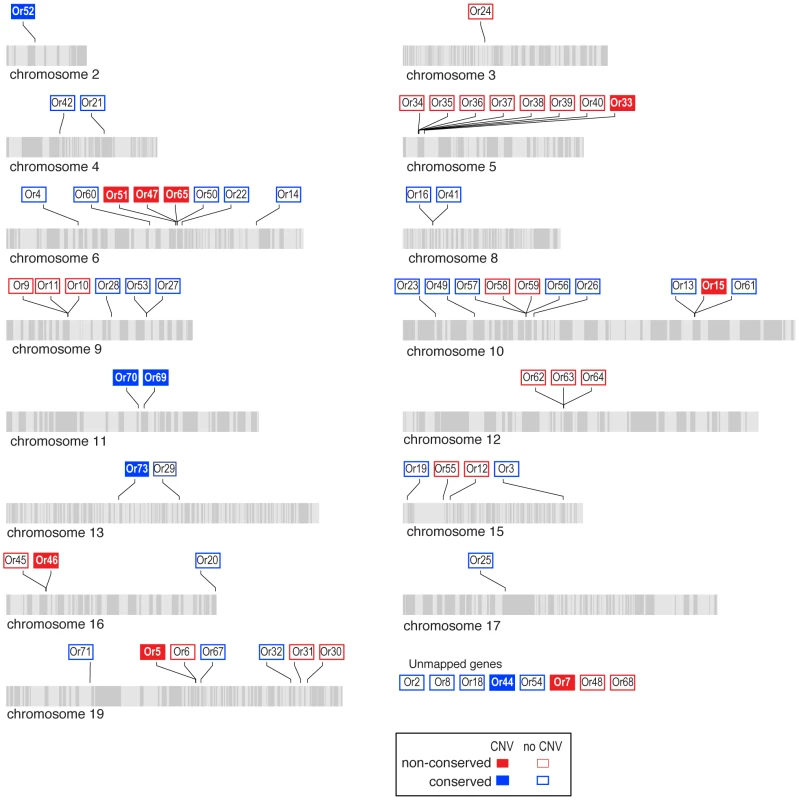

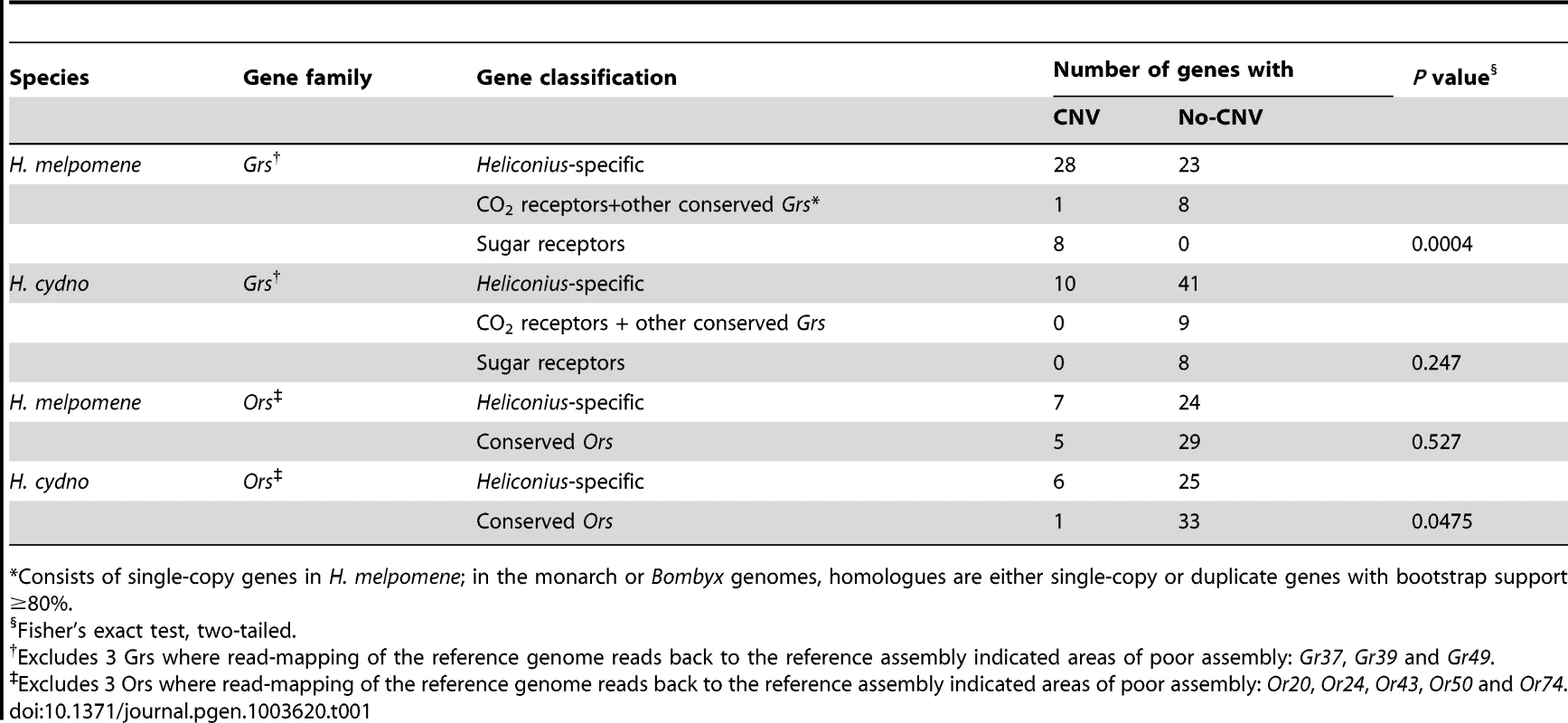

We next tested whether the greater level of diversification of Grs as compared to Ors over long evolutionary timescales (compare Figure 3 and Figure 4), is similarly reflected in greater population level variation in Gr and Or duplicate genes. To test this hypothesis, we examined the incidence of CNVs among Grs and Ors that exist as single-copy genes in the reference H. melpomene genome with a one-to-one orthologous relationship with a gene in Danaus, Bombyx or both (conserved)(red dots, Figure 3 and 4), or as genes that are Heliconius-specific where no orthologue exists in either Danaus or Bombyx (non-conserved). We used whole genome resequence data (12 genomes) for three subspecies of H. melpomene (H. melpomene amaryllis, n = 4; H. melpomene aglaope, n = 4; and H. melpomene rosina, n = 4)(Figure 7, inset) and one sub-species of H. cydno (H. cydno chioneus, n = 4)(Table S4). We first mapped genomic resequence reads to the H. melpomene melpomene reference genome, and then searched for regions of abnormal coverage using CNVnator [56]. More than half of Gr loci showed presence of CNVs (37 out of 68 loci). However, there were noticeably fewer CNVs in Gr loci that evolve conservatively over the long-term, such as among the putative CO₂ receptors, while there was an excess of CNVs in loci that show patterns of Heliconius-specific duplication (11.1% vs. 54.9%, respectively)(Fisher's Exact Test, two-tailed, P = 0.0004) (Table 1)(Figure 7). Intriguingly, many sugar receptor CNVs are sub-species specific; we observed fixed duplications relative to the reference genome in H. melpomene aglaope (HmGr4, Gr5, Gr6, Gr8, Gr45, Gr52) and H. melpomene amaryllis (Gr4, Gr5, Gr6, Gr7, Gr8, Gr45, Gr52), among genes that are found on different chromosomes (Table S5, Figure 7). Although the majority of CNVs are likely to be evolving neutrally, this raises the possibility of local adaptation within the species range around the detection of sugars. As expected given their long-term stability, Ors also show a lower incidence of CNVs (12 out of 67 loci), with no association between gene duplication and CNV incidence at least in H. melpomene (Table 1, Table S6). In H. cydno, a slight excess of Or CNVs was observed in loci that resulted in paralogous genes over longer evolutionary timescales (Fisher's Exact Test, two-tailed, P = 0.0475)(Table 1)(Figure 8).

We have not experimentally verified the incidence of copy number variation in any of these genomes, and some of the regions identified as CNVs are likely to be false positives. To investigate the rate of false positives, we analysed resequence data from the reference genome itself and discovered 3 Gr and 3 Or CNVs, suggesting a false positive rate of around 4%. (We therefore excluded these loci from our statistical tests.) However, the fact that broad patterns of observed CNVs are consistent with the evolutionary patterns at deeper levels supports our conclusion that CNV, in the absence of strong purifying selection, is an important driver of gene family diversification. These results also provide a novel line of evidence that the butterfly Grs have a higher rate of evolutionary turnover as compared to Ors.

Sexually dimorphic gustatory sensilla in adult legs mirror Gr expression diversity

The life histories of adult male and female butterflies are similar with respect to the need to find food and potential mates except that adult females are under strong selection to identify suitable host plants for oviposition. To ascertain host-plant identity, female butterflies drum with their legs on the surface of leaves before laying eggs [10]. This behaviour presumably allows the female to taste oviposition stimulants. Consistent with this behaviour, adult nymphalid butterfly legs are known to contain gustatory sensilla [57], and it has been reported that while nymphalid butterfly females have clusters of gustatory sensilla on their foreleg foretarsi, males lack these entirely [10], [58]. Here we confirm this mostly anecdotal evidence for sexual dimorphism using scanning electron microscopy (SEM). The mid- and hindlegs of both male and female H. melpomene have similar numbers of individual gustatory sensilla along their entire lengths, but there is a striking difference in their abundance and distribution on the foretarsi of the female forelegs. Unlike males, females exhibit cuticular spines associated with gustatory (trichoid) sensillae (n∼80 sensilla/foretarsus for females; n = 0/foretarsus for males) (Figure 2A) [10].

We therefore hypothesized that the repertoire of expressed Gr and Or genes in H. melpomene legs might be more diverse in females as compared to males. Furthermore, if female-specific genes are used for assessment of potential host plants, then fast-evolving insect-host interactions might produce rapid duplication of these genes over evolutionary timescales. Accordingly, we examined the expression profiles of Grs and Ors in adult H. melpomene by RNA-sequencing of libraries prepared from mRNAs expressed in adult antennae, labial palps and proboscis, and legs from one deeply-sequenced male and female each of H. melpomene (6 libraries total)(Table S7 and S8). The number of 100 bp reads per individual library ranged from 17.4 to 25.9 million for paired-end sequencing or 74.8–103.9 million for single-end sequencing (Table S8). To confirm these findings, we subsequently made 12 individual libraries from two more males and two more females (Table S7). As coverage was uneven across these libraries, we analysed them by merging biological replicates by sex and tissue type, and then downsampling so that an equal number of reads was analyzed for each treatment. The number of 100 bp reads analyzed for paired-end sequencing ranged from 19.4 to 49.6 million (Table S8). After downsampling, we examined the expression levels of the widely-expressed elongation factor-1 alpha gene in each of the libraries as a control, and found a comparable level of expression between sexes within each tissue type (Table S8). By careful visual examination of the uniquely-mapped reads to our 143 reference Gr and Or sequences, we found evidence of Gr and Or expression in all three adult tissue-types, with both tissue-specific and sex-specific differences as detailed below (Figure 9, Tables S9, S10, S11, S12, S13, S14). In total, we found evidence for expression of 67 of 73 Grs and 67 of 70 Ors identified in the H. melpomene reference genome.

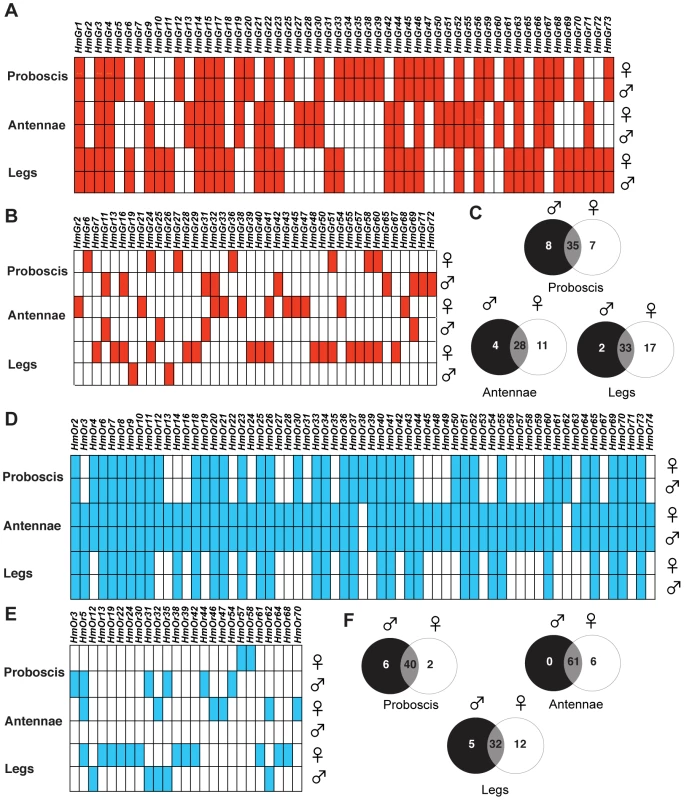

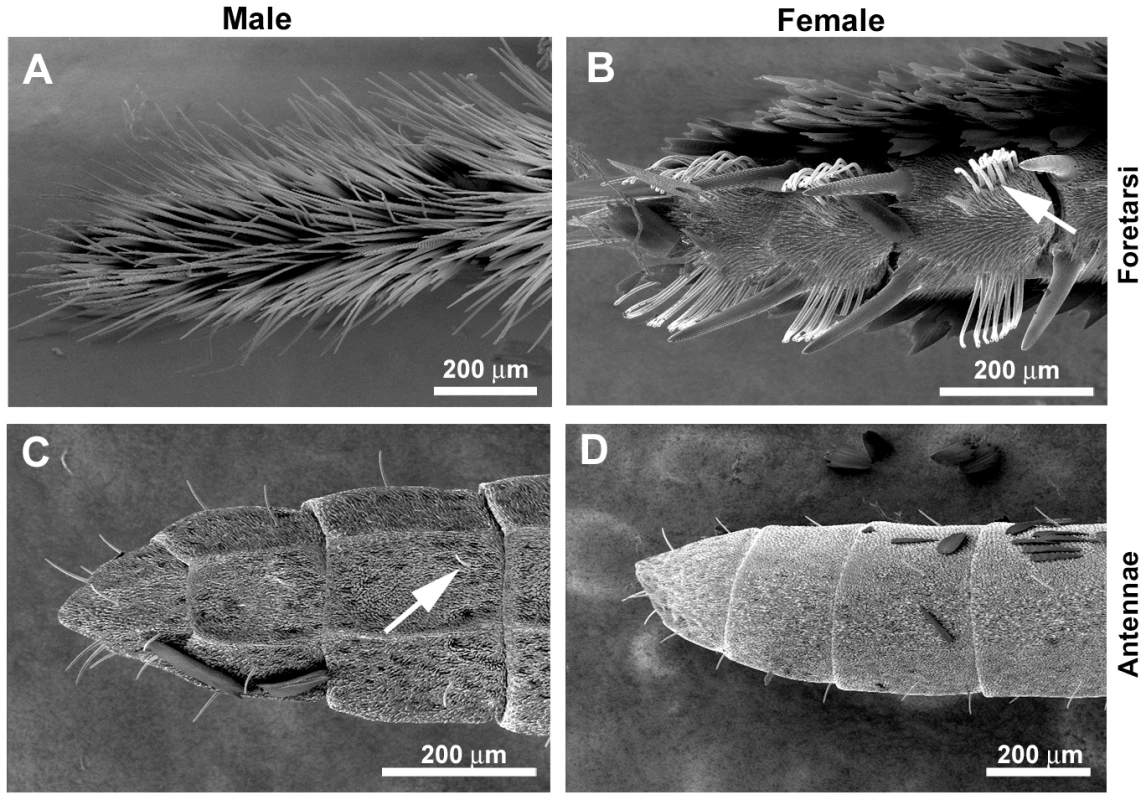

Strikingly, the sexual dimorphism of gustatory sensilla we observed among the foreleg foretarsi is reflected in Gr gene expression patterns. A total of thirty-two Grs are expressed in both male and female H. melpomene leg transcriptomes including three CO₂ receptors, HmGr1-3, four putative sugar receptors HmGr4, Gr6, Gr45 and Gr52 and a fructose receptor, HmGr9 (Figure 9A, Table S9, Supplementary Text). Many Grs showed sex-specific expression, however, with many more Grs in female (n = 46) as compared to male leg transcriptomes (n = 33)(Figure 9B, C).

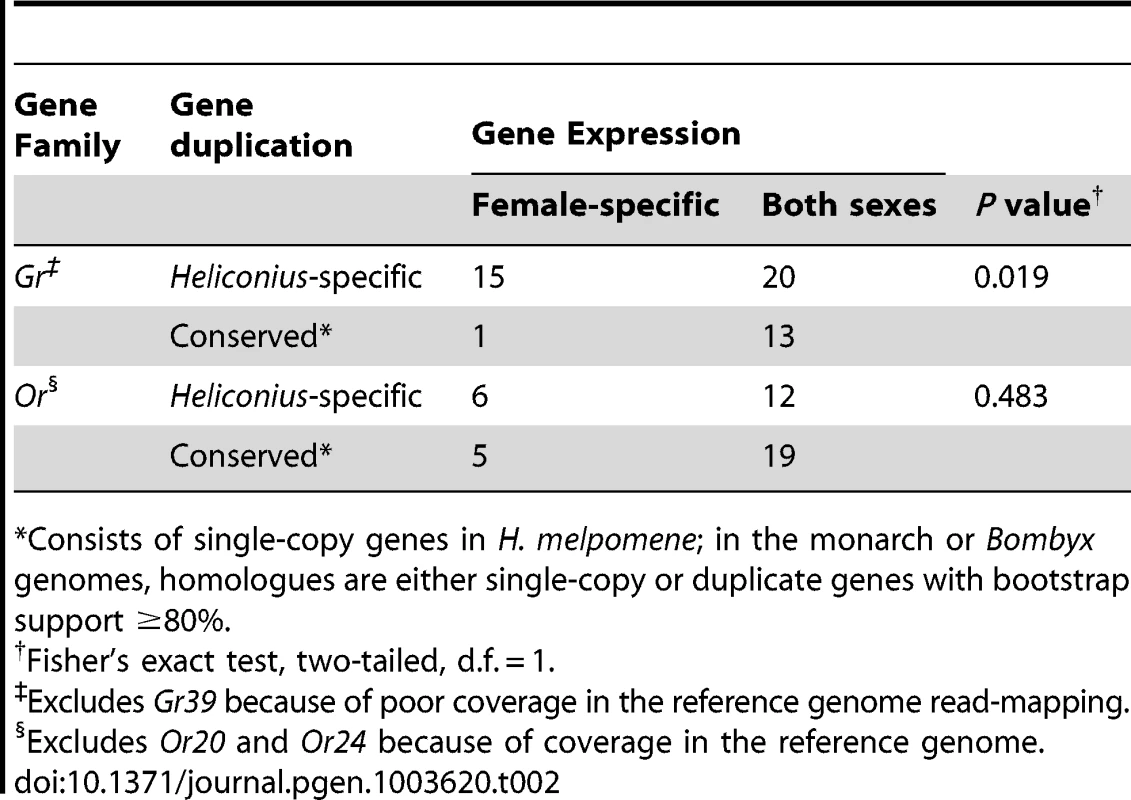

In total 15 of these Grs expressed in female legs, HmGr10, Gr24, Gr26, Gr29, Gr40, Gr41, Gr48, Gr50, Gr51, Gr16, Gr55, Gr57, Gr58, Gr60 and Gr67, are the result of duplications since Heliconius and Danaus shared a common ancestor (Figure 3 small arrows, Figure 9B, Table S9). By contrast, only one of the three male-biased Grs, HmGr19, evolved as a result of recent duplication. There is an excess of Heliconius-specific Grs but not Ors (see below) that are expressed in female legs (Fisher's Exact Test, two-tailed, p = 0.019)(Table 2). Since male H. melpomene do not need to identify host-plants for oviposition, it seems likely that the 17 female-specific Grs in our leg transcriptomes are candidate receptors involved in mediating oviposition (Figure S1).

Female Gr expression is more diverse in antennae than male Gr expression

Besides using their antennae for olfaction, female nymphalid butterflies also taste a host plant by antennal tapping before oviposition. This tapping behaviour presumably allows the host plant chemicals to come into physical contact with gustatory sensilla on the antennae. We therefore examined whether there was any difference in the abundance of gustatory sensilla on the antennae of male and female H. melpomene. Using scanning electron microscopy, we found individual gustatory sensilla scattered along each antennae of both male and female H. melpomene but no obvious sexual dimorphism in their abundance or distribution (Figure 2B). We found 28 Grs expressed in both male and female H. melpomene antennae (Figure 9A, Table S10), including two sugar receptors, HmGr4 and HmGr52, a putative fructose receptor HmGr9 and two CO₂ receptors, HmGr1 and Gr3. Besides the sugar and CO₂ receptors noted, other conserved genes that are expressed in both male and female antennae include HmGr63, a candidate Gr co-receptor (see Text S1), and HmGr66, a candidate bitter receptor.

We also found 11 Grs expressed in female H. melpomene antennae that did not appear to be expressed in male antennae. Two of these, HmGr47 and Gr68, appeared in the top one-third of the most abundant female antennal Grs in terms of number of reads recovered from the individual butterfly transcriptome. In contrast, just four Grs were expressed in male antennae HmGr11, Gr25, Gr31, and Gr69 but not female antennae (Figure 9B, C, Table S10). Six of the female-biased Grs and two of the male-biased Grs (Gr31, Gr69) expressed in antennae are the result of duplication events since Heliconius and Danaus shared a common ancestor.

Candidate Heliconius gustatory receptors for nectar- and pollen-feeding

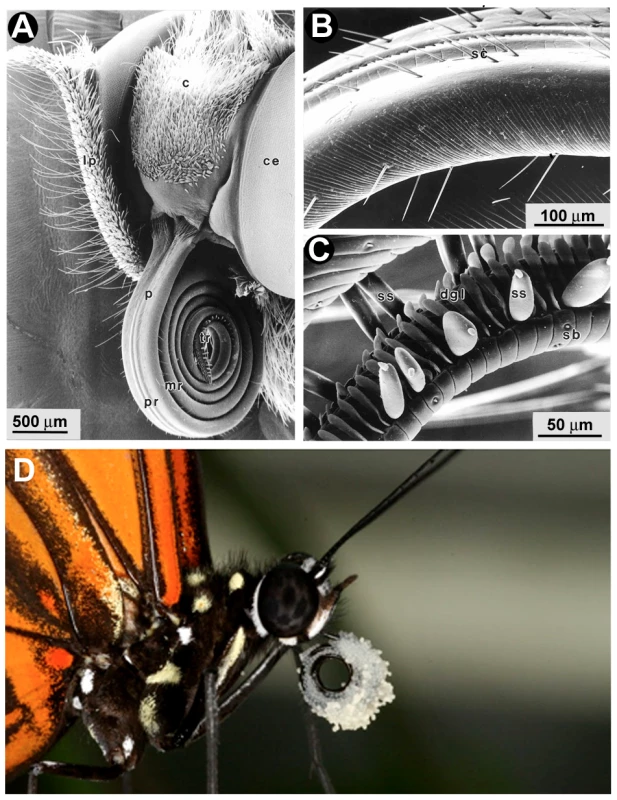

By contrast with the leg and antennal tissue, where more Grs are expressed in females compared to males, the labial palps and proboscis (Figure 1) transcriptomes contained the largest number of Grs (n = 35) expressed in both sexes (Figure 9A, C, Table S11). Five of the six candidate sugar receptors in the H. melpomene genome are expressed in both the male and the female transcriptomes along with two of the three conserved CO₂ receptors, which may be used to assess floral quality [59] (Figure 3, Table S11). A majority (21 of 35) of Heliconius Grs expressed in both male and female labial palps and proboscis libraries have no existing ortholog in the silkmoth genome, apparently the result of gene loss in B. mori or gene duplication along the lineage leading to Heliconius (Figure 3). This may in part reflect the fact that adult silkmoths have lost the ability to feed. Interestingly, four Grs expressed in both male and female labial palps and proboscis transcriptomes could not be detected in male and female antennae and legs (HmGr12, Gr20, Gr35, and Gr59)(Figure 3, red arrows, Figure 9B). Some of these Grs might play a role in the pollen-feeding behaviour that is specific to Heliconius, and which involves preferences for particular species of flowers in the plant families Rubiaceae, Cucurbitaceae and Verbenaceae (see Discussion).

Widespread expression of Ors in H. melpomene antennae, proboscis and labial palps and legs

In addition to the Gr gene expression described above, we examined Or expression in the three adult tissues. The expression of Ors in antennal tissue has been widely studied in a variety of insects including Drosophila and some Lepidoptera [50], [60]. As expected, we observed that Or gene expression was high in the antennae. Unexpectedly, Or expression was about as prevalent as Gr expression in the proboscis and labial palps and leg transcriptomes (Figure 9D, E, F). In total across all three tissues profiled, we found evidence for the expression of nearly all predicted Or genes (67 of 70 genes)(Table S12, S13, S14) in the H. melpomene reference genome [13].

Discussion

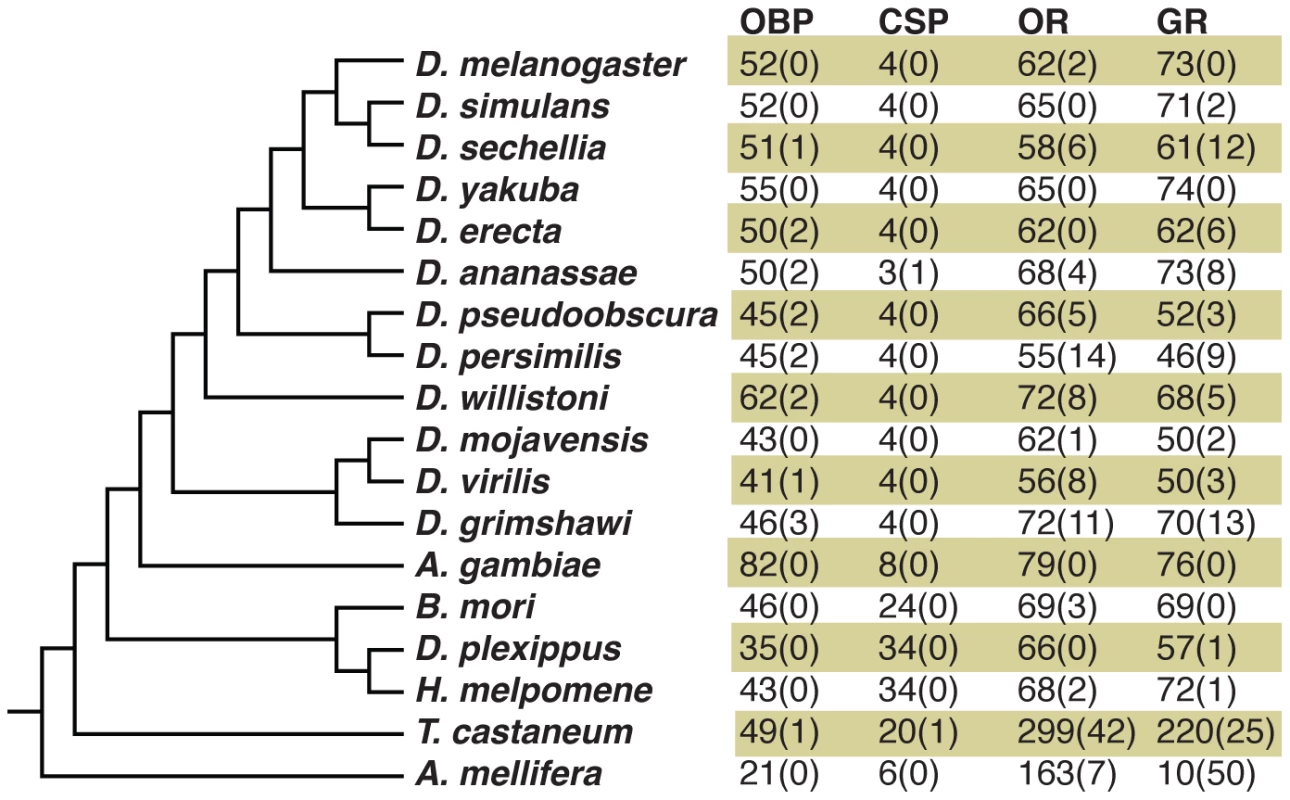

Outside Drosophila, the study of sensory gene family evolution in insects has generally been limited to the comparison of a small number of phylogenetically distant reference genomes. Such studies have commonly involved a comparison of the size of gene families between taxa in order to document lineage-specific expansions (Figure 10), and the comparison of dN/dS ratios to identify branches subject to rapid evolution [61]. Here we have used a similar approach to annotate 73 Grs in the Heliconius melpomene reference genome. However, we have also demonstrated the power of next-generation sequencing to elucidate patterns of evolution and expression of these genes. These data have offered exciting new insights into a set of genes that show both rapid evolution and sex-specific expression patterns, suggesting that female oviposition behaviour drives the evolution of butterfly gustatory receptors.

Previous work in other insects indicates that Grs are an important target for gene duplication and loss between species. Most notably, D. sechellia and D. erecta are host specialists, on Morinda citrifolia and Pandanus candelabrum respectively, while D. simulans is a generalist fly exploiting a broad array of rotting fruit [46]. Host specialization in the former species is associated with an acceleration of gene loss and increased rates of amino acid evolution at receptors that remain intact. Here we have used whole-genome Illumina sequencing of single diploid individuals to similarly document patterns of gene gain and loss across Heliconius. This method yields highly fragmented genome assemblies, but such assemblies have proven very informative, most notably for studying the evolution of the clade of single-exon bitter receptor genes. We identified three gene duplication events along the lineage leading to Heliconius, followed by eight independent instances of clade-specific pseudogenizations or losses of different members of the intronless Grs, Gr22-26 and Gr53, within Heliconius and one instance within Danaus plexippus (Figure 5 and Figure 6). In both Heliconius and Drosophila gene gain and loss appear to primarily affect Grs that are presumed to respond to bitter compounds (Figure 3). To verify whether this pattern holds within the genus Heliconius for the remaining gene family members with more complex intron-exon structure will require better genome assemblies for multiple Heliconius species (Table S2).

These patterns of rapid gene gain and loss are mirrored by within-population variation in copy number. From 16 resequenced genomes for H. melpomene and its sister species H. cydno, we have shown that CNVs occur more commonly among the Grs than the Ors (Figure 7, 8, Table 1). Within the Grs, the bitter receptors of H. melpomene represent a class of genes that are both highly prone to lineage-specific duplication and commonly subject to population-level copy number variation. These putative bitter receptor genes are also more likely to show female-specific expression, especially in the legs, which suggests a role in insect-host chemical interactions (Table 2, Figure 3, Figure S1).

In human genomes, a tendency for CNV-rich areas to display higher dN/dS ratios and yield paralogous genes has been noted [62], along with an enrichment of CNVs in genes involved in immune function and in the senses (specifically in Ors which are unrelated to the insect Ors) [63], [64]. It is also widely known that copy-number variation is an important source of disease-causing mutations in humans [64]. With the exception of insecticide resistance in insects [65], [66], the spectrum of naturally-occurring copy-number variants is only just starting to be explored in Drosophila [67], [68] and non-model systems. Our results demonstrate the great utility of high throughput sequencing to reveal the naturally-occurring spectrum of CNVs that underlie gene family expansions in non-model systems, in traits of ecological relevance.

Heliconius butterflies have complex relationships with their Passifloraceae host plants. Some species are host-specialist, feeding on only one or a few Passiflora species, others specialise on particular sub-genera within Passiflora, while others are generalists, albeit within this one host plant family (Figure 6) [53]. The Passifloraceae is extremely chemically diverse, most notably in their diversity of cyanogenic glycosides that protect the plant from herbivores. It seems likely that coevolution of the butterfly chemosensory and detoxification system on the one hand, with the plant biochemical defense on the other, has played an important role in the evolution of this chemical arsenal. In contrast to the research already carried out on the chemistry of the host plants [54], until recently almost nothing was known about the chemosensory system of Heliconius butterflies. All of these insect host-plant interactions are mediated primarily by adult female butterflies, which must correctly identify suitable host plants for oviposition [69], [70], or risk the survival of their offspring.

Expression data for Grs in the Lepidoptera have been limited until now–especially for adults–due to their low expression level. The largest previous study identified 14 Grs profiled in larval B. mori [32]. We have found evidence for adult expression for most (∼91%) of the 73 predicted Gr genes. This provides a marked contrast to the handful of gustatory receptors that have been identified from traditional expressed sequence tag (EST) projects in other Lepidoptera. Our methods may provide a greatly improved yield of expressed genes because we now have a set of well-annotated target Gr genes against which RNA-seq data can be mapped, together with a greater diversity of transcripts afforded by deep sequencing. Such methods have also permitted us to find widespread expression of their sister gene family, the Ors, in the adult chemosensory tissues examined (68 of 70 or 97% of predicted genes) (Figure 9).

Many of these Gr genes are likely to be involved in the detection of host plant attractants as well as toxic secondary metabolites and thus allow the discrimination of suitable hosts. Most notably, there were a large number of Heliconius-specific Grs with female-biased expression in both legs and antennae (Figure 9). As mentioned previously, these female-biased leg Grs (but not Ors) are also more likely to represent unique duplicates on the Heliconius lineage (Table 2). Female-biased Or expression, as quantified using RNA-seq data, has been reported for Ors expressed in the antennae of the adult mosquito, Anopheles gambiae [71]. Specifically, 22 Ors displayed enhanced expression in mosquito female antennae but not in male antennae. Since adult mosquito females but not males need to find hosts for a blood-meal, and adult butterfly females but not males need to find host plants for egg-laying, this suggests that host-seeking behaviour of female insects may be an important general driver of sensory gene evolution. Indirect evidence for the possible role of some of these Grs in Heliconius host plant detection comes from comparative studies of Grs mediating oviposition behaviour in swallowtail butterflies (Papilionidae). Papilio xuthus PxGr1 a member of the Gr subgroup that contains D. melanogaster Gr43a and HmGr9, has been characterized as a receptor for synephrine, which is an alkaloid found in citrus trees [52]. It is expressed in female P. xuthus tarsi and is necessary for the correct oviposition behavior of swallowtail butterflies [52]. Within the two clades most closely-related to PxGr1, are 9 butterfly-specific Grs: HmGr10, Gr16, Gr55, Gr56 and Gr57, and the newly-described DpGr16, Gr50, Gr52, and Gr54 (Figure 3). Four these Grs, HmGr16, Gr55, Gr56 and Gr57, result from Heliconius-specific gene duplications (i.e., no Danaus or Bombyx homologs). Grs55-57 are also in the top ten most highly expressed Grs in female legs. The identification of these sex-biased leg Grs has provided an important starting point for future ligand specificity studies combining heterologous expression, electrophysiology, RNAi [51], assays of the proboscis-extension reflex, and female oviposition behavior.

Lastly, the patterns of Gr gene expression among different tissues and sexes has permitted us to identify a number of Grs that are strong candidates for mediating the remarkable pollen feeding behaviour that is unique to Heliconius, among the butterflies. The Heliconius proboscis contains at least two types of gustatory sensilla, hair-like sensilla chaetica, and sensilla styloconica (Figure 1). Like other butterflies, Heliconius respond to varying amounts of sugars including sucrose present in floral nectar [72]. Unlike other moths and butterflies, Heliconius actively collect pollen with their proboscides, preferentially from Psychotria (Rubiaceae), Psiguria/Gurania (Cucurbitaceae) and Lantana (Verbenaceae) flowers [17], [18], [73]. Once a pollen load is collected (Figure 1D), the butterflies use a combination of mechanical shearing (coiling and uncoiling of the proboscis) and enzymatic activity (using proteases found in saliva) to release amino acids from the pollen [74]. The RNA-seq data we have collected for H. melpomene proboscis and labial palps should provide a useful resource for future studies examining the molecular basis of this unique digestive trait.

Pollen feeding in adult Heliconius has an important ecological function. Amino acids obtained from pollen are key resources used in male nuptial gifts and egg allocation [18], [75]–[77]. They also permit Heliconius adults to have exceptionally long lifespans. Pollen feeding behavior is not found outside the genus Heliconius, even in the sister genus Eueides, whose larvae share a preference for Passiflora host-plants with Heliconius. In the present study we have identified four Heliconius-specific Grs that are only expressed in the proboscis (HmGr12, Gr20, Gr35 and Gr59) but not in antennae or legs (Figure 9B), suggesting a role for these genes in pollen-feeding behaviour.

Taken together, the whole-genome and whole-transcriptome data suggest that Gr genes in particular are highly evolutionarily labile both on short and long evolutionary timescales, and begin to offer an insight into the likely molecular basis for the rapid coevolution observed between these butterflies and their host plants. Understanding the remarkable diversity underlying this ecological interaction at a molecular level has remained a challenge (but see [32], [52], [78], [79]). Thanks to technological innovations in sequencing, the genetic basis of taste and olfaction involved in host-plant adaptation in Heliconius is beginning to be uncovered.

Conclusions

We have shown that like the opsin visual receptors [80], the chemosensory superfamily composed of constituent Gr and Or families in Lepidoptera show rapid gene family evolution, with higher rates of copy-number variation and gene duplication among the Grs than the Ors, as well as gene losses in the Grs. In particular, there is a group of putative bitter receptors that show female-specific expression in the legs and that are especially prone to gene duplication, providing new material for sensory diversification in the insect-host plant arms race. We have also shown, for the first time, widespread expression of Ors in non-antennal tissues in a lepidopteran. With the most comprehensive data set on Gr and Or expression in butterflies to date we are one step closer to identifying the sensory and molecular genetic basis of the Heliconius-Passiflora co-evolutionary race that inspired Ehrlich and Raven in 1964.

Materials and Methods

Genome annotation

tBLASTn searches were conducted iteratively against the H. melpomene melpomene genome (version v1.1) and haplotype scaffolds [13] using B. mori [28], [47] and D. plexippus Grs [14] as input sequences. For these in silico gene predictions, intron-exon boundaries were identified by first translating the scaffold nucleotides in MEGA version 5 [81], searching for exons identified in the tBLASTn searches, then back translating to identify splice junctions. Intron sequences were then excised to verify that the remaining exonic sequences formed an in-frame coding sequence. Insect Grs are defined by a conserved C-terminal motif TYhhhhhQF, where ‘h’ is any hydrophobic amino acid [21]. We inspected our predicted protein sequences for this motif or variants thereof, specifically ‘S’, ‘M’ or ‘K’ instead of a ‘T’ or ‘L’, ‘T’ or ‘I’ instead of ‘F’. In the handful of cases where we were unable to find the last short exon that contains this motif, final assignment to the Gr gene family was based on using the predicted amino acid sequence as a search string for either tBLASTn or BLASTp against the nr/nt Genbank database. Gene annotations were submitted to the EnsemblMetazoa database http://metazoa.ensembl.org/Heliconius_melpomene/Info/Index as part of the H. melpomene v. 2 genome release (for GeneIDs see Table S1). Chromosomal assignments were based on published mapping of scaffolds in the H. melpomene melpomene reference genome [13].

Following amino acid alignment using ClustalW, preliminary phylogenetic trees were constructed in MEGA using neighbor-joining and pair-wise deletion to identify orthologous relationships with B. mori and D. plexippus Grs. Reciprocal tBLASTn searches against the B. mori and D. plexippus genomes as well as searches using the protein2genome module in EXONERATE [82] were then performed in order to search for ‘missing’ Grs in those genomes. Final phylogenetic analysis was performed using a maximum-likelihood (ML) algorithm and JTT model on an amino acid alignment that was inspected by eye and manually adjusted. These results were compared to a ML tree made from a Clustal-Omega alignment [83] and were found to be nearly identical. Once the initial H. melpomene Gr gene predictions were obtained, EXONERATE, Perl scripts and manual annotations in Apollo [84] were used to produce gff3 files for submission of the annotated H. melpomene genome scaffolds to EMBL-EBI.

RNA-sequencing

Butterfly pupae of H. melpomene rosina were obtained from Suministros Entomológicos Costarricenses, S.A., Costa Rica. Adult males and females were sexed and frozen at −80°C. Total RNAs were extracted separately from antennae, proboscis together with labial palps, and all six legs of three males and three females of H. melpomene using Trizol (Life Technologies, Grand Island, NY). A NucleoSpin RNA II kit (Macherey-Nagel, Bethlehem, PA) was used to purify total RNAs. Each total RNA sample was purified through one NucleoSpin RNA II column. Purified total RNA samples were quantified using a Qubit 2.0 Fluorometer (Life Technologies, Grand Island, NY). The quality of the RNA samples was checked using an Agilent Bioanalyzer 2100 (Agilent Technologies, Santa Clara, CA). 0.3–4.0 µg of purified total RNAs were used to make cDNA libraries. A TruSeq RNA sample prep kit (Illumina, San Diego, CA) was used to prepare 18 individual cDNA libraries. After being normalized according to their concentrations, the enriched individual libraries were pooled and then run on a 2% agarose gel. cDNA products ranging from 280 to 340 bp with an average of 310 bp were cut out and purified using a Geneclean III kit (MP Biomedicals, Solon, OH) to facilitate post-sequencing assembly. After being re-purified using Agencourt AMPure XP magnetic beads (Beckman Coulter Genomics, Danvers, MA), the cDNA pool was quantified using the Qubit 2.0 Fluorometer, and quality control-checked using the Agilent Bioanalyzer 2100. The cDNA pools were then normalized to 10 nM and run as either two paired-end or three single-end 100 bp runs on a HiSeq 2000 (Illumina, San Diego, CA) by the UCI Genomics High-Throughput Facility.

RNA-seq assembly and read mapping

mRNA sequences were demultiplexed, trimmed and sorted using Python and Perl scripts. A single de novo assembly of the combined libraries was performed using CLC Genomics Workbench 5 to check for missing exons in our gene models. The 73 corrected Gr gene models and 70 Or gene models were then used as an alignment reference to perform unique read mapping of each individual chemosensory transcriptome. To determine if an individual Gr or Or was expressed in a given tissue, each of the 1716 individual Gr and Or mapping alignments was inspected by eye for uniquely mapped reads, and any spuriously-mapped reads (i.e., reads <70 bp in length with indels or sequence mismatches at the ends) were discarded. As a control for potential differences in RNA preparation between samples, we also quantified the number of uniquely mapped fragments to the widely-expressed elongation factor 1-alpha (EF1α) gene transcript and calculated the Fragments Per Kilobase of transcript per Million mapped reads (FPKM) [85]. Illumina reads for each of the libraries were deposited as fastq files in the ArrayExpress archive under the accession number: E-TAB-1500 (Table S7).

Scanning electron microscopy

One week old adult H. melpomene rosina butterflies were sexed, frozen at −80°C, then dissected and mounted for imaging on an FEI/Philips XL30 FEG scanning electron microscope at UCI's Materials Characterization User Facility. Forelegs, middle legs, hindlegs and antennae were examined for the presence of gustatory sensilla.

Copy number variation analysis

We also examined resequenced genomes of twelve H. melpomene and four H. cydno individuals, including H. melpomene aglaope, H. melpomene amaryllis and H. melpomene rosina (Table S4), sequenced by The GenePool, University of Edinburgh, U.K. and the FAS Center, Harvard University, U.S.A., for evidence of copy-number variation (CNV) in the Grs and Ors using CNVnator [56]. These sequences were deposited in the European Nucleotide Archive (ENA) under accession number: ERP002440. The Illumina resequenced genomes were first mapped to the H. melpomene reference genome and the average read depth was calculated along a 100 bp sliding window. The output of CNVnator was parsed for candidate insertion and deletion variants, and those with estimated copy number of >2× were counted as potential duplications and <0.5× as potential deletions.

Whole-genome sequence assembly

The GenePool, University of Edinburgh, and the Oxford Genomics Centre, University of Oxford, U.K., produced whole genome 100 bp sequences from H. cydno, H. timareta, H. wallacei, H. doris, H. clysonymus, H. telesiphe, H. erato petiverana, H. sara and H. sapho using the Illumina Pipeline v. 1.5–1.7 with insert sizes ranging from 300 to 400 bp. We deposited sequences for H. sapho and H. sara in the Sequence Read Archive (SRA) under accession number ERP002444. We performed de novo assembly of the short reads using Abyss v. 1.2 [86] implemented in parallel at the School of Life Sciences, University of Cambridge, U.K. Based on previous results [87], recommendations estimated by the software, and comparison of N50 values in preliminary experiments, we chose a k-mer size of 31, a minimum number of pairs required n = 5 and the minimum mean k-mer coverage of a unitig c = 2 (full command: abyss-pe n = 5 k = 31 c = 2 in = ‘for.fastq rev.fastq’). In all assemblies, at least 96% of reads mapped back to the contigs. We created BLAST databases of these whole genome sequence assembly contigs (Table S2) in Geneious Pro v. 5.5.6. The lack of introns in the putative bitter receptor genes Gr22-26 and Gr53 permitted us to easily retrieve them from these BLAST databases. To confirm the identity and improve the quality of the sequences found, we mapped the reads to the assembled exon sequences in CLC Genomics Workbench v. 5.5.1, using the following conservative settings to prevent mis-mapping of paralogous sequences: mismatch, insertion and deletion cost of 3; length fraction and similarity fraction of 0.9. We then inspected all read-mappings by eye. Because the intronless Grs are closely related, we aligned the translated nucleotide sequences in MEGA using the ClustalW algorithm, and also inspected the alignment by eye. For all intronless Gr sequences except for the pseudogenes, sequence length was highly conserved (i.e., there were few indels). To illustrate the high substitution rate of the retrieved pseudogene sequences, we selected the neighbor-joining method for tree reconstruction and performed 500 bootstrap replicates.

Inferring gene duplications and losses

To infer the number of intronless Gr gene duplications and losses, we used the program Notung v. 2.6 [88], [89], which reconciles gene trees onto the species tree. The gene tree was made by a maximum likelihood analysis of 1074 nucleotide sites, aligned by Clustal-Omega, and 500 bootstrap replications. The species tree was derived from a phylogeny based on independent nuclear and mitochondrial DNA sequences [90].

RT-PCR

We verified the presence of HmGr22 in several adult tissues using reverse-transcriptase PCR and primers for HmGr22 (5′-CCATAATTTTGTCATCCT-3′ and 5′-GATTTCGAAATAAGGTCTGT-3′) and EF1alpha (5′-CGTTTCGAGGAAATCAAGAAGG-3′ and 5′-GACATCTTGTAAGGGAAGACGCAG 3′). RNA was extracted from fresh frozen specimens using Trizol and purified using the Nucleospin RNA II kit, which contains a DNAase-treatment step. RNA concentration was diluted to 12.5 µg/ml. Each 25 µl reaction had 2.5 µl 10× BD Advantage 2 PCR buffer, 2.5 µl dNTPs (2 mM), 0.5 µl (100 µM) forward and 0.5 µl reverse primer, 0.5 µl (1∶20 diluted) Stratagene Affinity Script Reverse Transcriptase, 0.5 µl 50× Advantage 2 Polymerase Mix, 17 µl H₂O and 1 µl RNA. The PCR reaction consisted of 38 cycles of 95°C for 30 s, 55°C for 30 s, and 68°C for 55 s. The identity of the RT-PCR products was confirmed by Sanger sequencing.
