Autophagy Induction Is a Tor- and Tp53-Independent Cell Survival Response in a Zebrafish Model of Disrupted Ribosome Biogenesis

Summary

Ribosome biogenesis underpins cell growth and division. Disruptions in ribosome biogenesis and translation initiation are deleterious to development and underlie a spectrum of diseases known collectively as ribosomopathies. Here, we describe a novel zebrafish mutant, titania (tti^s450), which harbours a recessive lethal mutation in pwp2h, a gene encoding a protein component of the small subunit processome. The biochemical impacts of this lesion are decreased production of mature 18S rRNA molecules, activation of Tp53, and impaired ribosome biogenesis. In tti^s450, the growth of the endodermal organs, eyes, brain, and craniofacial structures is severely arrested and autophagy is up-regulated, allowing intestinal epithelial cells to evade cell death. Inhibiting autophagy in tti^s450 larvae markedly reduces their lifespan. Somewhat surprisingly, autophagy induction in tti^s450 larvae is independent of the state of the Tor pathway and proceeds unabated in Tp53-mutant larvae. These data demonstrate that autophagy is a survival mechanism invoked in response to ribosomal stress. This response may be of relevance to therapeutic strategies aimed at killing cancer cells by targeting ribosome biogenesis. In certain contexts, these treatments may promote autophagy and contribute to cancer cells evading cell death.

Introduction

The generation of new ribosomes is the most energy-consuming process in the cell [1]. It requires the coordinated transcription and maturation of 4 different ribosomal RNA (rRNA) molecules and 70 small nucleolar RNAs (snoRNAs) together with the synthesis of approximately 80 ribosomal proteins (RPs) and an additional 170 associated proteins [2]. The regulation of this complex, multi-step process is the major factor determining the potential of a cell to grow and divide [3]. In times of nutrient availability and/or hormonal and growth factor signalling, the onset of ribosome biogenesis is tightly coupled to the translational requirements of a rapidly proliferating cell. In contrast, ribosome biogenesis is down-regulated to conserve energy and restrict unwarranted cell growth and division when the cellular environment is nutrient poor or challenged by harmful stimuli such as hypoxia, reactive oxygen species or genotoxic stress. Inherited impairment mutations in genes that encode components of the ribosome biogenesis machinery or ribosome structure underlie a number of human syndromes, collectively known as ribosomopathies, with a broad range of clinical phenotypes [4]. There is a growing appreciation that sporadically acquired mutations in genes that contribute to ribosome function also increase susceptibility to human cancer, particularly leukemia and lymphoma, although the precise mechanisms involved are only just beginning to emerge [5].

The process of human ribosome biogenesis initiates in the nucleolus with the transcription by RNA polymerase (Pol) I of a 45S pre-rRNA precursor (35S in yeast), which contains the mature 28S, 18S and 5.8S rRNAs interspersed by spacer sequences. A series of processing and chemical modification events mediated by discrete multiprotein/RNA complexes known as the 90S, 66S and 43S pre-ribosomal particles generate the mature 18S, 28S and 5.8S species, respectively and assembles them into the 40S and 60S ribosomal subunits prior to their export from the nucleus to the cytoplasm where they associate to form the functional 80S ribosomes [6]. In yeast, the 90S particle, also known as the small-subunit processome, has been shown to be strictly required for the production of 40S ribosomal subunits containing 18S rRNA [7].

One of the mechanisms through which ribosome biogenesis is coupled to cell growth and proliferation is the Target of rapamycin (Tor) pathway, which is activated by cell surface growth factor and insulin receptors and other growth promoting sensors that detect when nutrients such as amino acids are plentiful. Activation of the Tor pathway stimulates the phosphorylation of S6 kinase (S6K) and 4E-Binding Protein 1 (4EBP1), which regulate ribosome biogenesis and mRNA translation [8], [9]. Activation of Tor also inhibits macroautophagy (hereafter referred to as autophagy), an evolutionarily conserved process that provides a survival mechanism during periods of cell starvation by promoting intracellular recycling of organelles, such as mitochondria and ribosomes [10], [11].

Autophagy describes a complex multi-step process whereby cells sequester a portion of their cytoplasm inside double-membrane vesicles called autophagosomes, which then fuse with lysosomes to form autolysosomes [12]. Inside these vesicles, the captured material, together with the inner membrane, is digested and the released nutrients are recycled. In metazoa, autophagy mediates the catabolic turnover of malfunctioning, damaged or superfluous proteins and organelles to maintain cellular homeostasis during development and in adult life [13]. It is activated in response to multiple forms of cellular stress, including nutrient deprivation, endoplasmic reticulum (ER) stress, accumulation of reactive oxygen species, DNA damage, invasion by intracellular pathogens and intense exercise [14], [15]. Some of these triggers induce autophagy through activation of Tumour protein 53 (Tp53), which increases the expression of the β1 and β2 subunits of AMP-activated protein kinase (AMPK), an evolutionarily conserved sensor of cellular energy levels [16]. AMPK responds to reductions in the ratio of ATP:AMP nucleotides by phosphorylating multiple targets with functions related to energy metabolism, including the Tuberous sclerosis complex (Tsc) protein, Tsc2 and Raptor. These phosphorylation events indirectly inhibit the Torc1 complex, which in its active state inhibits autophagy by negatively regulating the protein kinase, Ulk1 (mammalian orthologue of yeast Atg1). Ulk1, together with Atg13, Fip200 and Atg101, are the key components of a complex that initiates mammalian autophagosome formation [17], [18]. Recent work proposes that AMPK may also induce autophagy independently of Torc1 inhibition by directly phosphorylating Ulk1 [19]–[21]. However, a clear understanding of the AMPK-Ulk1-Torc1 network is yet to emerge [22].

In this study, we employed a zebrafish intestinal mutant, titania^s450 (tti^s450), as an in vivo model to examine the connection between rRNA processing and autophagy. tti^s450 was identified on the basis of its hypoplastic intestinal morphology at 96 hours post-fertilization (hpf) in a focused ENU mutagenesis screen designed to identify mutants with defects in the size and morphology of the endoderm-derived organs [23]. Using positional cloning we identified periodic tryptophan protein 2 homologue (pwp2h) as the mutated gene in tti^s450. In yeast, Pwp2 has been shown to be an essential scaffold component of the 90S pre-ribosomal particle, facilitating the binding of proteins such as the U3 snoRNP to the 5′ end of the 35S rRNA precursor [24]. Depletion of Pwp2 in yeast cells results in reduced production of mature 18S rRNA and 40S ribosomal subunits [24], [25]. In agreement with these results, we show that zebrafish Pwp2h plays a conserved role in rRNA processing and ribosome biogenesis. Moreover, we use this in vivo model system to demonstrate a connection between rRNA processing and autophagy which has, to our knowledge, been hitherto unappreciated.

Results

tti^s450 larvae exhibit defects in intestinal, liver, pancreas, and craniofacial development

tti^s450 is one of several intestinal mutants identified in an ENU mutagenesis screen (the Liver^plus screen) conducted on a transgenic line of zebrafish (Tg(XlEef1a1:GFP)^s854) harbouring a GFP transgene (“gutGFP”) expressed specifically in the digestive organs [23], [26], [27]. Abnormalities in the gross morphology of tti^s450 larvae are first detectable at 72 hpf and became more severe with time. At 120 hpf, the wildtype (WT) intestinal epithelium exhibits a columnar morphology and starts to elaborate folds; in contrast, the intestinal epithelium in tti^s450 remains thin and unfolded (Figure 1A and 1B). tti^s450 larvae also exhibit smaller eyes (microphthalmia), a smaller, misshapen head, an uninflated swim bladder and impaired yolk absorption (Figure 1A). At 120 hpf, the tti^s450 pancreas and liver are both substantially smaller than in WT (Figure 1C).

By 120 hpf, the rostral intestine (intestinal bulb region) in tti^s450 larvae is markedly smaller than in WT and the intestinal epithelial cells (IECs) are cuboidal rather than columnar in shape (Figure 1C, 1D). The intestinal lumen appears clear of cellular debris. Cells in the mid and posterior intestine are also smaller and less polarized than in WT (Figure 1D). The mean apicobasal height of the cells in the intestinal bulb region of tti^s450 larvae is approximately 40% less than that in WT (Figure 1E). However, cellular differentiation is not inhibited as similar numbers of mucin-producing goblet cells are found in the mid-intestinal region of tti^s450 larvae as in WT (Figure 1D).

The reduction in cell size is accompanied by changes in the proportion of cells in different phases of the cell cycle. At 72 hpf, the intestinal epithelium is the most rapidly proliferating tissue in the zebrafish embryo [28], [29]. Using BrdU incorporation analysis, we detected fewer tti^s450 IECs in S phase than WT IECs (Figure S1A, S1B). Fluorescent activated cell sorting (FACS) of cells disaggregated from WT and tti^s450 larvae carrying the gutGFP transgene allowed us to analyze the proliferation of cells derived specifically from the liver, pancreas and intestine. We observed a significant accumulation of tti^s450 cells in the G1 phase of the cell cycle at 96 hpf (88% in tti^s450 compared to 70% in WT) and a corresponding reduction of tti^s450 cells in S phase (8% in tti^s450 compared to 28% in WT). No significant difference in the number of cells in G2 was observed (Figure 1F).

The tti^s450 phenotype is completely penetrant, and the animals die at 8–9 days post-fertilization (dpf). Heterozygous tti^s450 carriers are phenotypically indistinguishable from WT siblings.

tti^s450 harbours a mutation in pwp2h

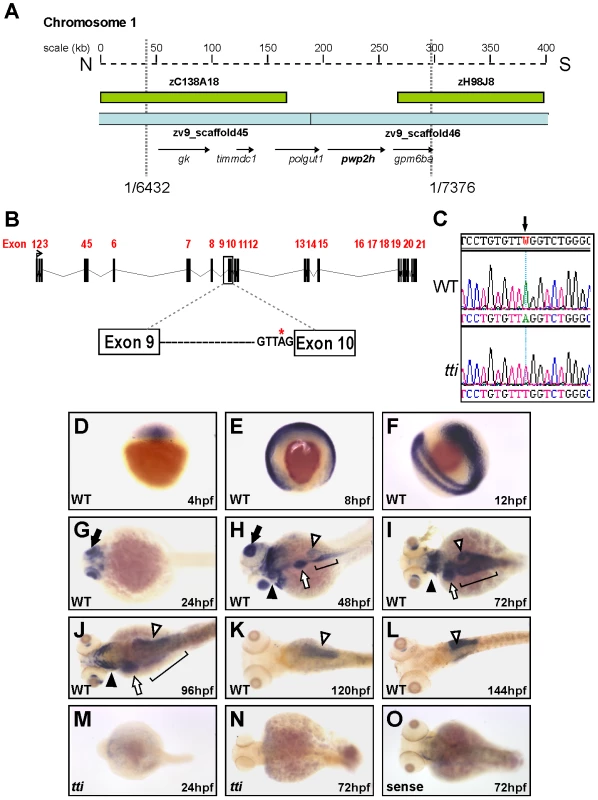

We identified the mutated gene responsible for the abnormal digestive organ development in tti^s450 by mapping the tti^s450 locus to a 260-kilobase interval on chromosome 1 encompassing 5 genes (Figure 2A). One of these genes, pwp2h, comprises 21 exons spanning 2928 base pairs (Figure 2B) and encodes a protein of 937 amino acids containing 13 WD-40 repeat domains. WD-40 repeats generally serve as platforms for the assembly of proteins in multi-protein complexes and are conserved from yeast to mammals. We identified an A to T base change in the conserved splice acceptor site in intron 9 of pwp2h in tti^s450 mutants (Figure 2C) resulting in utilization of a cryptic splice site 11 bp upstream of exon 10, thereby generating a frame-shift and nonsense mutation in codon 421 (Figure S2A) and truncating the Pwp2h protein in the seventh WD domain (Figure S3).

The tti phenotype is recapitulated by microinjection of 1–4 cell zebrafish embryos with an antisense morpholino oligonucleotide targeted to pwp2h mRNA (Figure S2B, S2C). That mutant pwp2h is responsible for the tti^s450 phenotype was confirmed by non-complementation with an independent allele of pwp2h, tti^s927 (Figure S2D–S2G). tti^s927 was identified in an ENU mutagenesis screen (the 2-CLIP screen) [30] conducted on the (ins:dsRed)^m1081;Tg(fabp10:dsRed;ela3l:GFP)^gz12 transgenic background [31] to facilitate assessment of pancreas and liver development. tti^s927 harbours a missense mutation in pwp2h: a T to A transversion in exon 5 (Figure S2H) resulting in the replacement of a valine with glutamic acid (Figure S2I) in the second WD-40 domain (Figure S3). The phenotypes of tti^s450 and tti^s927 larvae are essentially indistinguishable.

The pwp2h mRNA expression pattern delineates the tissues that are abnormal in tti^s450

In order to assess the expression pattern of pwp2h during zebrafish embryogenesis, we performed wholemount in situ hybridization (WISH). In WT embryos pwp2h mRNA is ubiquitously expressed between 4–12 hpf and then becomes restricted to the brain and eyes at 24 hpf (Figure 2D–2G). By 48 hpf pwp2h mRNA is expressed in the pharyngeal cartilages and primitive gut, including the liver and pancreas anlagen (Figure 2H). By 72 hpf expression in the eye is largely extinguished and restricted to the pharyngeal cartilages, liver, intestine and pancreas (Figure 2I). By 96 hpf, pwp2h expression in the intestine is diminishing but is sustained in the pharyngeal cartilages, liver and pancreas (Figure 2J). By 120–144 hpf, the pancreas is the only tissue in which pwp2h mRNA is detected (Figure 2K, 2L). Expression of pwp2h is absent in tti^s450 embryos from 24 hpf onwards (Figure 2M, 2N) indicating that upon exhaustion of maternally deposited supplies of WT pwp2h mRNA, the zygotically expressed mutant mRNA probably undergoes nonsense-mediated decay (NMD). These expression data are consistent with the eye, brain, pharyngeal cartilages and digestive organs being the most severely affected organs in tti^s450 larvae.

pwp2h deficiency leads to impaired ribosome biogenesis in tti^s450 larvae

In all species, rRNA is transcribed as a large pre-rRNA transcript which undergoes a series of enzymatic cleavage steps within the nucleolus by large ribonucleoprotein complexes to produce mature 18S, 28S and 5.8S rRNAs (Figure 3B). To investigate rRNA processing in tti^s450 larvae, we conducted Northern blot analysis (Figure 3A) using probes designed to hybridize to the external (5′ETS) and internal-transcribed (ITS1 and ITS2) spacer regions of zebrafish 45S pre-rRNA (Figure 3B). These probes detect the full-length rRNA precursor and all intermediate species but not the fully mature forms of rRNA. This analysis revealed a 2.5 fold accumulation of the full-length precursor ‘a’ in tti^s450 and an accumulation of the intermediates ‘b’ and ‘c’ (4.6 fold and 1.3 fold, respectively). These observations are consistent with a block in the processing of the full-length rRNA precursor. We also noted a 2.6 fold decrease in tti^s450 larvae in the level of ‘d’, the immediate precursor of 18S rRNA (Figure 3A). Furthermore, E-bioanalyser analysis revealed a marked reduction in the production of mature 18S rRNA in tti^s450 larvae (Figure 3C); however, the production of mature 28S rRNA was unaffected (Figure 3C). These changes altered the ratio of 28S/18S rRNA in tti^s450 larvae, which is 2.8 at 120 hpf, compared to 1.8 in WT (Figure 3D).

To investigate the impact of Pwp2h deficiency on ribosome formation, we prepared extracts of WT and tti zebrafish larvae at 96 hpf and fractionated the ribosomal subunits on sucrose density gradients (Figure 3E). The areas under the peaks corresponding to the 40S subunits and 80S monosomes in tti^s450 lysates are markedly smaller compared to those in WT (reduced approximately 4 fold and 2-fold, respectively). Meanwhile, the area under the peak corresponding to the 60S subunits is increased by approximately 4.5 fold (Figure 3F). Collectively, these data are consistent with Pwp2h deficiency primarily impacting on 40S subunit formation.

Intestinal epithelial cells in tti^s450 larvae undergo autophagy

To determine the impact of impaired ribosome biogenesis at the ultrastructural level, we used transmission electron microscopy (TEM) (Figure 4A–4H). While WT intestinal epithelium is folded and the cells exhibit apicobasal polarity and a highly elaborated apical brush border (Figure 4A, 4C, 4E, 4G), IECs in tti^s450 are smaller and the microvilli are shorter and relatively sparse (Figure 4B, 4D, 4F, 4H). The tti^s450 nuclei contain prominent condensed nucleoli, suggesting ribosomal stress [32]. Also conspicuous at 96 hpf in the IECs of tti^s450 larvae, but essentially absent in WT, are cytoplasmic vesicles containing debris (Figure 4B, 4B′). At 120 hpf, these structures are bigger in size and electron dense (Figure 4D, 4D′). At 144 hpf, vesicles more akin to those observed at 96 hpf are present (Figure 4H, 4H′, 4H″). Similar transient structures have been previously identified in cells undergoing autophagy. We therefore pursued the hypothesis that the cytoplasmic vesicles in tti^s450 larvae correspond to autophagosomes and autolysosomes: vesicles that sequester and digest organelles.

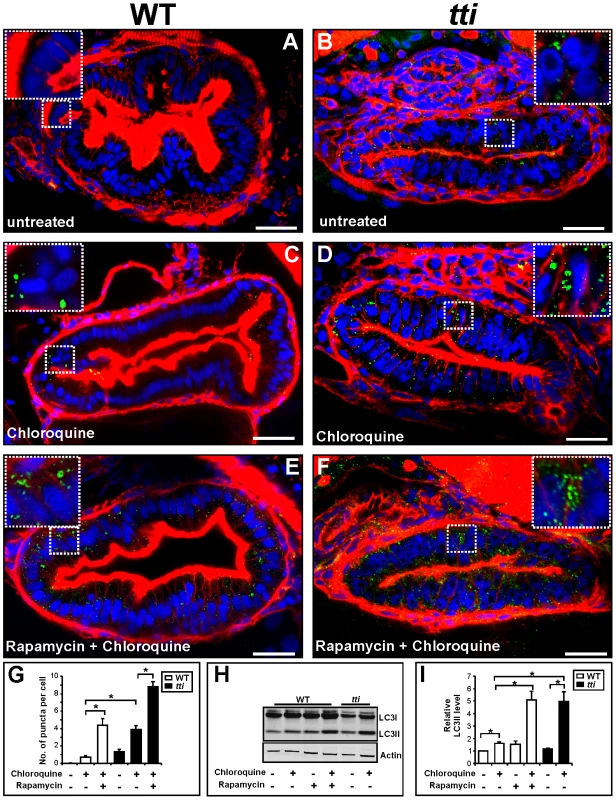

Autophagy is a dynamic process comprising autophagosome synthesis, delivery of autophagic substrates to lysosomes and substrate degradation in autolysosomes [10], [12]. In order to investigate whether the electron dense vesicles observed at 120 hpf (Figure 4D) correspond to autolysosomes, we exposed WT and tti^s450 larvae at 106 hpf for 14 h to chloroquine, an autophagy inhibitor that blocks the fusion of autophagosomes with lysosomes and thereby prevents digestion of the vesicle contents [33]. After chloroquine treatment few, if any, electron dense cytoplasmic vesicles (autolysosomes) are found in the intestinal epithelium of tti^s450 larvae (Figure 4F). Instead, the IECs in tti^s450 larvae contain vesicles more reminiscent of autophagosomes (Figure 4F, 4F′, 4F″). We counted >3 autophagosomes/cell (3.25±0.144, n = 60) in the IECs of tti^s450 larvae, compared to <1 (0.6±0.058, n = 60) in WT IECs. Thus chloroquine inhibition of autophagic flux results in a significantly higher number of autophagosome-like structures in tti^s450 larvae compared to WT.

To investigate this further, we examined LC3 localisation in WT and tti^s450 larvae using wholemount immunocytochemistry (Figure 5A–5G). LC3, the mammalian orthologue of yeast Atg8, is a robust marker of autophagosomes. Upon induction of autophagy, the cytoplasmic form of LC3 (LC3I) is converted by cleavage and lipidation to a transient, autophagosomal membrane-bound form of LC3 (LC3II). Disrupting the fusion of autophagosomes with lysosomes with chloroquine prolongs the half-life of LC3II and facilitates the accumulation of LC3II-containing autophagosomes, which appear as punctate structures using LC3 immunocytochemistry. We observed more puncta in the IECs of chloroquine-treated WT larvae (Figure 5C) compared to untreated WT larvae (Figure 5A). Consistent with impaired ribosome biogenesis stimulating autophagy, we counted approximately 5 times more puncta in the IECs of chloroquine-treated tti^s450 larvae (Figure 5D) compared to the IECs of chloroquine-treated WT siblings (Figure 5C; compare 2^nd and 4^th bars in Figure 5G). We next exposed WT and tti^s450 larvae to rapamycin, which through its specific inhibition of Torc1 [34], [35] provides a powerful stimulus to autophagy in yeast, zebrafish and mice. We found that the number of puncta in WT larvae treated with rapamycin and chloroquine together (Figure 5E, 5G) was similar to the number of puncta in tti^s450 larvae treated with chloroquine alone (Figure 5D, 5G). Finally, treating tti^s450 larvae with rapamycin and chloroquine together (Figure 5F) resulted in more abundant puncta than in both chloroquine-treated tti^s450 larvae and rapamycin and chloroquine-treated WT larvae (Figure 5G). Upon Western blot analysis of whole larval lysates (Figure 5H, 5I), we found that LC3II levels in chloroquine-treated tti^s450 larvae were significantly higher than in chloroquine-treated WT larvae but not significantly different from those in WT larvae treated with rapamycin and chloroquine together (Figure 5I). Together these experiments demonstrate that the vesicles identified in the IECs of tti^s450 larvae are autophagosomes, and, to the best of our knowledge, provide the first evidence for a link between impaired ribosome biogenesis and autophagy.

To determine the extent of autophagy in tti^s450 larvae, we injected RNA encoding a mCherry-LC3 fusion protein into the yolk of 1–4 cell stage zebrafish embryos and evaluated the formation of puncta after prior treatment with chloroquine for 14 h at three time-points (Figure S4). At 72 hpf, abundant puncta are present in the eye (Figure S4B) and brain (Figure S4B′) of tti^s450 larvae compared to WT larvae (Figure S4A, S4A′). At this time-point, there are very few puncta in the digestive organs (Figure S4C, S4D). A similar picture was observed at 96 hpf (data not shown). At 120 hpf, the number of puncta in the brain (Figure S4F′) in tti^s450 larvae is now comparable to that observed in WT (Figure S4E′), while higher numbers of puncta are still found in the eye (Figure S4F). At 120 hpf there are more abundant puncta in the intestine and pancreas of tti^s450 larvae (Figure S4H) compared to these organs in WT (Figure S4E and S4G, respectively). This pattern of autophagy induction mirrors the tempero-spatial expression of pwp2h during zebrafish development, and is consistent with these tissues being the most affected by impaired ribosome biogenesis in tti^s450 larvae.

To determine whether autophagy is a specific response to impaired ribosome biogenesis, we conducted LC3 analysis of two additional zebrafish intestinal mutants, setebos (set^s453) and caliban (clbn^s846), which exhibit phenotypes that are essentially indistinguishable from that of tti^s450 when viewed under the light microscope or upon histological analysis. Whereas set^s453 harbours a mutation in a gene which impairs 28S rRNA production and ribosome biogenesis (APB et al., in preparation), the mutation in clbn^s846 lies in a gene encoding an essential mRNA splicing factor (SJM et al., in preparation). We observed that set^s453 larvae, like tti^s450 larvae, contain higher LC3II levels compared to WT siblings in the presence of chloroquine (Figure S5A, S5B) and their IECs contain abundant autophagosome-like structures when analysed by TEM (data not shown). In contrast, the LC3II levels in clbn^s846 larvae are indistinguishable from those in WT siblings (Figure S5A, S5B) and the intestinal epithelium of clbn^s846 mutants do not contain autophagosomes or autolysosomes when inspected at the ultrastructural level (Figure S5C–S5H). These data suggest that the induction of autophagy in IECs is a specific response to impaired ribosome biogenesis, rather than a non-specific response to impaired cell growth.

Autophagy induction in tti^s450 larvae prolongs their survival

We followed the morphological changes in the intestinal epithelium and liver of tti^s450 larvae until 7 dpf, just before the larvae die at 8–9 dpf. At 7 dpf, the IECs are substantially smaller in tti^s450 larvae than in their WT counterparts and neither tti^s450 nor WT larvae contain detached cells in the intestinal lumen (Figure S6A–S6D). The tti^s450 IECs no longer contain conspicuous autophagosomes, though electron dense vesicles are present in abundance in adjacent liver cells (Figure S6E–S6F). To investigate the impact of inhibiting autophagy in tti^s450 larvae, we blocked autophagosome formation by injecting 1 ng of an antisense morpholino oligonucleotide (MO), which targets the translation start-site of atg5 mRNA [36], into 1–4 cell stage embryos derived from pair-wise matings of heterozygous tti^s450 adults. At 72 hpf, uninjected, vehicle-injected and atg5 MO-injected tti^s450 larvae were identified and subjected to LC3 analysis. We found significantly lower LC3II levels in the atg5 MO-injected tti^s450 larvae compared to uninjected and vehicle-injected controls (Figure 6A). Moreover, from 72–120 hpf, we noticed that atg5 MO-injected tti^s450 larvae start to develop oedema around the head, eye, heart and intestine (Figure S7D). As a consequence, 50% of atg5 MO-injected tti^s450 larvae die by 5 dpf and all atg5 MO-injected tti^s450 larvae are dead by 7 dpf (Figure 6B). This contrasts markedly with untreated or vehicle-injected tti^s450 larvae, which survive until 8–9 dpf (Figure 6B). The longevity of WT larvae injected with the atg5 MO is not affected. Ultrastructural analysis at 120 hpf revealed detached, shrunken cells in the intestinal lumen of atg5 MO-treated ti^s450 larvae (Figure 6D–6F) that were never seen in the intestinal lumen of tti^s450 larvae injected with vehicle or WT siblings injected with atg5 MO (Figure 6C). Together these data demonstrate that autophagy extends the lifespan of tti^s450 larvae and prolongs the survival of IECs.

Autophagy induction in tti^s450 larvae is independent of Tor pathway activity and p-RPS6

To explore the relationship between the Tor pathway and autophagy in tti^s450 larvae, we analysed the levels of phosphorylated RPS6 (p-RPS6), a downstream target of Torc1 activity. Using Western blot analysis, we found that p-RPS6 levels decrease markedly in WT larvae between 72–120 hpf as previously reported [37] (Figure 7A, 7B). Somewhat surprisingly, p-RPS6 levels persist in tti^s450 larvae until 120 hpf, when they are 4-fold higher than in WT siblings (Figure 7A, 7B). We also noticed that the overall level of RPS6 protein is less in tti^s450 larvae compared to WT, perhaps reflecting the fact that RPS6 is a structural component of the 40S subunits, which are fewer in tti^s450 larvae. Using immunocytochemistry we examined p-RPS6 expression in histological sections of WT and tti^s450 larvae. At 96 hpf, we observed robust p-RPS6 expression in the intestinal epithelium and liver of WT and tti^s450 larvae (Figure 7C). The high p-RPS6 levels in the tti^s450 intestinal epithelium raise the possibility that elevated p-RPS6 stimulates autophagy directly in tti^s450 larvae, as this occurrence has been recognised previously, including in the Drosophila fat body during starvation [38], [39]. To test this, we blocked p-RPS6 accumulation using rapamycin. We found that prior exposure to rapamycin for 14 h eliminated the p-RPS6 signal in both WT and tti^s450 larvae at 96 hpf (Figure 7D), thereby unequivocally linking the persistent and elevated p-RPS6 signal in tti^s450 larvae to Torc1 activity. Moreover, rapamycin treatment of tti^s450 larvae in the presence and absence of chloroquine results in elevated levels of LC3II (Figure 7E) and LC3II-containing autophagosome formation (Figure 5F, 5G). These augmented levels of autophagy, achieved through rapamycin blockade of RPS6 phosphorylation, exclude the possibility that elevated p-RPS6 is responsible for the induction of autophagy in tti^s450 larvae. Indeed, these data suggest that autophagy induction in tti^s450 larvae is independent of the level of activation of the Tor pathway and the levels of p-RPS6.

We corroborated this finding with a genetic approach by crossing tti^s450 onto the tsc2^vu242/vu242 background [40]. Tsc2 is a negative regulator of Torc1 and tsc2^vu242/vu242 zebrafish larvae exhibit a variety of defects including an enlarged liver at 7 dpf [40], consistent with Tor playing a positive role in digestive organ growth. The development of the tti^s450 phenotype, including the induction of autophagy, is not perturbed on the tsc2^vu242/vu242 background (Figure S8A–S8F). Interestingly, tti^s450 larvae at 96 hpf contain higher levels of pRPS6 than tsc2^vu242/vu242 larvae (Figure S8E, S8F) and the levels of p-RPS6 are higher still in compound tti^s450;tsc2^vu242/vu242 mutants (Figure S8E, S8F). In conclusion, these data show that impaired ribosome biogenesis induces autophagy in tti^s450 larvae through a mechanism that does not require inhibition of the Tor pathway and is independent of p-RPS6 levels.

Autophagy induction in tti^s450 larvae is independent of Tp53

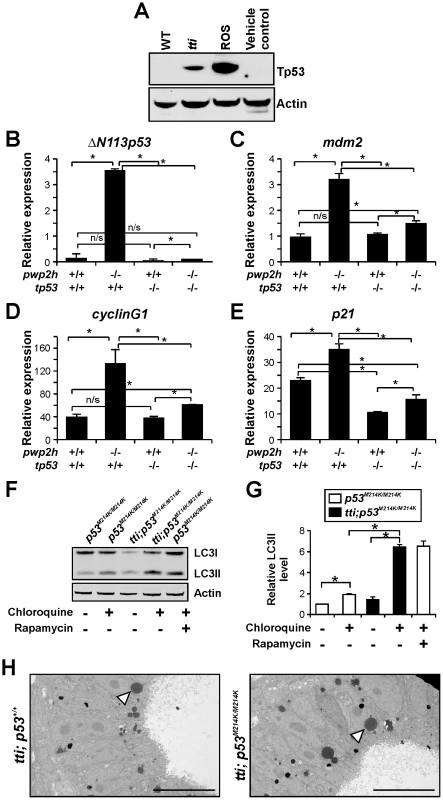

Defects in 18S and 28S rRNA processing have been shown to activate Tp53 [41], which in turn can stimulate autophagy [42]. While WT larvae contained negligible levels of Tp53 protein at 96 hpf, tti^s450 larvae display readily detectable levels of Tp53 protein at this time-point (Figure 8A) and increased transcription of Tp53 target genes, including ΔN113p53, p21, cyclinG1 and mdm2 (Figure 8B–8E). To determine whether Tp53 plays a role in the induction of autophagy in tti^s450, we generated tti^s450 larvae expressing a mutant form of Tp53 (Tp53^M214K) with negligible DNA-binding activity [43]. While this mutation severely diminished the elevated ΔN113p53, p21, cyclinG1 and mdm2 expression levels in tti^s450 larvae at 96 hpf as expected (Figure 8B–8E), the level of LC3II in compound tti^s450;tp53^M214K/M214K mutants in the presence of chloroquine was significantly higher than in tp53^M214K/M214K mutants (Figure 8F–8H). In addition, ultrastructural analysis revealed similar numbers of autolysosomes in tti^s450 mutants at 120 hpf, independent of whether they were on the tp53^M214K/M214K background or not (Figure 8H). Therefore the induction of autophagy in response to Pwp2h depletion proceeds unabated in tti^s450 larvae that are devoid of functional Tp53 protein.

Discussion

This study shows, in the context of an intact vertebrate organism, that Pwp2h is critical for the production of mature 18S rRNA, an integral component of the 40S ribosomal subunit. In zebrafish, as in yeast, Pwp2h depletion results in reduced levels of the immediate precursor to mature 18S rRNA and a concomitant decrease in the production of mature 18S rRNA and assembly of 40S ribosomal subunits. Thus the role of Pwp2h in the 90S pre-ribosomal particle or small subunit processome is conserved from yeast to vertebrates.

In our pwp2h-deficient model, titania (tti^s450), the growth of the endodermal organs, eyes, brain and craniofacial structures is severely arrested and autophagy is markedly up-regulated. To the best of our knowledge, this is the first time that a link between impaired ribosome biogenesis and autophagy has been demonstrated. We further show that elevated rates of autophagy support the survival of intestinal epithelial cells and increase the lifespan of tti^s450 larvae, thereby demonstrating that autophagy is a survival mechanism invoked in response to ribosomal stress. In our zebrafish model, autophagy induction does not depend on inhibition of the Tor pathway or activation of Tp53.

The death of tti^s450 larvae at 8–9 dpf demonstrates that pwp2h encodes a protein that is indispensable for life. However, the development of tti^s450 larvae until 72 hpf is supported by the deposition of maternal, wild-type pwp2h mRNA (and/or protein) into oocytes by their heterozygous mother. At 72 hpf, the tissues in which pwp2h is most highly expressed are the intestinal epithelium, pharyngeal arches, liver, dorsal midbrain, cerebellum, dorsal hindbrain, retinal epithelium and pancreas. These tissues are also the most rapidly proliferating tissues in WT larvae at 72 hpf [28] and the most severely affected tissues in tti^s450 larvae. Thus the tissue-specific phenotype of tti^s450 larvae may be explained by maternally-derived WT pwp2h mRNA being exhausted first in developing organs containing highly proliferative cells.

In WT zebrafish larvae there is a transient spike in Torc1 activity (as measured by p-RPS6) at around 72 hpf that is coincident with the activation of anabolic pathways required for cell growth and proliferation during the endoderm to intestine transition [37]. Torc1 is thought to play a role in developing organisms as an organ size checkpoint, potentiating growth signals that promote the rapid expansion of organs until they reach a genetically programmed cell size [44]. Therefore the persistent and robust activity of Torc1 we observe in the intestinal epithelium and liver of tti^s450 larvae at 96 hpf may be a consequence of these organs being markedly smaller than their WT counterparts at this stage.

The gross phenotype of tti^s450 is highly reminiscent of another zebrafish mutant, nil per os (npo), in which the morphogenesis of the intestinal epithelium is also arrested. In npo the failure of the primitive gut endoderm to transform into a monolayer of polarized and differentiated epithelium is caused by a mutation in rbm19, a gene encoding a protein with six RNA recognition motifs that is also thought to play a role in ribosome biogenesis [45]. The same authors showed that essentially the same hypoplastic intestinal phenotype was recapitulated by exposure of WT zebrafish larvae to the Torc1 inhibitor, rapamycin [46], which presumably stimulated autophagy. It would be interesting to determine whether the growth arrest of the digestive organs in the npo mutant is also accompanied by autophagy.

The degree of activation of the Tor pathway is thought to be one of the major factors governing autophagy. However, Tor inhibition is not the mechanism responsible for autophagy in tti^s450 larvae and recent work suggests that autophagy regulation is a very complex process involving the integration of signals from many diverse signalling pathways [47]. Indeed, proteomic analysis of binding partners of components of the autophagy machinery suggests that several hundred molecules participate in the regulation of the human autophagy network [48]. While much recent attention has been focused on the direct phosphorylation of Ulk1/Atg1 by AMPK, acting either cooperatively or independently of Tor to exert autophagy control [19]–[21], there are many reports of other kinases capable of controlling autophagy by a variety of Tor-independent mechanisms [49]–[51]. The dissociation of the key BH3 domain-containing autophagy protein, Beclin 1 (mammalian orthologue of yeast Atg6) from its inhibitors Bcl2 and Bcl-XL as a result of phosphorylation of one or other components is also a critical determinant in the induction of autophagy [52]. In the case of tti^s450 larvae, it is plausible that autophagy induction may involve a targeted pathway, selective for ribosomes [11], which by analogy with mitophagy [53], is invoked to digest damaged cargo such as non-functional organelles.

Somewhat surprisingly, we also ruled out involvement of Tp53 in the induction of autophagy in tti^s450 larvae, even though Tp53 protein is active in tti^s450 larvae at 96 hpf. However, we believe the increased expression of Tp53 target genes such as p21 and cyclinG1 may be responsible, at least in part, for the reduction in the number of cells in the S phase of the cell cycle we observed at this time-point. To explain this, we surmise that as ribosome biogenesis is progressively impaired, the tti^s450 larvae mount a two-stage response to Pwp2h depletion. Initially, the cells undergo a Tp53-mediated cell cycle arrest. However, as the synthesis of new proteins, including Tp53 and its targets, is progressively impaired, the cells invoke autophagy to prolong their survival.

The notion of the existence of a second type of programmed cell death, distinct from apoptosis, which emanates from catastrophic levels of autophagy, is a hotly debated topic [54]. Using TEM, we did not see any evidence of cell death in the IECs of tti^s450 larvae, even at 7–8 dpf just before the larvae die, affirming that the levels of autophagy induced in the IECs of tti^s450 larvae prolong cell survival rather than trigger cell death. We proved this by disrupting the formation of the early autophagosome by inhibiting the translation of atg5 mRNA. This resulted in the death of IECs in tti^s450 larvae and a markedly reduced lifespan.

As mentioned previously, tti^s450 larvae exhibit impaired development of the craniofacial cartilages, exocrine pancreas and brain, tissues that are often clinically abnormal in patients with certain human ribosomopathies, including Diamond Blackfan anaemia and Schwachman Diamond syndrome [4]. Recently, two new zebrafish models of dyskeratosis congenita (DC) based on mutations in components of the H/ACA RNP complex were described [55], [56]. Like tti^s450, these mutants display impaired production of 18S rRNA and induction of Tp53 target genes, consistent with previous studies demonstrating that defects in ribosome biogenesis induce Tp53 activation and cell cycle arrest [41]. Moreover, hematopoietic stem cells in these mutants were depleted via a Tp53-dependent mechanism, providing a plausible explanation for why DC patients are susceptible to bone marrow failure [55], [56]. In one of these mutants, the gut and craniofacial structures were also reported to be underdeveloped and, as observed in tti^s450, these defects persisted on a Tp53 mutant background [55]. We speculate that the p53-independent features of this model of DC may be caused by elevated rates of autophagy. If so, and these findings are confirmed in human DC, it will be important to determine whether elevated autophagic activity contributes to prolonged cell survival prior to considering clinical interventions to limit this process.

There is currently a great deal of interest in the development of novel therapeutics that target the cancerous translation apparatus through the combined inhibition of ribosome biogenesis, translation initiation and translation elongation [5]. To avoid inadvertently prolonging cancer cell survival, these approaches could benefit from a detailed understanding of the mechanisms and cellular contexts that induce autophagy in response to ribosomal stress. While such insights may be forthcoming from studies performed on cell lines, it is likely that complementary experiments carried out in the context of an entire vertebrate organism, such as the zebrafish model introduced here, may also be fruitful.

Materials and Methods

Ethics statement

All experimental procedures on zebrafish embryos and larvae were approved by the Ludwig Institute for Cancer Research/Department of Surgery - Royal Melbourne Hospital Animal Ethics Committee.

Zebrafish strains and embryo collection

Zebrafish embryos were obtained from pair-wise matings of heterozygous tti^s450, setebos^s450 and caliban^s846 zebrafish on the Tg(XlEef1a1:GFP)^s854 (gutGFP) background and from tti^s450 heterozygotes carrying two mutant alleles of Tp53 (tti^s450;Tp53^M214K/M214K) [43] and raised at 28.5°C. tti^s927 was propagated on the Tg(ins:dsRed)^m1081;Tg(fabp10:dsRed;ela3l:GFP)^gz12 (2-CLIP) background [31]. The Tp53^M214K/M214K line (gift of Thomas Look and David Lane) and tsc2^vu24 line were obtained through TILLING [40], [43]. The tsc2 and pwp2h loci in zebrafish are both on chromosome 1 so in order to generate sufficient tti^s450;tsc2^vu24 compound mutants for analysis, we identified and in-crossed recombinants harbouring the two mutations in a cis configuration. To prevent melanization and maintain transparency, embryos were treated with 0.003% 1-phenyl-2-thiourea (PTU; Sigma Aldrich) in embryo medium. Imaging of live larvae was carried out using a LeicaM2 FLIII microscope after anaesthetizing with 200 mg/L benzocaine (Sigma-Aldrich, St. Louis, MO) in embryo medium. All images were imported into CorelDRAWX4 (Corel Corporation, Ottawa, Ontario, Canada). Image manipulation was limited to levels, hue and saturation adjustments.

Histology and whole-mount in situ hybridisation

Histology was performed as described [27]. Mucins and other carbohydrates secreted by intestinal goblet cells were stained using alcian blue-periodic acid-Schiff reagent [27]. For WISH, larvae were processed as described [57], [58] To generate pwp2h riboprobes a cDNA template was amplified by RT-PCR. For primer sequences see Text S1. These were then transcribed using the digoxigenin DNA Labelling Kit (Roche Diagnostics) according to the manufacturer's instructions. Hybridized riboprobes were detected using an anti-DIG antibody conjugated to alkaline phosphatase according to the manufacturer's instructions (Roche Diagnostics). Larvae were imaged on a Nikon SMZ 1500 microscope.

Fluorescence-activated cell sorting (FACS)

100–200 WT and tti^s450 larvae were rinsed in PBST (PBS containing 0.5% Tween 20) three times prior to incubating in 1 mL Hank's Balanced Salt Solution containing 0.25% trypsin, 0.1% EDTA, 40 µg/mL Proteinase K and 10 µg/mL collagenase for 30 min at 37°C. Larvae were then homogenised in 7 mL PBS containing 5% FBS. The cell suspension was strained through a 40 µM nylon cell strainer (BD Falcon) and spun at 2000 rpm for 10 min at 4°C. The pellet was washed twice with cold PBS/5% FBS and resuspended in 500 µl PBS. Ice-cold methanol (900 µl) was added to the pellet and cells were left on ice for 1 h prior to centrifugation as above. The pellet was resuspended in 0.5 mL PBS containing 40 µg/mL propidium iodide and 0.5 mg/mL RNaseA for 30–60 min at room temperature (RT). GFP positive cells were sorted on a FACSCalibur™ Optics instrument (Benton Dickinson) and analysis was performed using the ModFit LT program.

Detection of cells in the S-Phase of the cell cycle and cell height determination

To identify cells in the S-phase of the cell cycle, the incorporation of bromodeoxyuridine (BrdU) by live larvae was analysed as described [27]. To measure cell height, images of sagittal histological sections were captured on a Nikon Eclipse 80i microscope and then analysed using MetaMorph Microscopy Automation & Image Analysis Software.

Genetic mapping and positional cloning of tti^s450

For genetic mapping, tti^s450 heterozygotes on the gutGFP background were crossed onto the polymorphic WIK strain. Mutant larvae were identified by craniofacial and intestinal defects visible at 96 hpf under brightfield and fluorescence illumination. Subsequent mapping was performed as described [28].

Sequence alignment and domain determination

Protein sequence alignment of Pwp2h from zebrafish, yeast, mouse and human was performed using the clustalW2 program with default parameters. WD domains were identified using the Simple Modular Architecture Research Tool (SMART) software.

Genotyping

A novel EcoN1 restriction enzyme site created by the tti^s450 mutation produced a restriction fragment length polymorphism (RFLP) that was exploited for genotyping. Primers were used to amplify a 653-base pair (bp) fragment spanning exons 9 to 11 containing the tti^s450 mutation. For primer sequences see Text S1.

RNA preparation and Northern blot analysis

Total cellular RNA was prepared from WT and tti^s450 larvae (120 hpf) by homogenizing 20–50 larvae in Solution D (4.2 M guanidinium thiocyanate, 25 mM NaCitrate, 30% Sarkosyl BDH NL30) as described [59]. Northern blot analysis was conducted on 2 µg samples using α-³²P-labelled probes designed to hybridize to zebrafish 5′ETS, ITS1 and ITS2 sequences, which were PCR-amplified from genomic DNA using previously described primers [60]. Radioactive signals were detected using a Phosphorimager and Storm 820 scanner (Amersham Biosciences) and analysed using ImageQuant TL software.

Analysis of 18S and 28S rRNA levels

Solutions of total RNA extracted from WT and tti^s450 larvae were analysed on an Agilent 2100 E-Bioanalyser according to the manufacturer's instructions.

Polysome fractionation

50–100 WT and tti^s450 larvae at 96 hpf were resuspended in cold lysis buffer (50 mM Tris-HCl pH 7.4, 150 mM KCl, 2.5 mM MgCL₂, 1% Triton X-100, 0.5% sodium deoxycholate, 3 mM DTT) containing 120 U/mL RNase inhibitor (Invitrogen) and Complete Protease Inhibitor Cocktail (Roche) and sheared through a 23G needle. Lysates were incubated on ice for 30 min and centrifuged (12,000 rpm, 20 min at 4°C) to pellet nuclei and cellular debris. Cytoplasmic extract (2 mg) was loaded onto a continuous low salt (80 mM NaCl) 3.1–30.1% (w/v) sucrose gradient (14 mL) [61] generated using an ISCO gradient maker. Samples were separated by centrifugation using a SW41 rotor at 40000 rpm for 4 h at 4°C, and fractionated (1 mL) using a Foxy Jr fraction collector. Absorbance at 260 nM was determined with an ISCO UA-6 absorbance detector. In each case, quantitation of 40S, 60S, and 80S was performed by measuring the area under the relevant peak using Metamorph Image Analysis Software.

Transmission electron microscopy (TEM)

For TEM, larvae were fixed in 2.5% glutaraldehyde, 2% paraformaldehyde (Electron Microscopy Sciences, Hatfield, PA) in PBS for 2 h at R.T, rinsed in 0.08 M Sorensen's Phosphate buffer pH 7.4 and then stored in 0.08 M Sorensen's buffer with 5% sucrose. Post-fixation was with 2% osmium tetroxide in PBS followed by dehydration through a graded series of alcohols, 2 acetone rinses and embedding in Spurrs resin [62]. Sections approximately 80 nm thick were cut with a diamond knife (Diatome, Switzerland) on a Ultracut-S ultramicrotome (Leica, Mannheim, Germany) and contrasted with uranyl acetate and lead citrate. Images were captured with a Megaview II cooled CCD camera (Soft Imaging Solutions, Olympus, Australia) in a JEOL 1011 TEM. Transverse sections were obtained through the anterior intestinal region known as the intestinal bulb.

Immunocytochemistry

For transverse sections, embryos were fixed in 2% paraformaldehyde overnight at 4°C, embedded vertically in 4% low melting temperature agarose (Cambrex BioScience, East Rutherford, NJ) in disposable cryomolds (Sakura Finetek, Torrance, CA), and sectioned at 200 µm intervals using a Leica (Solms, Germany) VT1000S vibrating microtome. Floating sections were transferred to the wells of a 24-well plate containing PBD (PBS containing 0.1% Tween-20 and 0.5% Triton-X) and then replaced with antibody blocking solution (PBD containing 1% (w/v) BSA and 1% (v/v) FCS) for 2 h at RT. The blocking solution was removed and the sections incubated with LC3B primary antibody diluted to 1∶500 in PBD containing 0.2% (w/v) BSA at 4°C overnight. The sections were rinsed three times in PBST (PBS containing 0.1% Tween-20) for 20 min at RT, followed by antibody blocking solution for 2 h at RT. The sections were then incubated overnight at 4°C in PBD containing 0.2% (w/v) BSA, Alexa Fluor 488 (1∶500), rhodamine-phalloidin (1∶150; Biotium, Hayward, CA) and 5 µg/mL Hoechst33342 (Sigma Aldrich). Sections were rinsed three times in PBST for 20 min at RT prior to imaging on an Olympus FV1000 scanning confocal microscope. Enumeration of LC3 puncta was performed using Metamorph. Details of antibodies and stains are available in Text S1.

Western blot analysis

Larvae were lysed (2 µL per embryo) in cold RIPA cell lysis buffer (50 mM Tris-HCl pH 7.4, 150 mM NaCl, 2 mM EDTA, 1% NP-40, 0.1% SDS) containing Complete Protease Inhibitor Cocktail (Roche) and sheared through a 23G needle. Lysates were incubated on ice for 30 min and then centrifuged for 20 min at 13,000 rpm at 4°C to pellet nuclei and cellular debris. Samples containing 40–80 µg of protein were heated to 95°C for 5 min with 5 X Protein Loading Dye (0.03 M Tris-HCl, pH 6.8, 13.8% glycerol, 1% SDS, 0.05% bromophenol blue, 2.7% β-mercaptoethanol) and loaded onto a 12% polyacrylamide gel. The proteins were transferred to PVDF membranes using an iBlot Gel Transfer Device (Invitrogen) according to the manufacturer's instructions. For RPS6, p-RPS6, LC3 and Actin, subsequent blocking, antibody incubation and membrane exposure were performed using the Odyssey system (LI-COR Biosciences). For Tp53, blocking and antibody incubation were performed in PBST/5% skim milk powder and membranes developed using the SuperSignal West Femto Chemilluminescent Substrate (Thermo Scientific). Signals were quantitated by densitometry and expressed as relative levels by reference to the level in untreated WT larvae, which was set at 1. Details of antibodies are provided in Text S1.

Expression of mCherry-LC3 fusion protein

DNA encoding the fluorophore mCherry fused to the N terminus of LC3 was PCR amplified and transcribed into mRNA using the mMessage mMachine SP6 kit (Ambion Life Technologies, Mulgrave, Australia). For primer sequences see Text S1. mRNA (400 pg) was injected into the yolk of 1–4 cell stage embryos and exposed to 2.5 µM chloroquine (Fluka Sigma-Aldrich, Sydney, Australia) in embryo medium for 14 h at various time-points during development prior to mounting in 1.5% low melting point agarose for imaging with an Olympus FV1000 scanning confocal microscope.

Drug treatment

Live WT, tti^s450, set^s453 clbn^s846 larvae were exposed to 2.5 µM chloroquine and/or 10 µM rapamycin in embryo medium at 28°C. Larvae were collected 14 h later for protein extraction and Western blot analysis of LC3II levels as described above.

Knockdown of Pwp2h and Atg5 protein expression

Antisense morpholino oligonucleotides (MOs) targeted to the initiation of translation codons of pwp2h or atg5 mRNA were injected into the yolk of 1–4 cell stage WT or tti^s450 embryos. 2 nL of MO at a concentration of 120×10⁻¹⁵ mol (total = 1 ng) and 180×10⁻¹⁴ mol (total = 15 ng) were used to knockdown atg5 and pwp2h mRNA translation, respectively. For MO sequences see Text S1.

Quantitation of autophagosomes

Using immunocytochemical analysis, LC3II-containing autophagosomes were identified as puncta in thick transverse sections of tti^s450 larvae. Puncta in 20 cells in 3 independent sections were counted using Metamorph. For TEM sections, the numbers of autophagosome-like structures in 20 cells in 3 independent sections were counted manually.

Quantitative reverse transcription polymerase chain [61] reaction (qRT–PCR)

cDNA was reverse transcribed from total RNA (1–2 µg) extracted from WT and tti^s450 larvae at 96 hpf using the Superscript III First Strand Synthesis System (Invitrogen) according to manufacturer's instructions. qRT-PCR was performed using the SensiMix SYBR Kit (Bioline) according to manufacturer's instructions. For primer sequences see Text S1.

Statistical methods

Student's t-test was used to compare the means of two populations in Graphpad Prism 5.0. Error bars represent the mean +/− standard deviation (n≥3). A P value<0.05 was used to define statistical significance.
