Klinické výsledky vstřebatelných dlah (kompozitů hydroxyapatitu a poly-L-laktidu) pro zlomeniny prstů – kazuistiky


Autoři: I. Nagura 1;  T. Kanatani 2;  A. Inui 3;  Y. Mifune 3;  R. Kuroda 3;  S. Lucchina 4,5
Působiště autorů: Department of Orthopedic Surgery, Ako City Hospital, Ako, Japan 1;  Department of Orthopedic Surgery, Kobe Rosai Hospital, Kobe, Japan 2;  Department of Orthopedic Surgery, Kobe University Graduate School of Medicine, Kobe, Japan 3;  Locarno Hand Center, Locarno, Switzerland 4;  Hand Unit EOC, Locarno’s Regional Hospital, Locarno, Switzerland 5
Vyšlo v časopise: ACTA CHIRURGIAE PLASTICAE, 65, 1, 2023, pp. 37-40
doi: https://doi.org/10.48095/ccachp202337

Introduction

The generally accepted processes for the treatment of severe comminuted unstable phalangeal fractures or non-union fractures firstly include anatomical reduction and then stabilization by open procedures [1]. However, it is recognized that it is not always easy to maintain the ideal anatomically reduced configuration by the use of conventional metallic plates [2–4]. Conventional metallic plates are more frequently used than Kirshner wires because of their rigid fixation, which facilitates early motion. However, they have also disadvantages; their “ready-made” design does not fit all reduced fractures. Further, they are “palpable” beneath the skin and this sometimes results in discomfort or adhesion of the surrounding tissues necessitating a second operation to remove the plate. Contrary to this, hydroxyapatite and poly-L-lactate composite (μ-HA/PLLA) absorbable mesh plates present fundamental advantages: they are flexible and easily shaped to adjust neatly to the reduced fractures during surgery. Also, they generally do not require a secondary procedure to remove the plate basically because they are “absorbable”, albeit over a long time frame. More­over, they not only have the biomechanical strength equal to or greater than that of titanium plates [5] but they also promote replacement with a new bone [6]. For these reasons, absorbable mesh plates have been widely used in oral, maxillofacial and orthopedic surgeries [7–9]. We report two cases of fractures of the basal phalanx of the thumb treated with absorbable mesh plates.

Description of the cases

We used a mesh plate (thickness 0.7 mm) consisting of a mix of poly-L--lactide (PLLA) and micro-crystalline hydroxyapatite (μ-HA) that are described as an absorbable product, characteristically when used for osteosynthesis (SuperFixsorb MX40 Mesh; Teijin Medical Technologies Co.,LTD., Osaka, Japan). After the reduction of the fractures, the absorbable mesh plates were shaped to adjust the reduced fractures with surgical scissors and subsequently dipped into sterilized hot water (68 °C) to soften. This allowed the plates to be molded three-dimensionally to fit the reduced fractures. Then, the absorbable mesh plates were placed and fixed with absorbable 2.0 mm screws consisting of the same materials as the mesh plates.

Case 1

A 22-year-old man suffered a machine crush to his left non-dominant hand at work. The open fracture of the basal phalanx of the thumb was diagnosed and the bone fixation by crossed Kirschner wires was performed initially. Six months postoperatively, the patient was referred to us as the bone had not united (Fig. 1A). We performed the re-ostheosynthesis using an absorbable mesh plate combined with an iliac bone graft (Fig. 1B). The mesh plates were trimmed to cover the entire fracture by making wrap around the flaps before softening. Bone healing was achieved at 3 months postoperatively as shown radiographically (Fig. 1C). However, 5 months postoperatively, skin irritation and swelling around the wound were presenting (Fig. 2A). Even though an infection was excluded by blood tests and tissue culture, we chose to open the site to surgically rectify the problem. Intraoperatively, no active inflammatory synovial tissue was observed (Fig. 2B), while the remaining undissolved mesh plate (> 50%) apparently irritated the skin above, so the resi­due was removed. This was successful and no further symptoms persisted. We further noted that histological examination showed no foreign body granuloma reaction in the tissues around the mesh plate (Fig. 2C). At 7 months postoperatively, a total active range of motion (TAM) of 50° was present at the metaphalangeal (MP) joint and at 10° at the interphalangeal (IP) joint. The power grip with a Smedley’s dynamometer (Muranaka Medical Instruments Co LTD, Japan) was equivalent to 30 vs. 45 kg on the contralateral side.

Obr. 1. Radiographic and macroscopic evaluation (case 1).
A) Preoperative X-ray (posterior-anterior view); B) operative finding; C) postoperative X-ray (posterior- -anterior view) 6 months after mesh plate fixation.
Radiographic and macroscopic evaluation (case 1).  <br>
A) Preoperative X-ray
(posterior-anterior view); B) operative finding; C) postoperative X-ray (posterior-
-anterior view) 6 months after mesh plate fixation.

Obr. 2. Photographs of the left thumb of a 22-year-old patient (case 1).
A) Macroscopic view; B) operative finding; C) histological finding.
Photographs of the left thumb of a 22-year-old patient (case 1). <br>
 A) Macroscopic view; B) operative finding;
C) histological finding.

Case 2

A 46-year-old male manual worker crushed his left hand under an iron plate at work. An open fracture of the basal phalanx of the left thumb was presented and bone fixation with two transverse ­K-wires was performed initially (Fig. 3A). The patient was referred to our hospital 4 days postoperatively for further treatment. We performed re-osteosynthesis using an absorbable mesh plate combined with a bone graft 18 days after the initial operation (Fig. 3B). Satisfactory bone healing was confirmed by radio­graphy at 3 months after the second ope­ration. No irritation of the skin was observed, with final follow-up at 55 months (Fig. 3C). The MP joint had a measured TAM of 20° and a thumb-index key pinch movement. The grip strength with a Smedley’s dynamometer was equivalent to 43 vs. 52 kg on the contralateral side. X-rays of the site showed some residue of the plate still remaining; however, this was uneventful (Fig. 3C).

Obr. 3. Radiographic evaluation (case 2).
A) Preoperative X-ray (posterior-anterior view), note the malalignment; B) postoperative X-ray (posterior-anterior view), note the restoration of the anatomical axis; C) postoperative X-ray (posterior-anterior view) at a 5-year follow-up.
Radiographic evaluation (case 2).  <br>
A) Preoperative X-ray (posterior-anterior
view), note the malalignment; B) postoperative X-ray (posterior-anterior view), note
the restoration of the anatomical axis; C) postoperative X-ray (posterior-anterior view)
at a 5-year follow-up.

Discussion

Absorbable mesh plates have been used for osteosynthesis of fractures of the hand, osteosynthesis in port-access cardiac surgery and fixation in Le Fort I osteotomy to date [5,10,11]. The μ-HA /PLLA composite provides several advantages over metallic implants, such as early osteoinductivity and bioactivity promoting final bone union. Furthermore, the mechanical strength of the absorbable mesh plate was higher than the conventional PLLA implants without HA [12] and further enhanced by bending the mesh plate. In addition, they are flexible, radiolucent, MRI compatible and they do not require secondary hardware removal. In our cases, the mesh plate maintained rigid mobilization until bone healing.

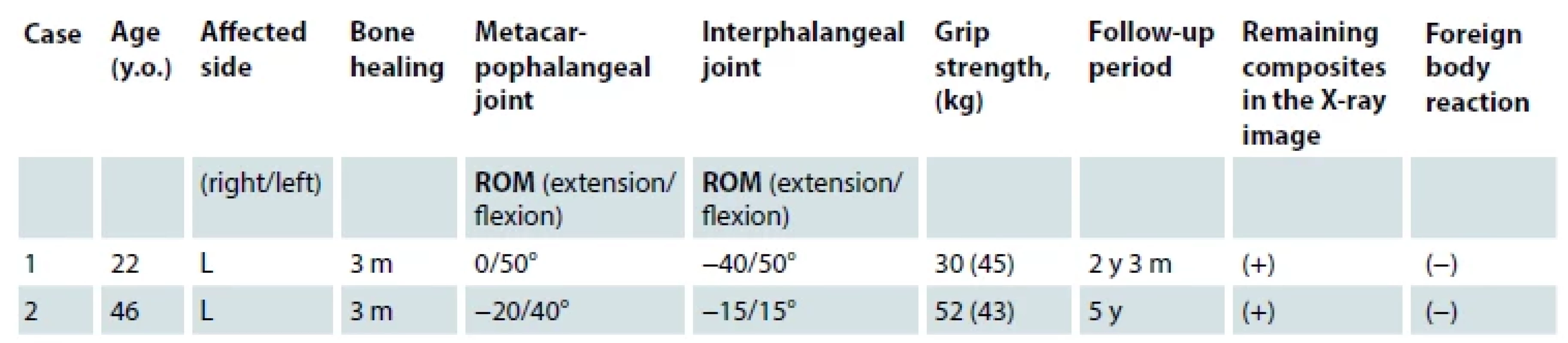

Tab. 1. Active range of motion and grip strength at final follow-up period.
Active range of motion and grip strength at final follow-up period.
m – months, ROM – range of motion, y – years, y.o. – year of operation

Previously, Jupiter et al reported that the plate or screw fixation for the nonunion of metacarpal and phalanges fractures united at a mean of 11.4 weeks after the surgery [13]. Although their report included metacarpal and other phalanges, the period for bone union in our cases was comparable to their report. Patankar et al utilized threaded external fixators for the atrophic nonunion of the proximal phalanx of the thumb and reported that they united within 5 months [14]. Our cases showed bone healing within 3 months, which was shorter than in their report. We speculatively attri­bute this to the fixation strength of the mesh plates.

Mesh plates have advantages compared to metallic implants. Firstly, they can be shaped to fit the anatomically reduced fractures and their varieties of the screw holes provide more choices than ready-made metal plate holes. Therefore, to insert screws around the meta­physeal and juxta-articular region or comminuted fractures, mesh plates are advantageous.

Secondly, they are thinner (0.7 mm thickness) than metallic plates of 1.0 mm thickness (VariAx hand locking system, Stryker, Freiberg, Germany) and of 0.75 mm thickness (Variable angle locking hand system, Depuy Synthes, Oberdorf, Switzerland); therefore, the associated risk of soft tissue irritation may belower. However, in case 1, the residual mesh plate caused irritation of the skin and needed to be removed. To avoid skin irritation, we suggest evaluation of the soft tissue condition before surgery. It should be noted that the size of the mesh plate is important as the total bio-absorption of the mesh plates requires considerable time. Kosugi et al reported the process of total bio-absorption required approximately 8 years in metacarpal fractures even though the speed of absorption depends on the location of surgical intervention [15].

We report here that absorbable mesh plate is practical for repairs of fractures to the basal phalanx of the thumb. Absorbable mesh plates could be a surgical alternative to treat fractures of the phalanx if an appropriate metallic plate is unavailable.

Roles of authors: Issei Nagura and Takako Kanatani conceived of the report and carried out this report. TK made major contributions to the writing of the manuscript. Atsuyuki Inui, Yutaka Mifune, Ryosuke Kuroda, and Stefano Lucchina participated in the design of the study. All authors read and approved the final manuscript.

Conflict of Interests: The authors declare that there is no conflict of interests regarding the publication of this paper.

Funding: The authors did not receive support for the submitted work from any organization.

Ethics approval and consent to participate: Approval was obtained from the ethics committee of our institution and this research was conducted in accordance with the Helsinki declaration. The consent for publication has been granted by both the patients.



Issei Nagura

Department of Orthopaedic Surgery

Ako City Hospital,

1090 Nakahiro

Ako, 678-0232

Japan

e-mail:surf-trip@ams.odn.ne.jp

Submitted: 15. 1. 2023

Accepted: 17. 3. 2023

Nagura I, Kanatani T, Inui A et al. Clinical outcomes of absorbable plates (hydroxyapatite-poly-l-lactide composites) for phalangeal fractures – case reports. Acta
Chir Plast 2023; 65(1): 37–40.


Zdroje

1. Freeland AE., Geissler WB., Weiss AP. Surgical treatment of common displaced an unstable fractures of the hand. Instr Course Lect. 2002, 51: 185–201.

2. Bruser P., Krein R., Larkin G. Fixation of metacarpal fractures using absorbable hemi-cerclage sutures. J Hand Surg Br. 1999, 24(6): 683–687.

3. Larkin G., Bruser P., Safi A. Possibilities and limits of intramedullary Kirschner wire osteosynthesis in treatment of metacarpal fractures. Handchir Mikrochir Plast Chir. 1997, 29(4): 192–196.

4. Kumta SM., Spinner R., Leung PC. Absorbable intramedullary implants for hand fractures. Animal experiments and clinical trial. J Bone Joint Surg Br. 1992, 74(4): 563–566.

5. Sakai A., Oshige T., Zenke Y., et al. Mechanical comparison of novel bioabsorbable plates with titanium plate and small-series clinical comparisons for metacarpal fractures. J Bone Joint Surg Am. 2012, 94(17): 1597–1604.

6. Shikinami Y., Matsusue Y., Nakamura T. The complete process of bioresorption and bone replacement using devices made of forged composites of raw hydroxyapatite particles/poly l-lactide(F-μHA/PLLA). Biomaterials. 2005, 26(27): 5542–5551.

7. Singh V., Kshirsagar R., Halli R., et al. Exvaluation of bioresorable plates in condylar fracture fixation: a case series. Int J Oral Maxillofac Surg. 2013, 42(12): 1503–1505.

8. Kamata M., Sakamoto Y., Kishi K. Foreign-boy reaction to bioabsorbable plate and screw in craniofacial surgery. J Craniofac Surgery. 2019, 30(1): e34–e36.

9. Osawa S., Hashikawa K., Naruse H., et al. Clinical evaluation of unsintered hydroxyapatite particles/poly L-lactide composite device in craniofacial surgery. J Craniofac Surg. 2021, 32(6): 2148–2151.

10. Ito T., Kudo M., Yozu R. Usefulness of osteosynthesis device made of hydroxyapatite-poly-L-lactide composites in port-access cardiac surgery. Ann Thorac Surg. 2008, 86(6): 1905–1908.

11. Ueki K., Miyazaki M., Okabe K., et al. Assessment of bone healing after Le Fort I osteotomy with 3-dimensional computed tomography. J Craniomaxillofac Surg. 2011, 39(4): 237–243.

12. Shikinami Y., Okuno M. Bioresorbable devices made of forged composites of hydroxyapatite (HA) particles and poly-L-lactide (PLLA): part I. Basic characteristics. Biomaterials. 1999, 20(9): 859–877.

13. Jupiter JB., Koniuch MP., Smith RJ. The man­agement of delayed union and nonunion of the metacarpals and phalanges. J Hand Surg Am. 1985, 10(4): 457–466.

14. Patankar H, Patwardhan D. Nonunion in a fracture of the proximal phalanx of the thumb. J Orthop Trauma. 2000, 14(3): 219–222.

15. Kosugi K., Zenke Y., Tajima T., et al. Long-term outcomes of metacarpal fractures surgically treat­­ed using bioabsorbable plates: a retrospective study. BMC Musculoskelt Disord. 2020, 21(1): 817.
