Influence of formulation and process parameters on the properties of Cu²⁺/alginate particles prepared by external ionic gelation evaluated by principal component analysis

Overview

Currently, the method of external ionic gelation for the preparation of alginate particles is successfully used not only in the field of pharmacy and medicine, but also especially in the field of biotechnology. Therefore, the preparation of alginate particles and their subsequent evaluation using principal component analysis was the key task of our experiment. To optimize this method, we focused on the evaluation of the effect of formulation (the polymer concentration, the hardening solution concentration) and process parameters (the outer diameter of the injection needle) on the properties of the resulting beads (yield, sphericity factor, equivalent diameter and swelling capacity at pH 6). Using multivariate data analysis, the major influence on the resulting properties of the prepared particles was confirmed only in sodium alginate concentration. Obtained results verified the reliable and safe potential of the external ionic gelation for preparation alginate-based particulate dosage forms.

Keywords:

hydrogel particles – external ionic gelation – sodium alginate – copper ions – evaluation of the particulate dosage form – Principal component analysis

Introduction

External ionic gelation method is a widely employed technique for the formation of hydrogel beads. It belongs among promising tools in the development of novel biocompatible sustained and targeted controlled drug delivery systems, mainly due to its indisputable advantages, such as nontoxic process without using organic solvents, convenient and controllable procedure¹⁾. This technique is based on the cross-linking tendency of polyelectrolytes in the presence of polyvalent ions to form hydrogels^2–4), when physical (electrostatic) forces between the poly­electrolyte and the present polyvalent ions are formed⁵⁾.

During external ionic gelation, the polymer solution is extruded as drops into a hardening bath containing polyvalent ions, which immediately diffuse inward into the interstitial spaces between the alginate polymer chains to initiate cross-linking at the periphery of the polymer drop. A semisolid membrane encasing the drop is formed⁶⁾. Subsequent leaving of the drops in the hardening solution for a certain time period allows further diffusion of ions across the membrane via a concentration gradient. After saturation of available binding sites, resulting beads are formed as three dimensional, water-insoluble gel network^{7, 8)}, with a higher concentration of ions at the periphery compared to the centre of the gel⁹⁾.

The type and molecular weight of the polymer, surface tension and viscosity of the polymer solution, the type and concentration of the hardening solution (as formulation parameters) as well as temperature, hardening time, stirring intensity, the diameter of the drip device (as process parameters), all affect the resulting particle structure and their properties^{10, 11)}.

Alginates as naturally occurring anionic polyelectrolytes belong among the most commonly used polymers in the formation of hydrogel beads by external ionic gelation, especially due to their biocompatibility, biodegradability, low toxicity, vast availability, relatively low cost, and mild gelation^{12, 13)}. Commercially available alginates are typically extracted from brown seaweed (Phaeophyceae), including species Laminaria, Ascophyllum and Macrocystis. Bacterial alginates can be produced from Azotobacter and Pseudomonas species but these extraction methods are not economically viable for commercial applications^{14, 15)}.

Chemically, alginates are a family of linear unbranched polysaccharides which contain varying amounts of 1,4′-linked β-D-mannuronic acid (M) and α-L-guluronic acid (G) residues. The residues may vary widely in composition and sequence and are arranged in a pattern of blocks along the chain as homogenous (poly-G, poly-M) or heterogeneous (MG) block-like patterns^{16, 17)}. The M/G ratio is a critical factor affecting the physical properties of the alginate and its resulting hydrogels¹⁴⁾. The affinity of different block structures of the alginate to polyvalent ions increases in the order of Mg²⁺ << Mn²⁺ < Zn²⁺ < Ca²⁺ < Sr²⁺ < Ba²⁺ < Cu²⁺ < Pb²⁺ ions^18–21). In general, it can be said that divalent cations preferentially bind toward the G-block rather than the M-block^{7, 22)}. However, in a more detailed study by Mørch et al. it has been found that Sr²⁺ ions are preferentially bound to the G-units, Ba²⁺ ions are bound to G- and M-blocks and Ca²⁺ are bound to G- and MG-blocks¹⁹⁾.

The binding properties of the Cu²⁺ ions used in our study have been extensively investigated by researchers Lu et al. They have determined that no preference between M/G units exists in the formation of Cu²⁺ complexes with the alginate²³⁾. Moreover, the copper-alginate affinity is so strong that the outermost part of the beads is strongly complexed and the created outercoat partially prevents further diffusion of the Cu²⁺ ions toward the beads centre. Copper beads so develop a dense outer layer and they seem to lack Cu²⁺ ions in the centre^{24, 25)}.

The gel-forming property of sodium alginate, as well as its apparent biocompatibility^{14, 26)}, leads to an increased use in the medical, pharmaceutical and biotechnology industries. The alginate is employed for applications such as wound dressings²⁷⁾, gel matrix to encapsulate and to control the release of drugs including protein-based substances or as matrices for tissue engineering^{12, 14, 26, 28, 29)}.

The method of external ion gelation, especially when using polyvalent ions with antimicrobial and/or antiviral activity, provides a unique possibility to prepare a medical form with a biological activity without the need of drug encapsulation³⁰⁾. For instance, antimicrobial effects of copper have been known and used by humans since ancient times³¹⁾. Therefore, its entrapment in the alginate network can provide a simple and effective way of treatment of vaginal or eye infections³⁰⁾.

The main objective of the presented study was to observe and evaluate the effect of several process and formulation parameters on the technological properties of Cu²⁺/alginate particles prepared by the ion external gelation method. An influence of needle diameter, polymer concentration and hardening solution concentration on the main important characteristics of prepared particles such as the yield, sphericity, equivalent diameter, swelling capacity were measured and investigated by principal component analysis.

Experimental part

Materials

Sodium alginate – SA (Sigma Aldrich, St. Louis, USA) served as the polymer for the particle preparation, copper (II) chloride (Sigma Aldrich, St. Louis, USA) was used as the gelation agent. Sodium hydroxide and potassium dihydrogen phosphate (both Dr. Kulich Pharma, Hradec Králové, Czech Republic) were used for the formation of pH 6.0 phosphate buffer. All materials were of Ph. Eur. quality.

Microparticle preparation

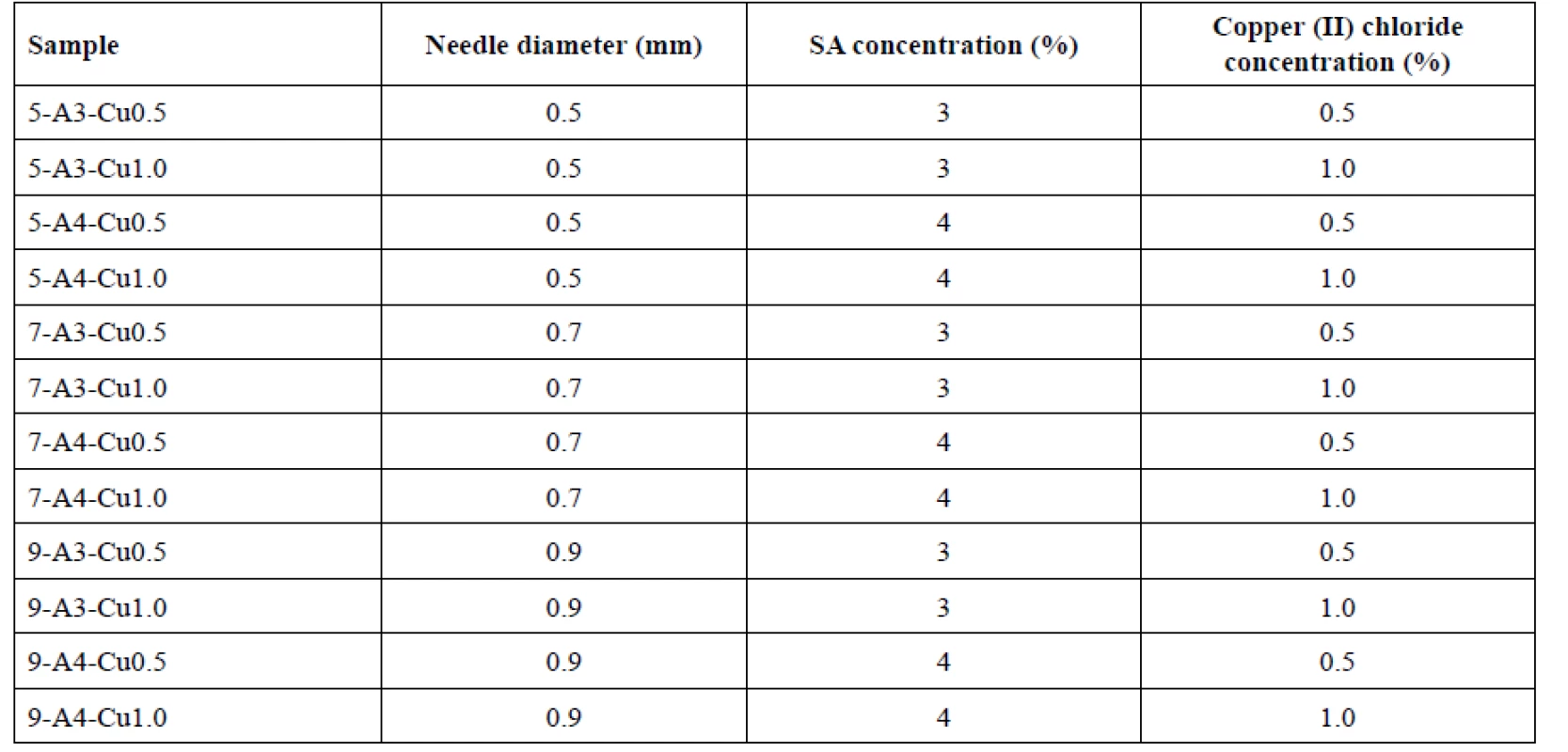

Beads were prepared by the external ionic gelation method. For each sample 100 g of sodium alginate solution (3% or 4%) was filled in a syringe with an appropriate needle (diameter 0.5, 0.7 or 0.9 mm) and they were added dropwise, using a linear dispenser pump NE-1000 (New Era Pump System, Farmingdale, NY, USA), to a hardening solution of copper (II) chloride (0.5M or 1M concentration) in Petri dishes, which were placed on a rotating pad to prevent deformation of the beads by constantly dripping to the same place. Here the crosslinking and hardening process took place. The injection needle tip distance from the surface of the curing solution was approximately 10 cm. Hardening time was 60 minutes. Thereafter, formed beads were washed with purified water, collected by filtration and then dried in a cabinet drier (HORO-048B, Dr. Hofmann GmbH, Ostfildern, Germany) for 12 hours at 25 °C. Samples were named accordingly to the parameter values used for their preparation (see Table 1).

Microparticle characteristics

Yield

Effectiveness of the process was evaluated by yield. Dried samples were weighed on an analytical scales KERN 440-47N (KERN & SohnGmbH, Balingen, Germany). The yield was expressed as the weight of dry beads in grams obtained by dropping of 100 g of polymer solution (g/100 g).

Optical microscopy

To determine the morphology of the prepared beads, a stereoscopic microscope Nikon SMZ 1500 (Nikon, Tokyo, Japan) with a photo camera TV Lens 0.55xDS (Nikon, Tokyo, Japan) was employed. Beads were observed by a 0.75 objective. For each sample 200 random particles were measured using the threshold method in software NIS-Elements 4.00.06 (Nikon, Tokyo, Japan). The evaluated morphological properties included the sphericity factor (SF)³²⁾:

where A is a particle area in mm² and p is perimeter in mm. Another determined property was the equivalent diameter (ED), which gives the diameter of a circle which has the same area as the observed object³²⁾:

ED and SF were calculated from the measured values and expressed as the arithmetic mean and standard deviation.

Swelling capacity

Swelling capacity (S_SW) belongs among physical factors which may influence mucoadhesivity and drug release from dosage forms³⁴⁾. Every sample was tested for swelling capacity in pH 6.0 phosphate buffer. 100 mg of particles were placed into small pre-weighed metal baskets and then immersed into the buffer. In pre-determined intervals (30 minutes, 1, 2, 3, 4, 5 and 6 hours), baskets were picked up, properly dried from the outside and weighed on analytical scales. Each sample was measured in triplicate. Swelling capacity was calculated from the following equation³⁾:

where Wt is the weight of beads in grams at the respective time interval, Wo is the weight of beads in grams before the first immersion³⁵⁾.

Data analysis

The primary goal of the data analysis was a study of the dependencies between formulation/process parameters and Cu²⁺/alginate particles properties. In order to determine statistical significance of these effects, the data were evaluated by means of analysis of variance (ANOVA) and for a better dependency visualization, the data were subsequently subjected to the principal component analysis (PCA). The p-values obtained by ANOVA are given in the parentheses for the discussed characteristics in the section Results and discussion, but only in the cases where statistical significance was confirmed (p < 0.05). The resulting PCA model was built based on the variables: yield, sphericity, equivalent diameter and swelling capacity at 6 h. The swelling capacities at all-time points were highly correlated, so redundant variables were excluded from the calculations. Data analysis was performed by means of the R software, version 3.4.4.³⁶⁾.

Results and discussion

Influence of needle diameter

Effect on yield

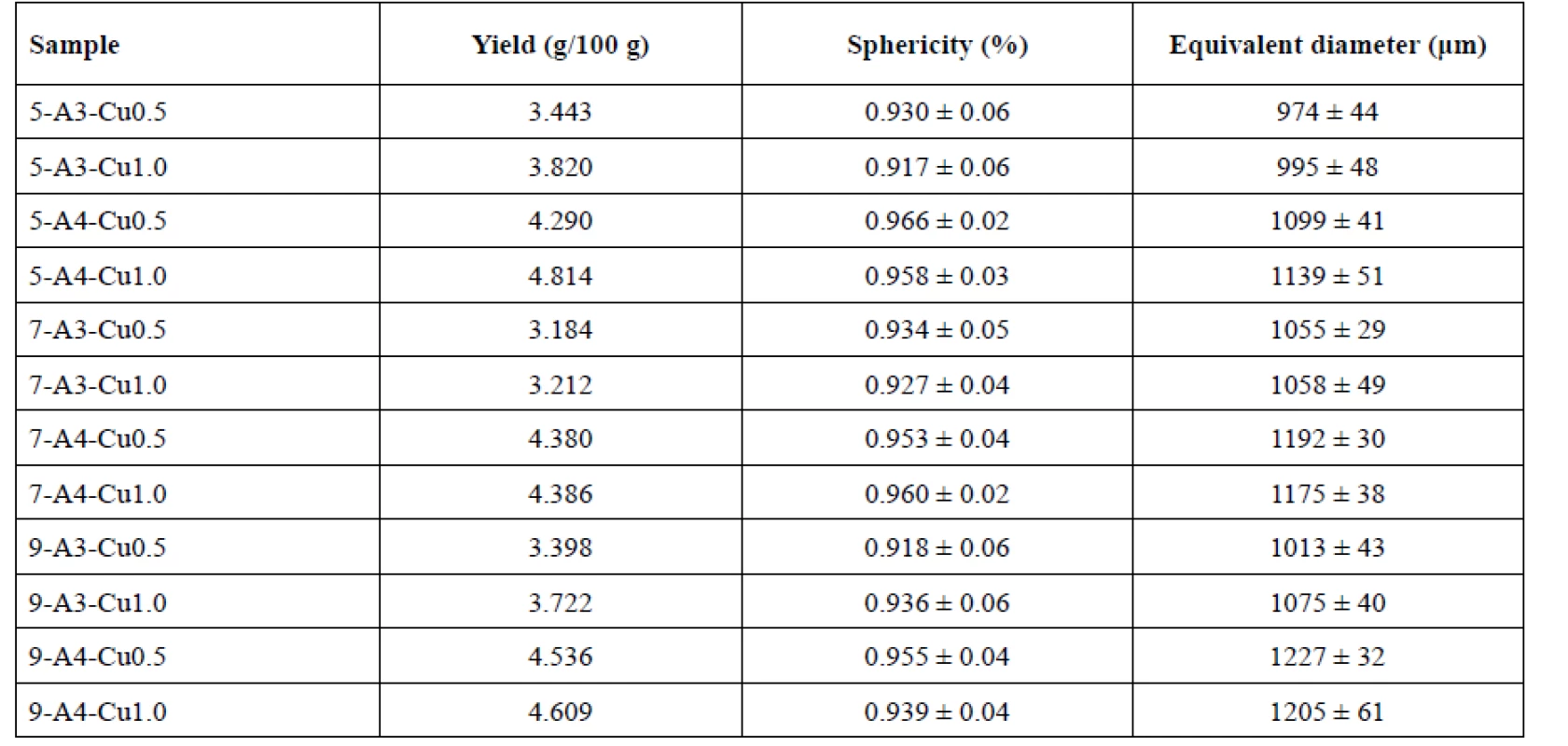

Influence of the needle diameter on the sample yields is displayed in Table 2. The sample yields prepared using 0.5 mm, 0.7 mm and 0.9 mm injection needles were in the range from 3.443 to 4.814 g/100 g, 3.184 to 4.386 g/100 g and 3.398 to 4.609 g/100 g, respectively. No dependence between the yield and the outside diameter of the used needle was found.

Effect on sphericity

Many studies have confirmed an impact of the needle size on the beads sphericity, specifically, that smaller and more spherical particles are formed using a smaller diameter syringe^{11, 37, 38)}. However, the aforementioned dependence has not been verified by our investigation, but the appropriate sphericity of all samples with minimal differences has been shown. The highest sphericity (0.966 ± 0.02) was shown in sample 5-A4-Cu0.5. The order of the rest of the samples was as follows: 7-A4-Cu1.0, 5-A4-Cu1.0, 9-A4-Cu0.5 and 7-A4-Cu0.5 with the sphericity values of 0.960 ± 0.02, 0.958 ± 0.03, 0.955 ± 0.04 and 0.953 ± 0.04, respectively (see Table 2).

Effect on equivalent diameter

The beads prepared using a 0.5 mm diameter needle showed the smallest equivalent diameter, namely samples 5-A3-Cu0.5 and 5-A3-Cu1.0 (974 ± 44 μm, 995 ± 48 μm). Conversely, the largest particles were prepared using a 0.9 mm needle, namely samples 9-A4-Cu0.5, 9-A4-Cu1.0 (1227 ± 32 μm, 1205 ± 61 μm). These results showed a slight increase in particle size, depending on the needle diameter (p < 0.001). However, A3-Cu0.5 sample was an exception. This sample prepared with the use of a 0.9 mm needle (1013 ± 43 μm) provided smaller beads than with the use of 0.7 mm needle (1055 ± 29 μm)
(Table 2) which could be caused by some random influences, such as human factor failure. The theories^{11, 37, 39, 40)} about the dependence of the size syringe tip diameter on the drop size formation and subsequently on the size of the resulting beads have not been thus fully confirmed.

Effect on swelling capacity

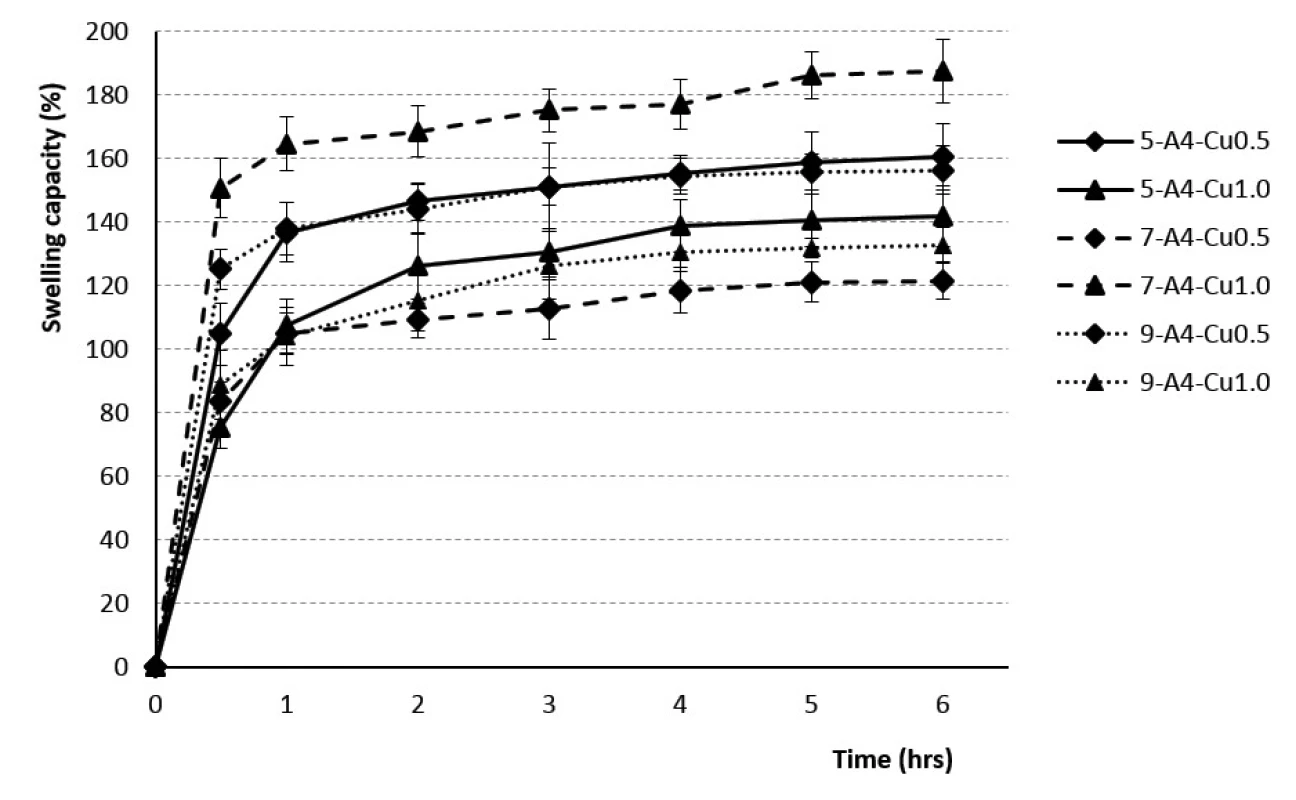

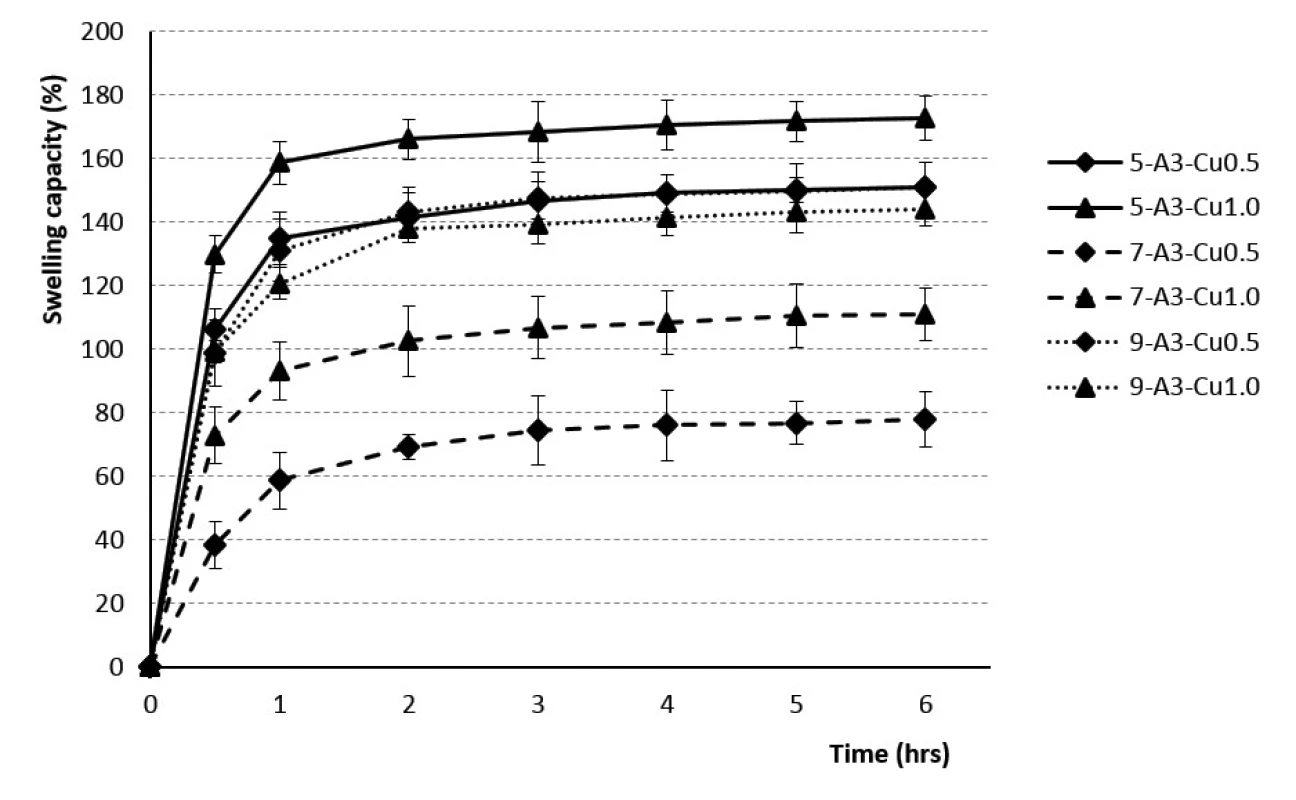

The beads dripped through a 0.5 mm injection syringe had the swelling capacity in the range of 76–130% after 30 minutes and 107–159% after 1 hour. The swelling of the samples obtained with a 0.7 mm injection needle was in the range of 38–151% (after 30 minutes) and 59 to 165% (after 1 hour). Swelling capacity of the samples prepared by using a 0.9 mm outer diameter injection needle ranged from 89 to 125% after 30 minutes, and 104 to 138% after 1 hour. Within next 5 hours, the swelling capacity increased, but significantly less, only about 20–30% (see Figs. 1, 2). No correlation between the outer diameter of the injection needle and the swelling of individual samples has been found.

Influence of sodium alginate concentration

Effect on yield

The yields of beads prepared using 3% and 4% SA solutions were in the range from 3.184–3.820 g/100 g and 4.290–4.814 g/100 g. When comparing the corresponding samples in Table 2 (samples prepared using the same hardening solution concentration and the same size of needle diameter), it is obvious that the yields of individual samples statistically significantly depended on the SA concentration (p < 0.001). Specifically, the higher yields were achieved using more concentrated solution of alginates, which is consistent with the experimental study of Aswathy et al.⁴¹⁾. The explanation could be seen in a higher number of binding sites for crosslinking by polyvalent ions in the higher-concentrated SA solution resulting in an increase in the process yield.

Effect on sphericity

The SA concentration exhibited a major influence on the sphericity of all samples (p < 0.001). All 4% samples showed higher sphericity values than the 3% samples (see Table 2). Our investigation has confirmed the theories of many researchers^{42, 43)} about an increase in bead sphericity in dependence on rising polymer solution concentrations. At a low SA concentration, the particles are formed of a loose networks structure which may collapse during drying. On the other hand, a higher SA concentration creates a denser matrix structure which prevents collapse of the beads^{42, 44)} and the resulting beads are more spherical. In addition, when the alginate liquid drop hits and enters the hardening bath, there are competing forces between the viscous surface tension forces and impact-drag forces to maintain the drop shape. However, the viscosity of the low-concentration SA solutions is not sufficient to cope with impact, resulting in bead deformation⁴⁵⁾.

Effect on equivalent diameter

Equivalent diameter of beads was in the range of 974 ± 44 μm (5-A3-Cu0.5) to 1075 ± 40 μm (9-A3-Cu1.0) for 3% SA samples and between 1099 ± 41 μm (5-A4--Cu0.5) and 1227 ± 32 μm (9-A4-Cu0.5) for 4% samples (see Table 2). Overall, in samples prepared with the same needle outer diameter, our results showed that all samples prepared from the 4% SA solution were larger in size compared to the 3% solution (p < 0.001). This could be attributed to an increase in relative viscosity at higher concentration of SA and formation of large droplets during dripping of polymer solution to the hardening bath^{42, 43, 46–48)}.

Effect on swelling capacity

The rate of swelling capacity was not dependent on the polymer concentration used. The swelling capacity was found to be the highest during the first hour, with the minimum value for the sample 7-A3-Cu0.5 (60%) and the maximum one for the sample 7-A4-Cu1.0 (168%). Consequently, during the next five hours, the swelling capacity changed less significantly, the batch 7-A3-Cu0.5 swelled up to 79% and the batch 7-A4-Cu1.0 up to 192% (see Figs. 1, 2). Our research did not confirm the findings reported by the majority of investigators about the dependence of the swelling extent on the SA concentration, which demonstrated that the beads prepared using the 4% SA polymeric solution exhibited a slower swelling rate than the more porous beads prepared with low-concentration 3% SA solu­tion^{43, 47, 49, 50)}. Our results, indicating statistical insignificancy, were probably due to the unequal drying of the extracted baskets from the phosphate buffer during the test performance.

Influence of hardening solution concentration

Effect on yield

In samples prepared from the 3% SA solution and 0.5M hardening solutions, the yields took values from 3.184 to 3.433 g/100 g and in samples cross-linked with 1M hardening solution the values ranged from 3.212 to
3.820 g/100 g. Likewise, in the 4% samples cross-linked by 1M solution, the yield was slightly higher (see Table 2). Based on our experiment, it can be said that the yield of the samples increased with increasing concentrations of the hardening solution, but with no statistical insignificance. An explanation could be the following one: using a larger amount of Cu²⁺ ions provides a possibility of creating more electrostatic bonds within the crosslinking of the alginate polymer chains. Ultimately, there is a smaller loss of alginate within external ionic gelation process.

Effect on sphericity

In our experiment, the beads sphericity dependence on the concentration of the hardening solution has not been demonstrated. The sphericity factor randomly grew and fell with increasing concentration of the hardening solution (see Table 2). Our results do not correspond with many other studies, which has confirmed the tendency to creation of the more spherical particles with their uniform size depending on the rising concentration of hardening solution⁴²⁾.

Effect on equivalent diameter

Based on previous researches^{46, 51)}, we expected that an increase in cross-linking ion concentration would significantly affect the mean diameter of the beads. However, our results were as follows: for the beads prepared from the 3% SA solution (using diameter needles of 0.5, 0.7 and 0.9 mm) and for the beads from 4% SA (using only a 0.5 mm needle), the equivalent diameter was smaller when the 0.5M hardening solution was used. Conversely, the beads prepared from 4% SA (using a 0.7 and 0.9 mm needle), the equivalent diameter was lower when we used the 1M hardening solution (see Table 2). An impact of hardening solution concentration on the beads equivalent diameter was confirmed (p < 0.001).

Effect on swelling capacity

The dependence of the swelling rate on the concentration of the hardening solution has not been demonstrated. The results within the corresponding samples were discrepant. Samples from 3% SA prepared using 0.5 mm and 0.7 mm diameter needles showed a higher swelling capacity when the beads were cross-linked by 1M solu­tion CuCl₂. 3% SA samples prepared with a 0.9 mm needle showed higher swelling when the 0.5M hardening solution was used for crosslinking. The samples from 4% SA exhibited similar behavior (see Figs. 1, 2). Despite the research which showed that the swelling capacity decreased with an increase in divalent ions concentration, dependence of swelling capacity on the crosslinking ion concentration has not confirmed in our study⁴⁷⁾.

Multivariate data analysis

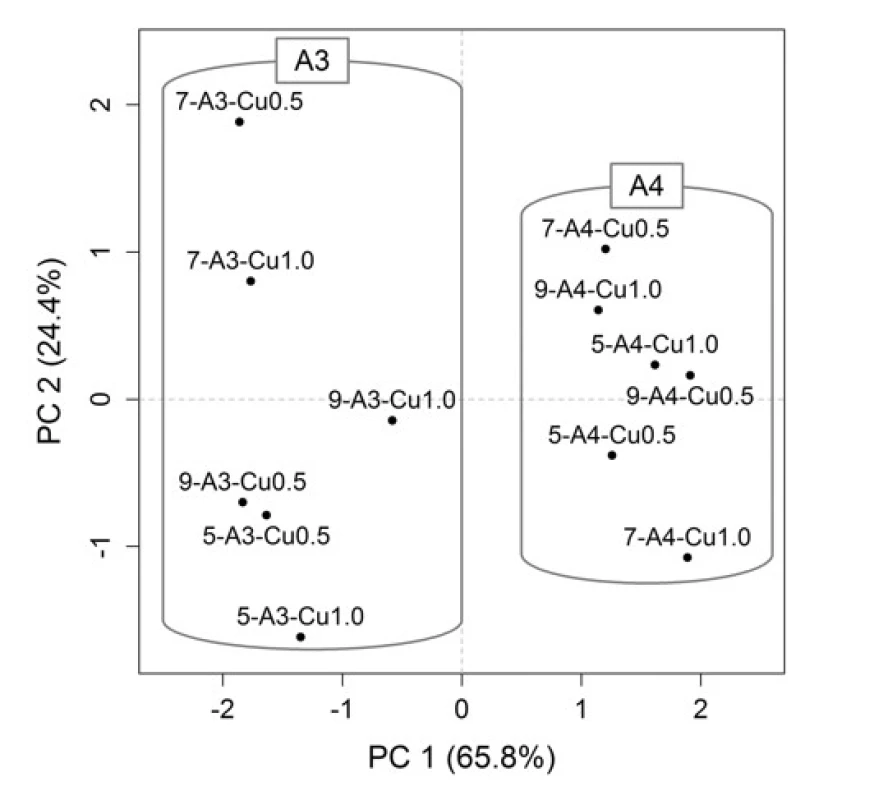

For a better representation of the relationships between the variables (formulation / process parameters) themselves and between the variables and objects (Cu²⁺/alginate particles properties), the PCA method was employed. Graphical representation is provided by the PCA loadings plot (Fig. 3), which displays the correlation structure of variables, and the PCA scores plot (Fig. 4), which displays the layout of objects. In the loadings plot, original variables are depicted as arrows in the ordination space of the first two principal components (PCs), their lengths are directly proportional to the explained variability and the amount of correlation can be interpreted based on the angle between any two arrows. In the scores plot, the samples with similar characteristics are closely spaced, while different samples are far apart from each other.

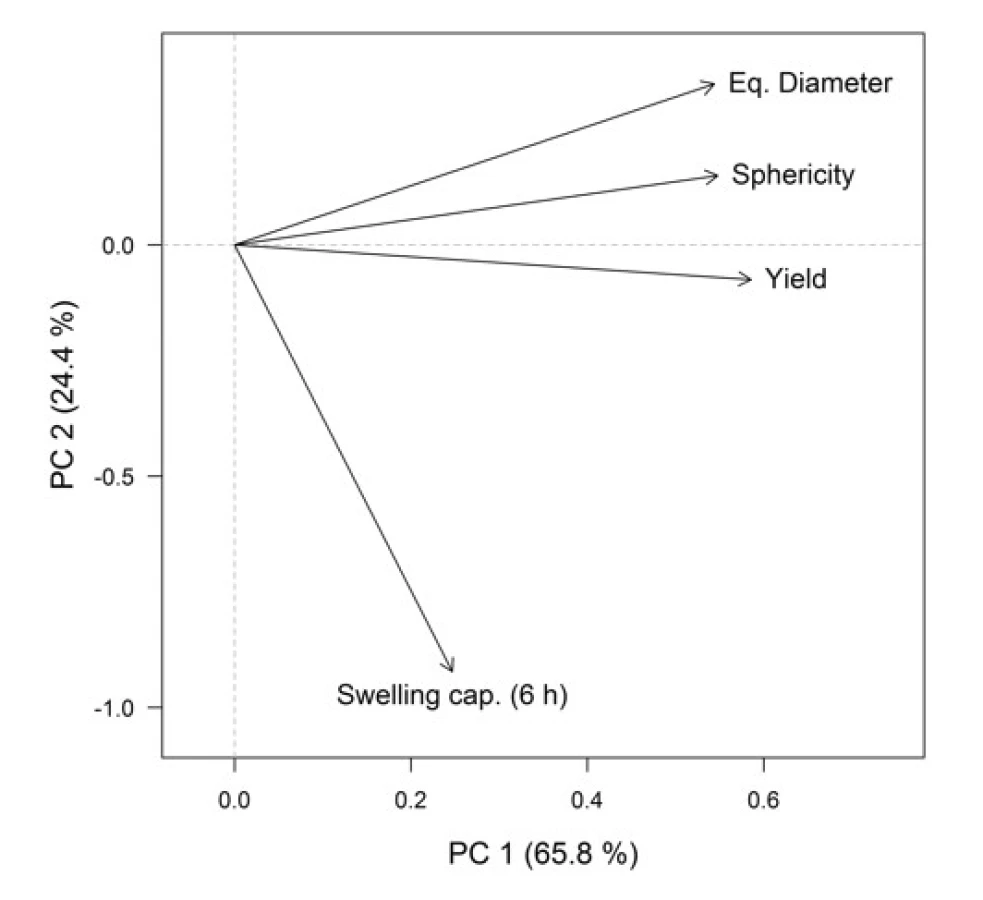

In the resulting model, the first two PCs explained 90.2% of variability, which is a sufficient amount to provide a reliable data interpretation (52). The relatively high positive correlation of equivalent diameter, sphericity and yields is obvious in the PCA loadings plot. These variables also correlated with the PC1. Swelling capacity at the time point 6 h was more associated with the PC2. In the PCA scores plot, the samples distribution along the PC1 is evident, clustering into two groups is based on SA concentration, which is also highlighted in the graph. When comparing the PCA graphical outputs (Figs. 3 and 4), it can be summarized that samples with a higher SA concentration exhibited a higher equivalent diameter, as well as higher sphericity and yield. Within both groups (A3 and A4), the samples differed mainly on the basis of swelling capacity, but without apparent statistical relationships with other variables. So the effects of varying needle diameter in conjunction with hardening solution concentration on the resulting particles properties cannot be unambiguously discussed.

Conclusion

The external ionic gelation resulted in the formation of all Cu²⁺/alginate particle samples with satisfactory properties. Their morphological parameters (ED, SF) as well as the enormous ability to swell in the environment of pH 6 were convenient, without a significant influence of most of our tested parameters. Based on multivariate data analysis results, it can be concluded that SA concentration was the only factor which fundamentally influenced the resulting properties of the prepared Cu²⁺/alginate particle. Therefore, our results have confirmed external ionic gelation as a safe, reliable and robust method for Cu²⁺/alginate beads. Despite a relatively wide variability of the input parameters, it resulted in the creation of beads with well-defined characteristics with a potential use for a development of a convenient particulate dosage form suitable either for drug encapsulation or for its own use due to the antimicrobial effect of copper.

Acknowledgement

This work was supported by the Ministry of Education, Youth and Sports project “FIT” (Pharmacology, Immunotherapy, nanoToxicology) CZ.02.1.01/0.0/0.0/15 003/0000495 and by the Ministry of Agriculture of the Czech Republic, institutional support MZE-R00518.

Conflicts of interest: none.

Department of Pharmaceutics, Faculty of Pharmacy

University of Veterinary and Pharmaceutical Sciences Brno

Palackého 1, 612 42 Brno, Czech Republic

e-mail: jakub.vyslouzil@gmail.com

*Department of Pharmacology and Immunotherapy, Veterinary Research Institute
